Starter Motor: Notes

Fig 1: Starter Motor Components With Torque Specification (1 Of 2)

GF0045712

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	7E395	Transmission shift cable adjustment lock
2	7H181	Transmission shift cable rotating slide snap
3	W520103	Transmission manual control lever nut
4	7A257	Transmission manual control lever

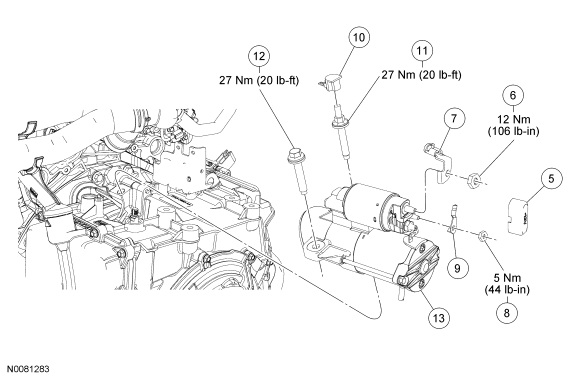

Fig 2: Starter Motor Components With Torque Specifications (2 Of 2)

GF0045713

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
5	11N087	Starter motor solenoid battery cable terminal cover
6	W706414	Starter motor solenoid battery cable nut
7	14463	Starter motor solenoid battery cable (part of 14B060)
8	N805320	Starter motor solenoid wire nut
9	14463	Starter motor solenoid wire (part of 14B060)
10	13A506	Wire harness retainer (part of 14B060)
11	W711515	Starter motor stud bolt
12	W503320	Starter motor bolt
13	11000	Starter motor
