Air Conditioning (A/C) Compressor: Notes
WARNING: This page is about a different car, the 2008 Mercury Sable, 2008 Ford Taurus X, and 2008 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| PAG Refrigerant Compressor Oil (R-134a Systems) YN-12-D |
WSH-M1C231-B |

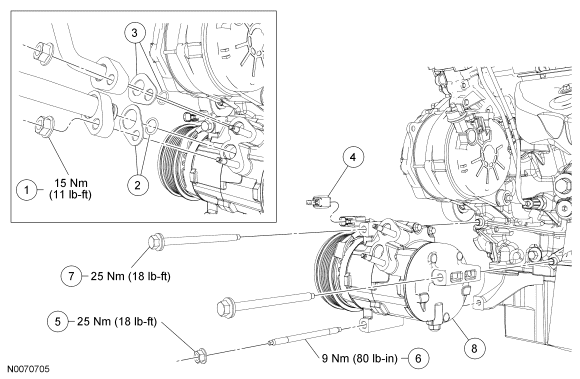

| Item | Part Number | Description |
|---|---|---|
| 1 | W520413 | A/C compressor fitting nut (suction and discharge) (2 required) |
| 2 | 19B596 | Gasket and O-ring seal kit |
| 3 | 19B596 | Gasket and O-ring seal kit |
| 4 | - | A/C clutch field coil electrical connector (part of 12B637) |
| 5 | W520413 | A/C compressor nut |
| 6 | W712610 | A/C compressor mounting stud |
| 7 | W712611 | A/C compressor bolt (2 required) |
| 8 | 19703 | A/C compressor |
