Compressor to Condenser Discharge Line: Notes
WARNING: This page is about a different car, the 2008 Mercury Sable, 2008 Ford Taurus X, and 2008 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| PAG Refrigerant Compressor Oil (R-134a Systems) YN-12-D |
WSH-M1C231-B |

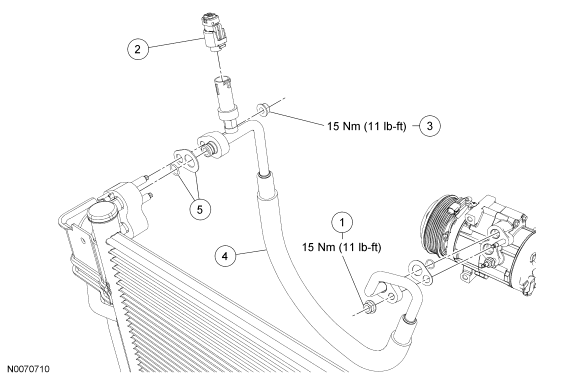

| Item | Part Number | Description |
|---|---|---|
| 1 | W520413 | A/C compressor discharge fitting nut |
| 2 | - | A/C pressure transducer electrical connector (part of 14290) |
| 3 | W520413 | Condenser inlet fitting nut |
| 4 | 19D734 | Compressor-to-condenser discharge line |
| 5 | 19B596 | O-ring seal and gasket seal kit (2 required) |
