Multifunction switch: Schematic
WARNING:
This page is about a different car, the 2009 Mercury Grand Marquis and 2009 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

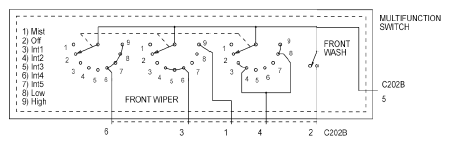

Fig 1: Multifunction Switch Schematic

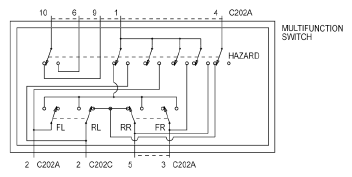

Fig 1: Multifunction Switch Schematic
Fig 1: Multifunction Switch Schematic
