Safety Belt Retractor - Third Row, Outboard, Taurus X: Notes

NOTE: LH shown in illustration, RH similar.

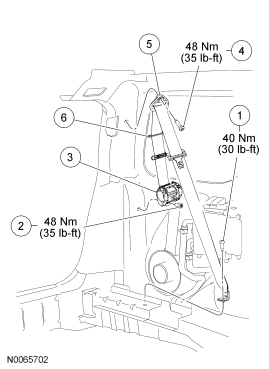

Fig 1: Safety Belt Retractor With Torque Specifications - Third Row, Outboard, Taurus X

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W504775	Third row safety belt anchor bolt
2	N807750	Third row safety belt retractor bolt
3	612C17	Third row safety belt retractor
4	-	Third row safety belt D-ring bolt
5	-	D-ring (part of 612C17)
6	-	Secondary safety belt guide (part of 612C17)
