Power Steering Control Valve Actuator: Notes
SPECIAL TOOLS
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Power Steering Belt Removal Tool | 303-1252/1 | |
| Power Steering Belt Installation Tool | 303-1252/2 |
MATERIAL
| Item | Specification |
|---|---|
| MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada) |
MERCON® V |

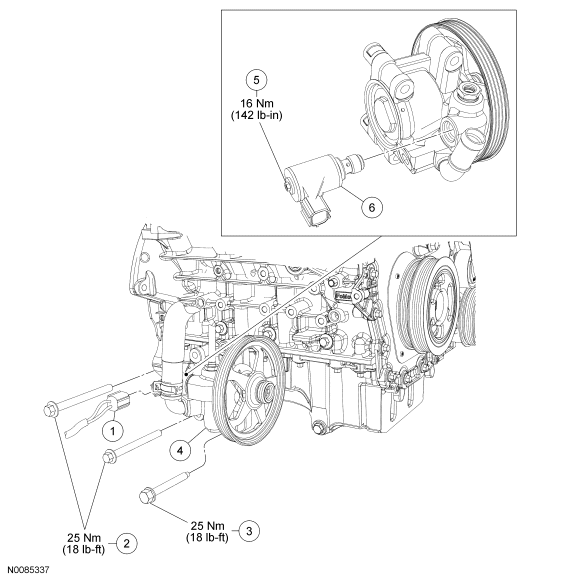

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Power steering control valve actuator electrical connector (part of 14B060) |
| 2 | W704752 | Power steering pump bolts |
| 3 | W702504 | Power steering pump bolt |
| 4 | 3A674 | Power steering pump |
| 5 | - | Power steering control valve actuator bolt (part of 3783) |
| 6 | 3783 | Power steering control valve actuator |
