Power Steering Pump: Notes
SPECIAL TOOLS
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Installer Set, Teflon® Seal | 211-D027 (D90P-3517-A) or equivalent | |
| Power Steering Belt Removal Tool | 303-1252/1 | |
| Power Steering Belt Installation Tool | 303-1252/2 |
MATERIAL
| Item | Specification |
|---|---|
| MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada) |
MERCON® V |

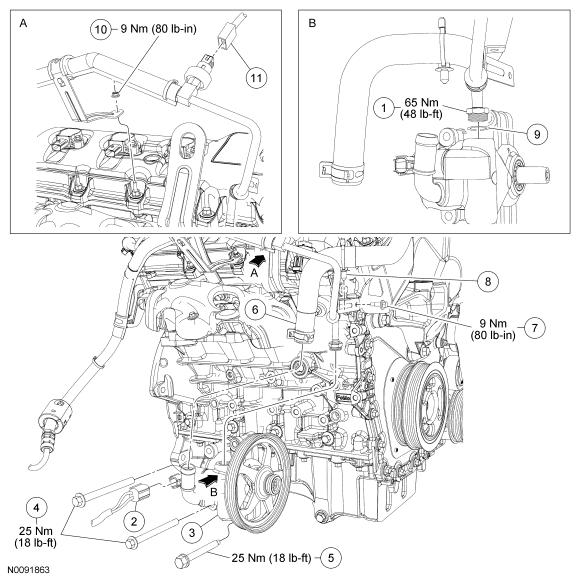

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Pressure line fitting-to-power steering pump (part of 3A719) |
| 2 | - | Fuel Efficient Power Steering (FEPS) solenoid electrical connector (part of 14B060) |
| 3 | 3A674 | Power steering pump |
| 4 | W704752 | Power steering pump bolts |
| 5 | W702504 | Power steering pump bolt |
| 6 | 3E525 | Power steering fluid reservoir-to-pump supply hose |
| 7 | W506412 | Pressure line bracket-to-engine bolt |
| 8 | - | Power steering fluid reservoir-to-pump supply hose retainer (part of 3E525) |
| 9 | 388898 | Pressure line Teflon® seal |
| 10 | W520100 | Pressure line bracket-to-valve cover stud nut |
| 11 | - | Power steering pressure (PSP) switch electrical connector (part of 14B060) |
