Selector Lever Bezel: Installation

All vehicles

NOTE: Do not lock the 4 selector lever bezel tabs in the selector lever bezel.
1. Position the selector lever bezel on the selector lever.

Vehicles equipped with a TC switch

2. Route the TC switch wiring harness through the selector lever bezel and connect the TC switch electrical connector.
Fig 1: Identifying Connector
Courtesy of FORD MOTOR CO.

All vehicles

3. Install the selector lever bezel light in the selector lever bezel.
Fig 2: Locating Light From PRNDL Bezel
Courtesy of FORD MOTOR CO.
NOTE: Selector lever removed for clarity.
4. Position the selector lever bezel in place.
   • Be sure the 4 tabs are locked in place.

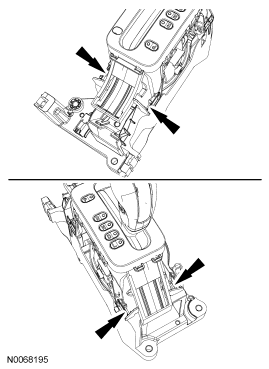

Fig 3: Identifying Tabs
Courtesy of FORD MOTOR CO.

Vehicles not equipped with a TC switch

5. Position the selector lever knob bezel and the selector lever knob in place.

All vehicles

6. Position the selector lever knob and knob bezel in place and install the screws.
Fig 4: Identifying Screws
Courtesy of FORD MOTOR CO.
7. Slide the lower selector lever knob bezel up and snap it into place.
Fig 5: Sliding Lower Selector Lever Knob Bezel Up
Courtesy of FORD MOTOR CO.
8. Install the upper console panel.
Fig 6: Identifying Upper Console Panel
Courtesy of FORD MOTOR CO.
9. Install the selector lever bezel trim ring.
Fig 7: Identifying Selector Lever Bezel Trim Ring
Courtesy of FORD MOTOR CO.
