Selector Lever Cable: Removal

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING AND LIFTING article.
Remove the center console. For additional information, refer to INSTRUMENT PANEL AND CONSOLE article.
Disconnect the selector lever cable end from the selector lever.

Fig 1: Identifying Selector Lever Cable End

GF0045847

Courtesy of FORD MOTOR CO.

Depress the 2 tabs and remove the selector lever cable from the selector lever.

Fig 2: Identifying Tabs

GF0045848

Courtesy of FORD MOTOR CO.

Pull the carpet and the insulation back to access the cable retainer and rubber grommet.

Fig 3: Identifying Carpet And Insulation

GF0045849

Courtesy of FORD MOTOR CO.

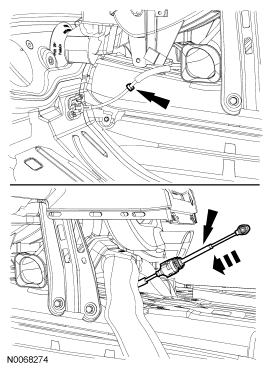

Disconnect the selector lever cable retainer from the floor and route the cable out from under the heater housing.

Fig 4: Identifying Selector Lever Retainer And Route Cable

GF0045850

Courtesy of FORD MOTOR CO.

Remove the 2 nuts from the rubber grommet at the bulkhead.

Fig 5: Identifying Nuts

GF0045851

Courtesy of FORD MOTOR CO.

Disconnect the mass air flow (MAF) sensor electrical connector.

Fig 6: Identifying MAF Sensor Connector

GF0045810

Courtesy of FORD MOTOR CO.

Disconnect the engine breather from the air cleaner assembly.

Fig 7: Locating Engine Breather

GF0031638

Courtesy of FORD MOTOR CO.

Remove the 2 air cleaner assembly bolts.

Fig 8: Identifying Bolts

GF0045811

Courtesy of FORD MOTOR CO.

Loosen the air cleaner outlet pipe clamp at the throttle body and remove the air cleaner and air cleaner outlet pipe assembly.

Fig 9: Locating Air Cleaner Outlet Pipe Clamp

GF0031640

Courtesy of FORD MOTOR CO.

Disconnect the selector lever cable retainer from the brake tube bracket.

Fig 10: Identifying Selector Lever Cable Retainer

GF0045852

Courtesy of FORD MOTOR CO.

Disconnect the selector lever cable end from the manual lever.

Fig 11: Locating Selector Lever Cable End

GF0031994

Courtesy of FORD MOTOR CO.

Depress the 2 tabs, remove the selector lever cable from the bracket and remove the selector lever cable.

Fig 12: Locating Selector Lever Cable Bracket & Tabs

GF0031995

Courtesy of FORD MOTOR CO.
