Selector Lever: Installation

Install the selector lever and the 4 selector lever bolts.
- Tighten to 11 Nm (8 lb-ft).

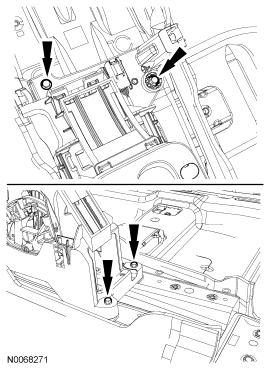

Fig 1: Identifying Bolts

Courtesy of FORD MOTOR CO.

Fig 2: Identifying Retaining Clips

Courtesy of FORD MOTOR CO.

Fig 3: Identifying Retainers

Courtesy of FORD MOTOR CO.

Fig 4: Identifying Connector

Courtesy of FORD MOTOR CO.

Fig 5: Identifying Tabs

Courtesy of FORD MOTOR CO.

Fig 6: Identifying Selector Lever Cable End

Courtesy of FORD MOTOR CO.

Install the center console. For additional information, refer to INSTRUMENT PANEL AND CONSOLE article.
Check the selector lever cable adjustment. Make sure that the vehicle starts in PARK and NEUTRAL and the reverse lamps illuminate in REVERSE. If an adjustment is necessary, refer to Selector Lever Cable Adjustment .
