Safety Belt Buckle - Third Row, Bench: Notes

NOTE: RH shown in illustration, LH similar.

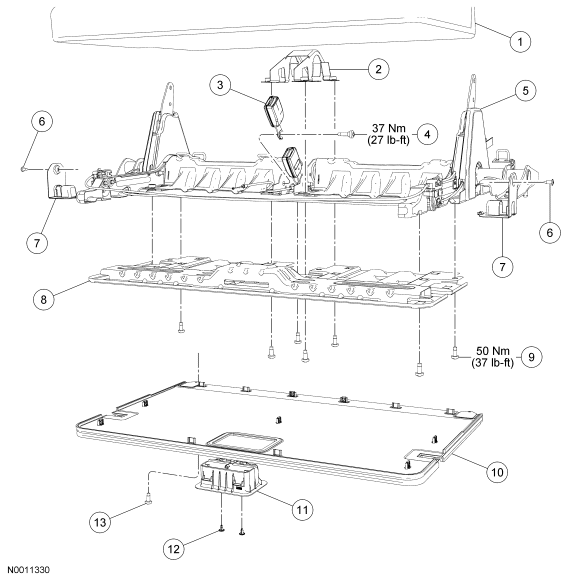

Fig 1: Exploded View Safety Belt Buckle With Torque Specifications - Third Row, Bench

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Cushion trim cover assembly
2	-	Cushion frame joining bracket
3	-	Safety belt buckle
4	-	Safety belt buckle bolt
5	-	Pivot tube assembly
6	W504774	Floor latch cover screws (2 required)
7	-	Floor latch covers (2 required)
8	-	Cushion frame
9	-	Cushion frame-to-pivot tube assembly bolt (8 required)
10	-	Load floor panel
11	-	Pivot release handle
12	-	Rivet (2 required)
13	-	Screw (2 required)
