Communications Network
Communications Network

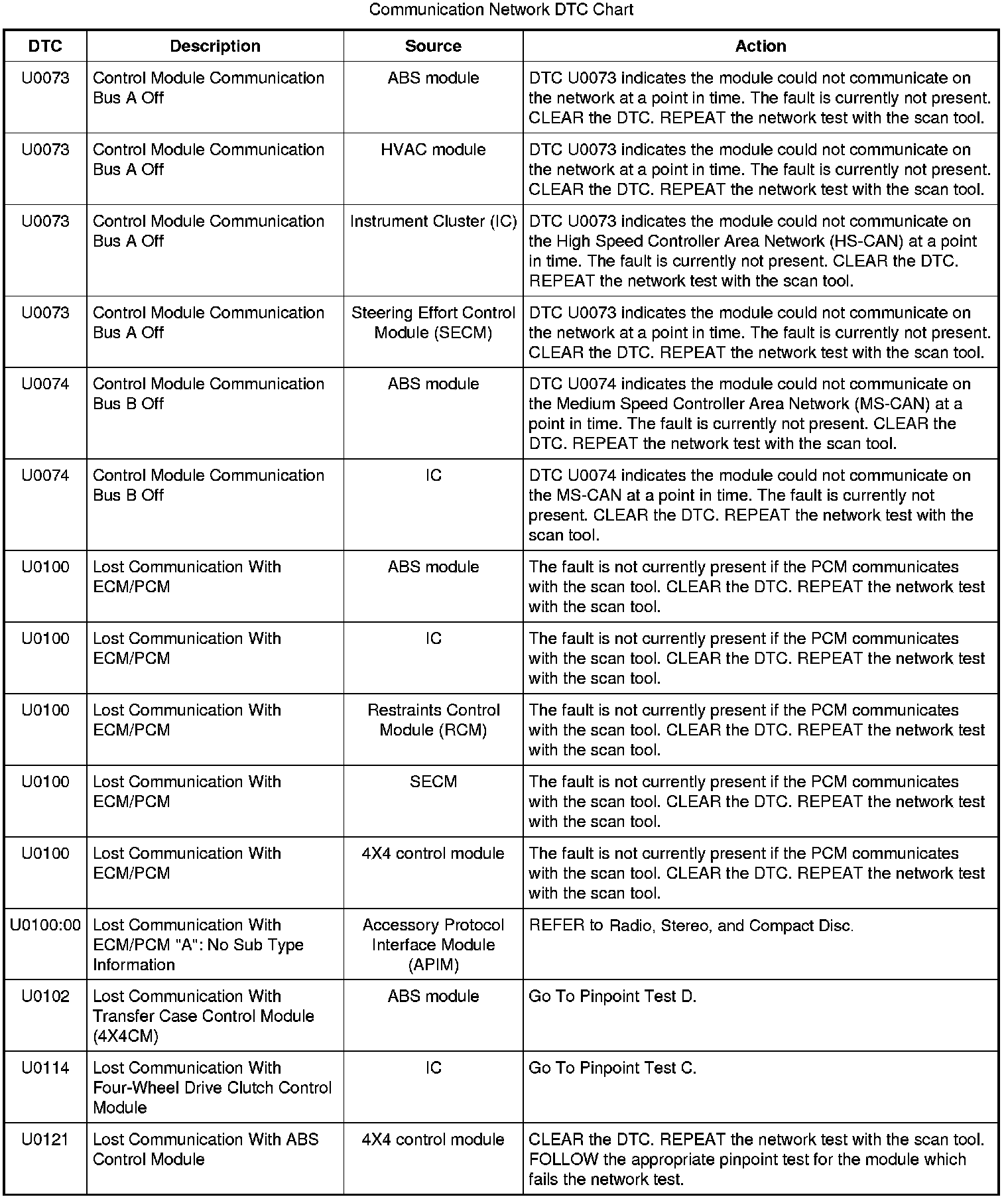

DTC Charts

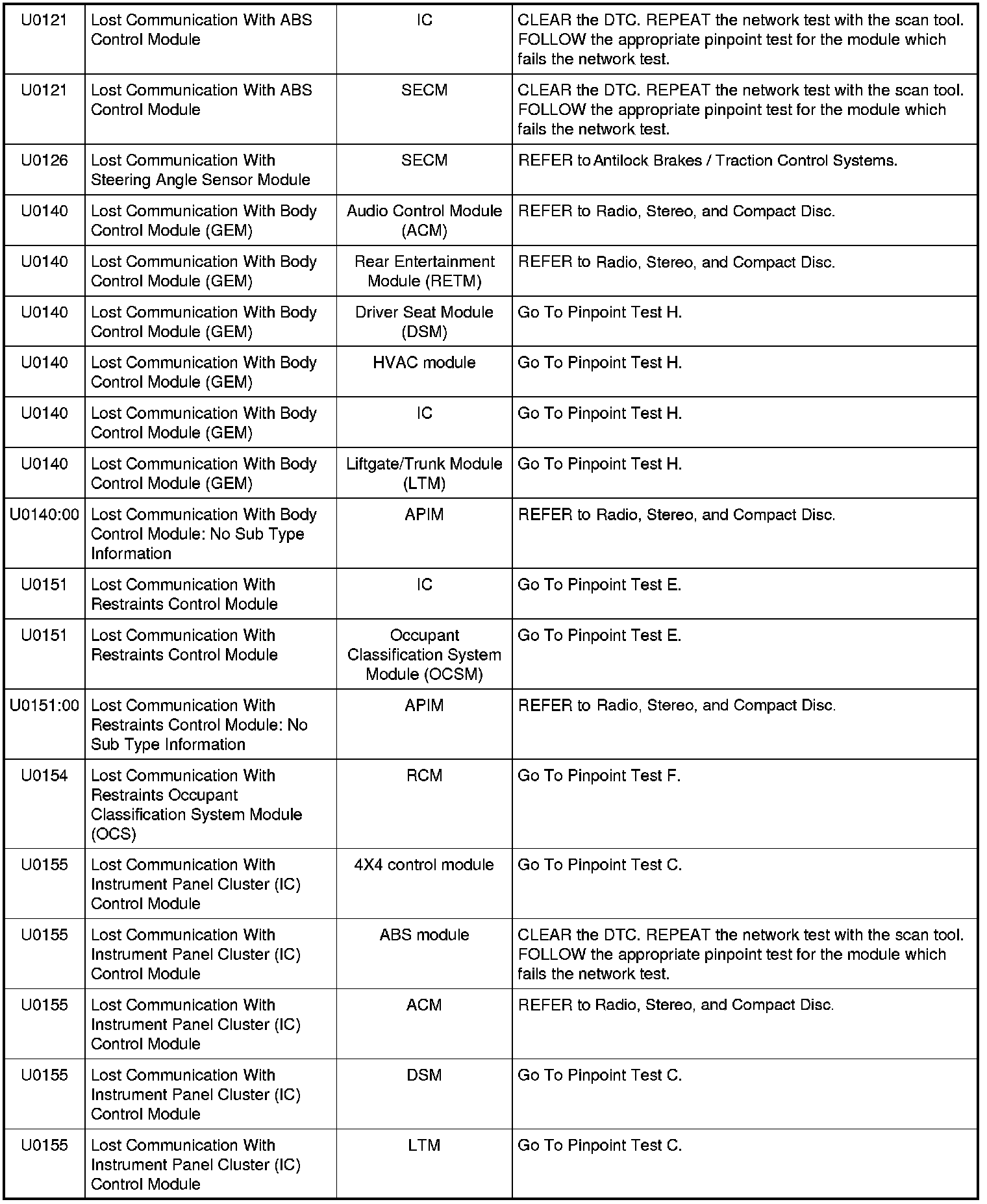

U0073-U0121:

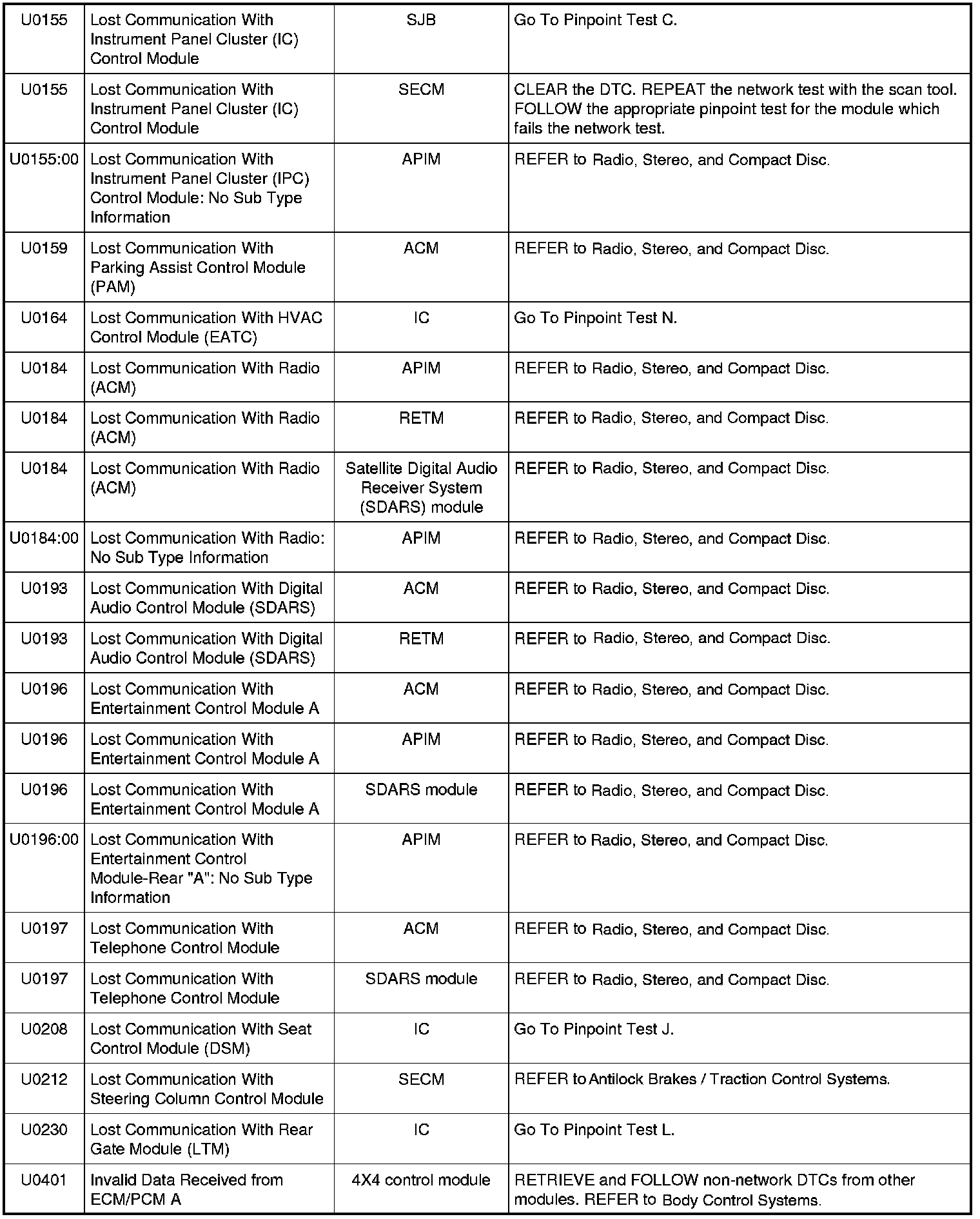

U0121-U0155:
U0155-U0401:

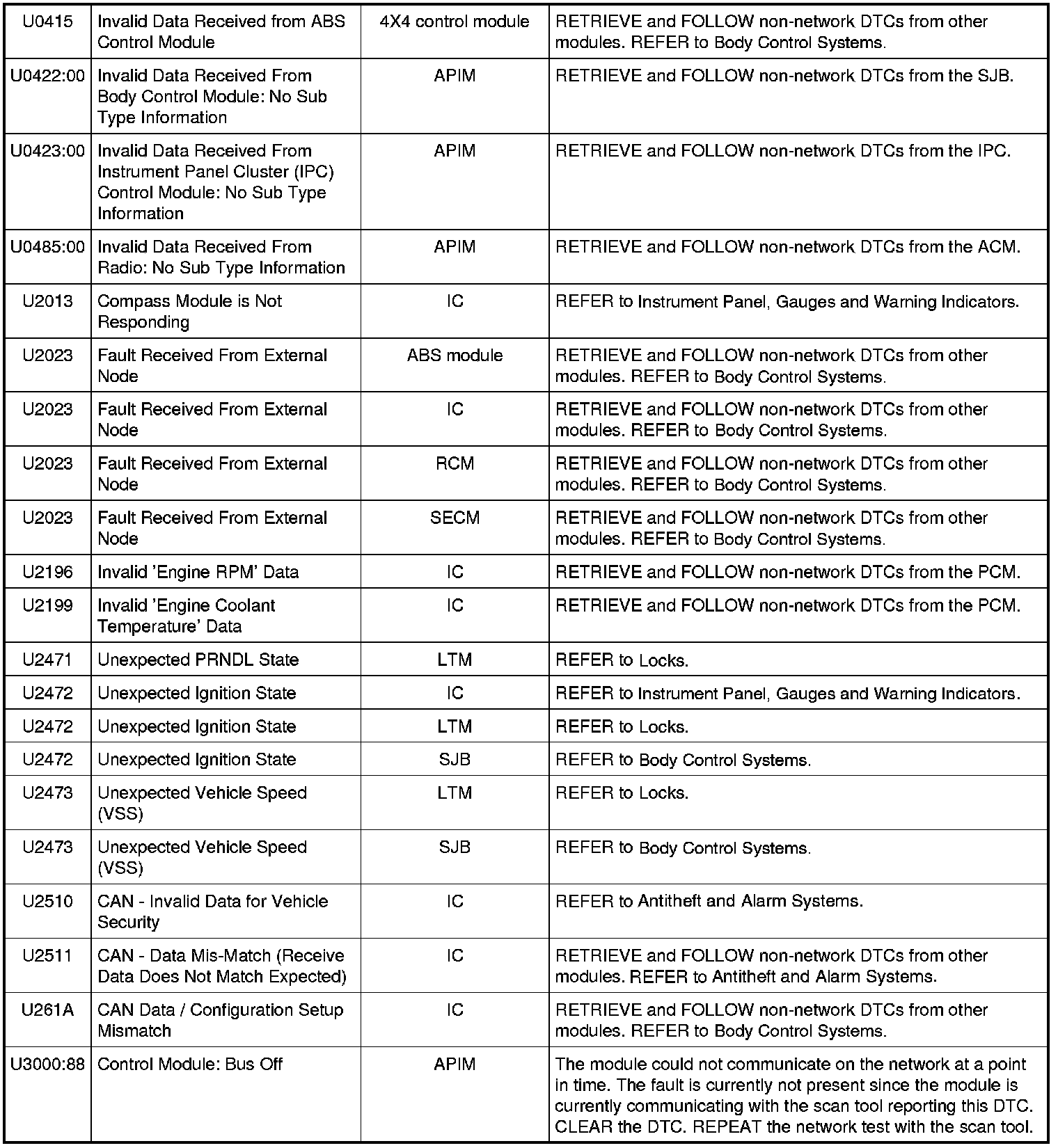

U261A-U3000:88:
