Heated Seat Module

Heated Seat Module

Removal and Installation

1. Remove the affected seat. For additional information, refer to Seat - Front Seat - Front.

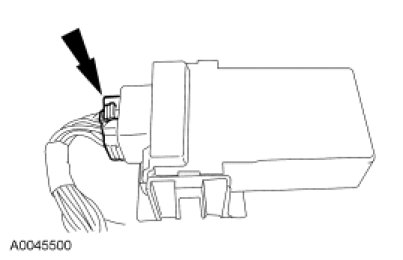

2. Disconnect the electrical connector.





3. Remove the heated seat module.

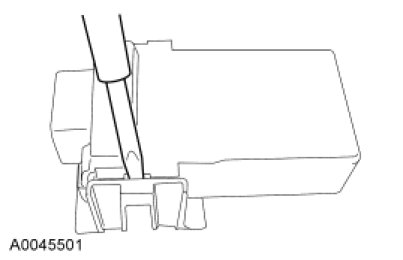

- Insert a flat-blade screwdriver into the heated seat module bracket and release the locking tab.

- For installation, make sure the locking tab is correctly seated.





4. To install, reverse the removal procedure.
