Knock Sensor: Service and Repair

Knock Sensor (KS)

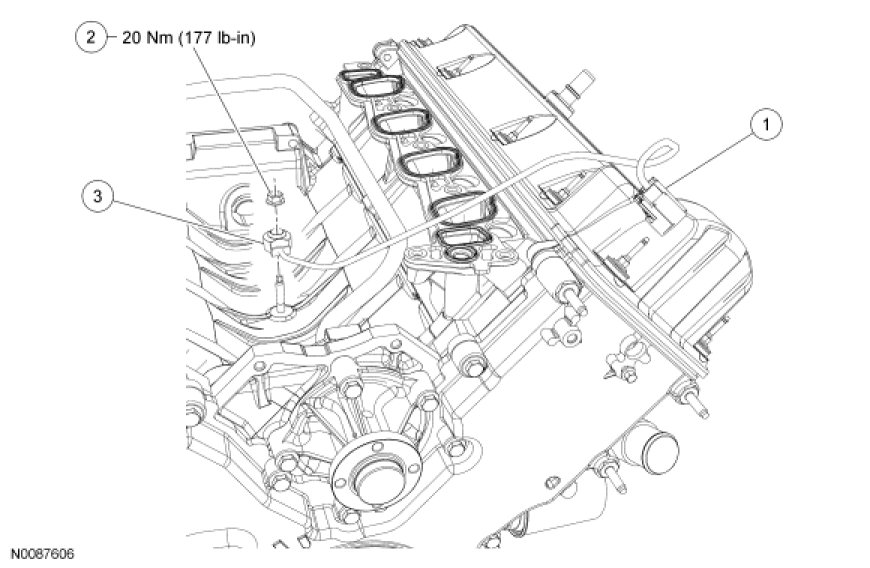

Removal and Installation

1. Remove the intake manifold. For additional information, refer to Engine.

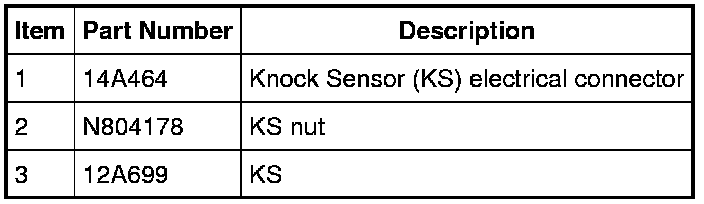

2. Disconnect the Knock Sensor (KS) electrical connector.

3. Remove the nut and the KS.
- To install, tighten to 20 Nm (177 lb-in).

4. To install, reverse the removal procedure.
