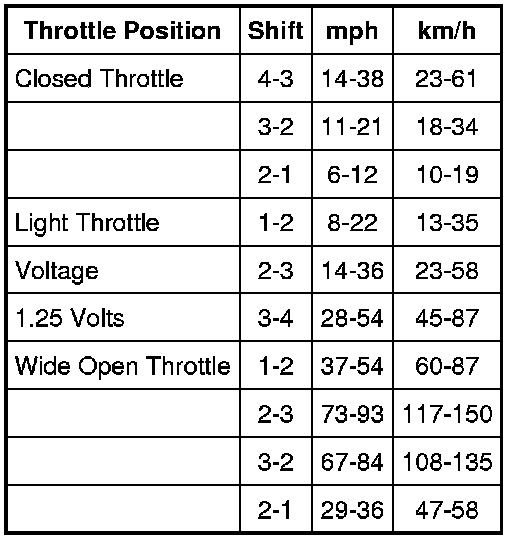

Shift Speed Chart




Shift Speed Chart

NOTE: Shift speed ranges are approximate for all applications. For specific applications (engine, axle ratio and application), refer to the Automatic Transmission Specification booklet. Do not exceed local speed laws.
