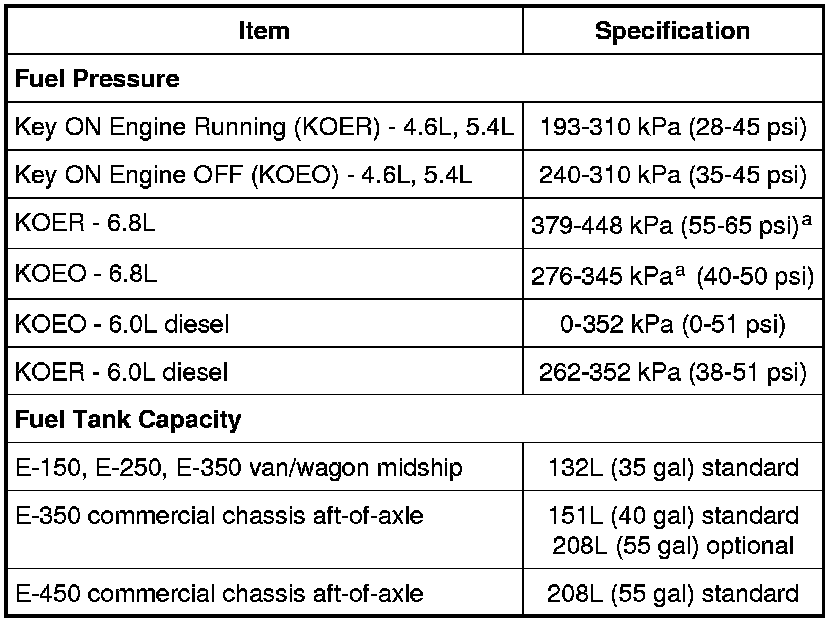

System Specifications

General Specifications





a Measured by the fuel rail pressure (FRP) PID using the vehicle communication module (VCM) and integrated diagnostic system (IDS) with appropriate hardware, or equivalent scan tool. Mechanical gauge fuel pressure readings may vary from scan tool readings.
