Seat Temperature Control Module




Seat - Exploded View, Front

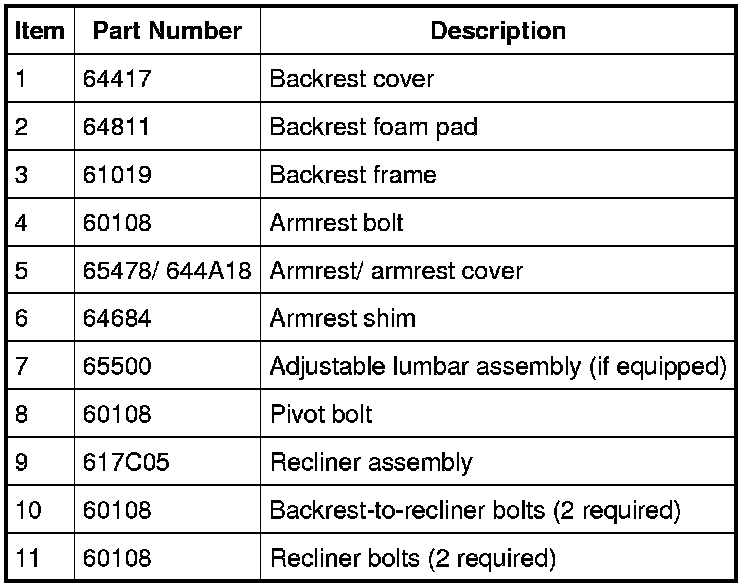

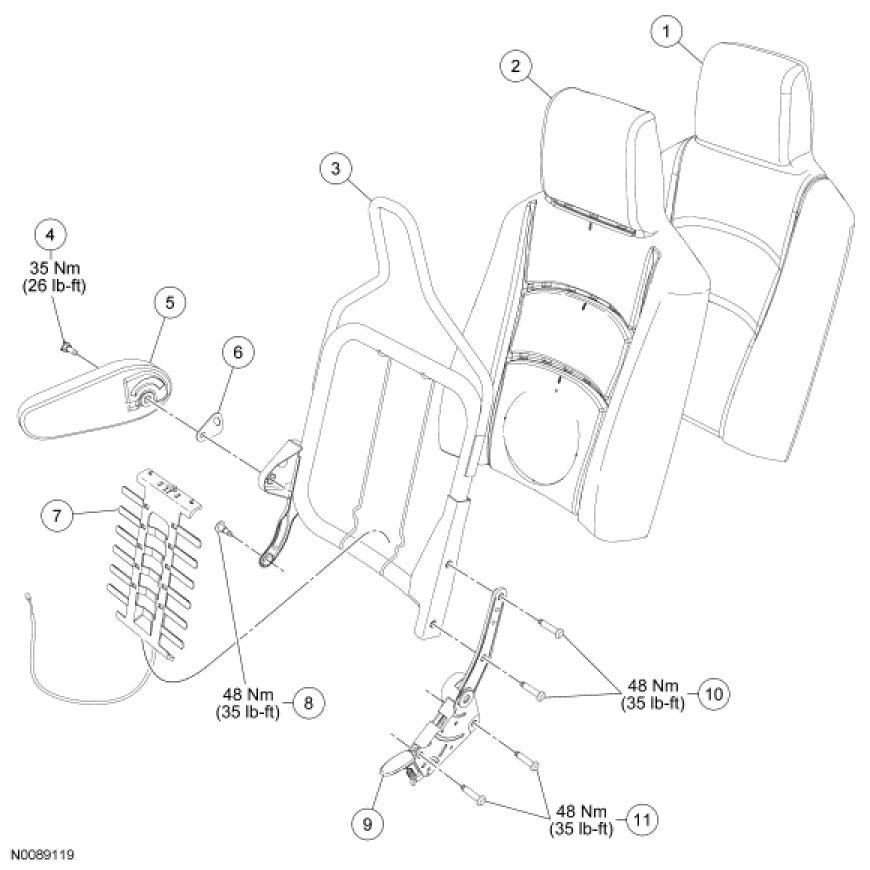

Seat Backrest

NOTE: LH shown, RH similar.

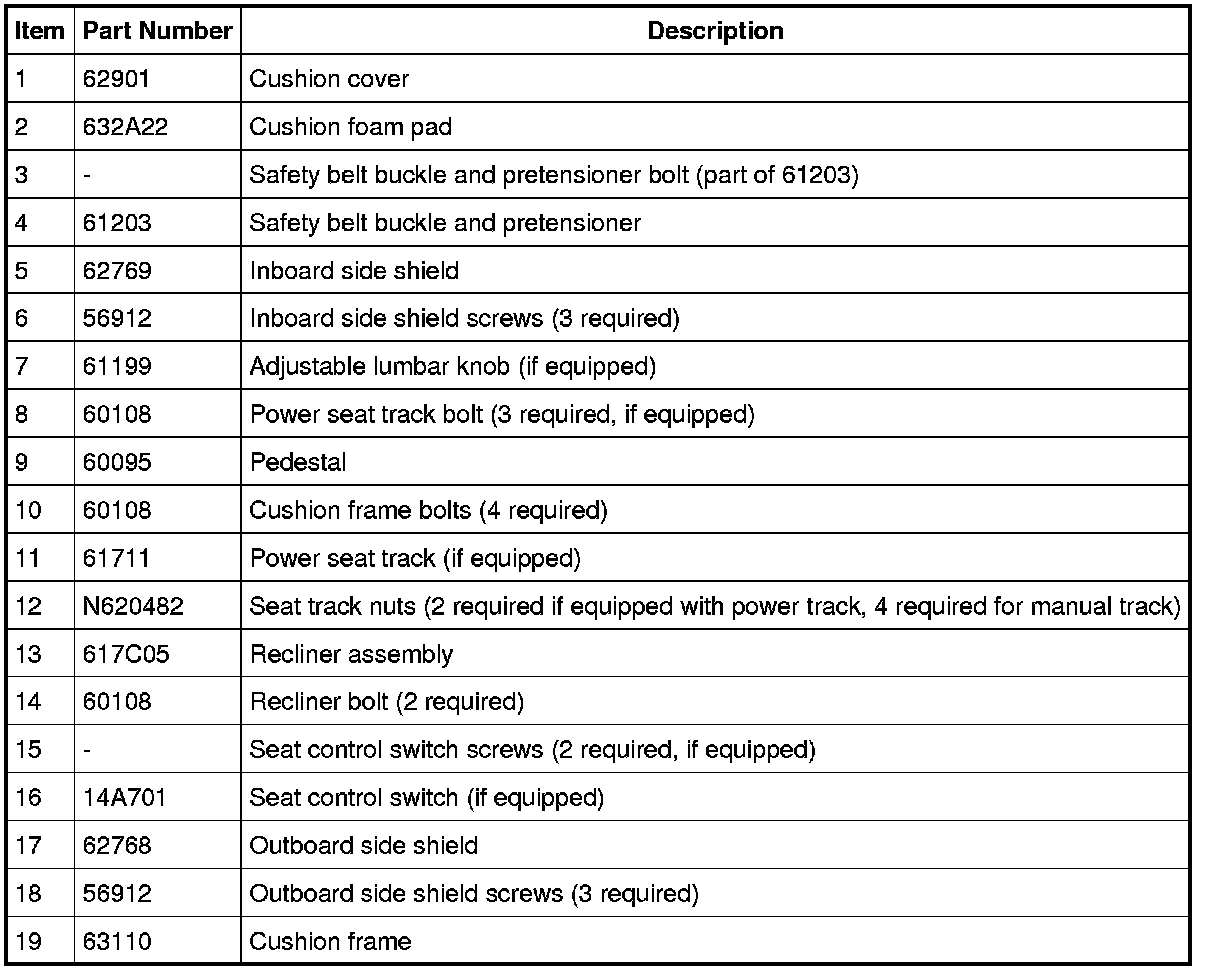

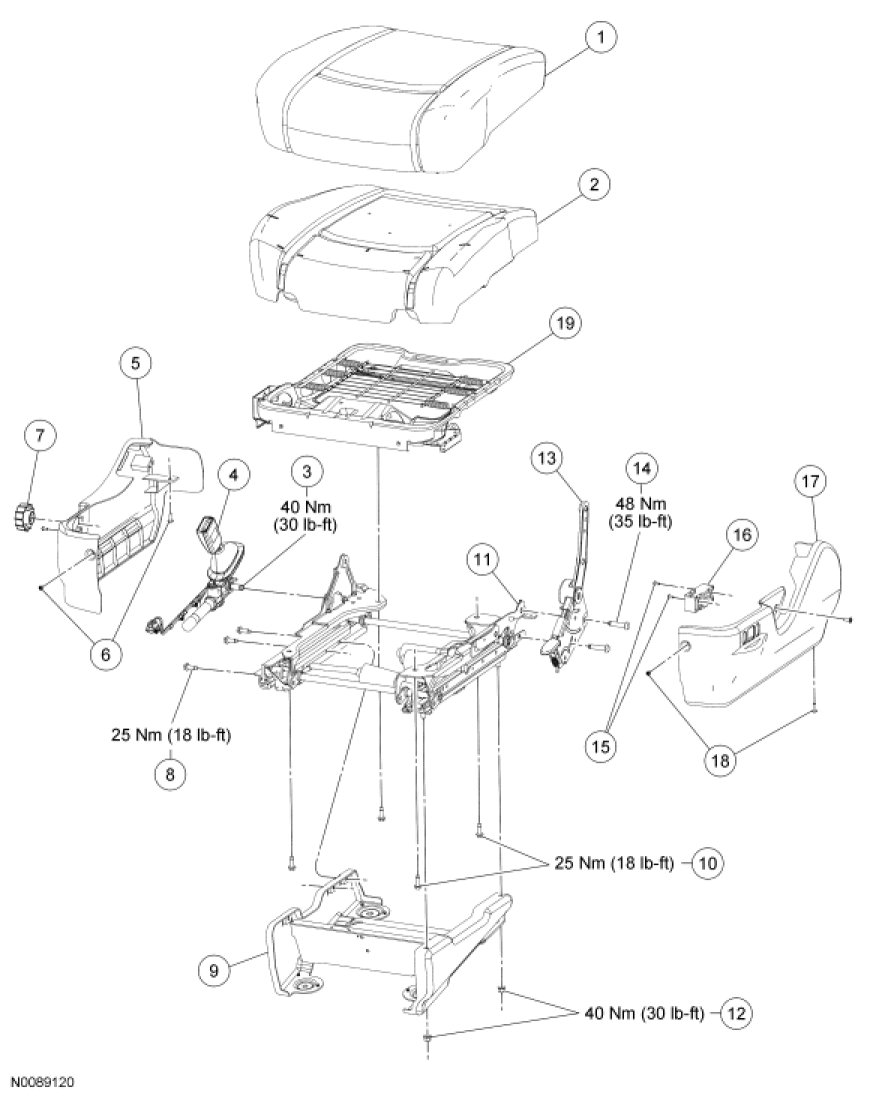

Seat Cushion - Driver

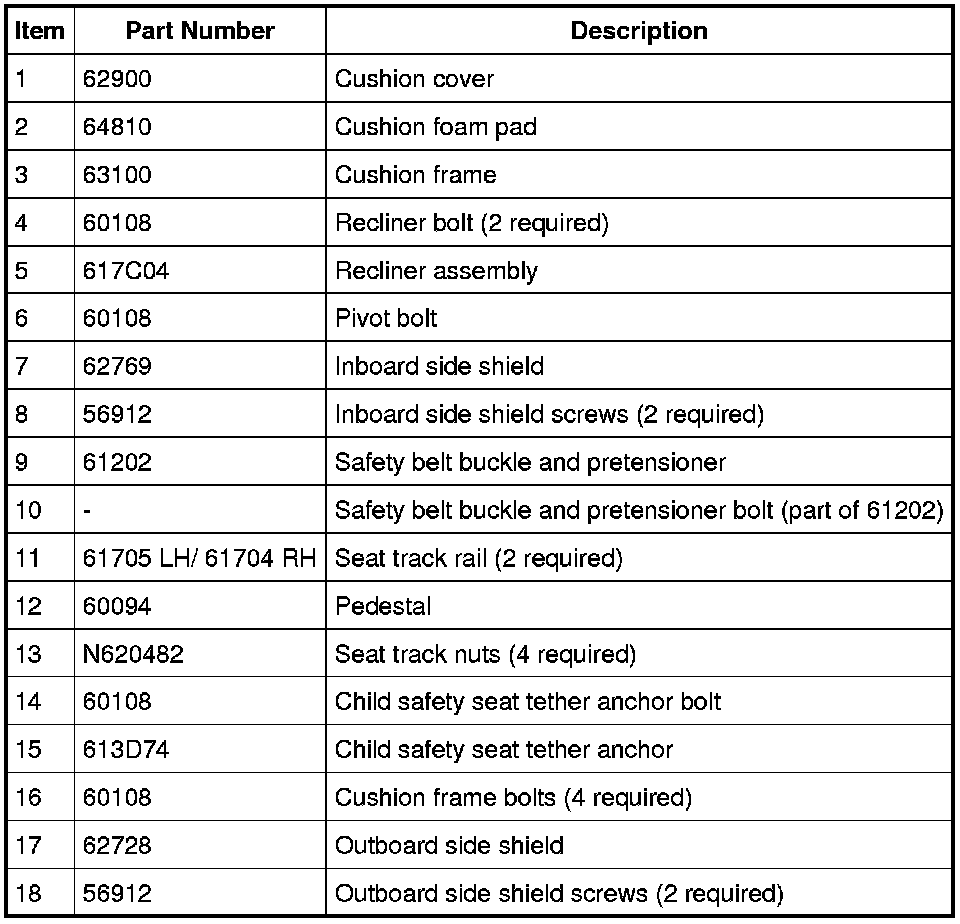

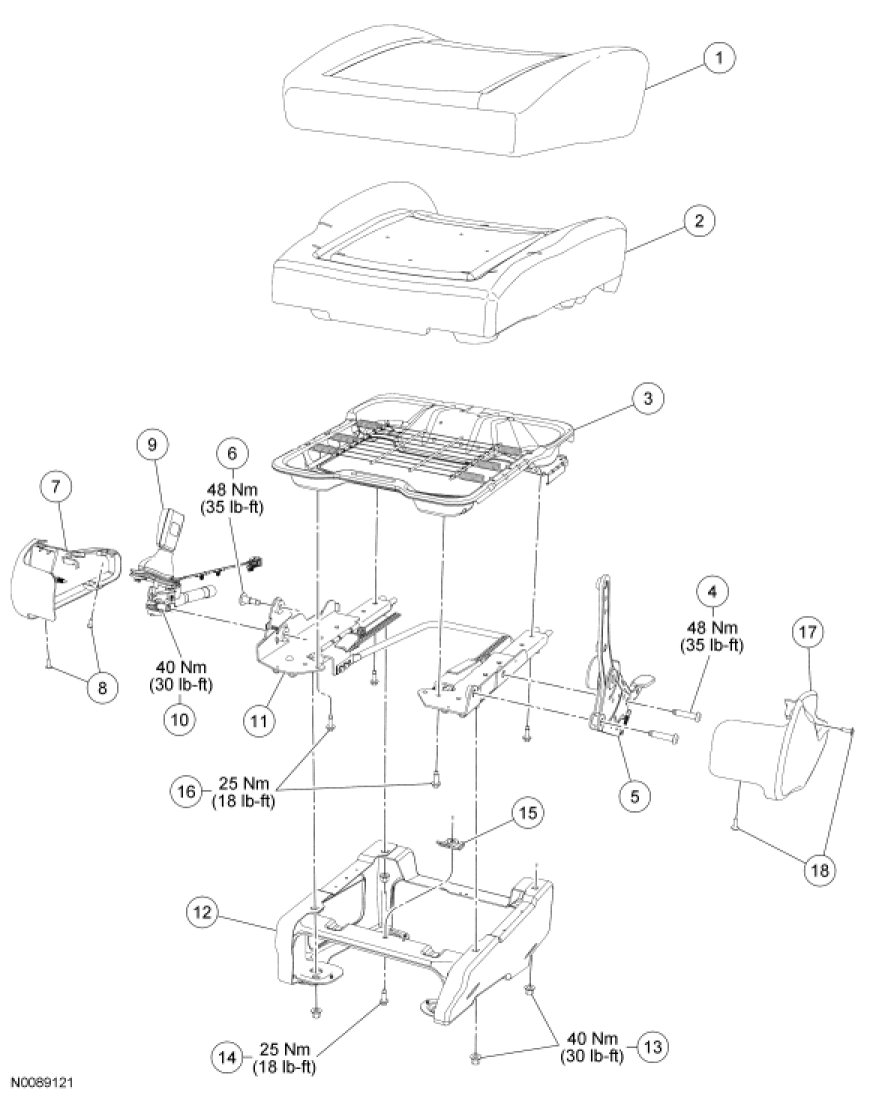

Seat Cushion - Front Passenger
