Utility Storage Compartment

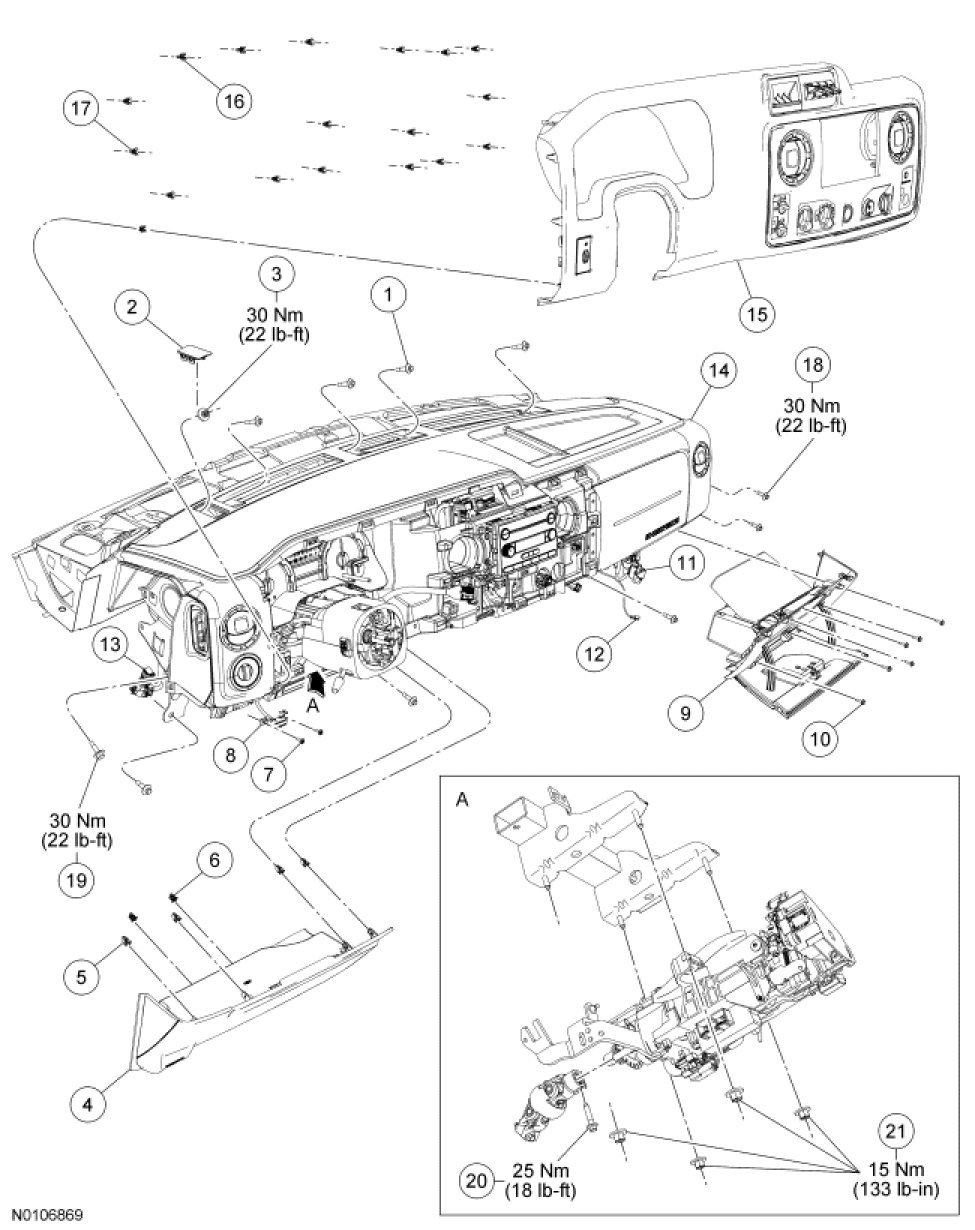

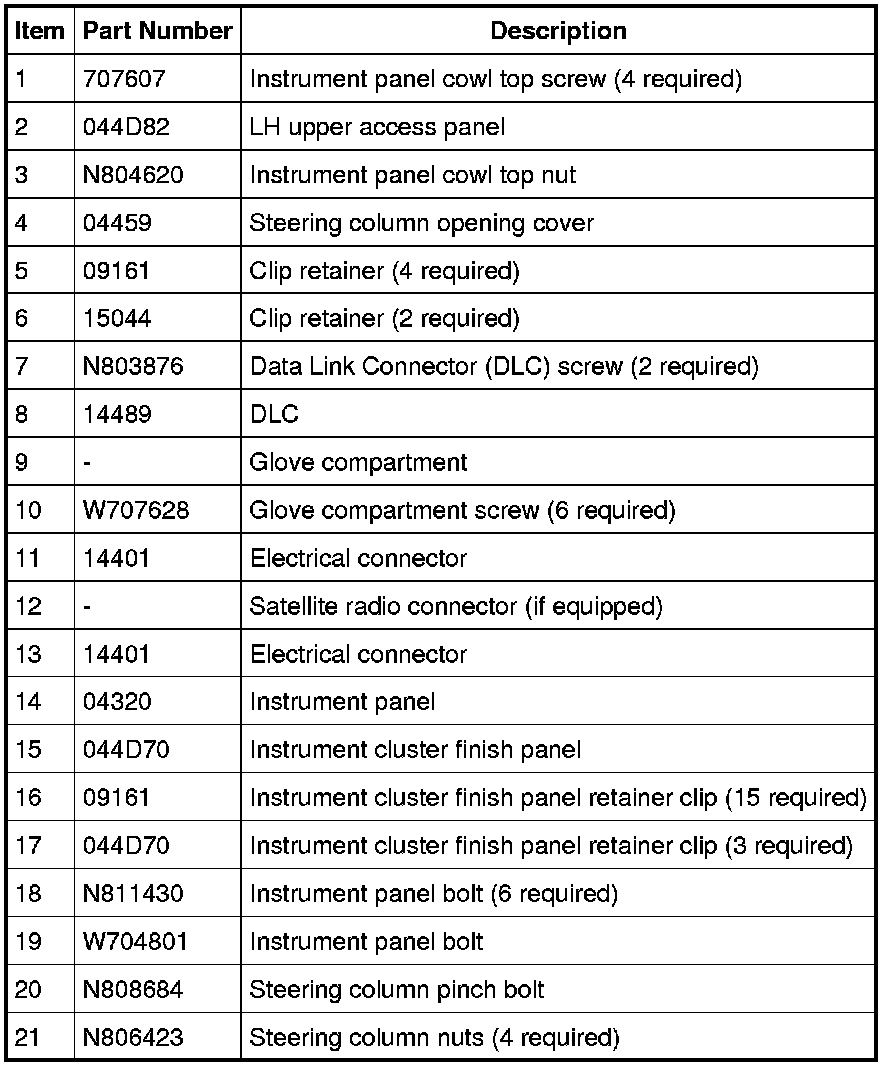

Instrument Panel - Exploded View
Panels and Fasteners

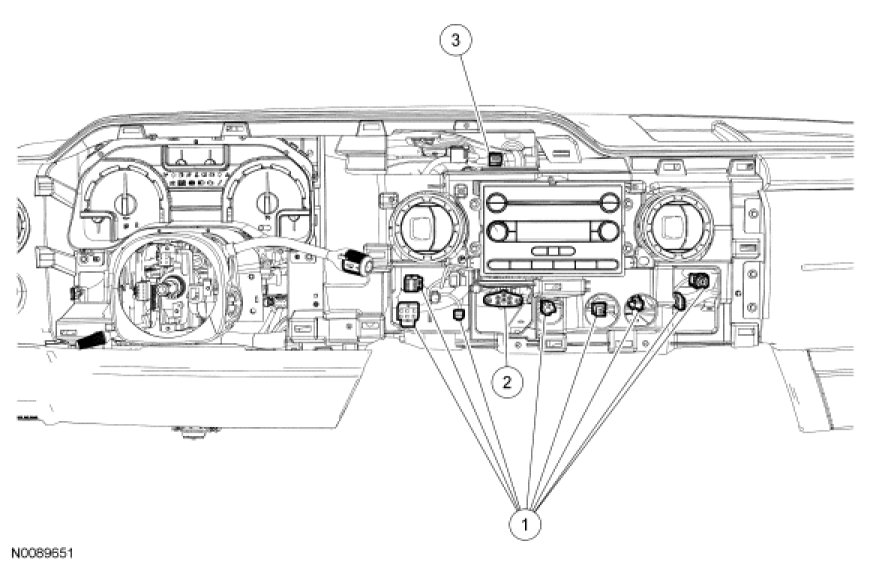

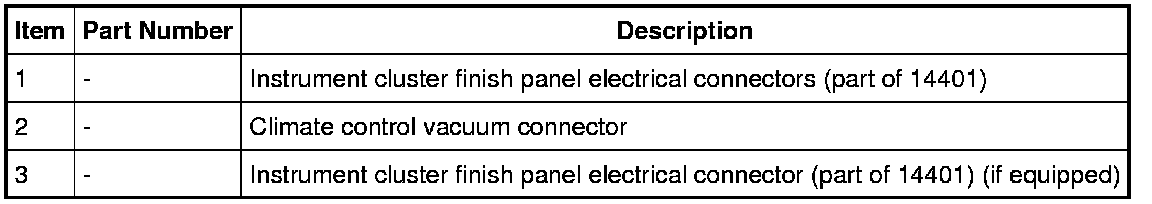

Vacuum and Electrical Connector View
