Function Selector Switch

Function Selector Switch

Removal and Installation

1. Remove the climate control assembly. For additional information, refer to Climate Control Assembly Climate Control Assembly.

2. Remove the function selector switch knob.

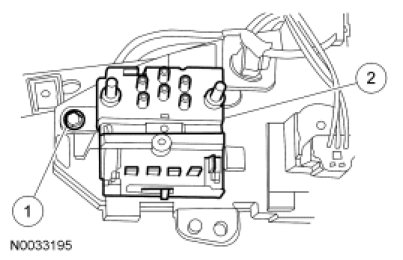

3. Remove the function selector switch.

1. Remove the screw.

2. Remove the function selector switch.





4. To install, reverse the removal procedure.
