Clutch Packs

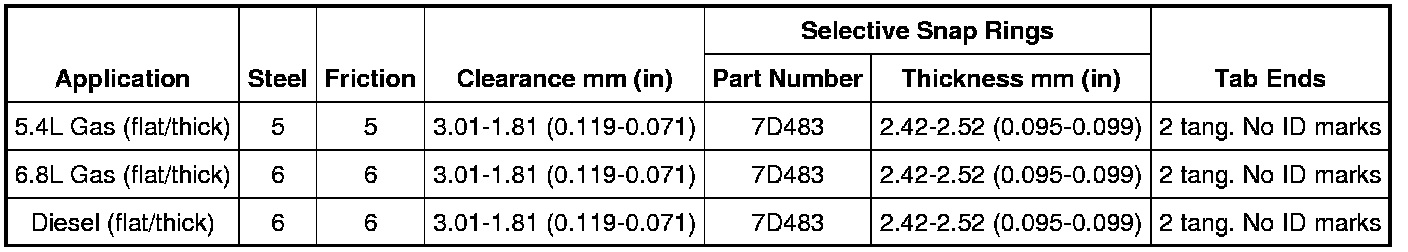

Forward Clutch Pack

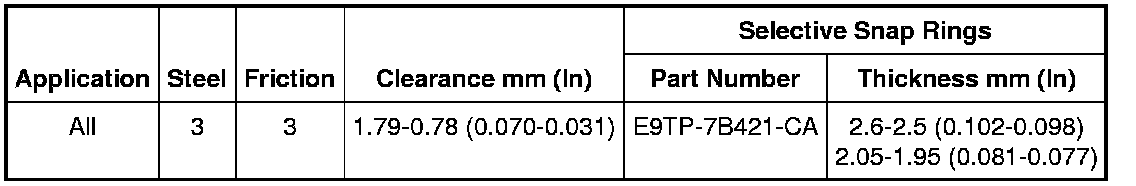

Direct Clutch Pack

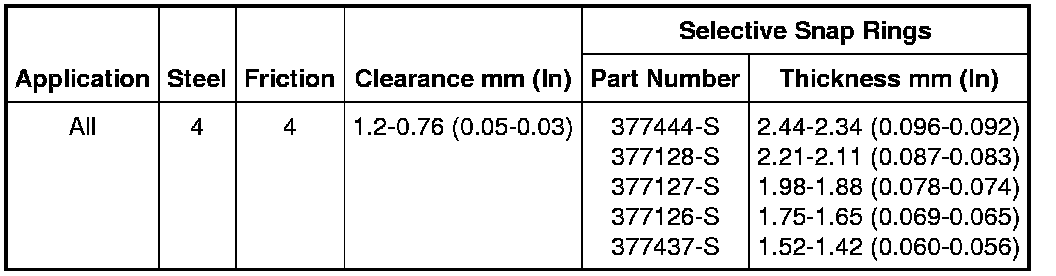

Intermediate Clutch Pack

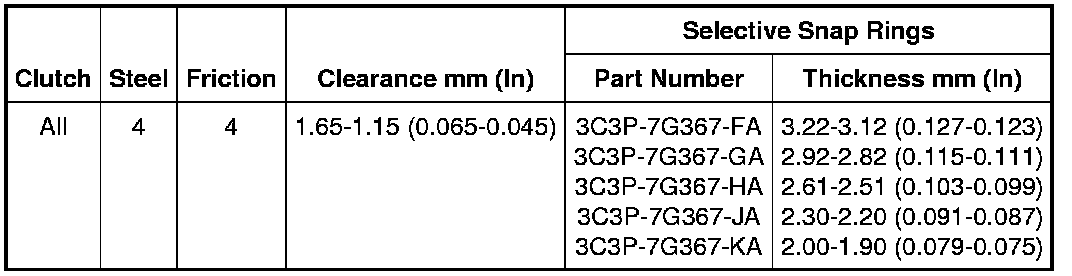

Coast Clutch Pack

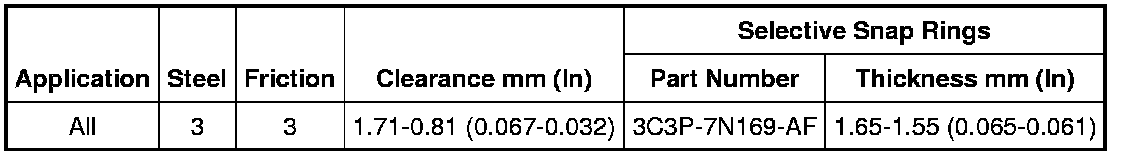

Reverse Clutch Pack

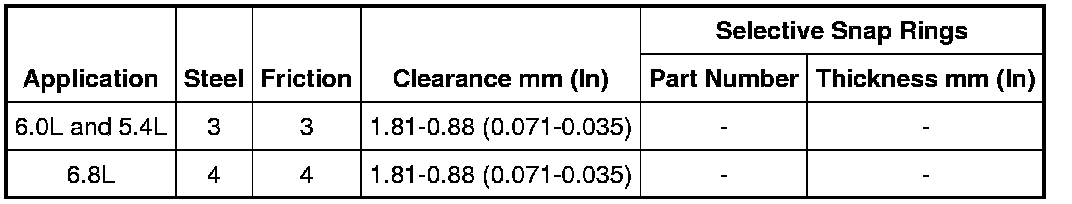

Overdrive (O/D) Clutch Pack
