Lighting and Horns: Testing and Inspection




Diagnostic Trouble Code (DTC) Chart

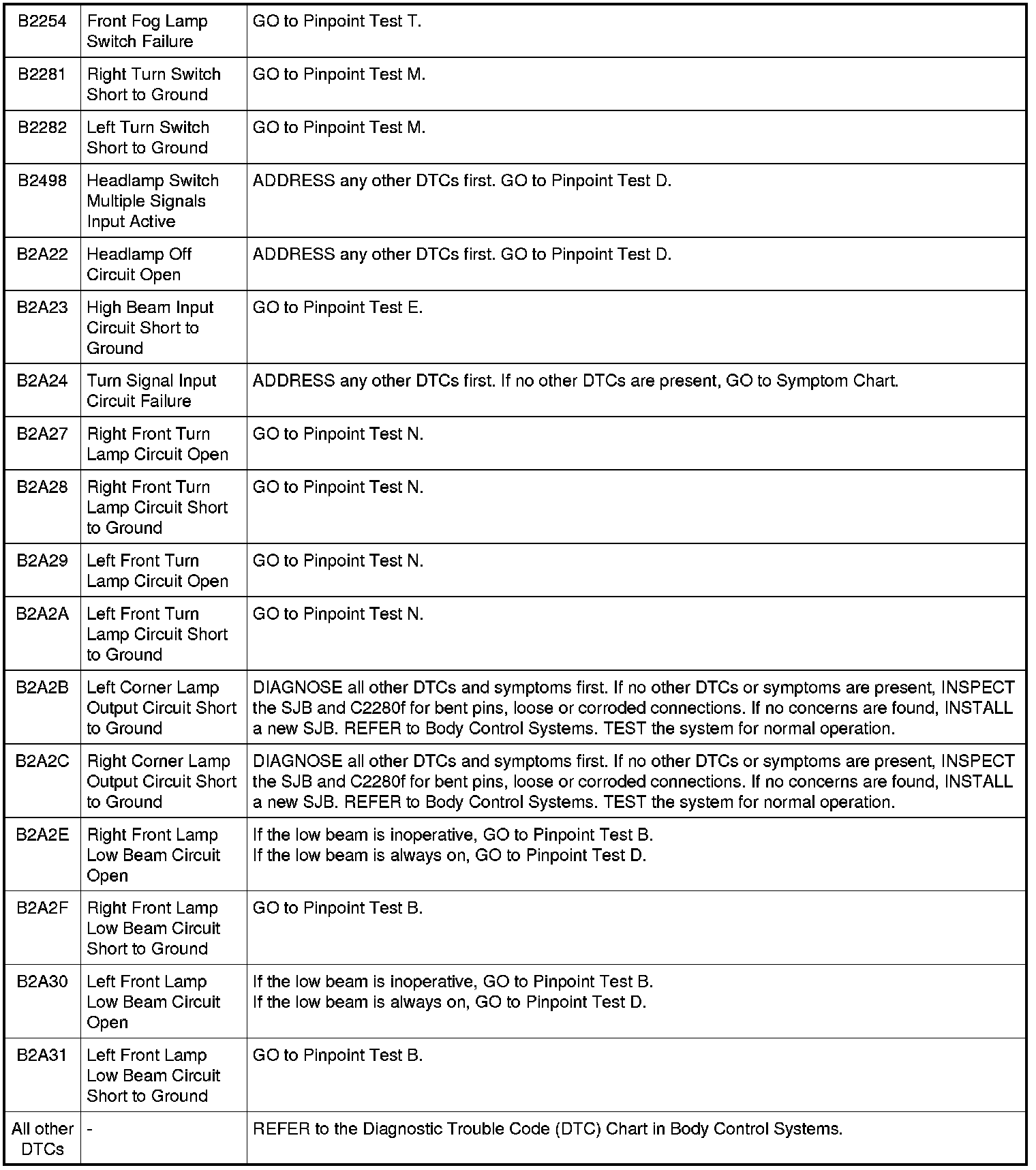

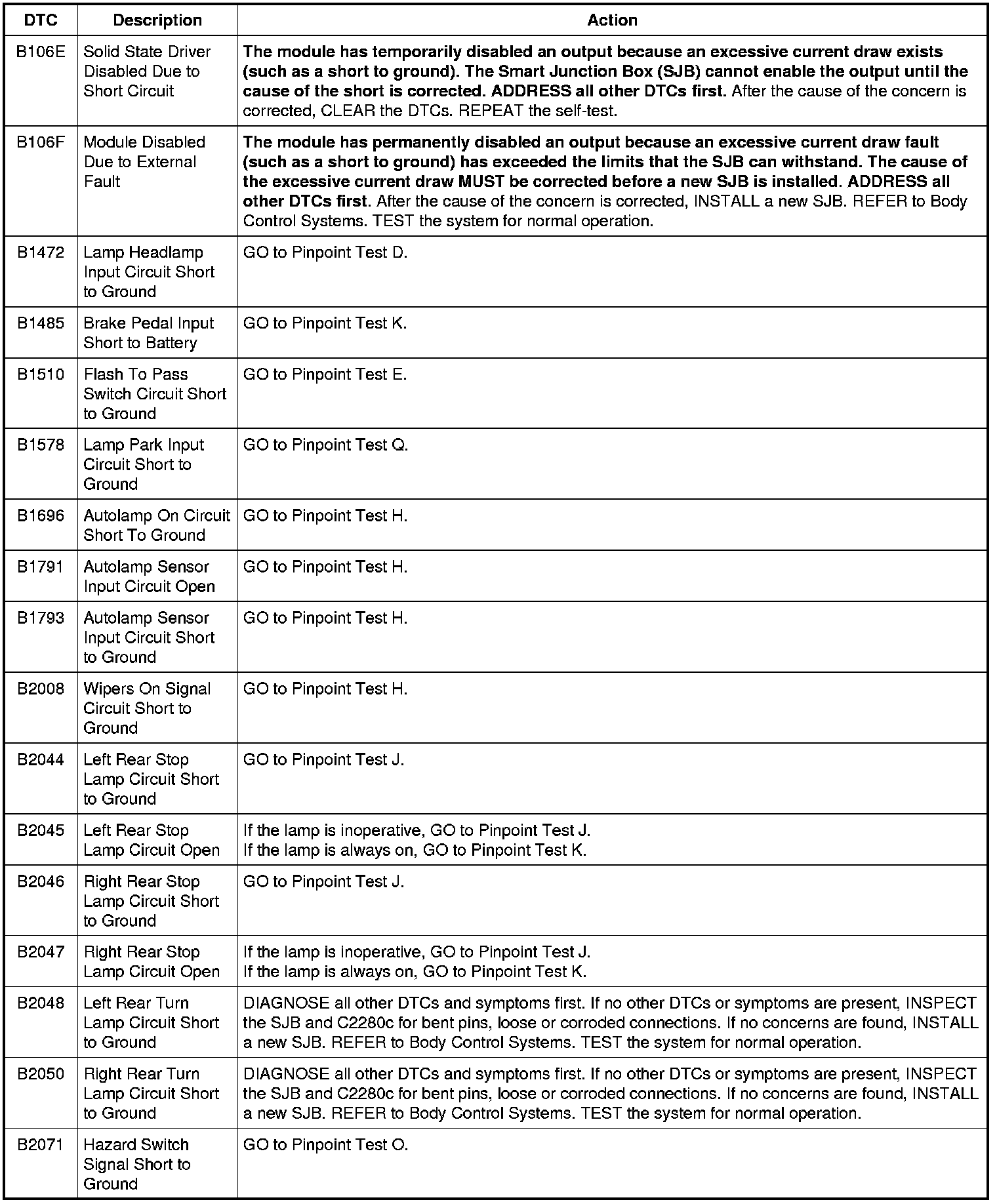

Smart Junction Box (SJB) DTC Chart

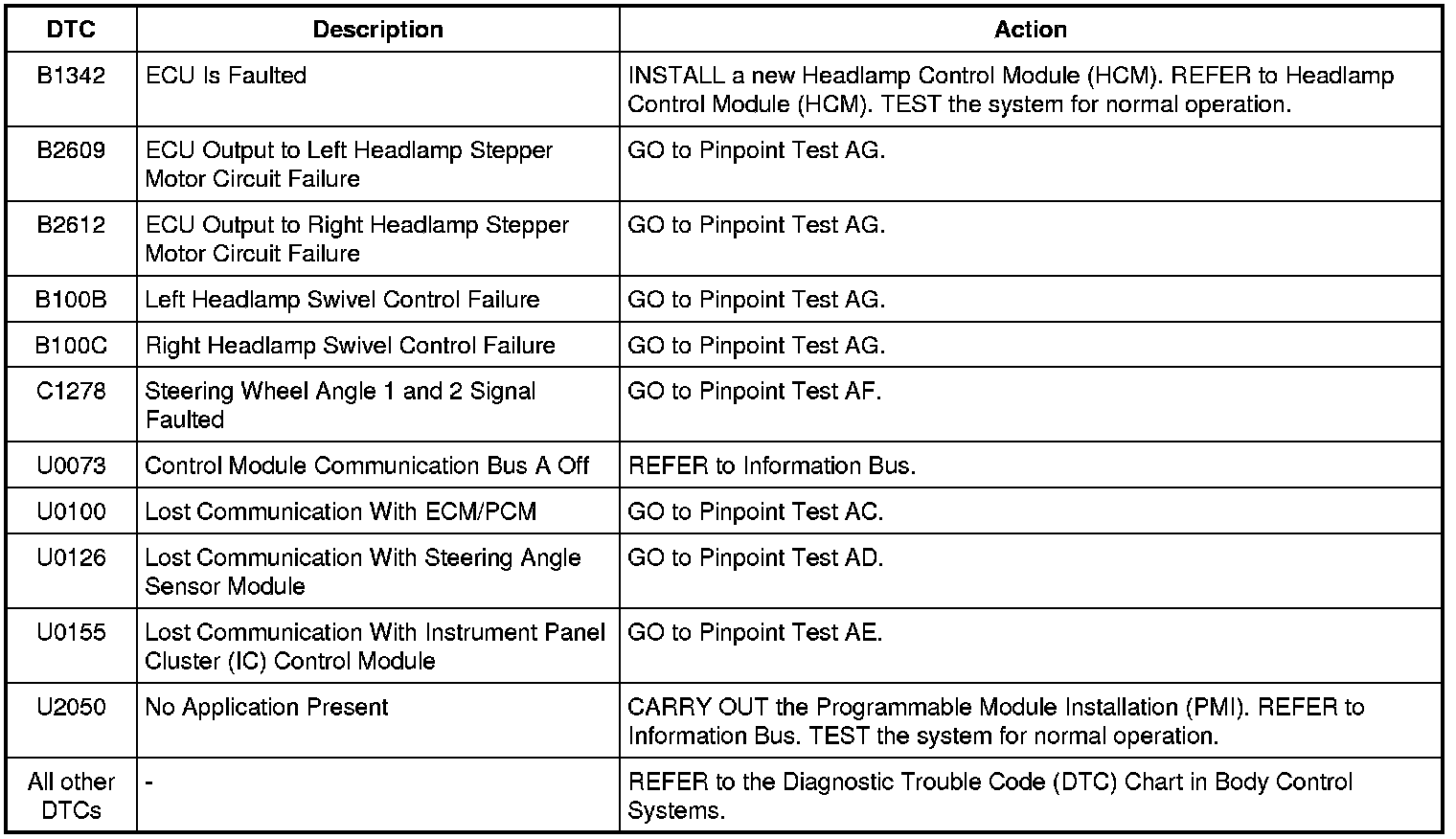

Headlamp Control Module (HCM) DTC Chart

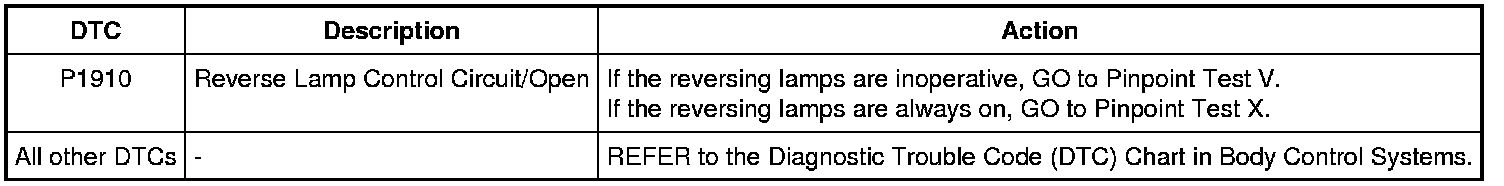

PCM DTC Chart
