Turn Signals: Service and Repair

Rear Lamp Assembly

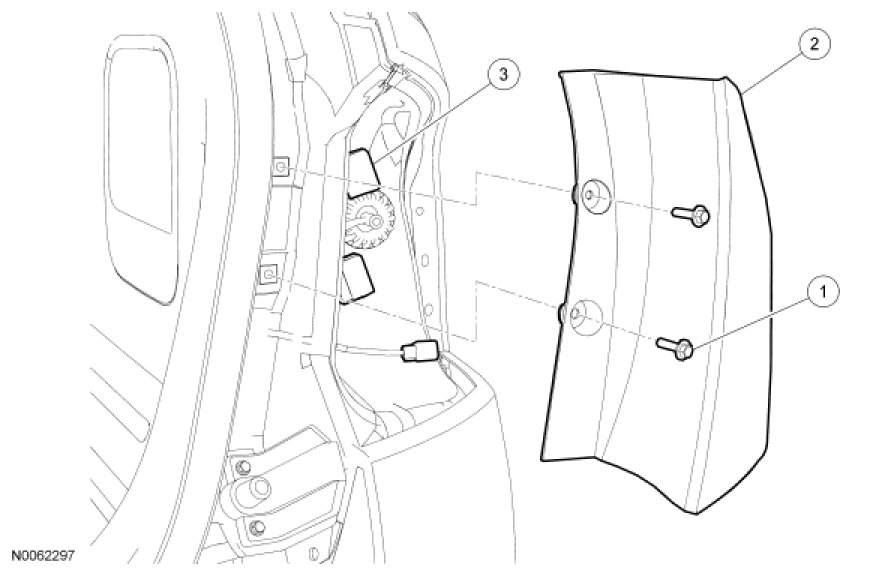

NOTE: Edge shown, MKX similar.










Removal and Installation

1. NOTE: The rear lamp assembly is held in place by snap-type retainers. The lamp should be pulled straight and rearward to remove.

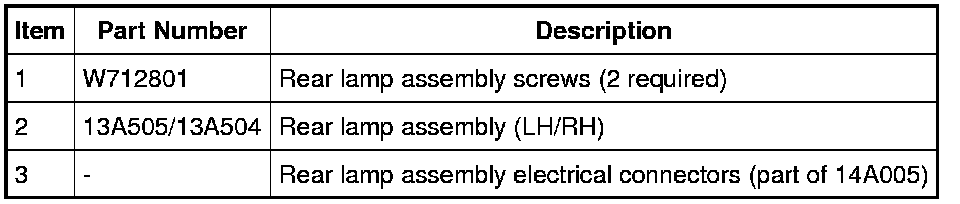

Remove the 2 screws and the rear lamp assembly.

- Disconnect the electrical connectors.

2. To install, reverse the removal procedure.
- An audible click should be heard when the rear lamp assembly is fully seated to the quarter panel.
