Fuel Tank and Filler Pipe - Exploded View




Fuel Tank and Filler Pipe - Exploded View

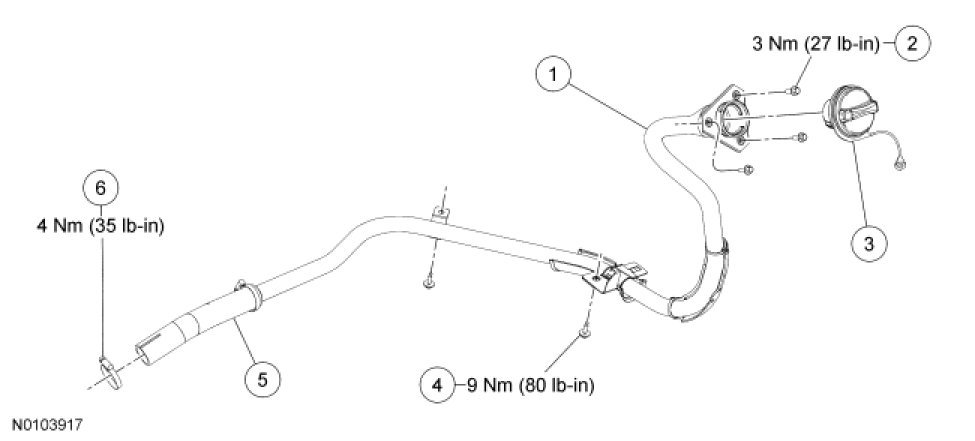

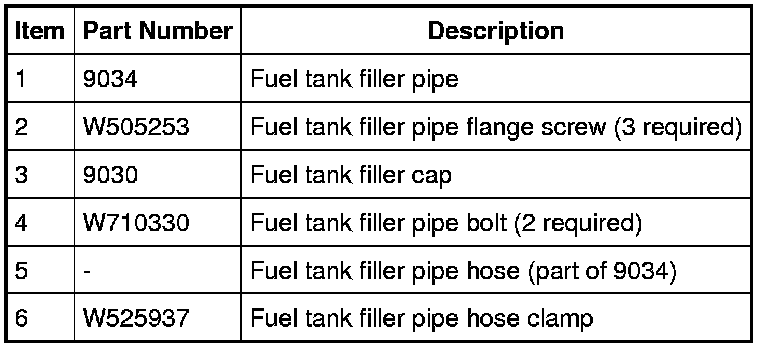

Fuel Tank Filler Pipe Assembly

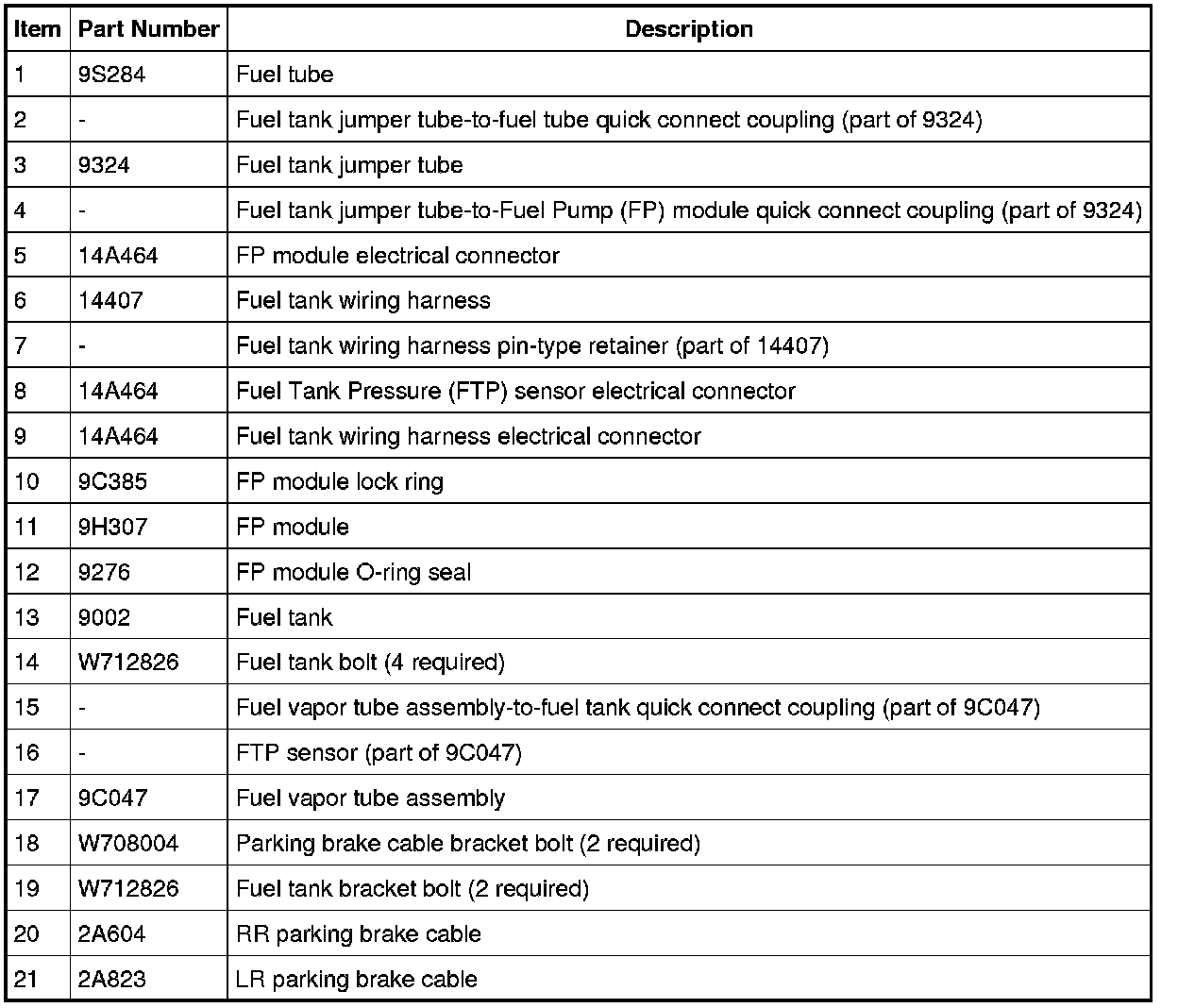

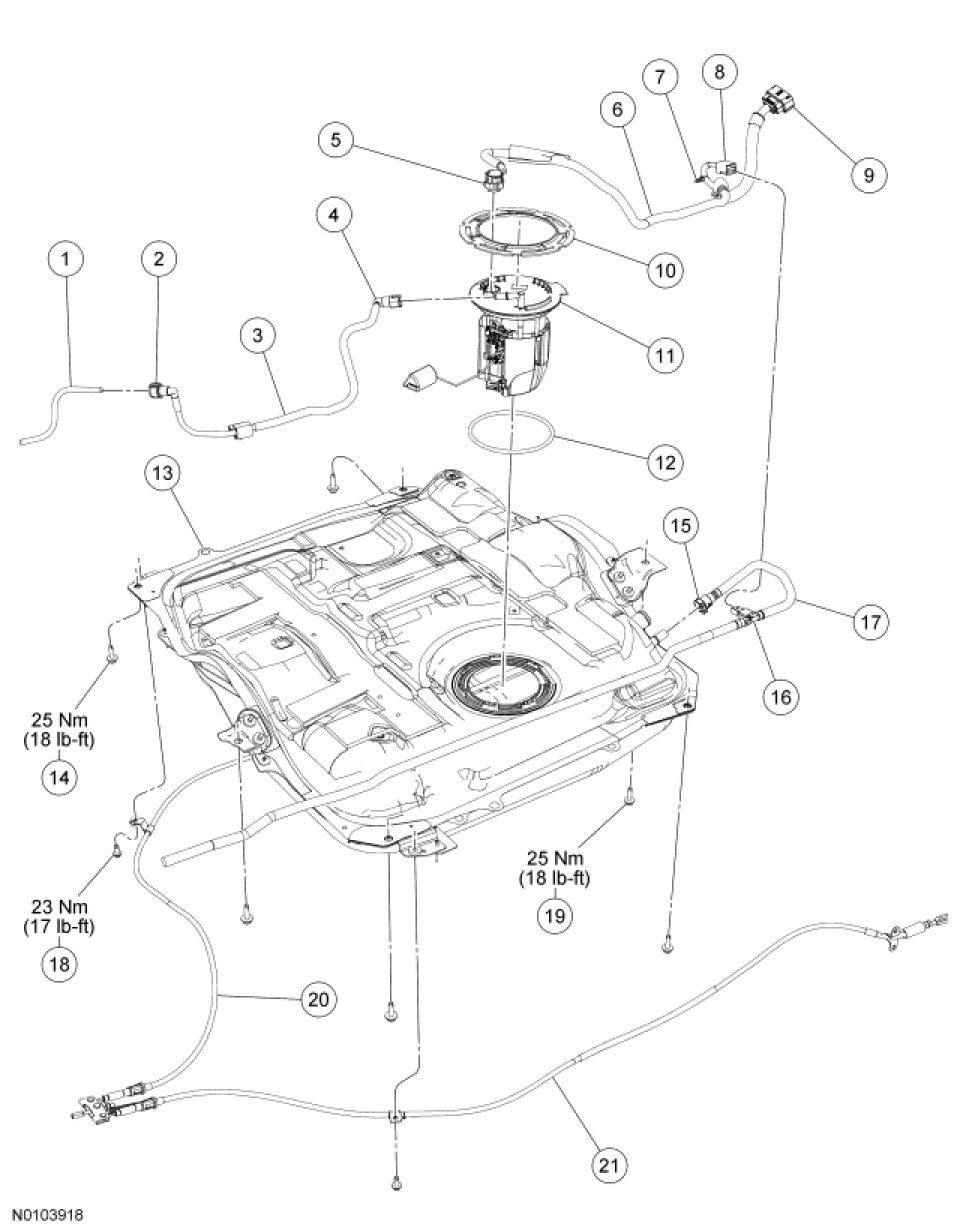

Front Wheel Drive (FWD) Fuel Tank Assembly

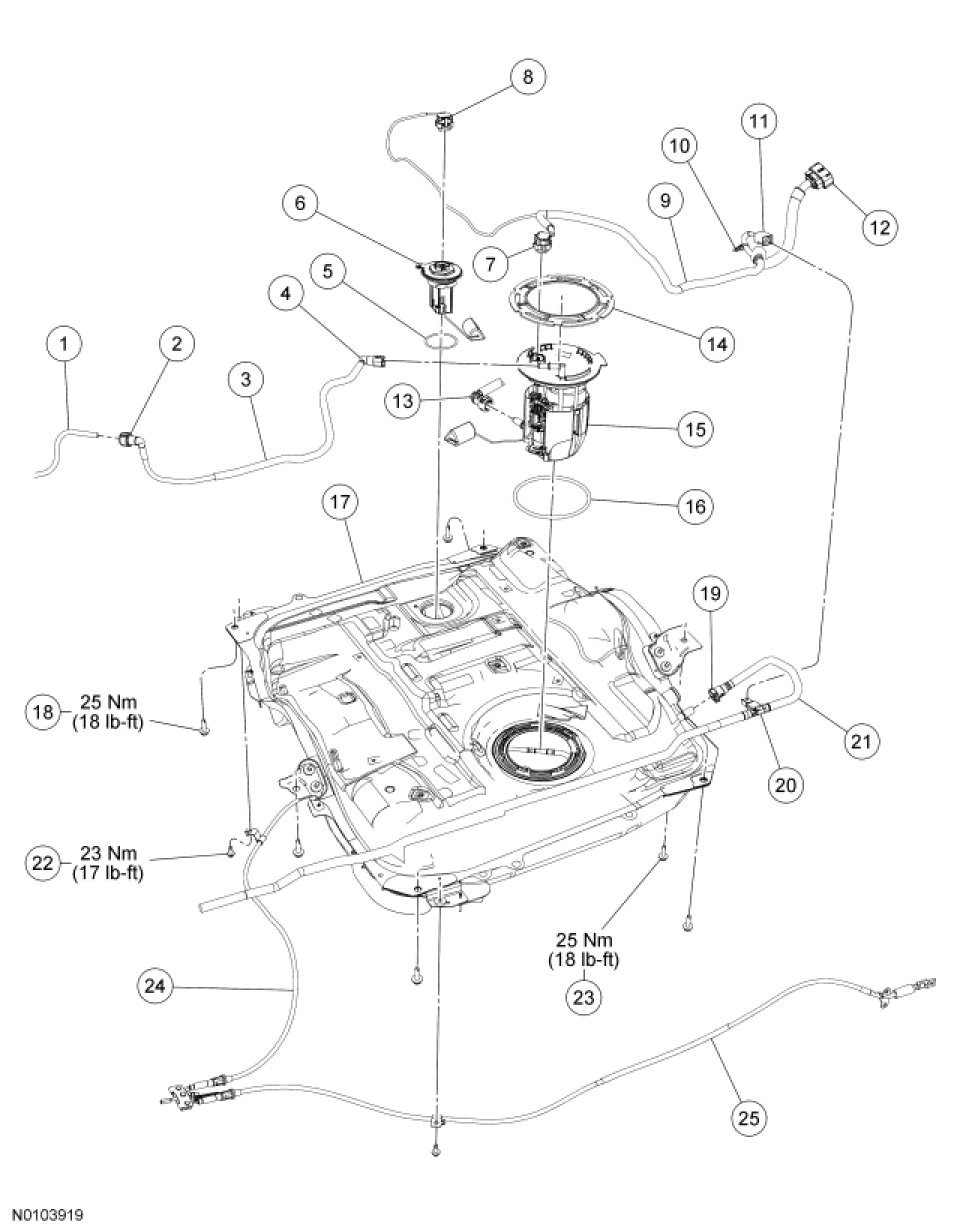

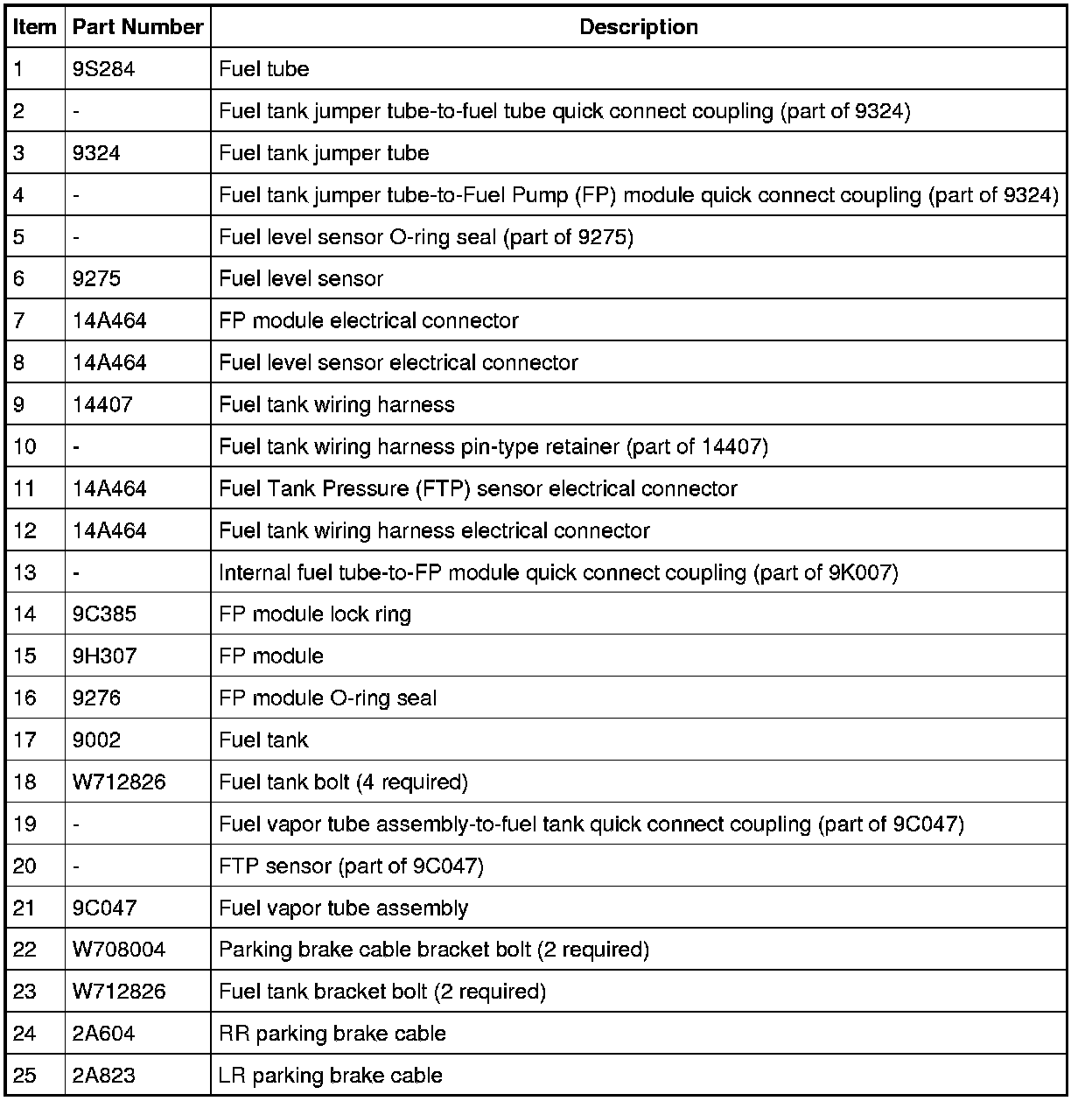

All-Wheel Drive (AWD) Fuel Tank Assembly
