Test KA: Fuel Pump (FP) Relay

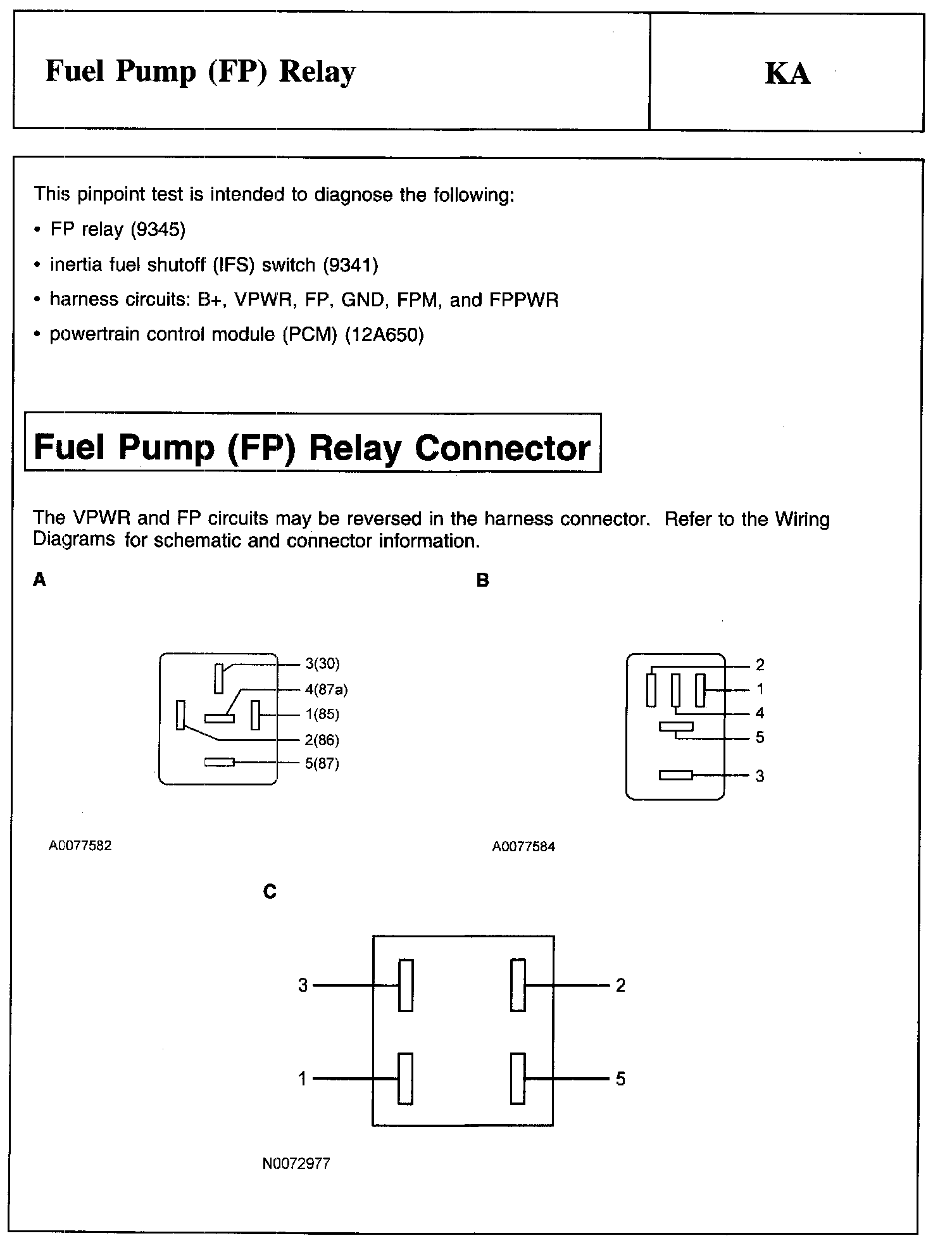

Fuel Pump (FP) Relay Connector:

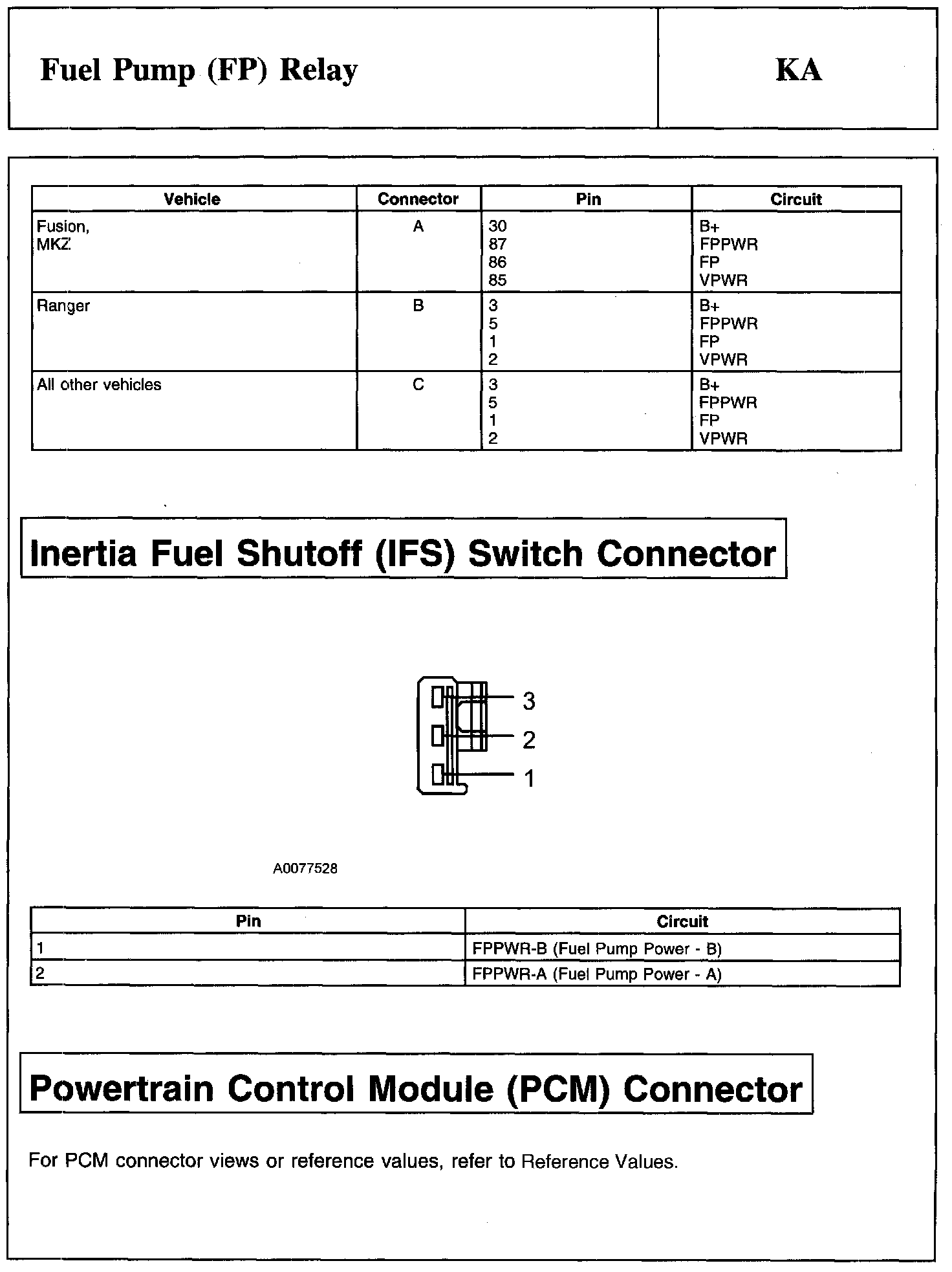

Fuel Pump (FP) Relay Connector, Inertia Fuel Shutoff (IFS) Switch Connector And Powertrain Control Module (PCM) Connector:

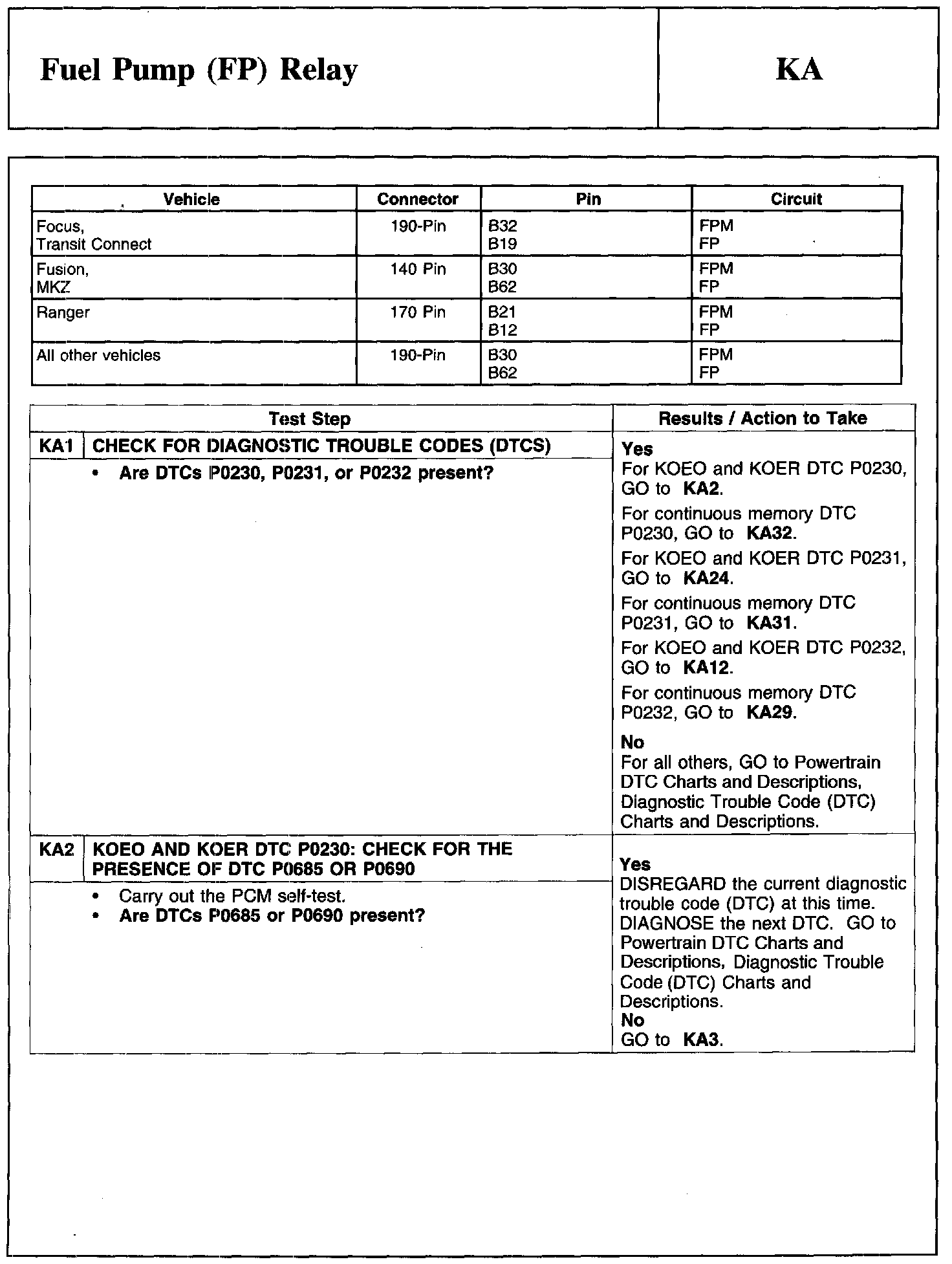

KA1-KA2:

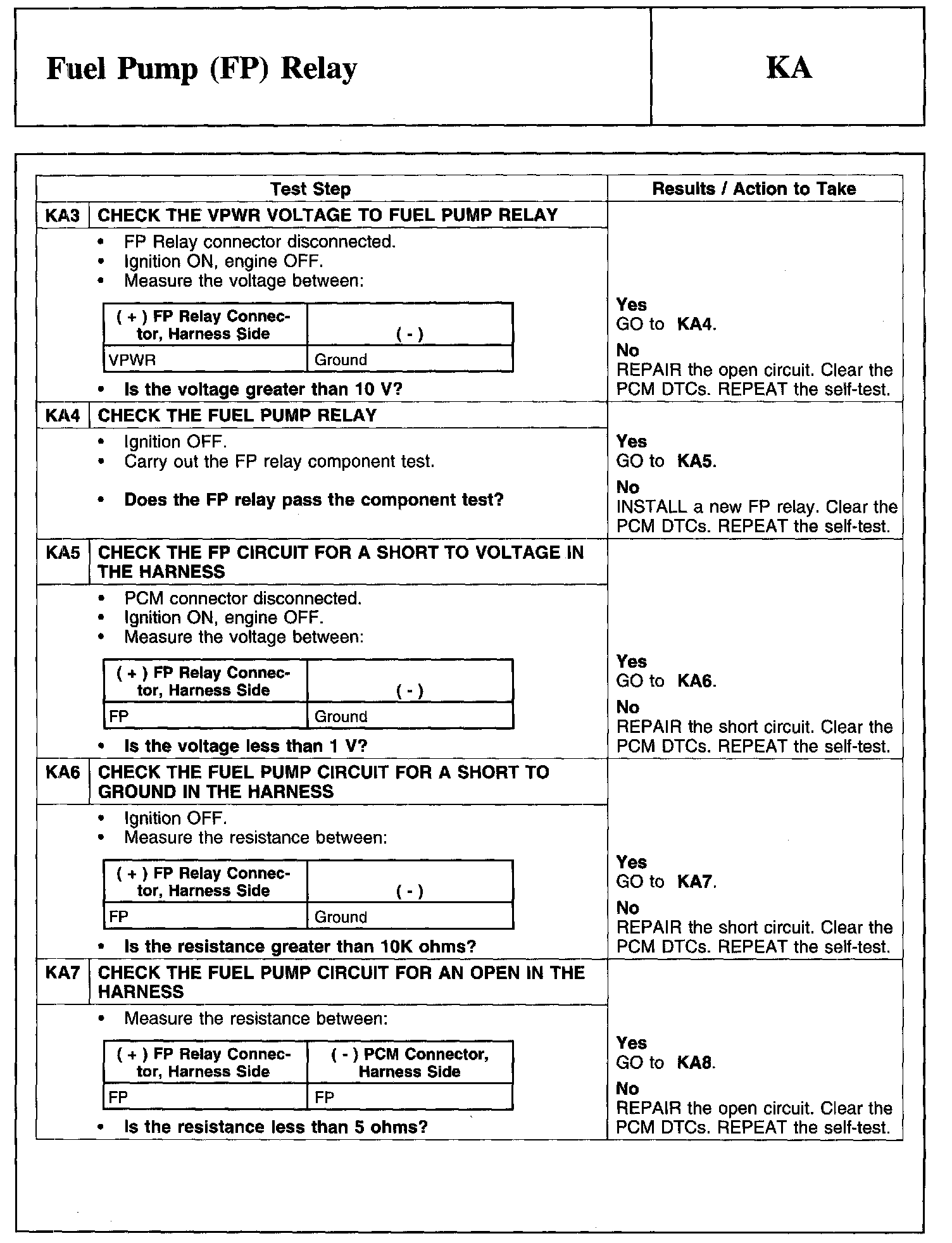

KA3-KA7:

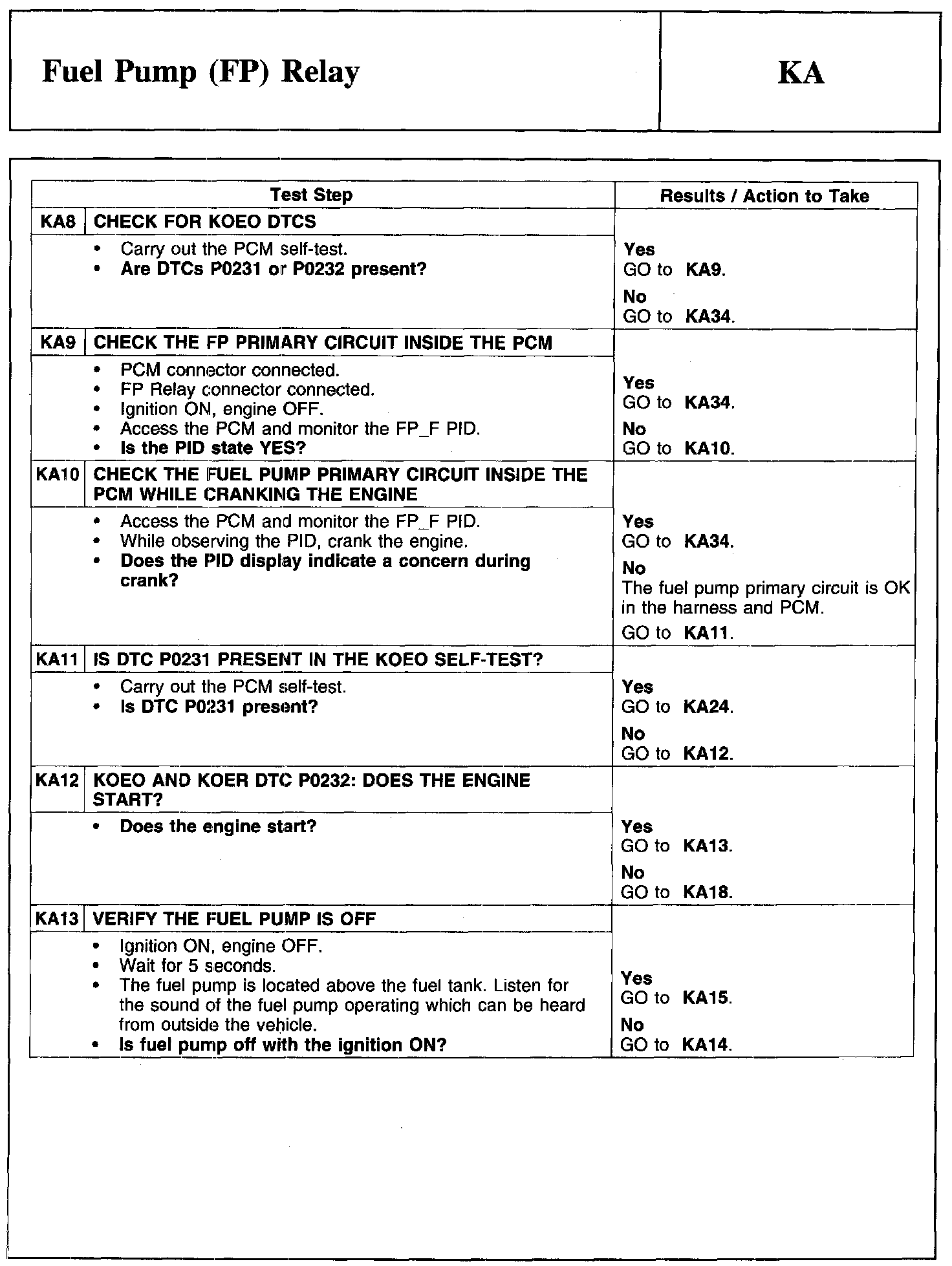

KA8-KA13:

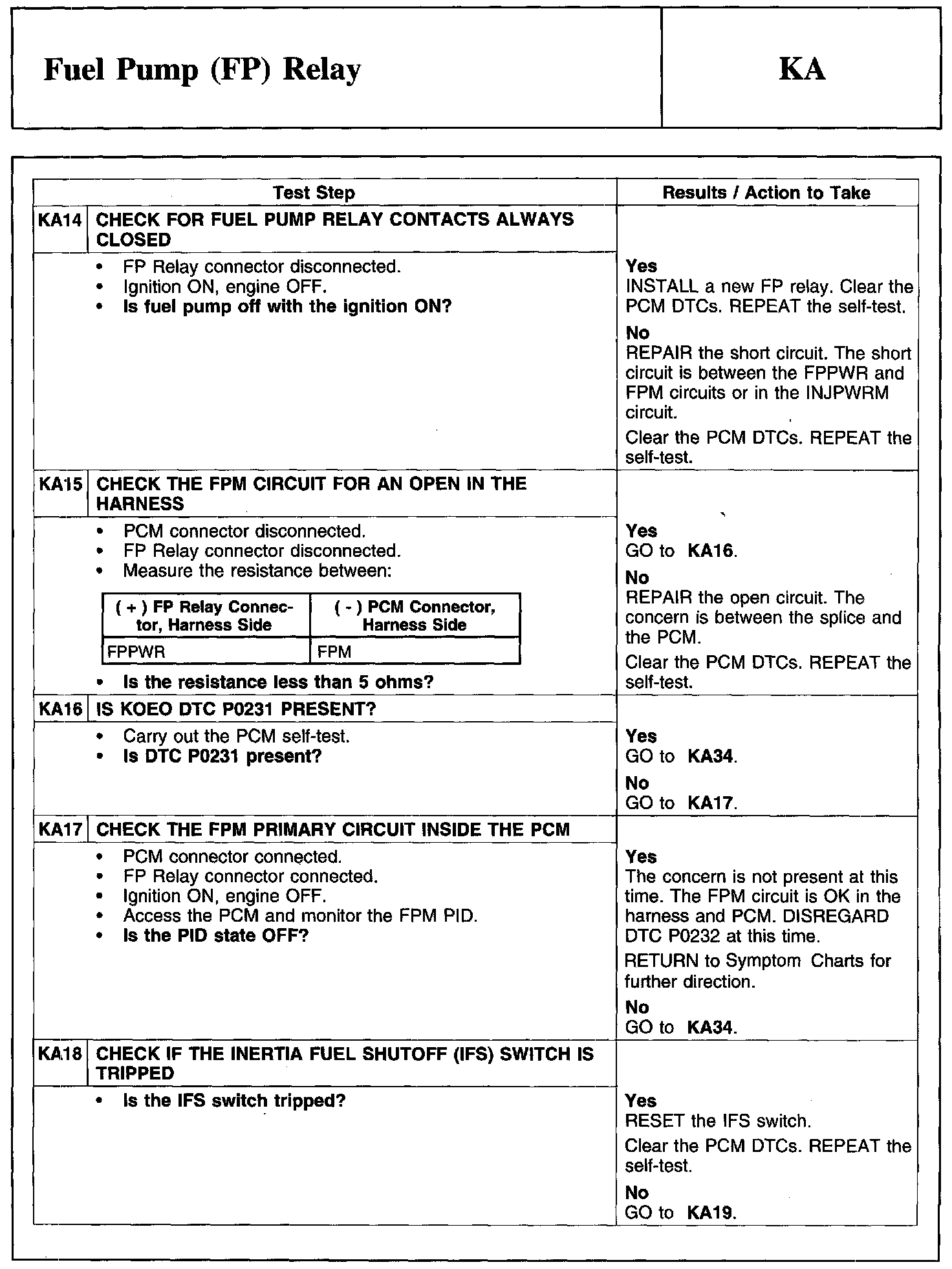

KA14-KA18:

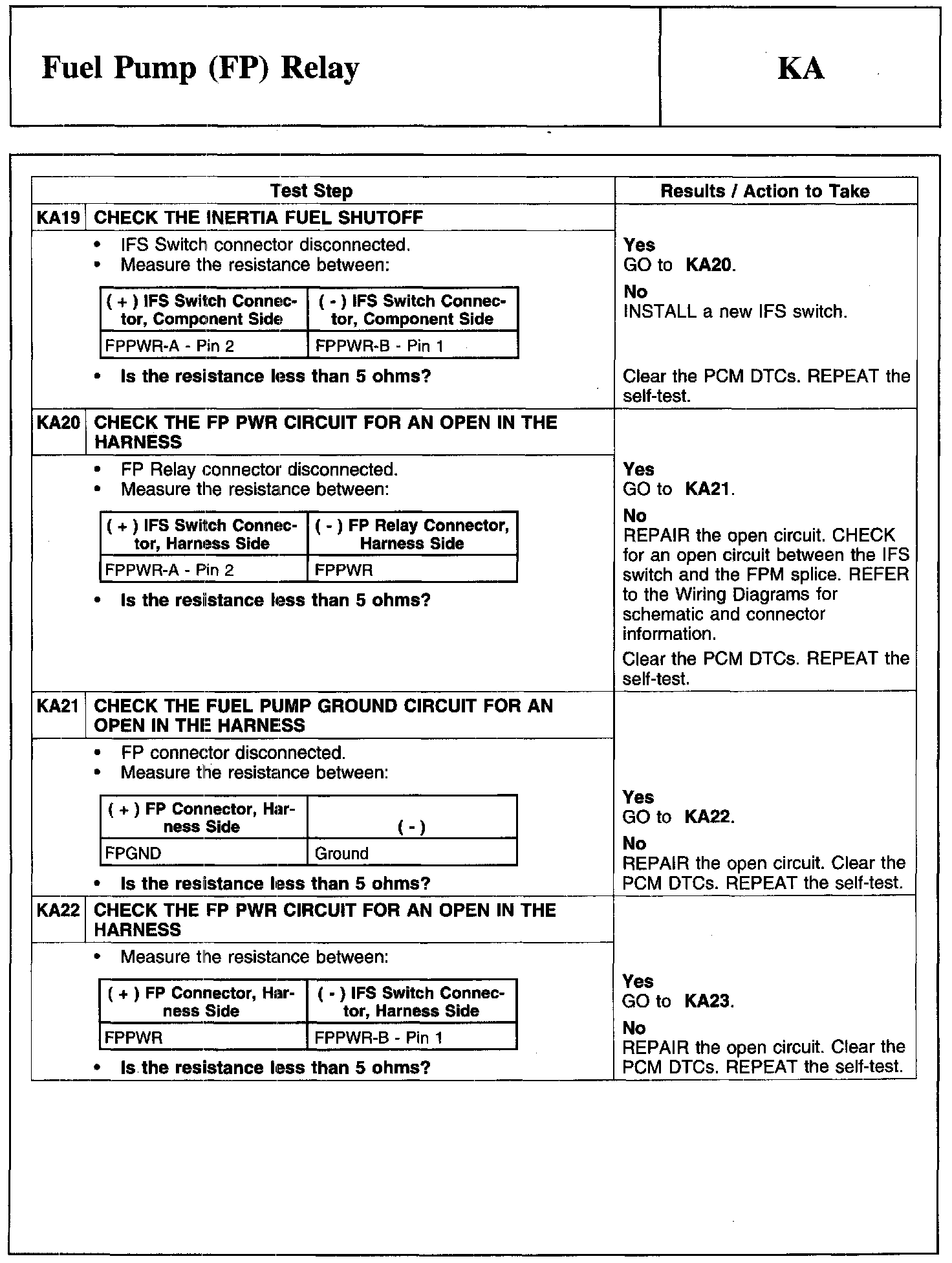

KA19-KA22:

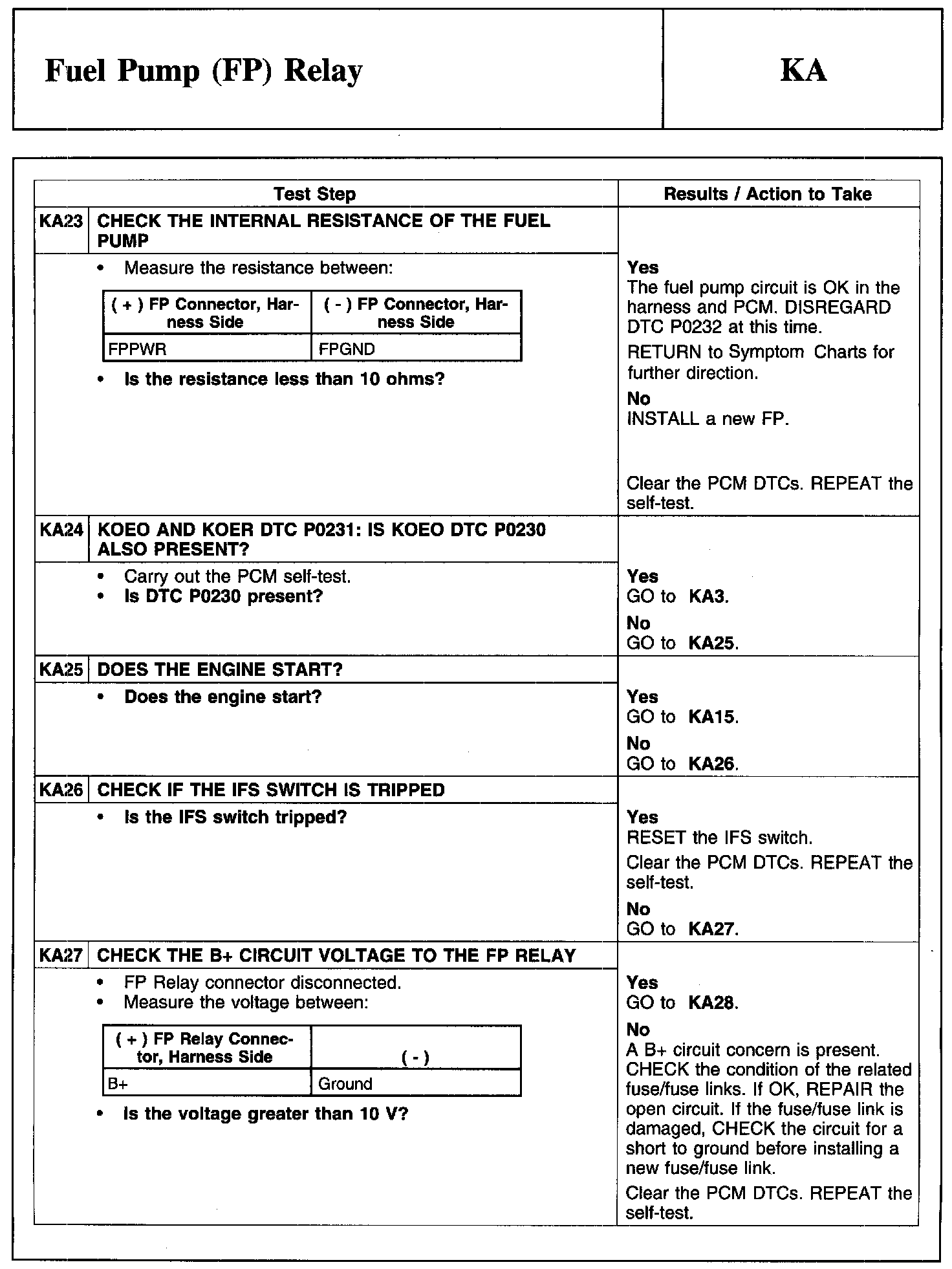

KA23-KA27:

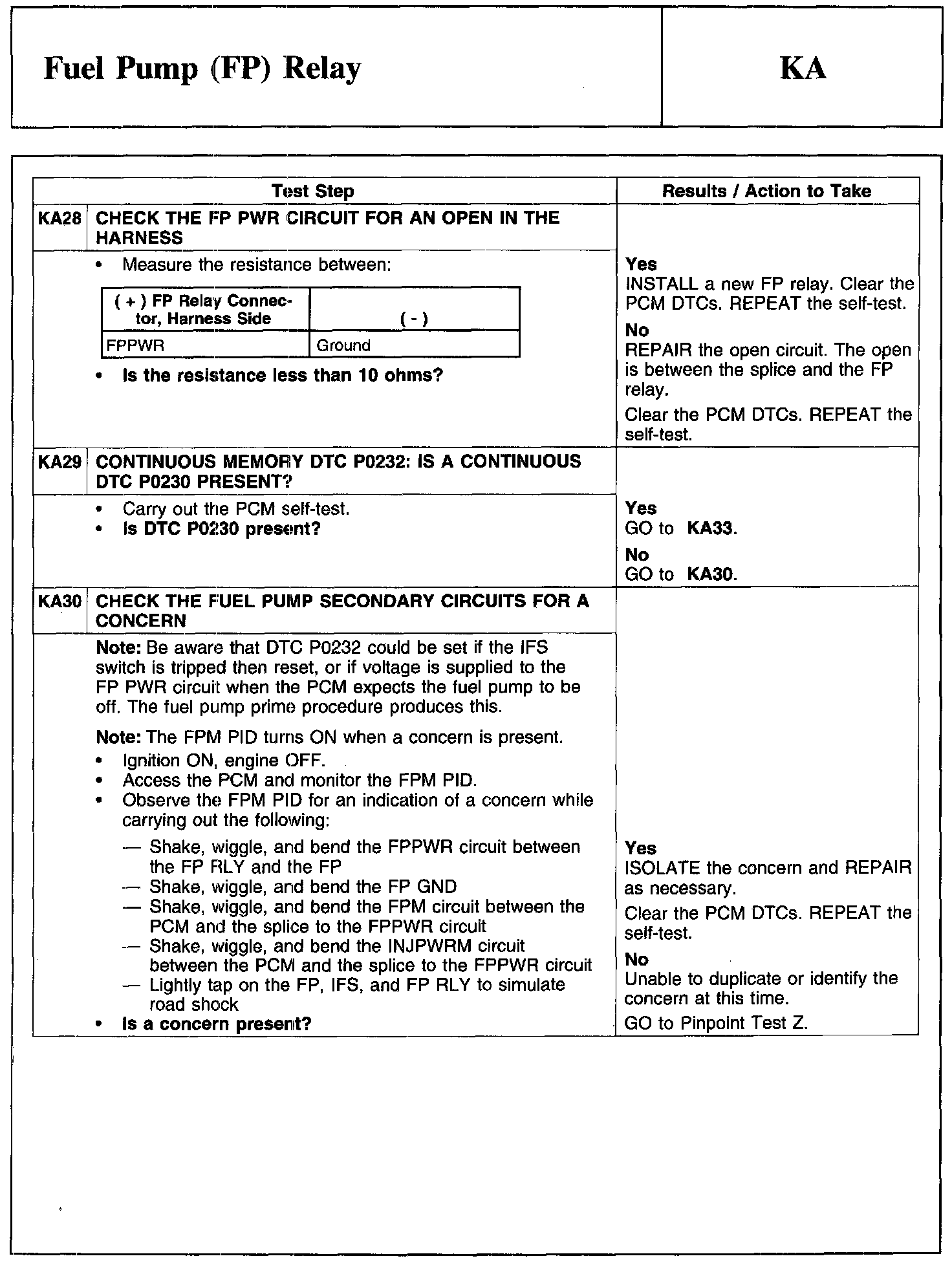

KA28-KA30:

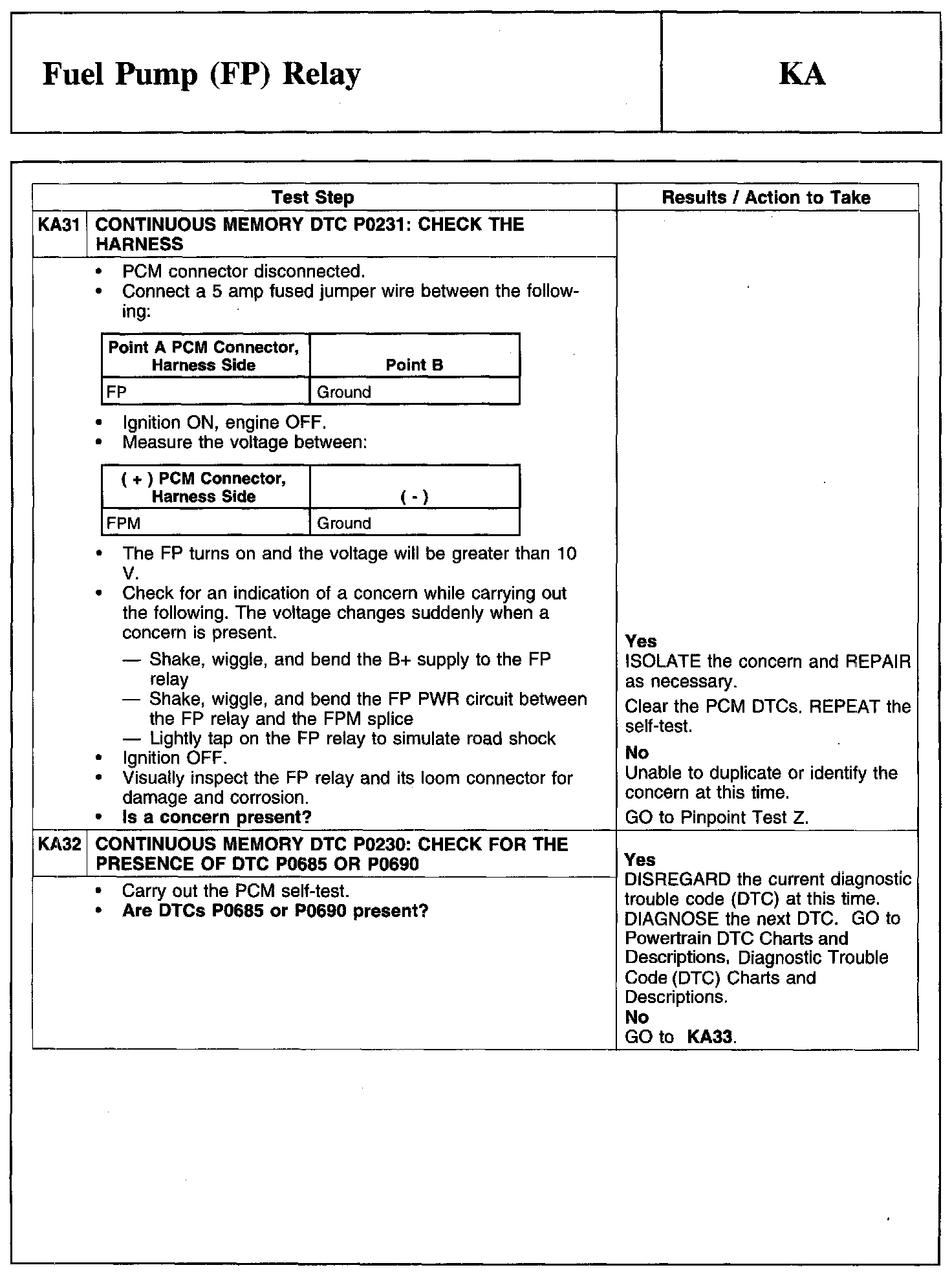

KA31-KA32:

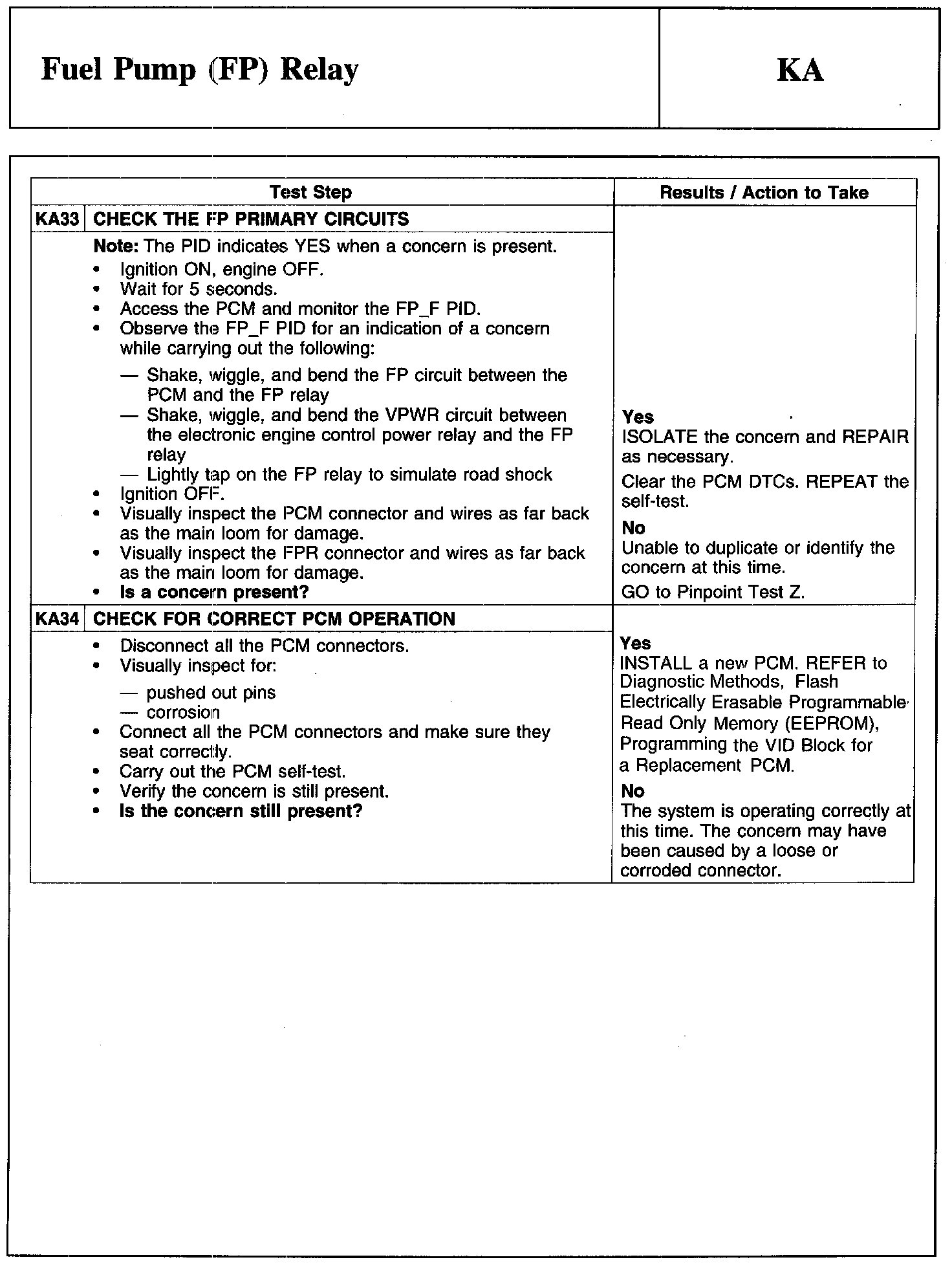

KA33-KA34:
