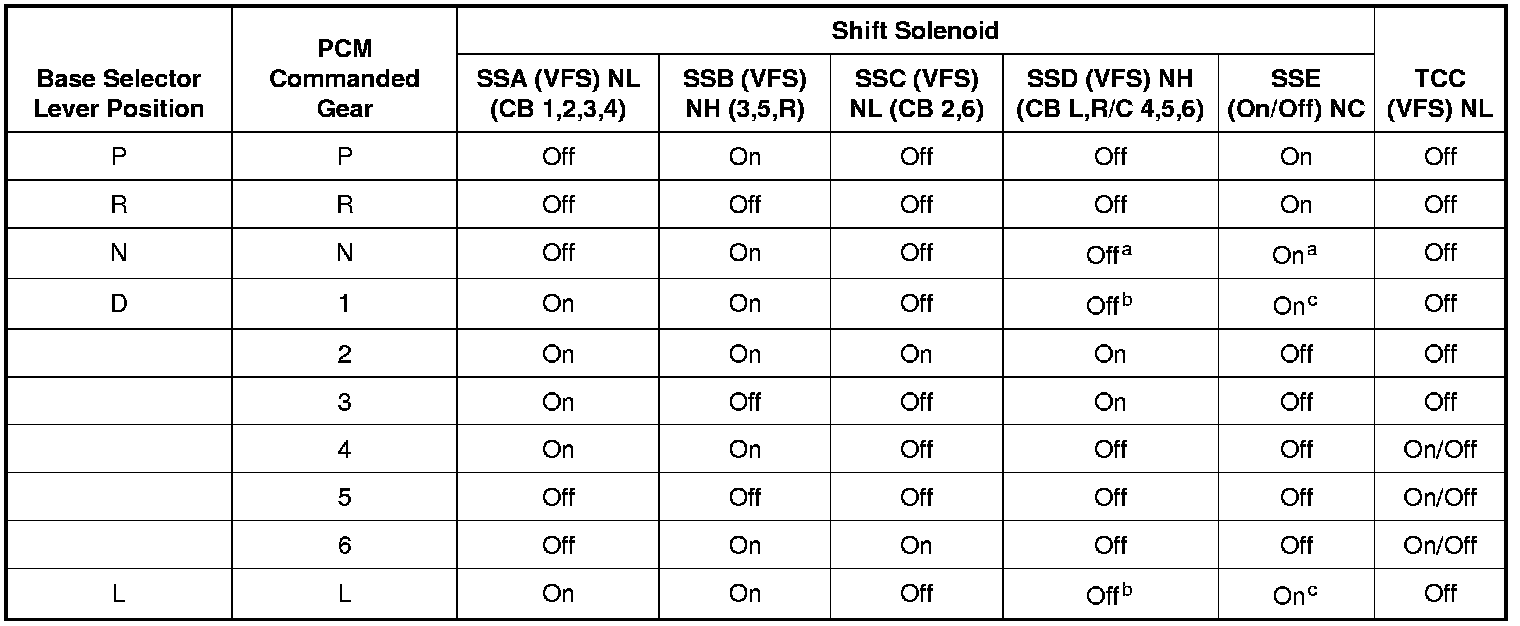

Solenoid Operation Chart

Solenoid Operation Chart





a Solenoid state will change if vehicle is moving forward with the selector lever in the NEUTRAL position.

b Turns on above 5 km/h (3 mph).

c Turns off above 5 km/h (3 mph).

CB = Clutch brake

NC = Normally closed

NH = Normally high

NL = Normally low
