Parameter Identification (PID)

PARAMETER IDENTIFICATION (PID)

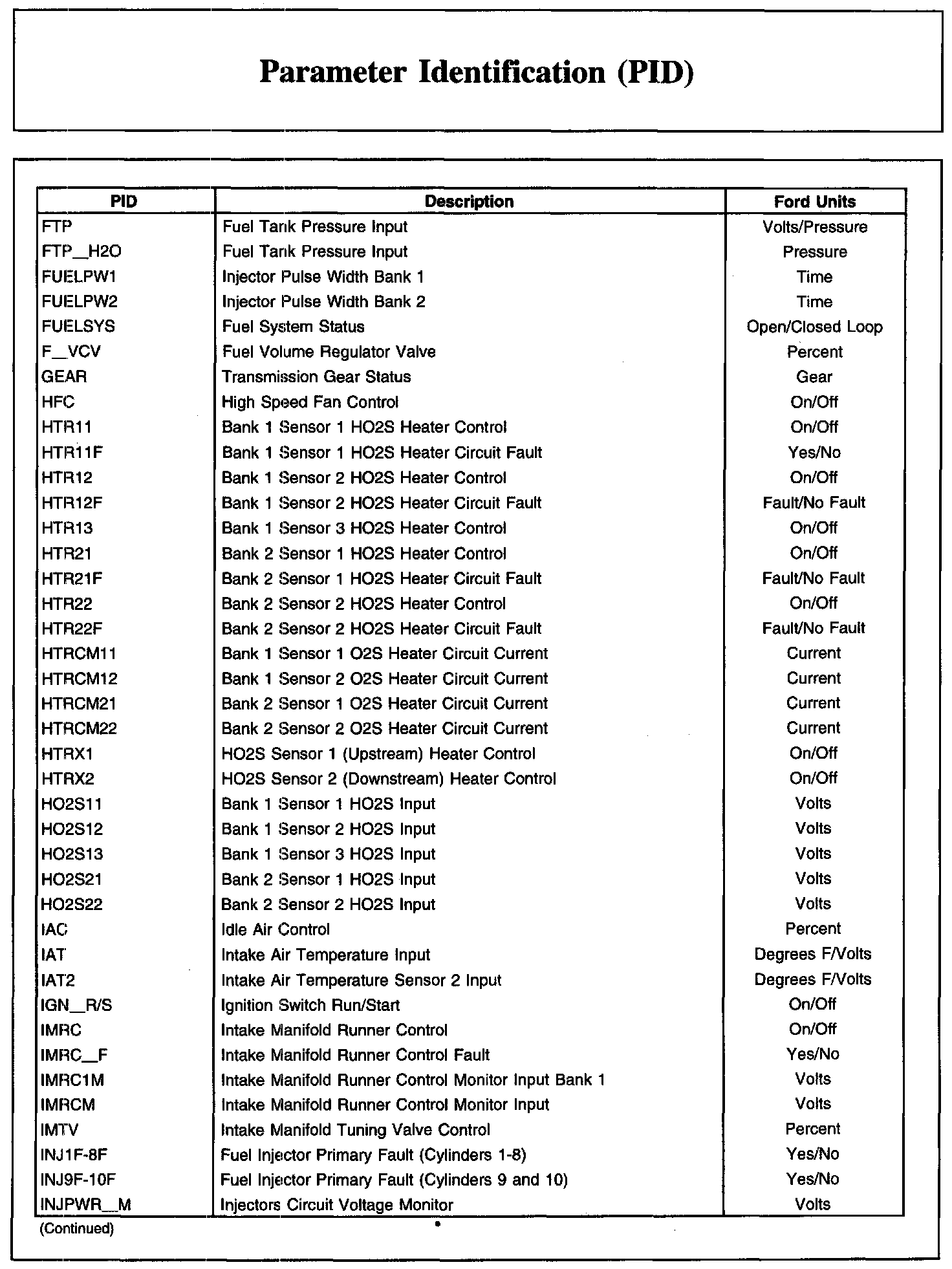

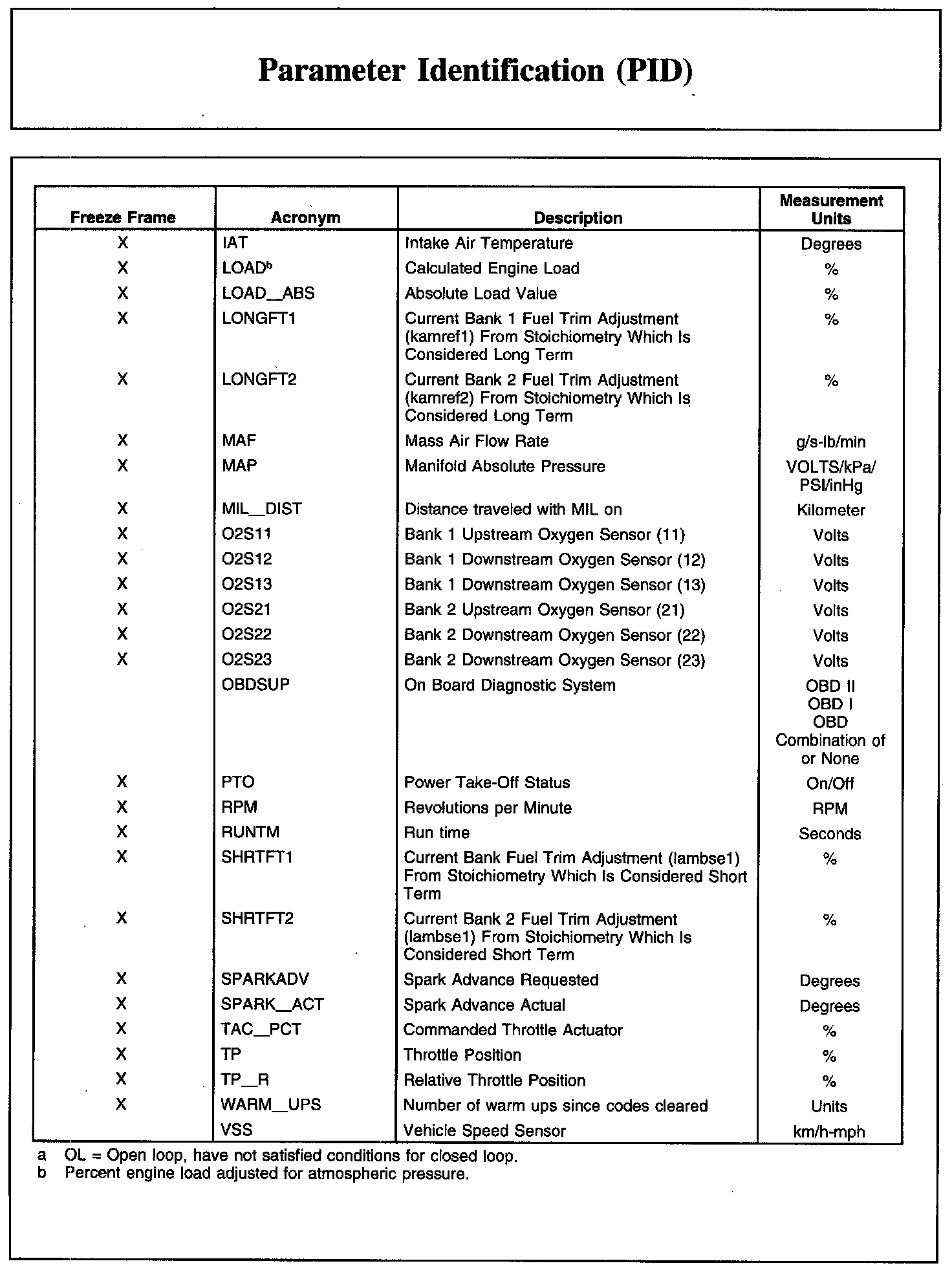

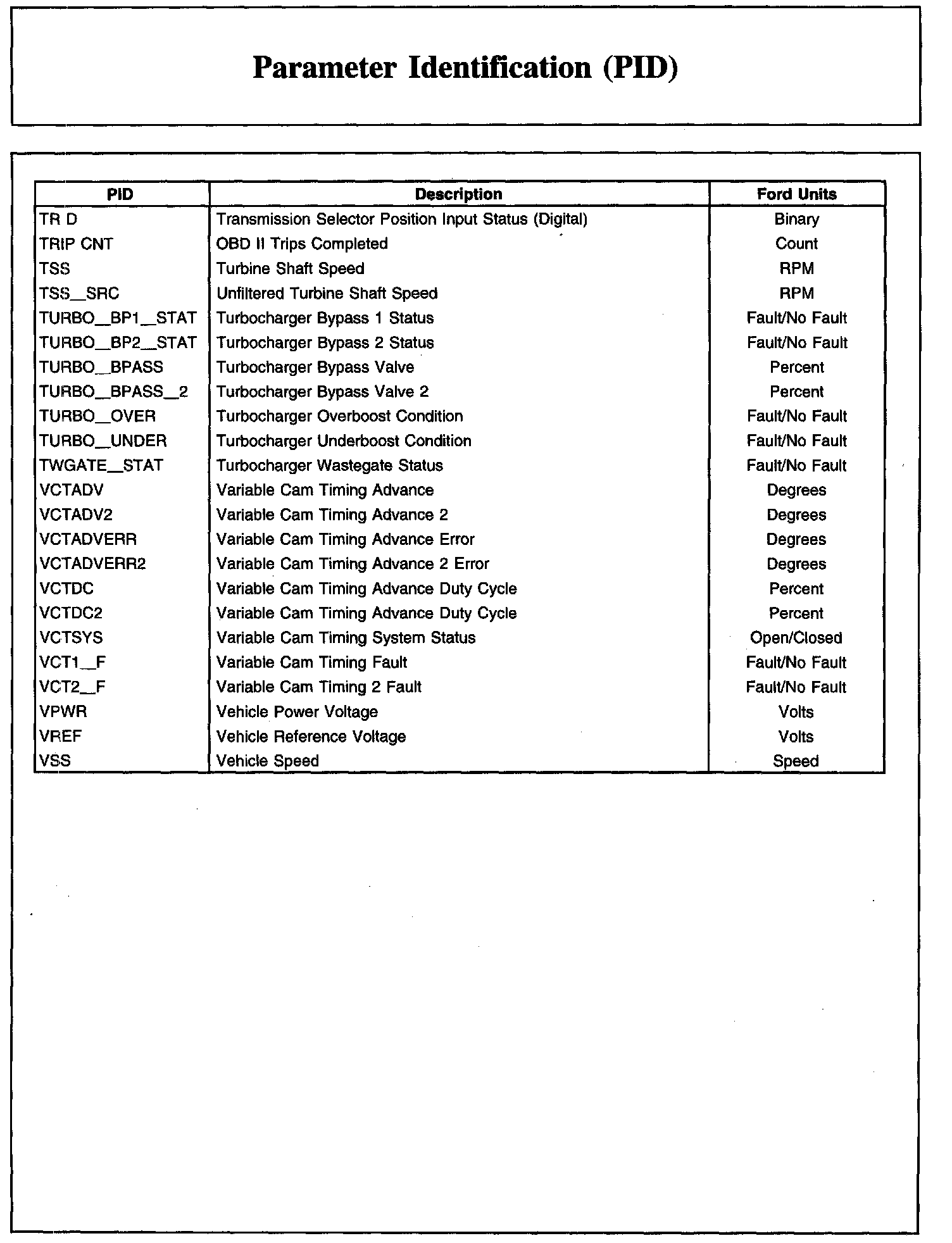

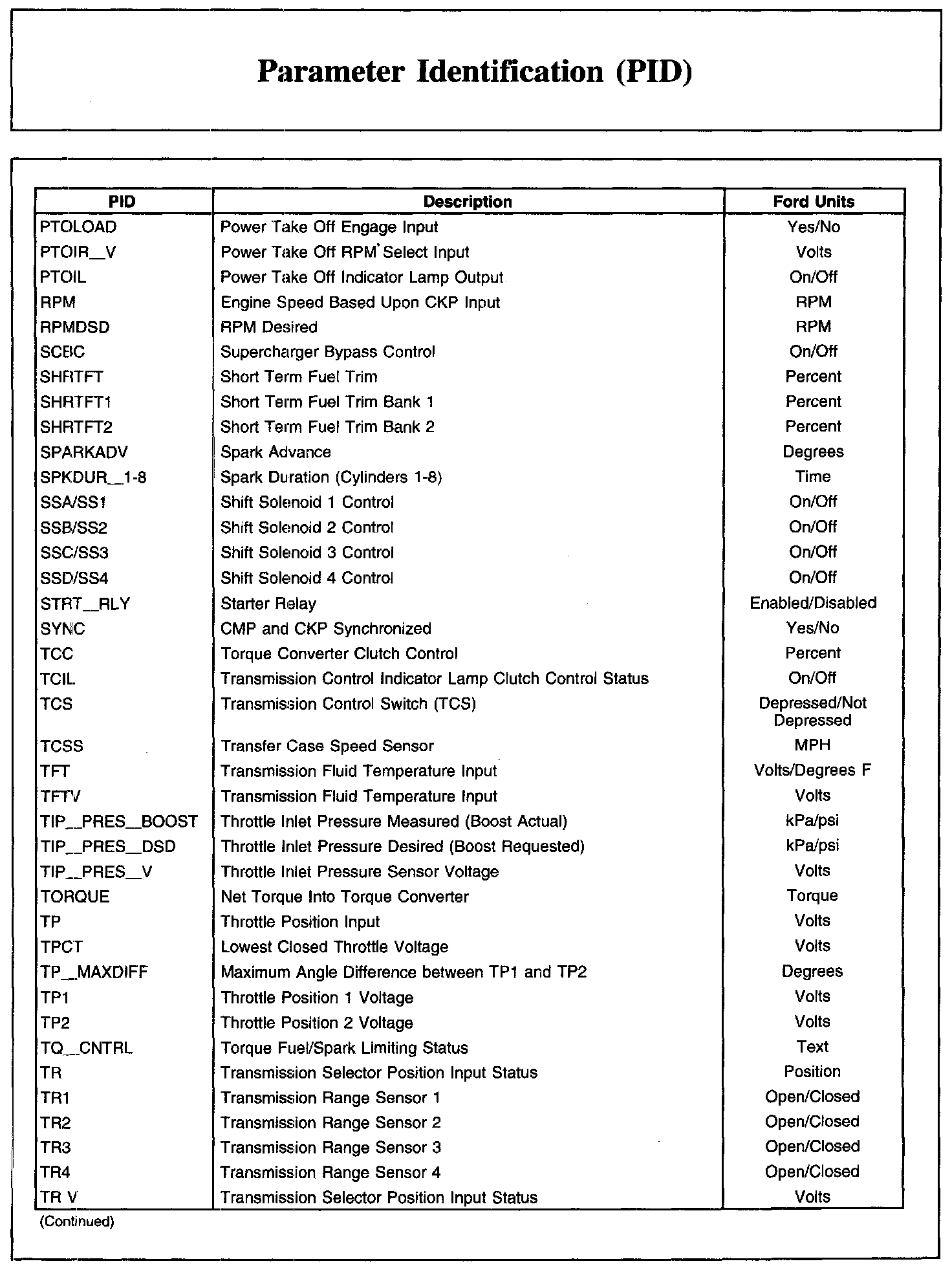

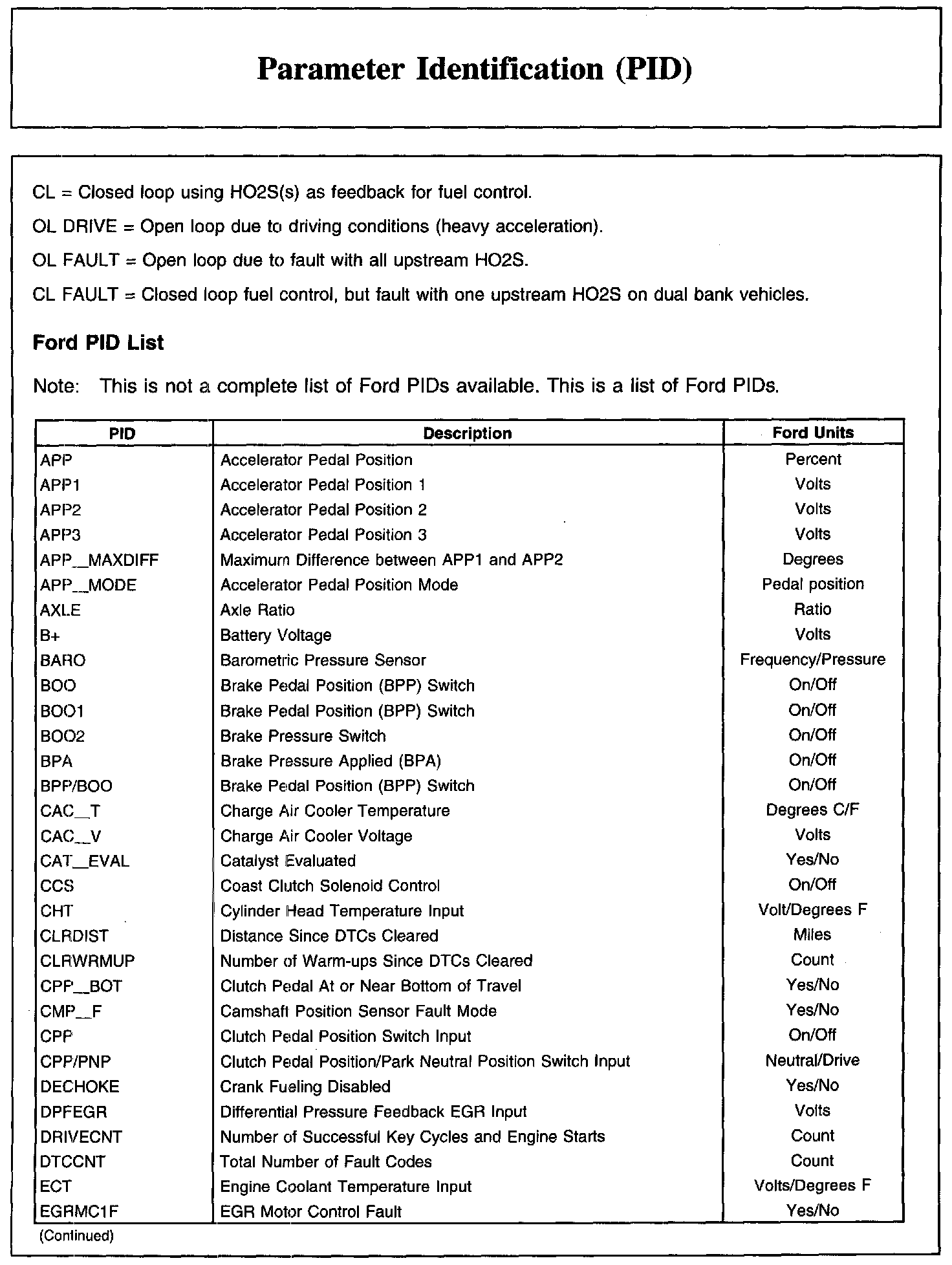

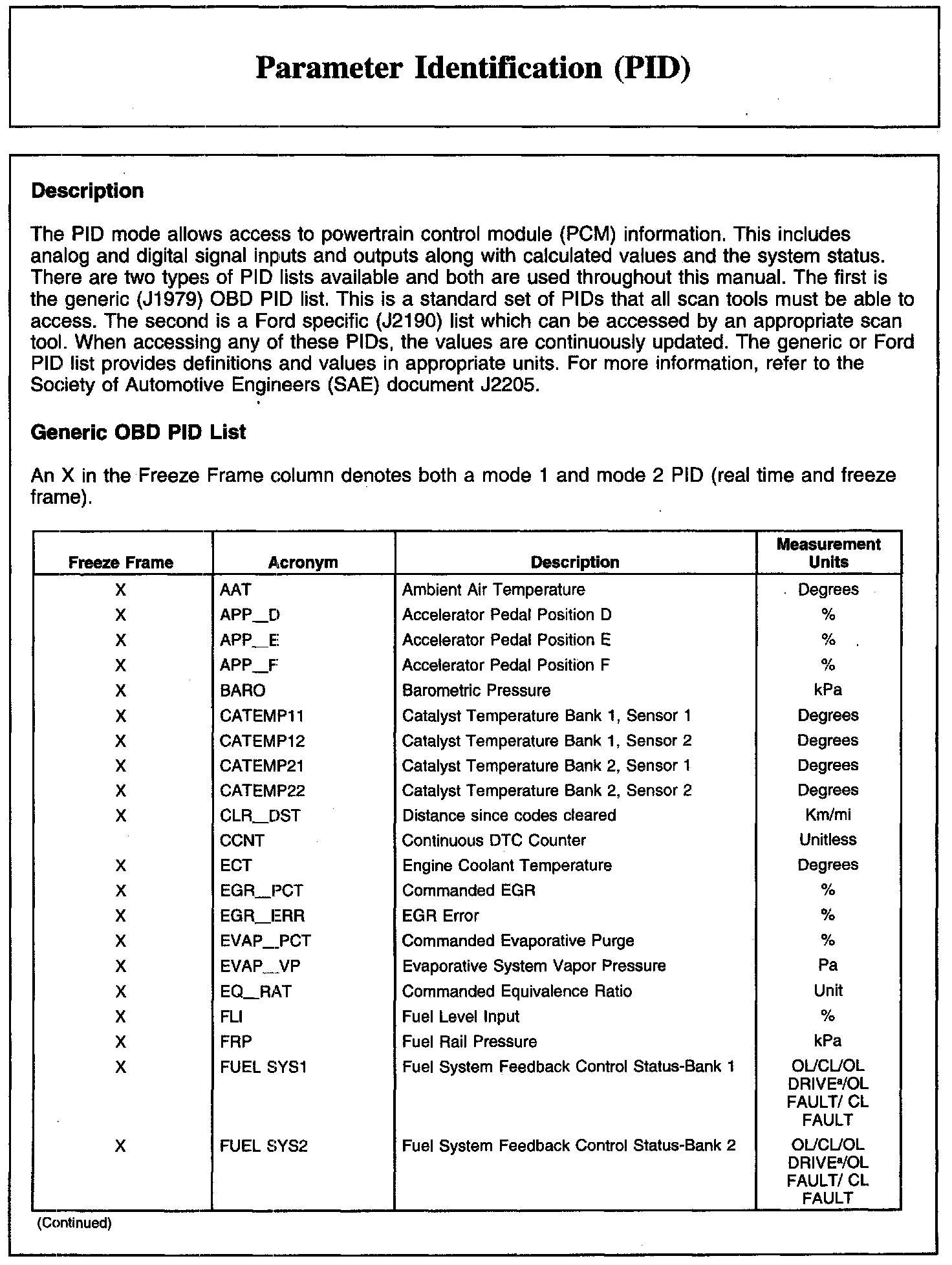

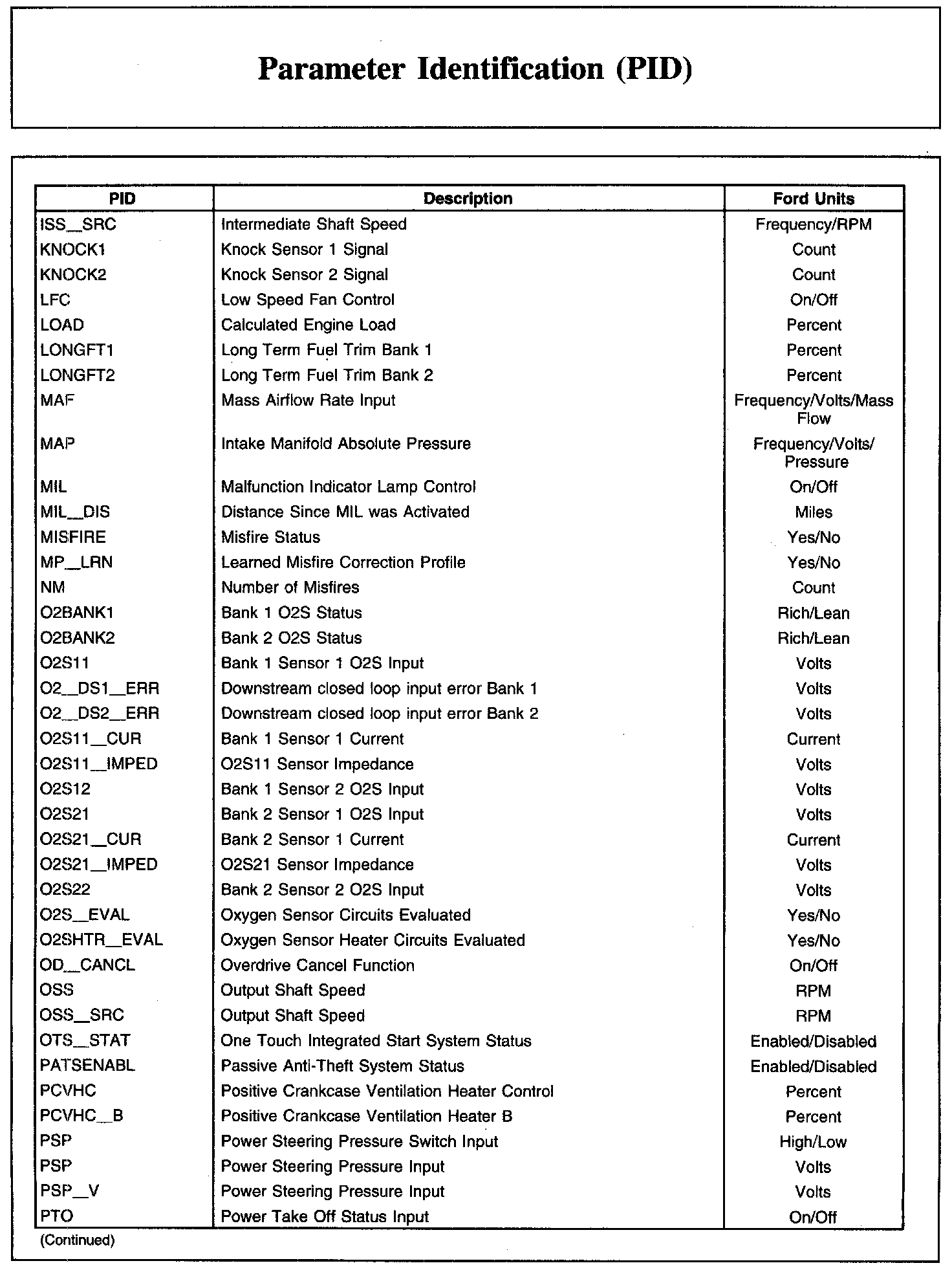

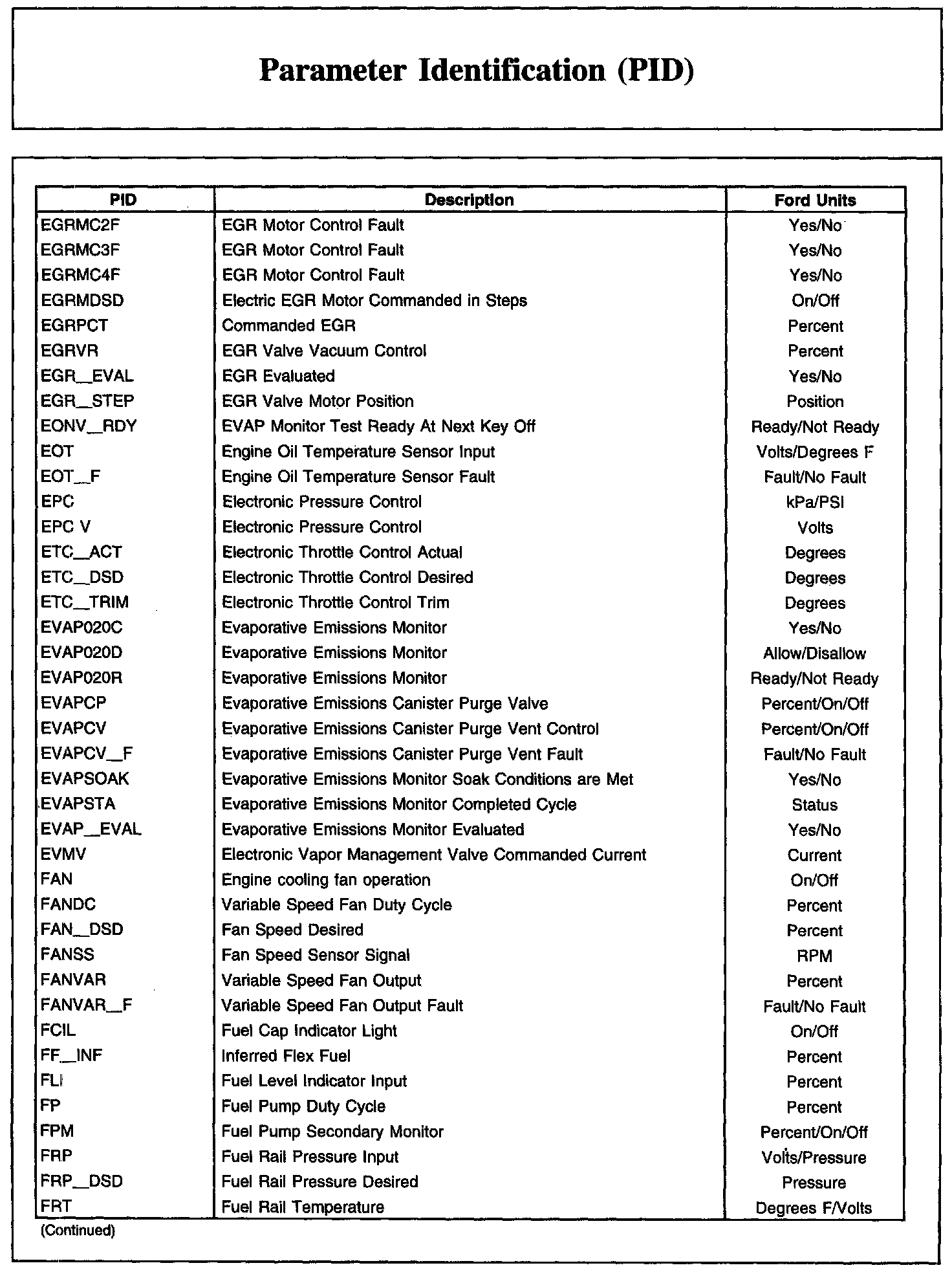

Parameter Identification (PID) (Part 1):






Parameter Identification (PID) (Part 2):






Parameter Identification (PID) (Part 3):






Parameter Identification (PID) (Part 4):






Parameter Identification (PID) (Part 5):






Parameter Identification (PID) (Part 6):






Parameter Identification (PID) (Part 7):






Parameter Identification (PID) (Part 8):
