Ignition switch
>>
Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Ignition switch: Schematic

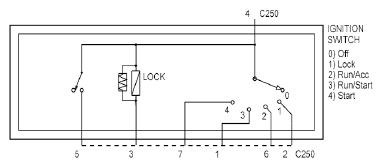

Fig 1: Ignition Switch Schematic
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
