Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Battery Junction Box (BJB)

G00446630

Courtesy of FORD MOTOR CO.

Fig 2: Smart Junction Box (SJB)

G00446631

Courtesy of FORD MOTOR CO.

Fig 3: Engine Compartment (Edge)

G00475541

Courtesy of FORD MOTOR CO.

Fig 4: Engine Compartment (Edge)

G00475542

Courtesy of FORD MOTOR CO.

Fig 5: Engine Compartment (MKX)

G00475543

Courtesy of FORD MOTOR CO.

Fig 6: Engine Compartment (MKX)

G00475544

Courtesy of FORD MOTOR CO.

Fig 7: Left Side Of Engine

G00446636

Courtesy of FORD MOTOR CO.

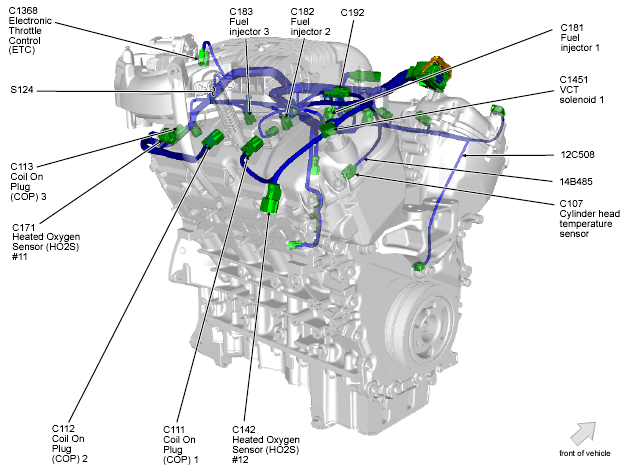

Fig 8: Right Side Of Engine

G00475545

Courtesy of FORD MOTOR CO.

Fig 9: Dash

G00475547

Courtesy of FORD MOTOR CO.

Fig 10: Dash

G00475548

Courtesy of FORD MOTOR CO.

Fig 11: Steering Wheel

G00446640

Courtesy of FORD MOTOR CO.

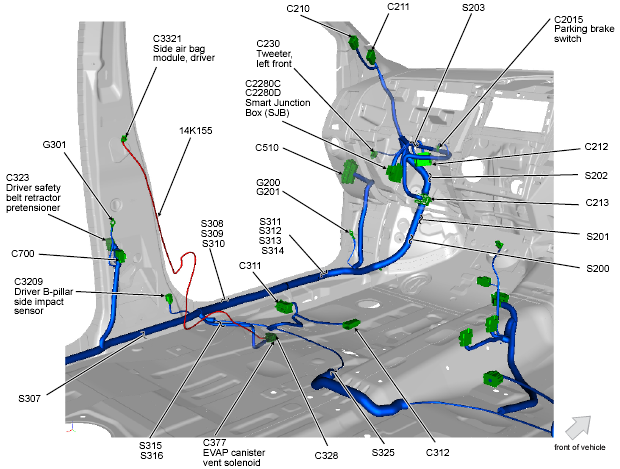

Fig 12: Left Front Of Passenger Compartment

G00475550

Courtesy of FORD MOTOR CO.

Fig 13: Right Front Of Passenger Compartment

G00475551

Courtesy of FORD MOTOR CO.

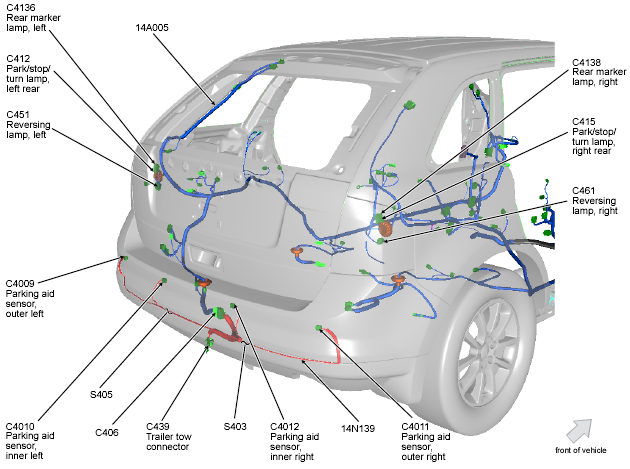

Fig 14: Rear Of Vehicle (Edge)

G00475556

Courtesy of FORD MOTOR CO.

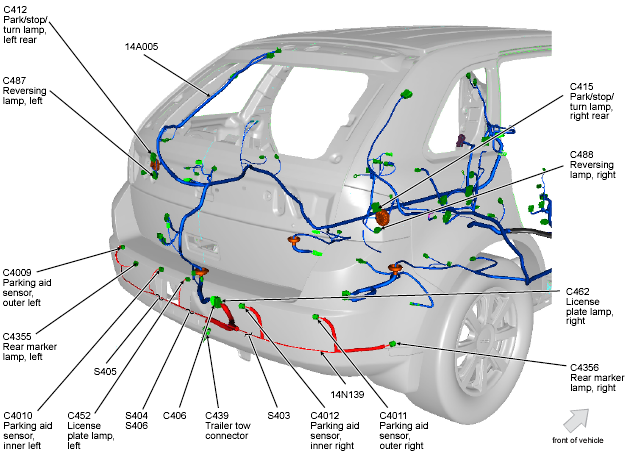

Fig 15: Rear Of Vehicle (MKX)

G00475557

Courtesy of FORD MOTOR CO.

Fig 16: Driver's Seat

G00446648

Courtesy of FORD MOTOR CO.

Fig 17: Front Passenger's Seat

G00475558

Courtesy of FORD MOTOR CO.

Fig 18: Rear Seats

G00446650

Courtesy of FORD MOTOR CO.

Fig 19: Driver's Door

G00446651

Courtesy of FORD MOTOR CO.

Fig 20: Front Passenger's Door

G00446652

Courtesy of FORD MOTOR CO.

Fig 21: Left Rear Door

G00446653

Courtesy of FORD MOTOR CO.

Fig 22: Right Rear Door

G00446654

Courtesy of FORD MOTOR CO.

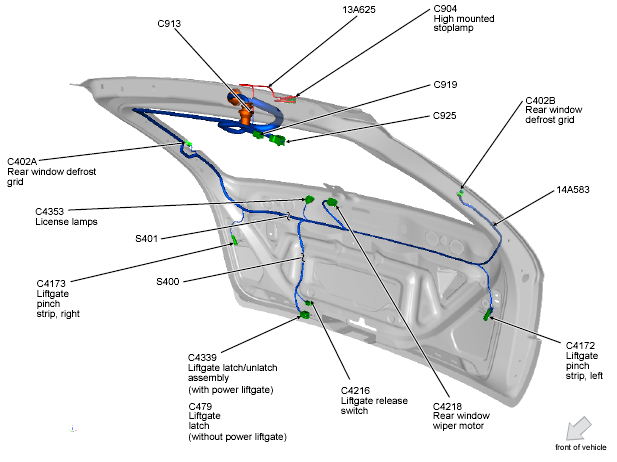

Fig 23: Liftgate (Edge)

G00475559

Courtesy of FORD MOTOR CO.

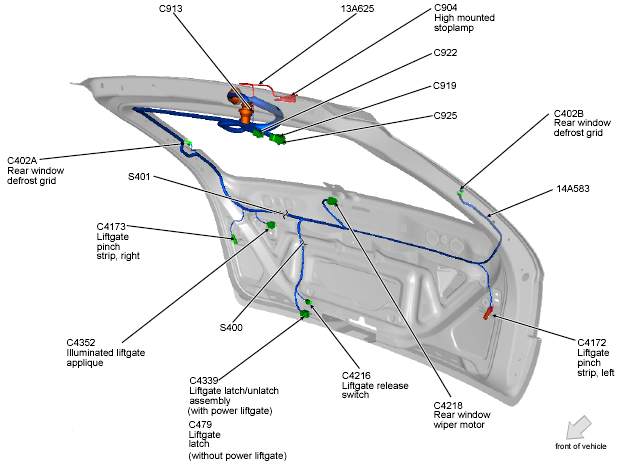

Fig 24: Liftgate (MKX)

G00475560

Courtesy of FORD MOTOR CO.

Fig 25: Roof (Except Panoramic Vista Roof)

G00446657

Courtesy of FORD MOTOR CO.

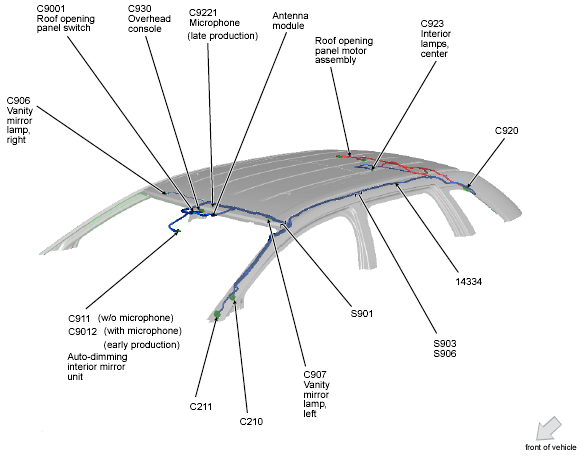

Fig 26: Roof (W/Panoramic Vista Roof)

G00475561

Courtesy of FORD MOTOR CO.

Fig 27: HVAC Unit

G00475546

Courtesy of FORD MOTOR CO.

Fig 28: Steering Column

G00457966

Courtesy of FORD MOTOR CO.

Fig 29: Dash & Center Floor Console

G00475549

Courtesy of FORD MOTOR CO.

Fig 30: Left Rear Of Passenger Compartment

G00475552

Courtesy of FORD MOTOR CO.

Fig 31: Left Rear Of Passenger Compartment

G00475553

Courtesy of FORD MOTOR CO.

Fig 32: Right Rear Of Passenger Compartment

G00475554

Courtesy of FORD MOTOR CO.

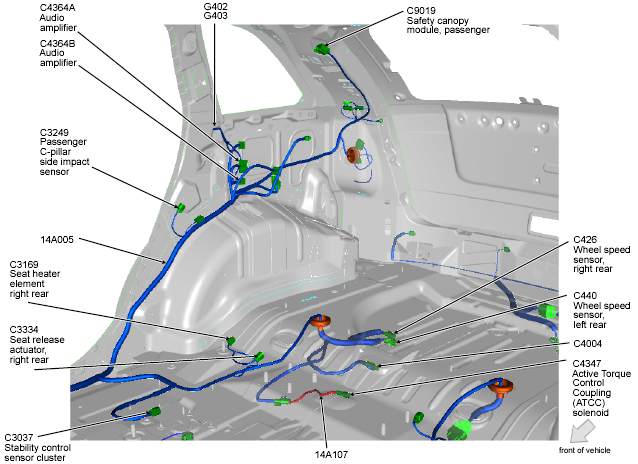

Fig 33: Right Rear Of Passenger Compartment

G00475555

Courtesy of FORD MOTOR CO.
