Test B: Powertrain Control Module (PCM) Power Relay

PINPOINT TEST B: POWERTRAIN CONTROL MODULE (PCM) POWER RELAY

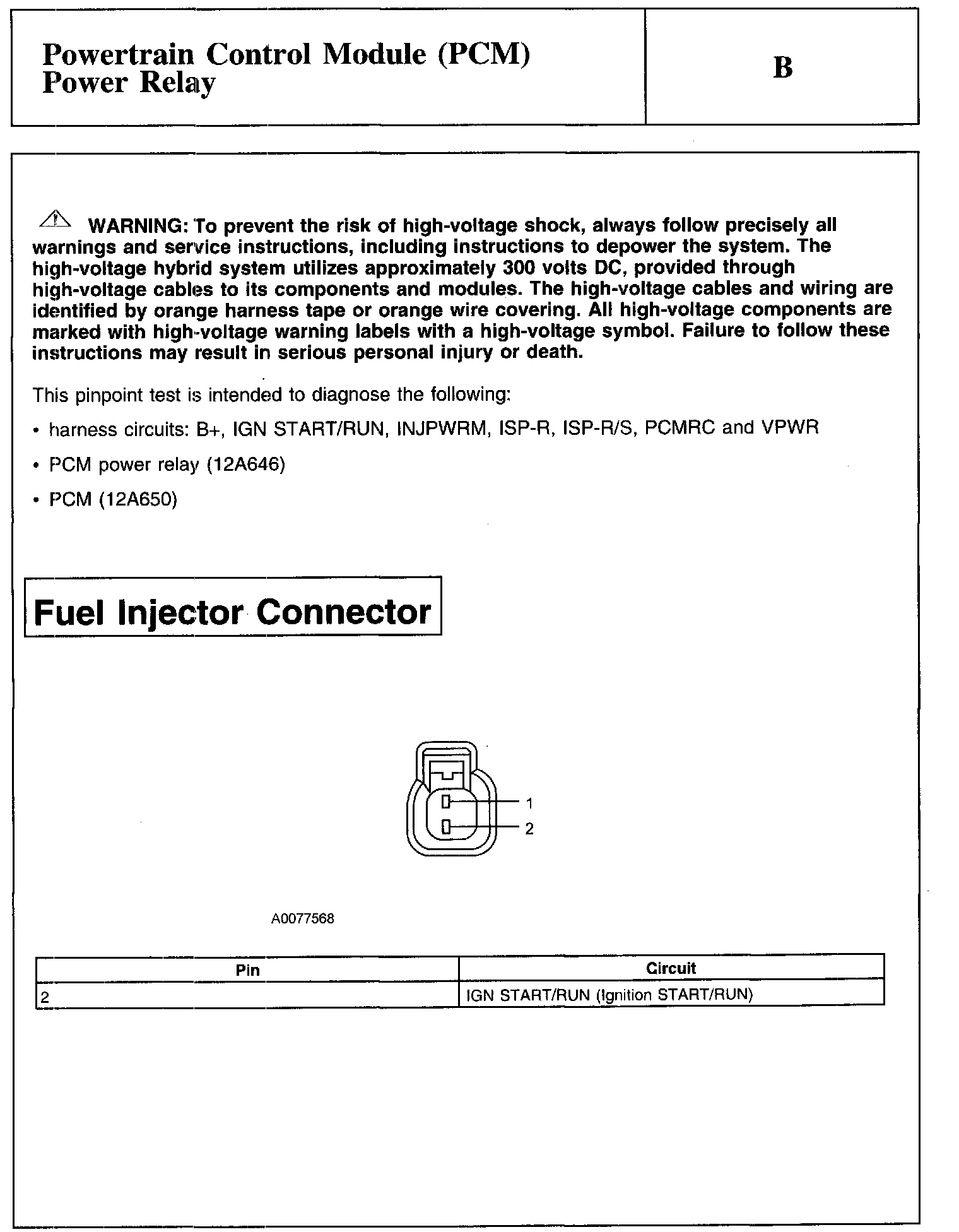

Warning And Fuel Injector Connector:

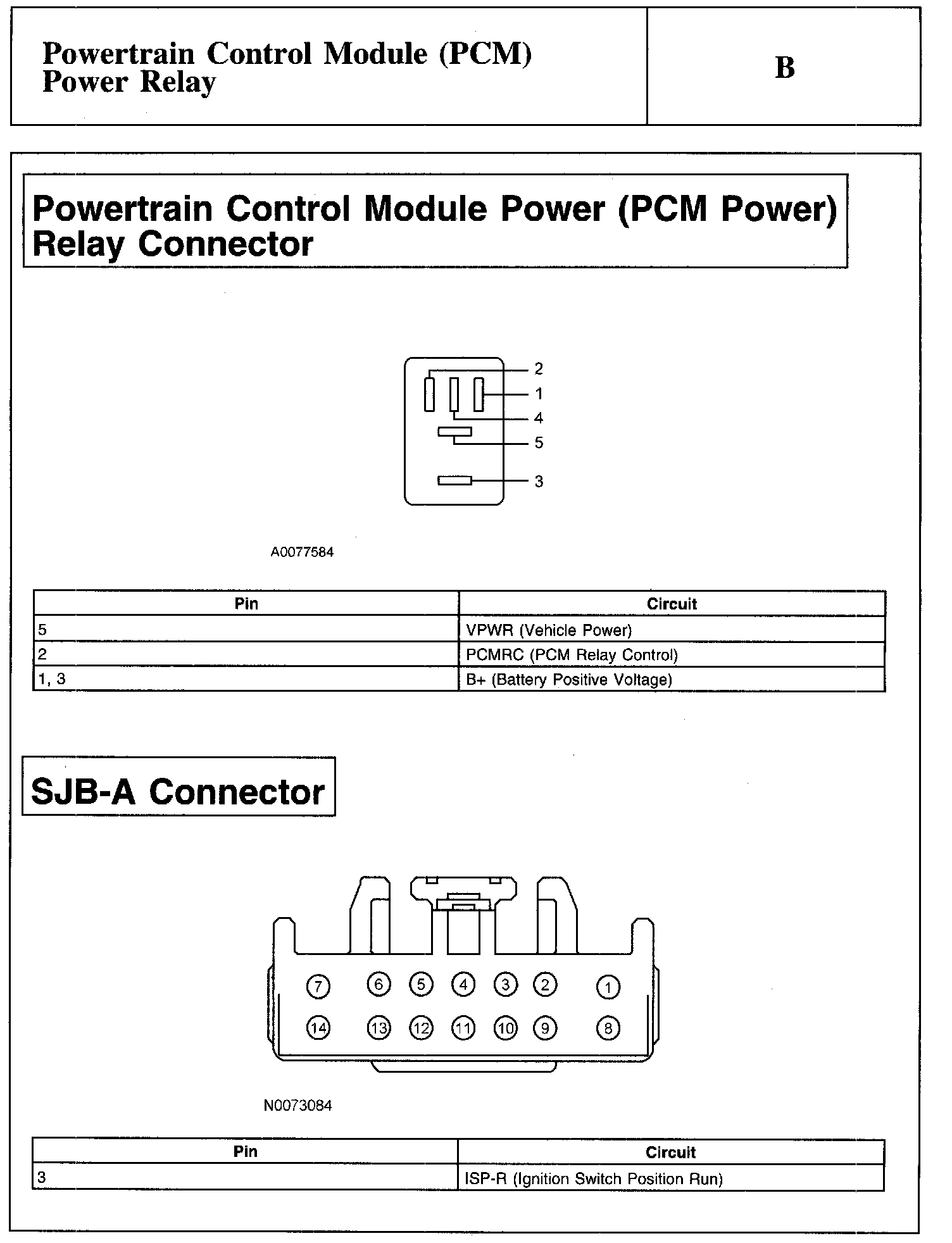

Powertrain Control Module Power (PCM Power) Relay Connector And SJB-A Connector:

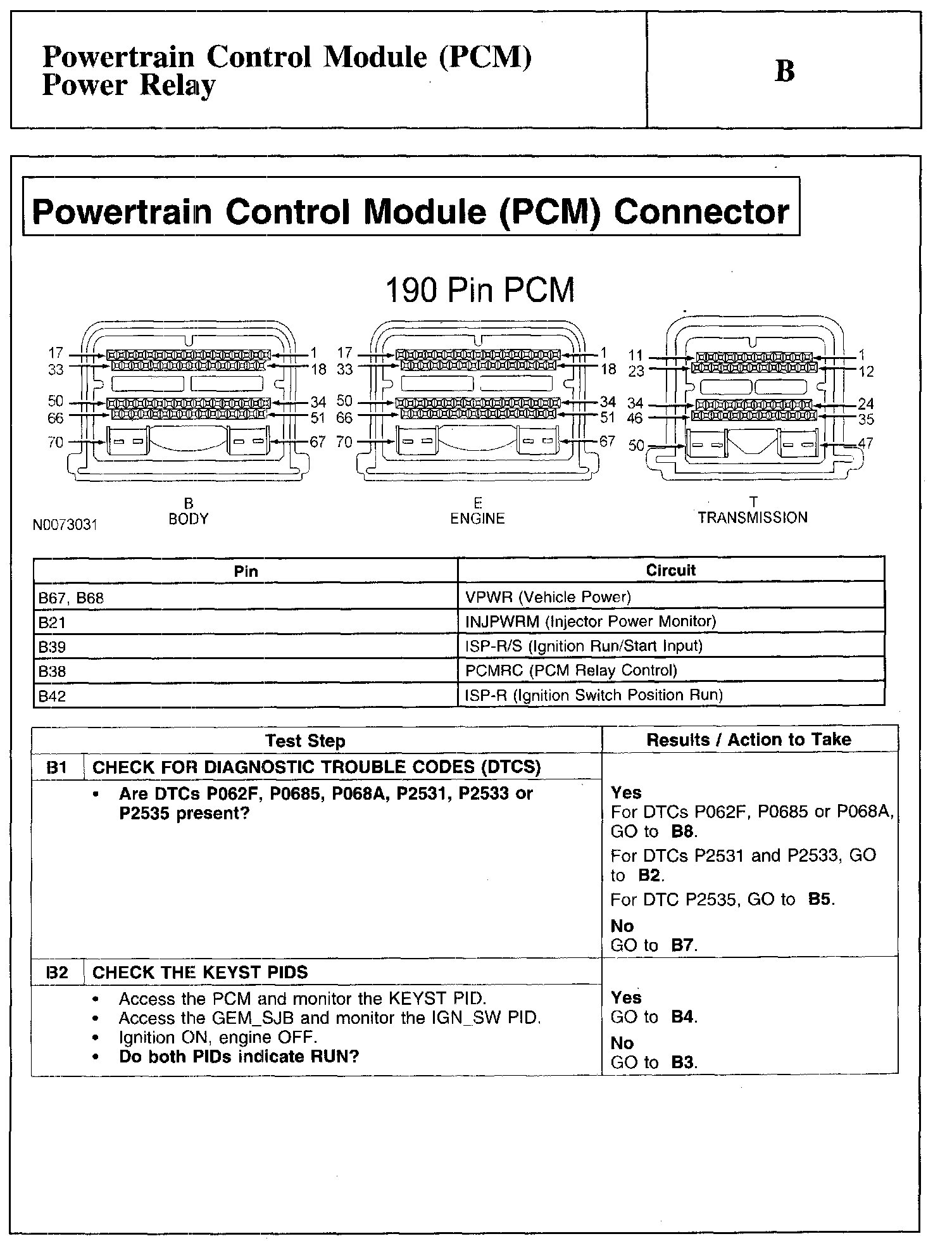

B1-B2:

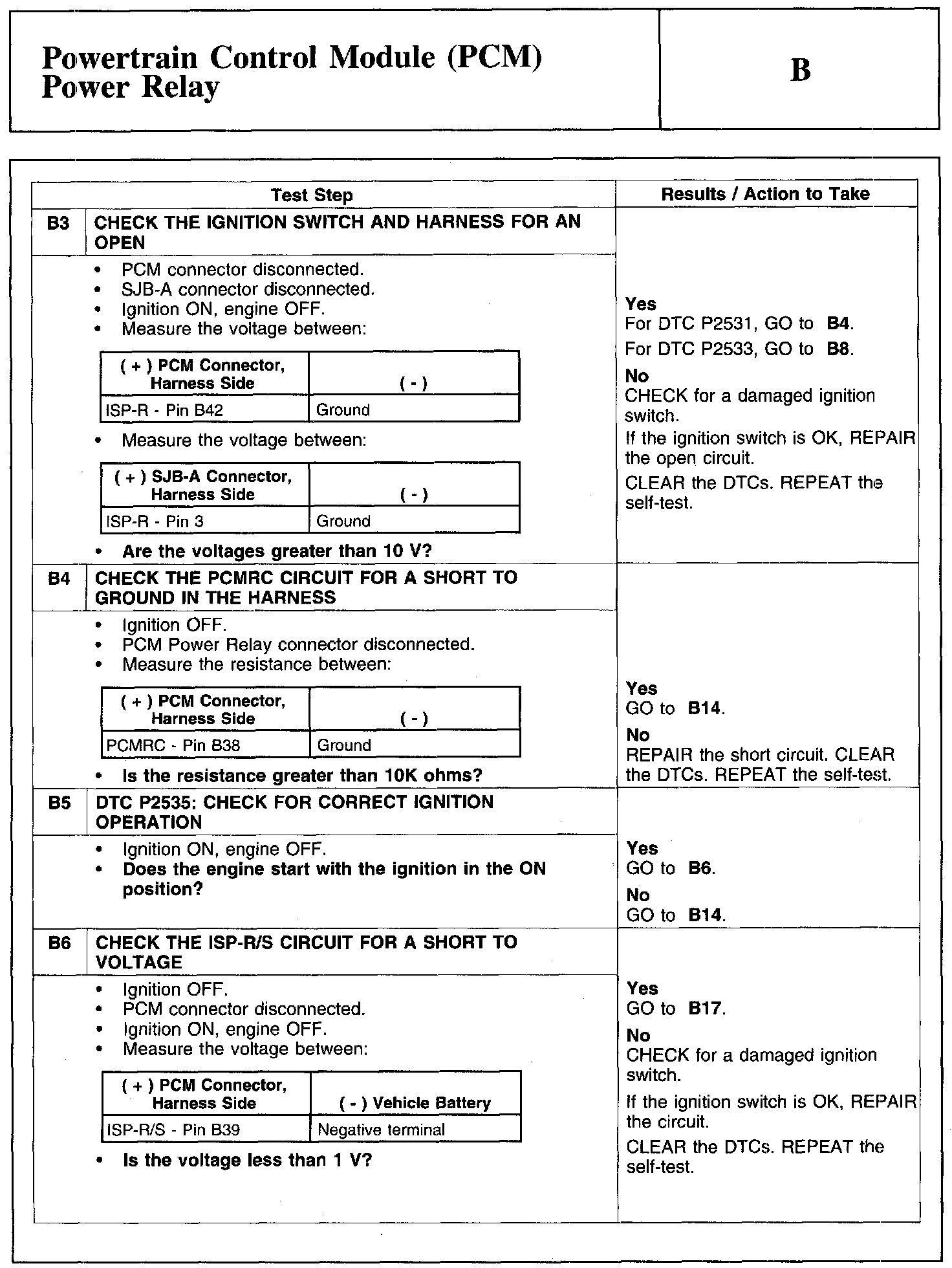

B3-B6:

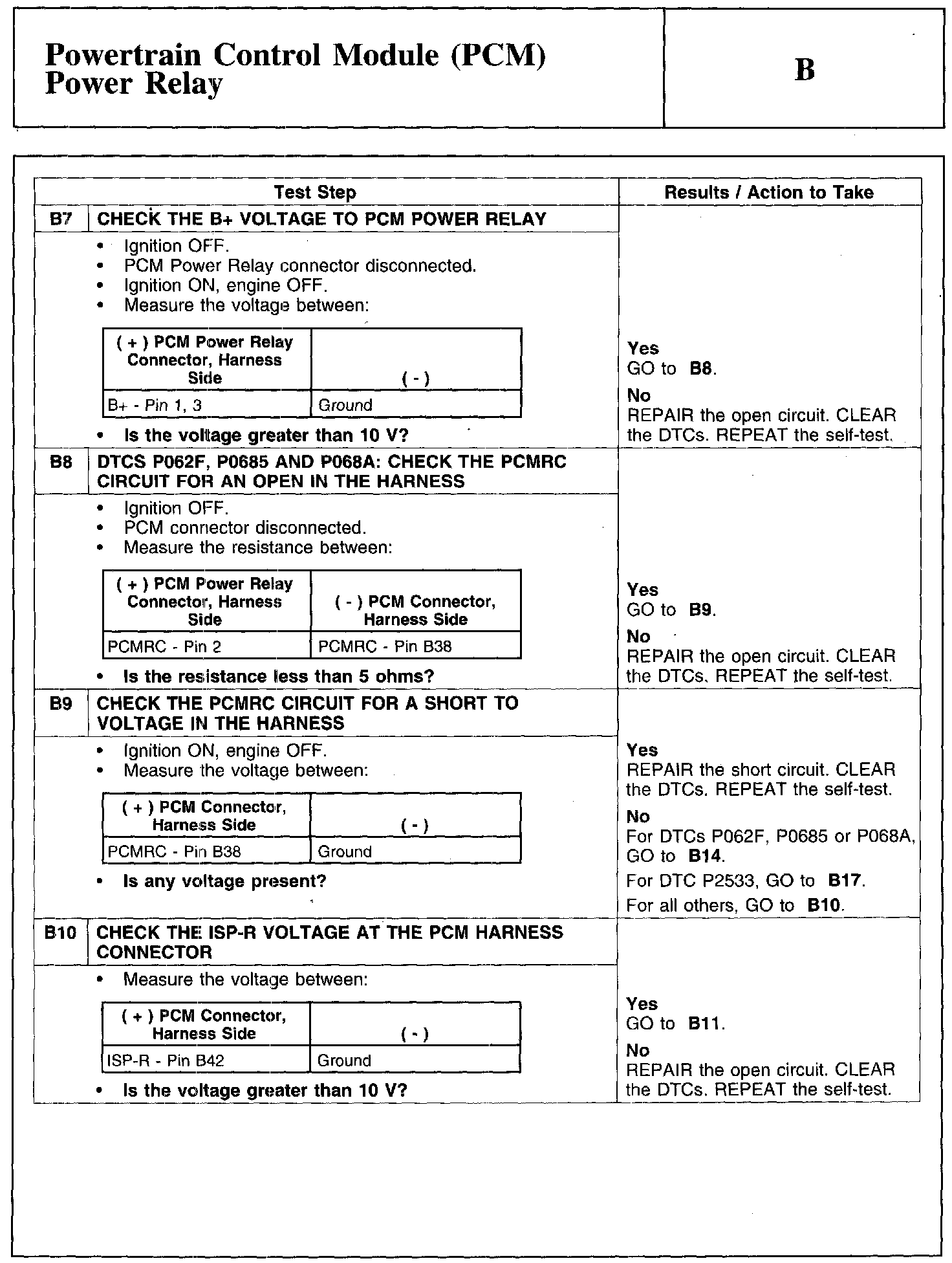

B7-B10:

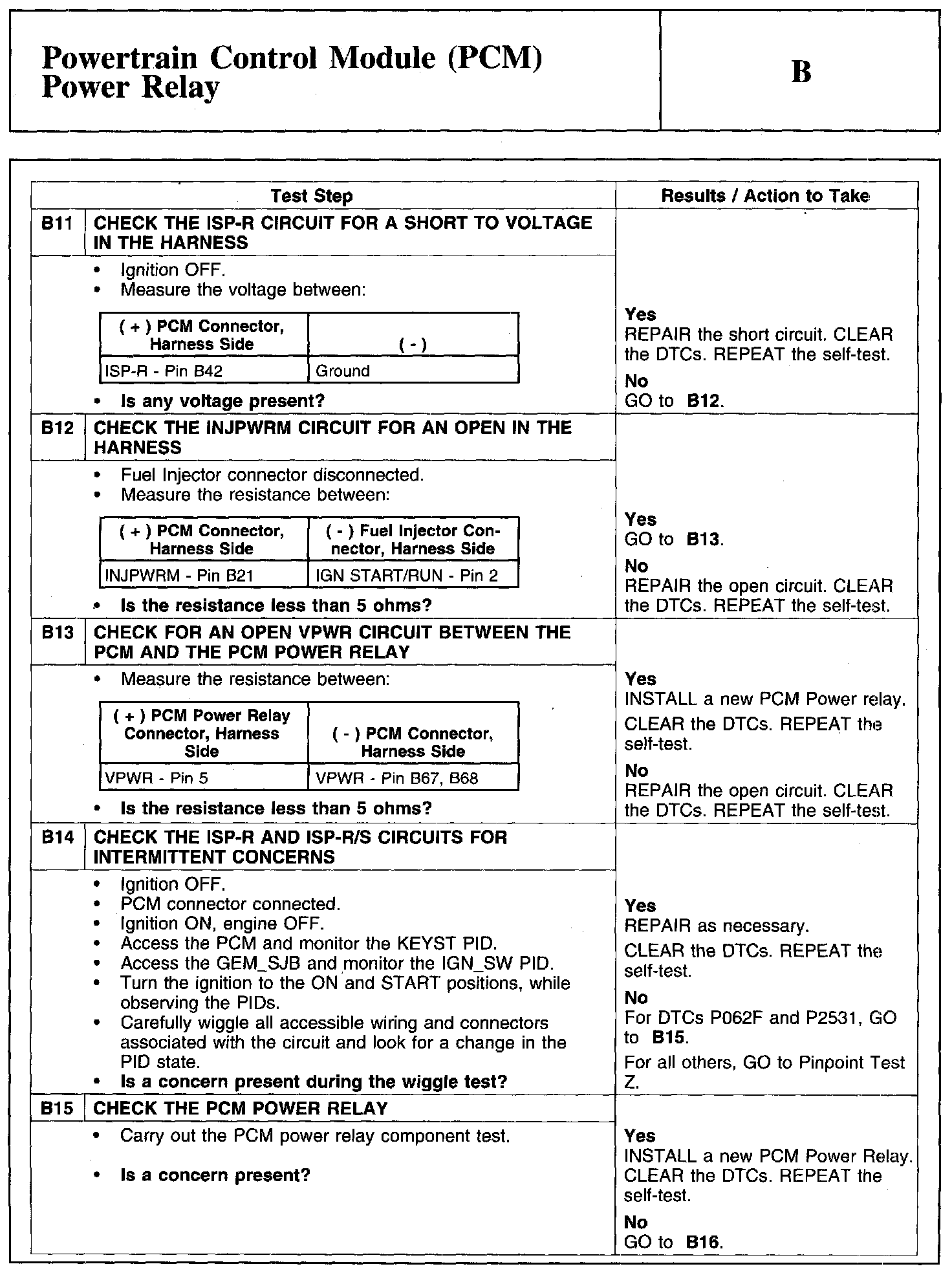

B11-B15:

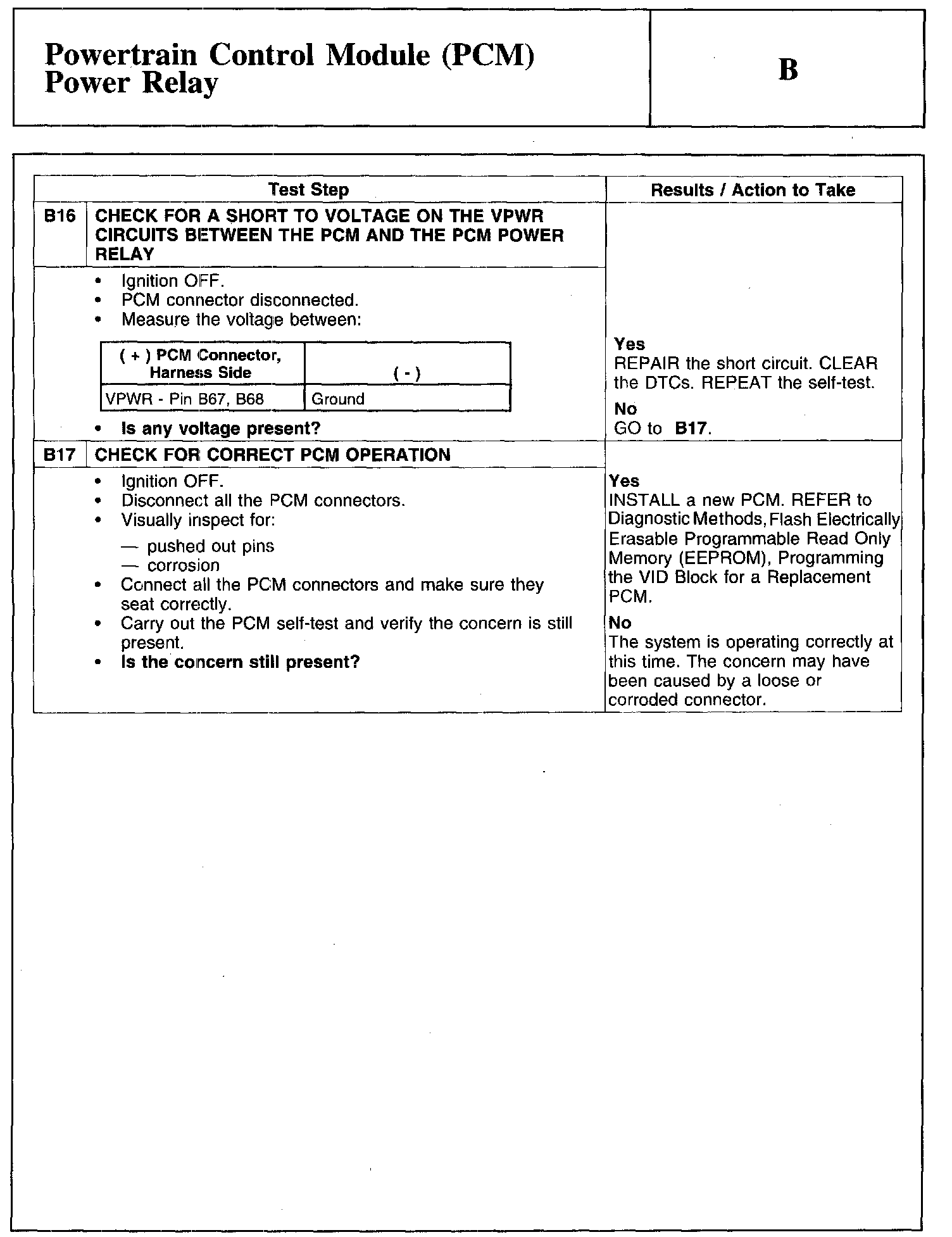

B16-B17:
