Test HC: Fuel Delivery System

PINPOINT TEST HC: FUEL DELIVERY SYSTEM

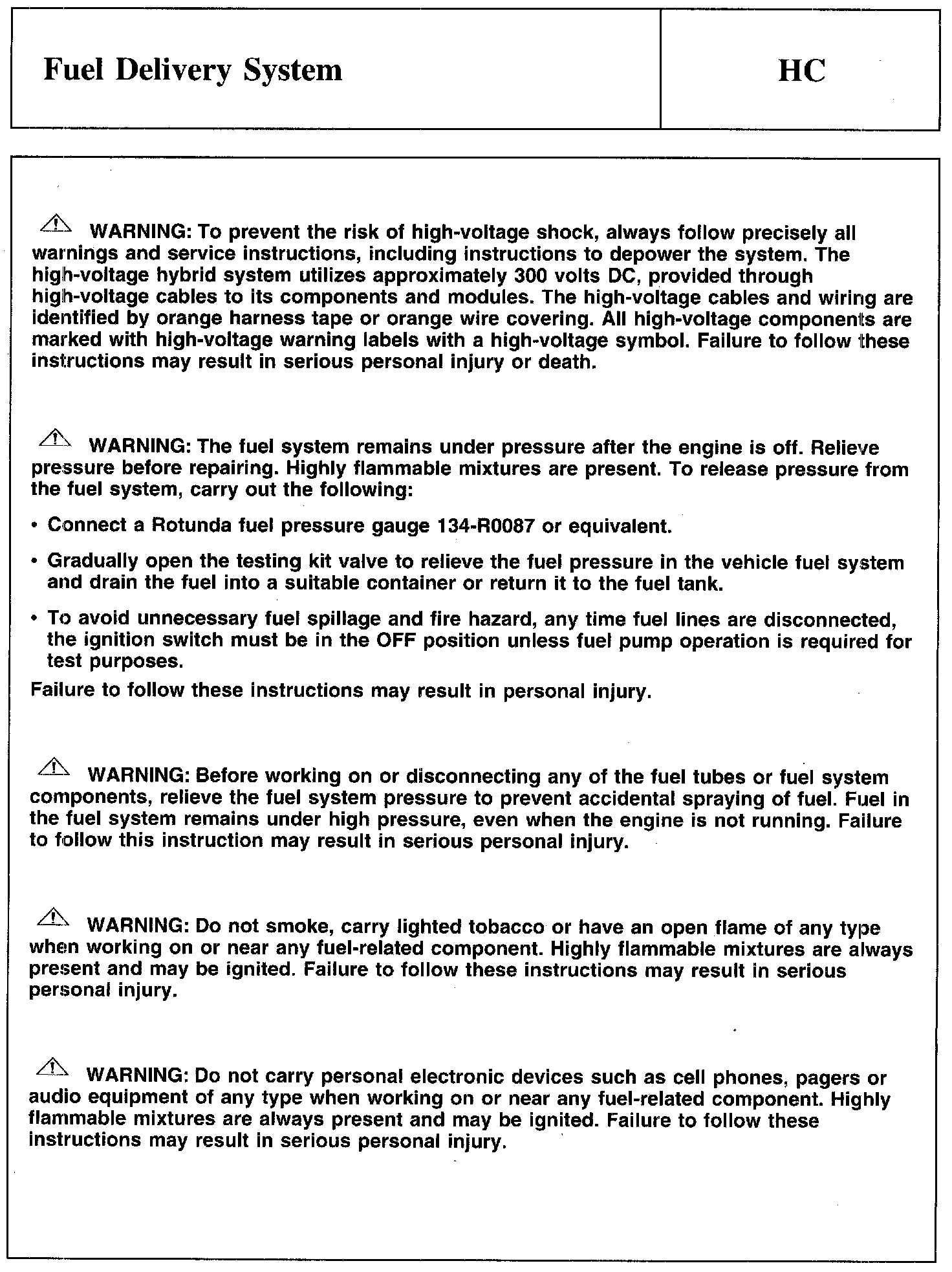

Warnings:

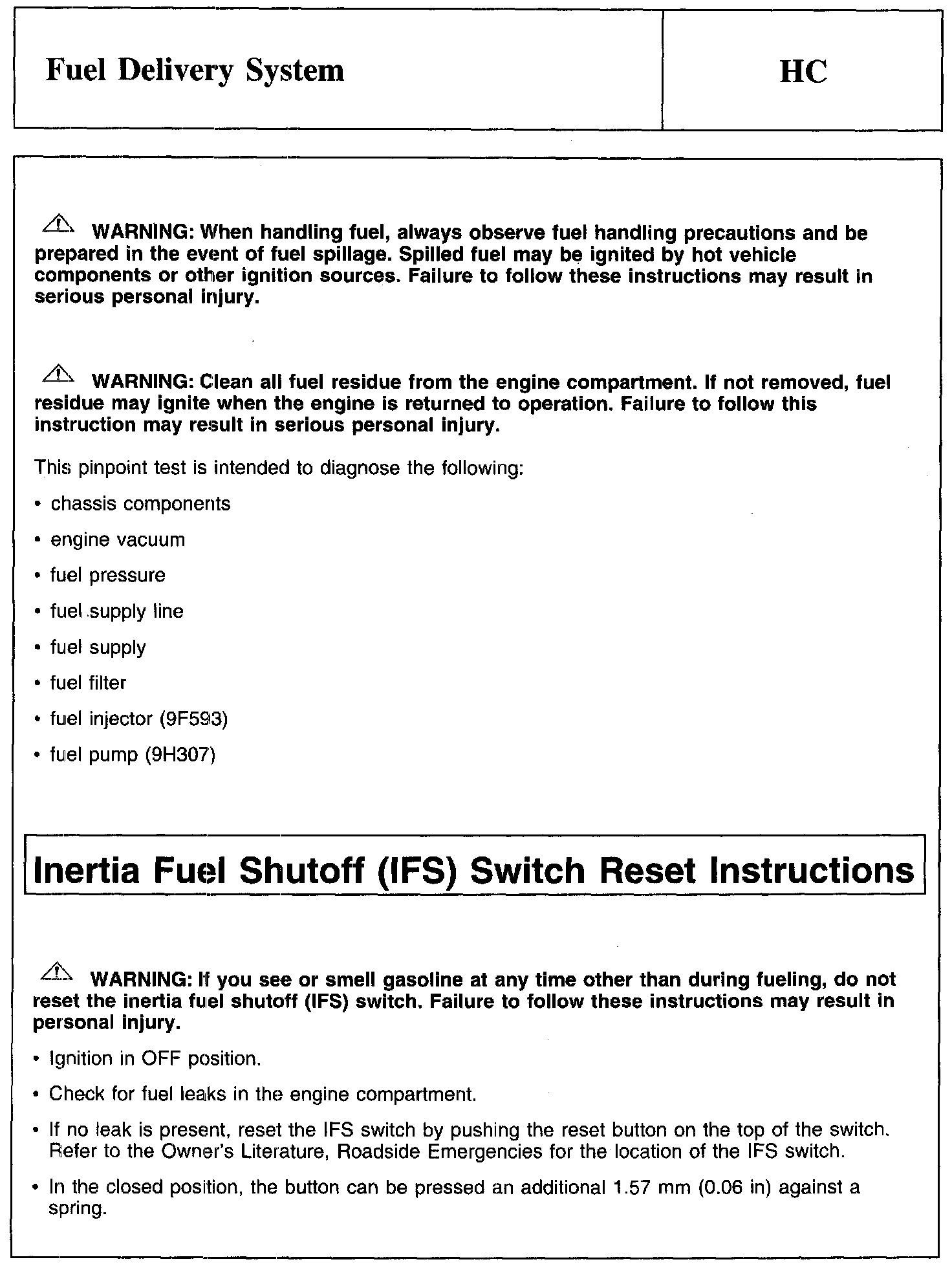

Warnings And Inertia Fuel Shutoff (IFS) Switch Reset Instructions:

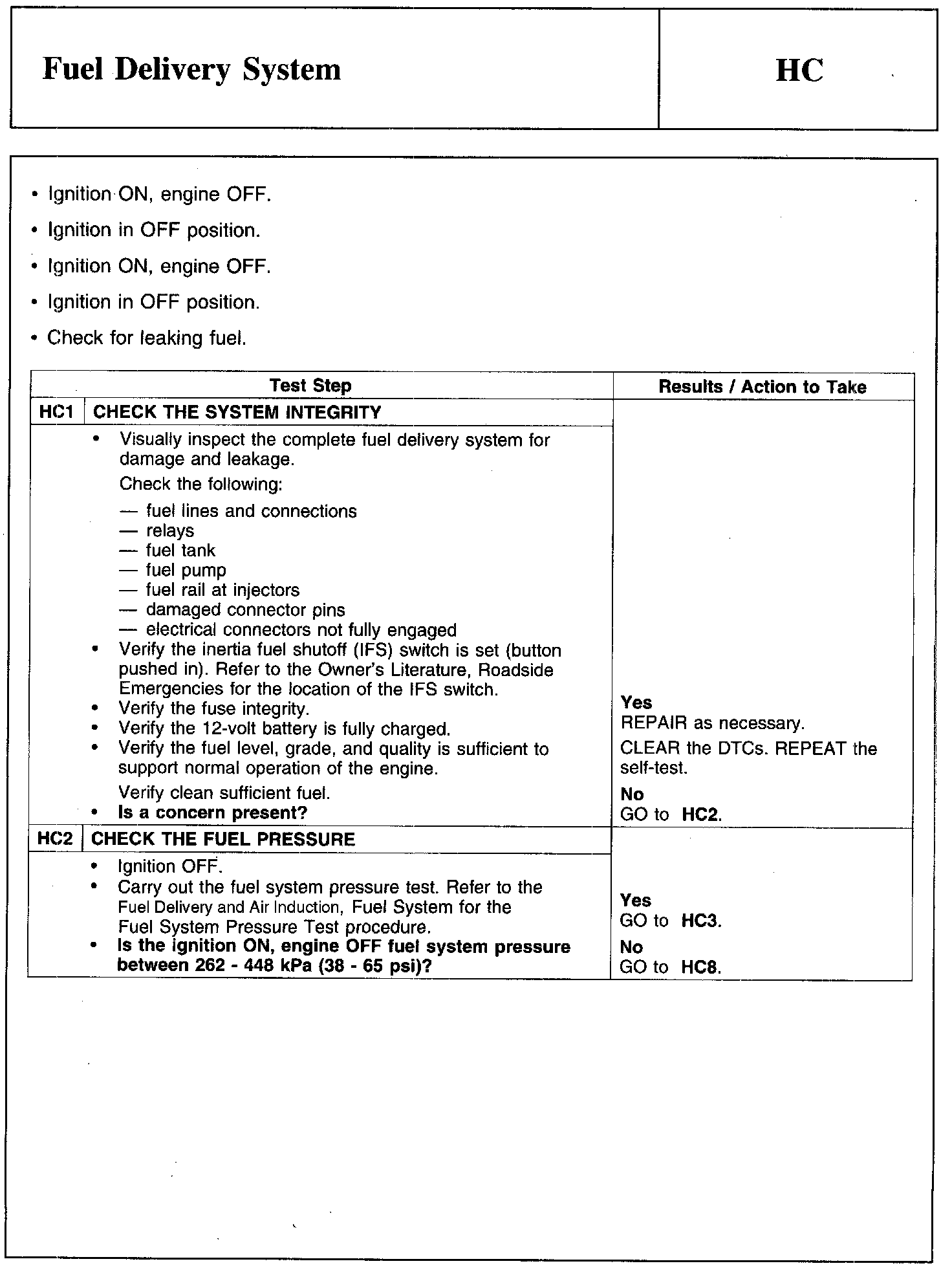

HC1-HC2:

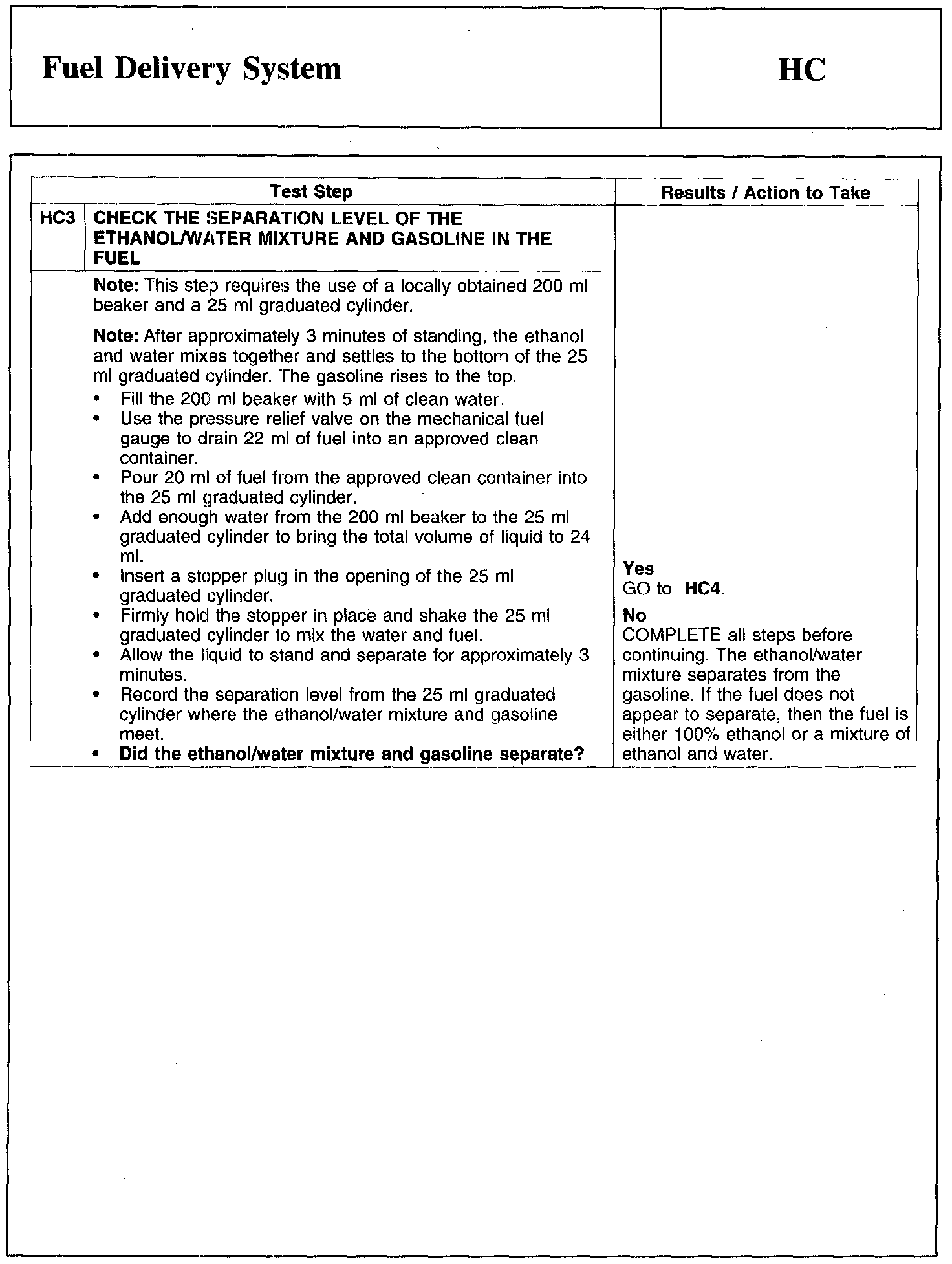

HC3:






HC4:

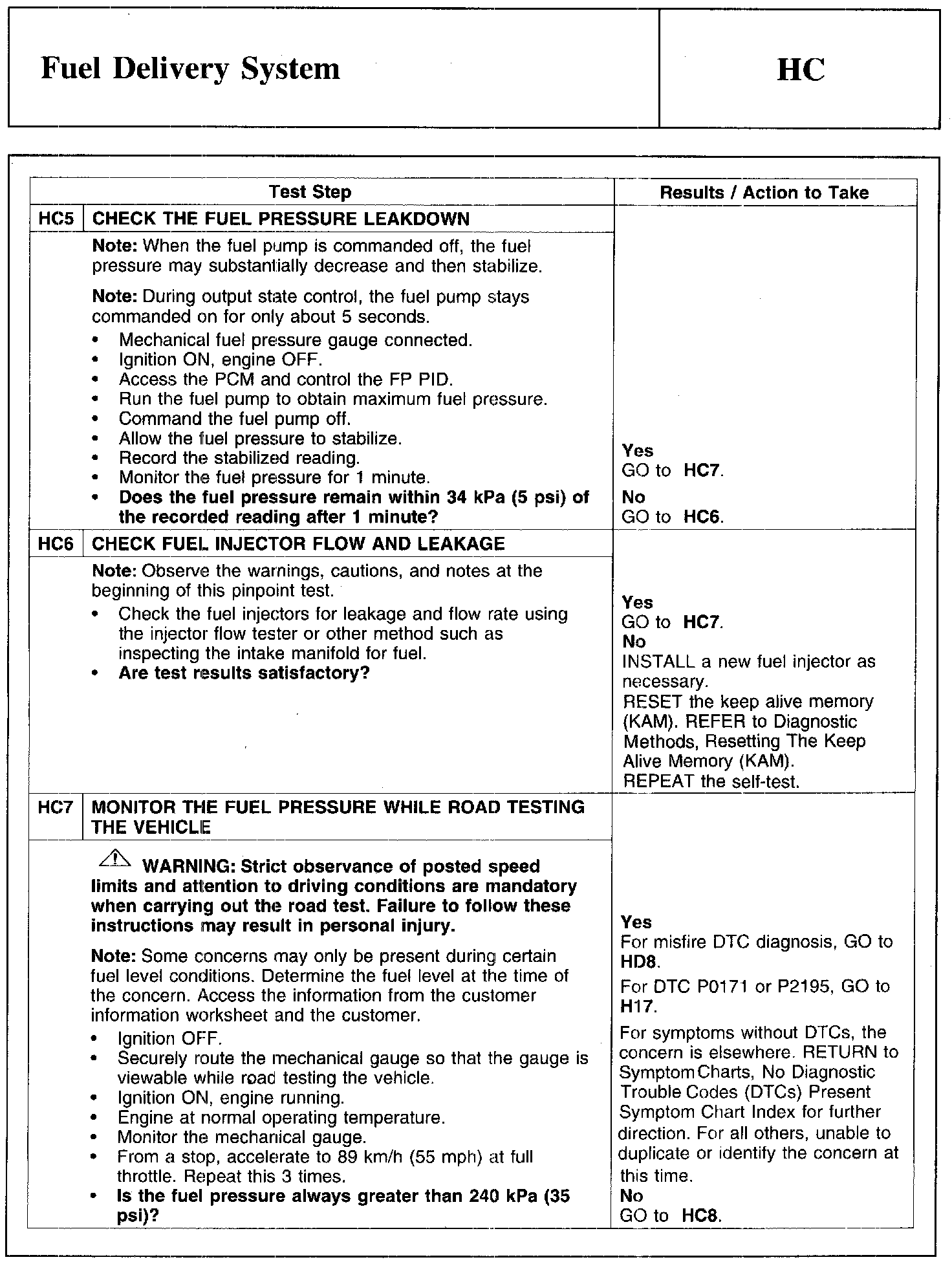

HC5-HC7:

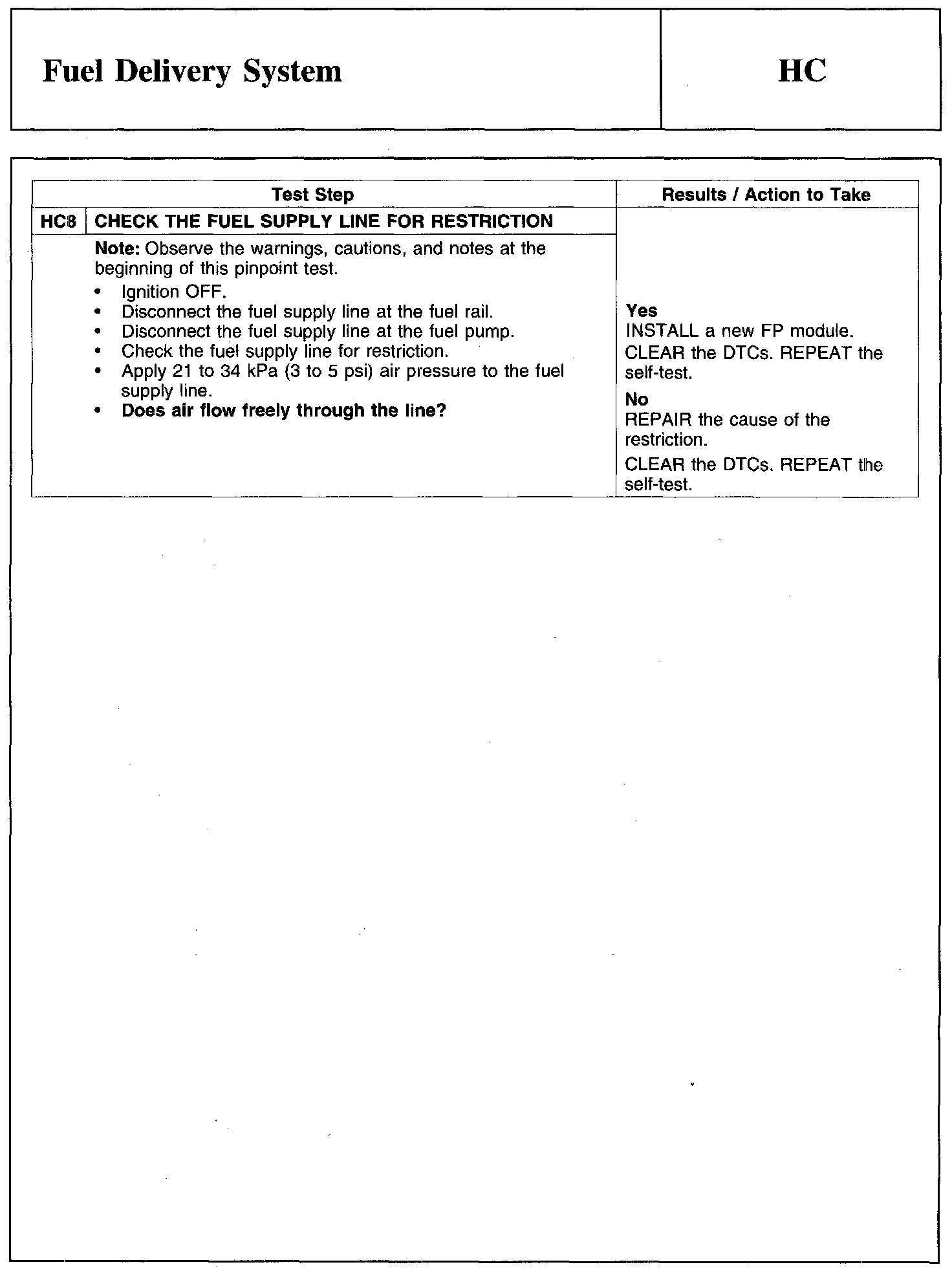

HC8:
