Test TM: Traction Motor Over Temperature
PINPOINT TEST TM: TRACTION MOTOR OVER TEMPERATURE

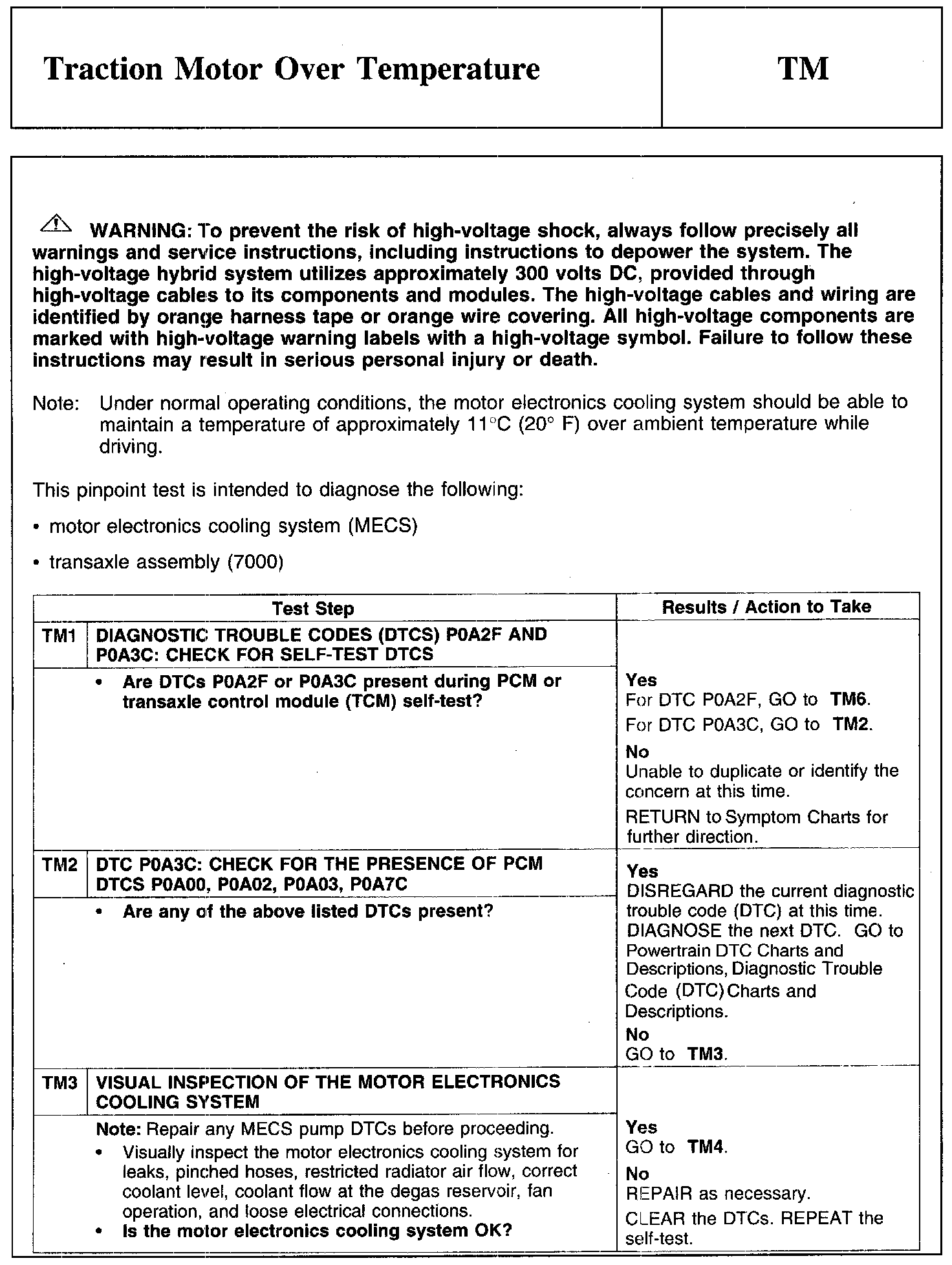

TM1-TM3:

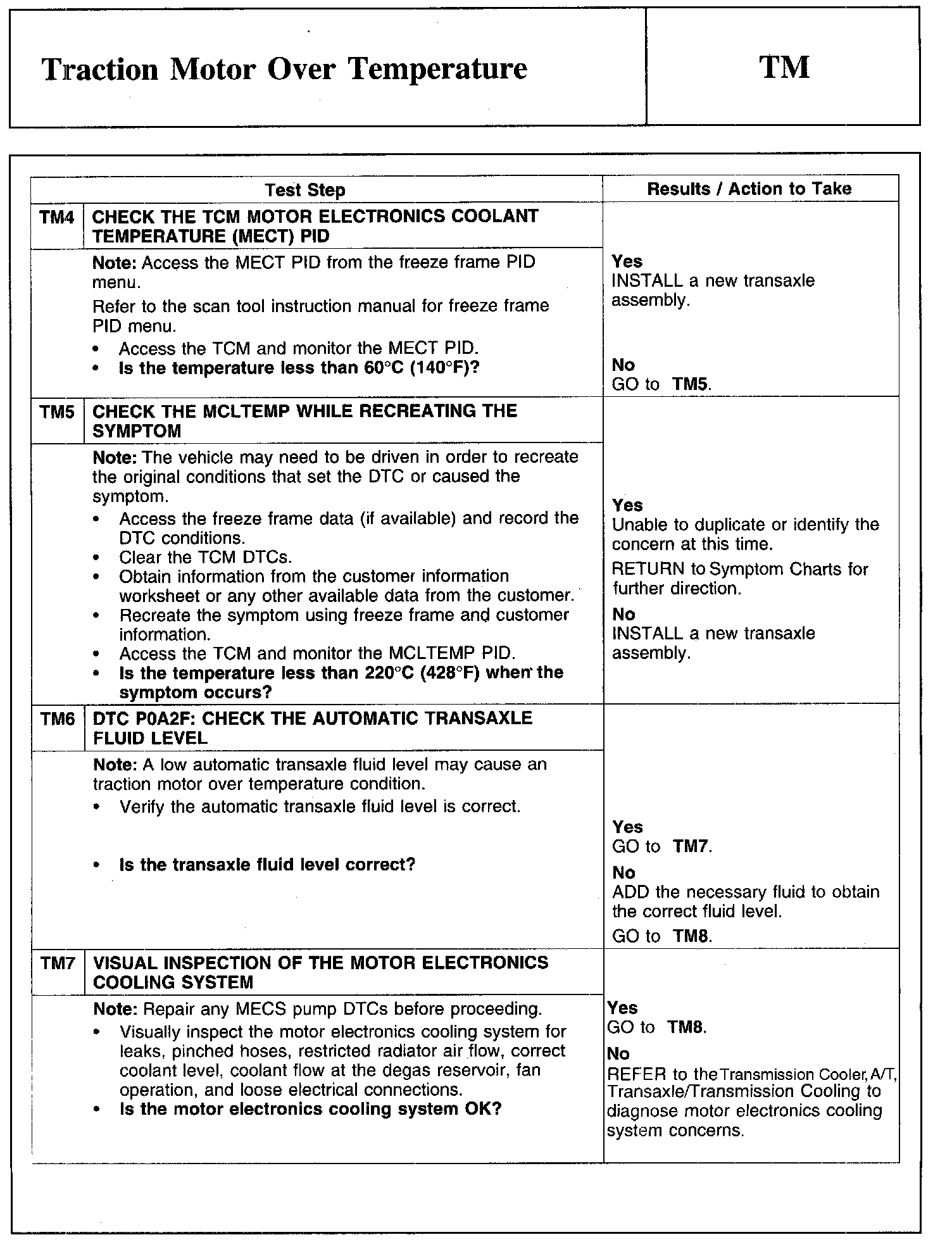

TM4-TM7:

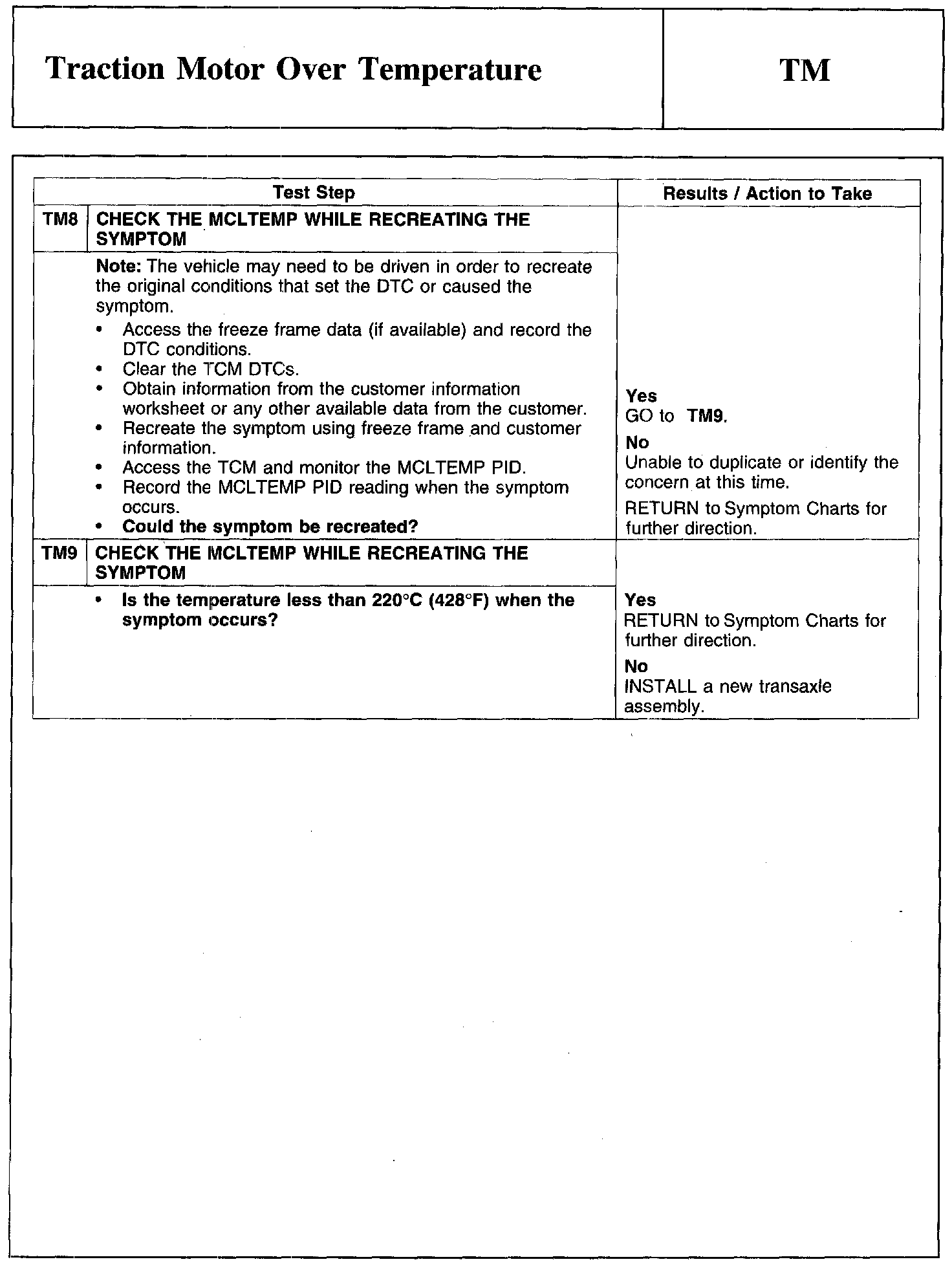

TM8-TM9:
