Seat - Exploded View, Rear

Seat - Exploded View, Rear

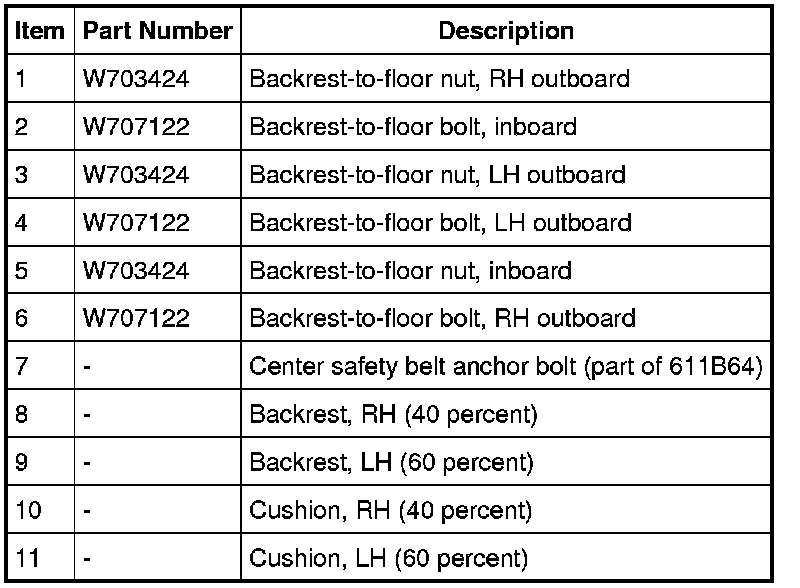

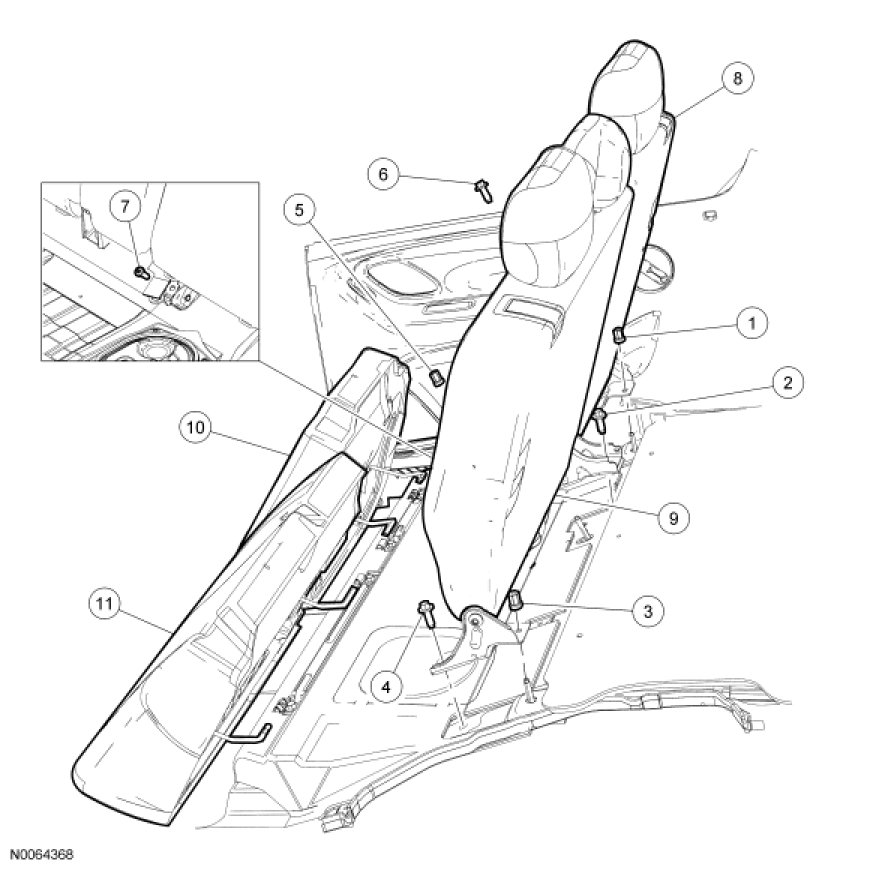

60/40 Split Bench

NOTE: For torque specifications and torque sequence, refer to the procedure steps.

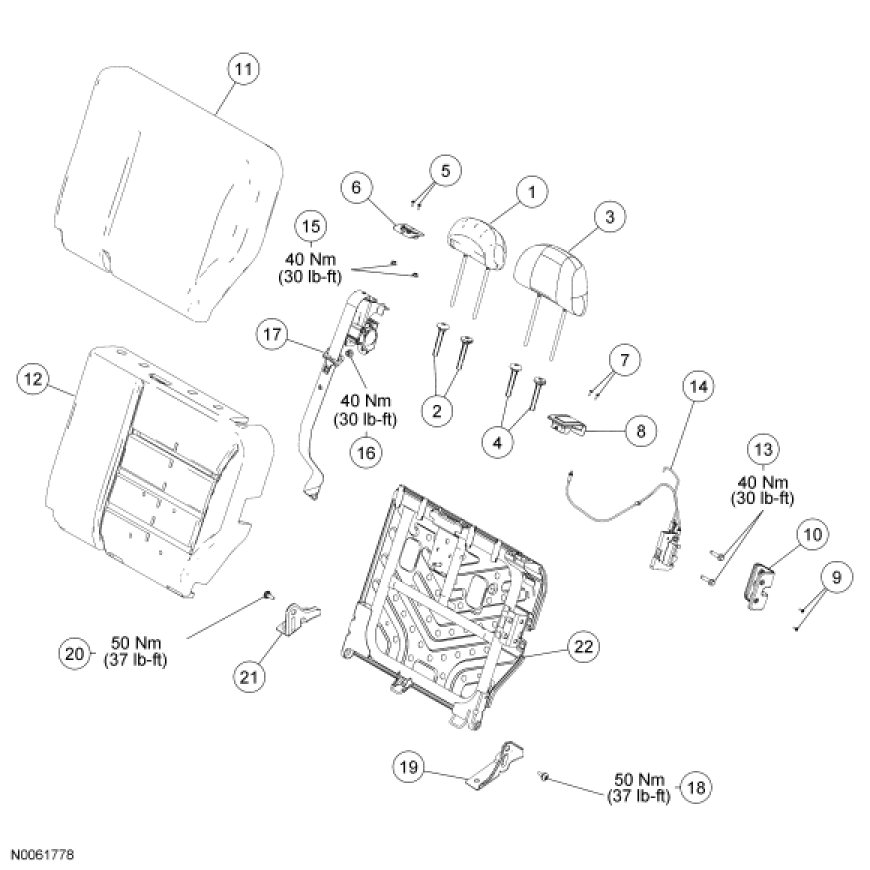

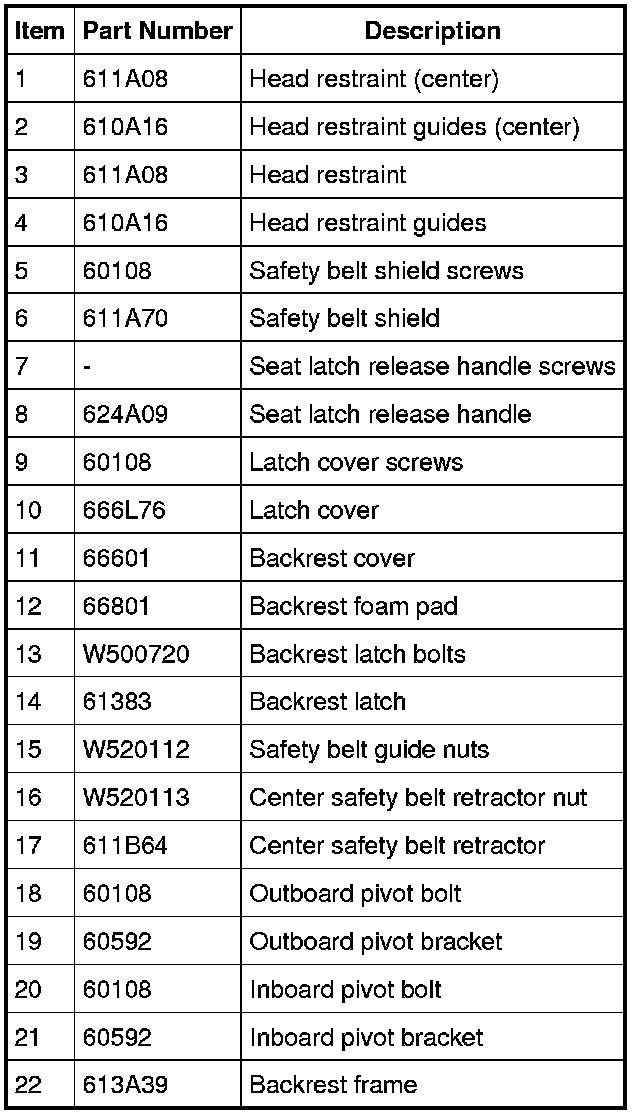

Seat Backrest - Rear

NOTE: LH (60 percent) shown, RH (40 percent) similar.

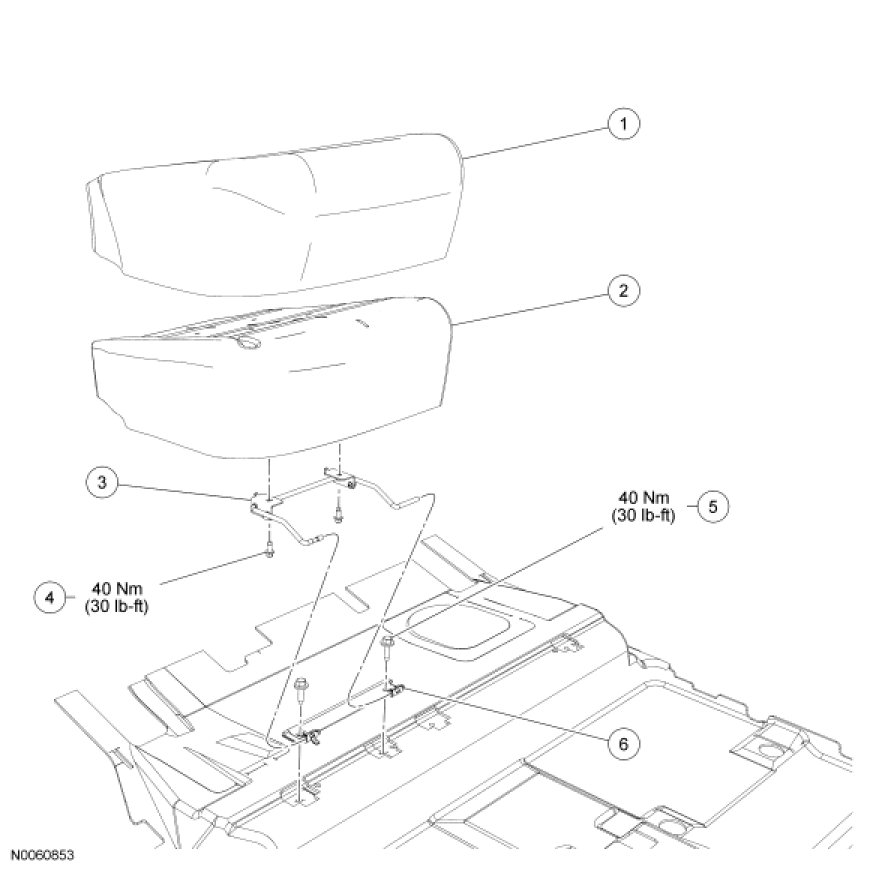

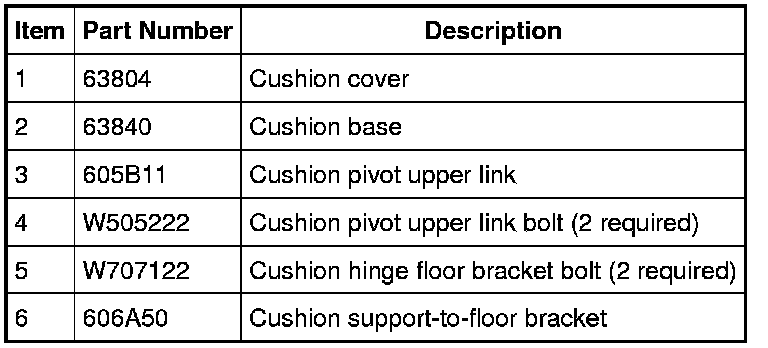

Seat Cushion - Rear

NOTE: RH (40 percent) shown, LH (60 percent) similar.
