Test QA: Unable To Activate Self-Test/Network Communication Error

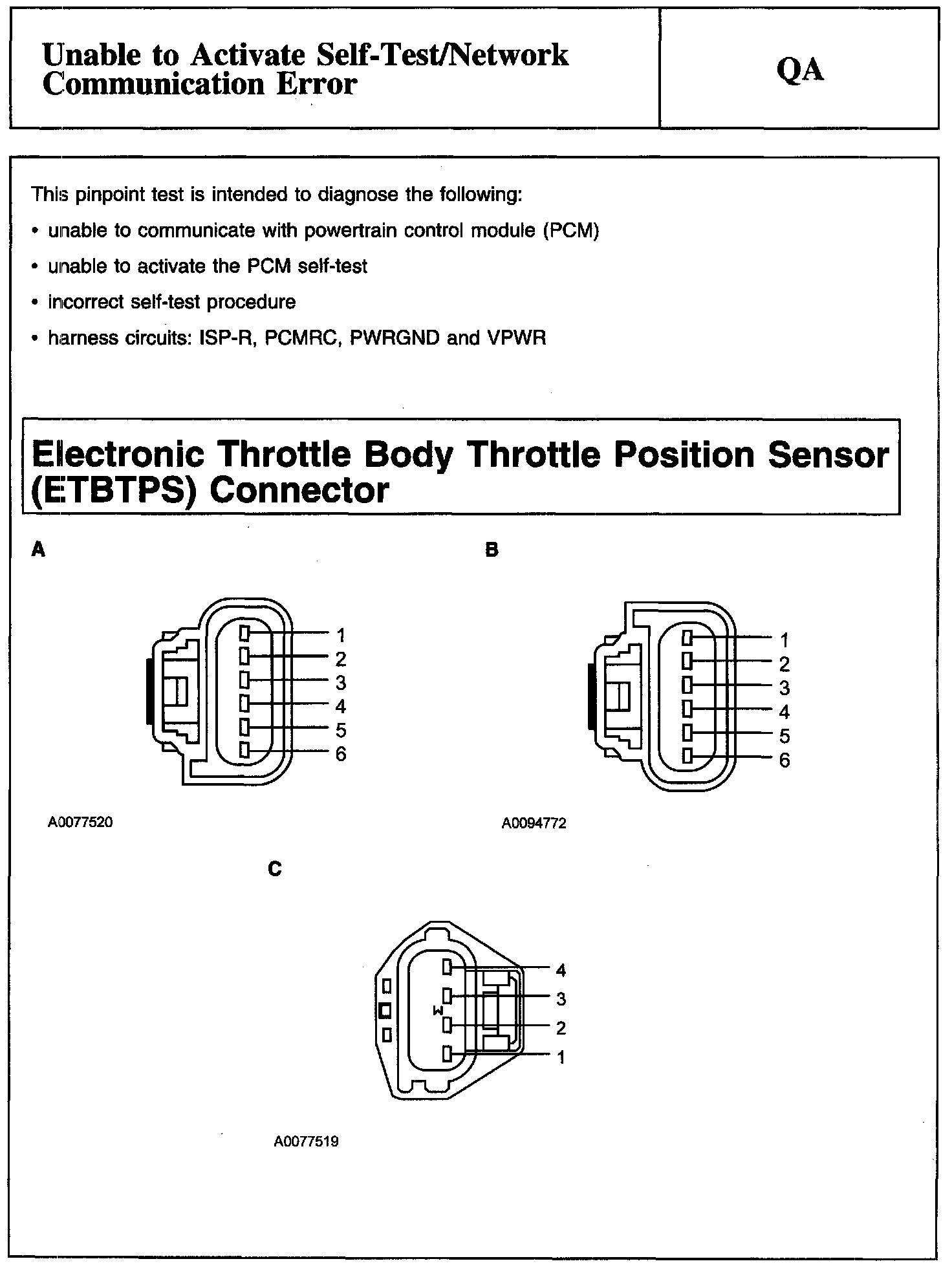

Electronic Throttle Body Throttle Position Sensor (ETBTPS) Connector:

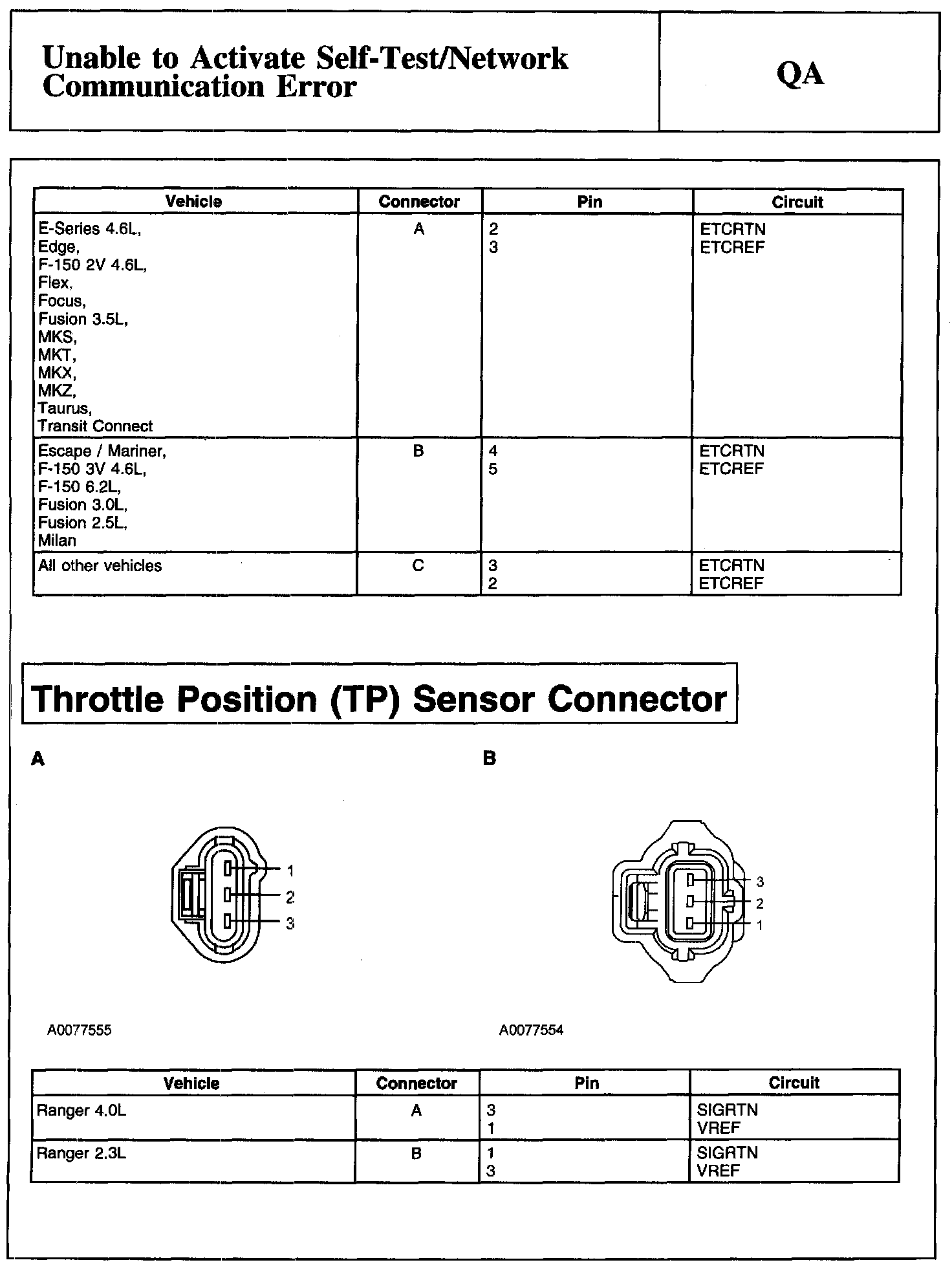

Electronic Throttle Body Throttle Position Sensor (ETBTPS) Connector And Throttle Position (TP) Sensor Connector:

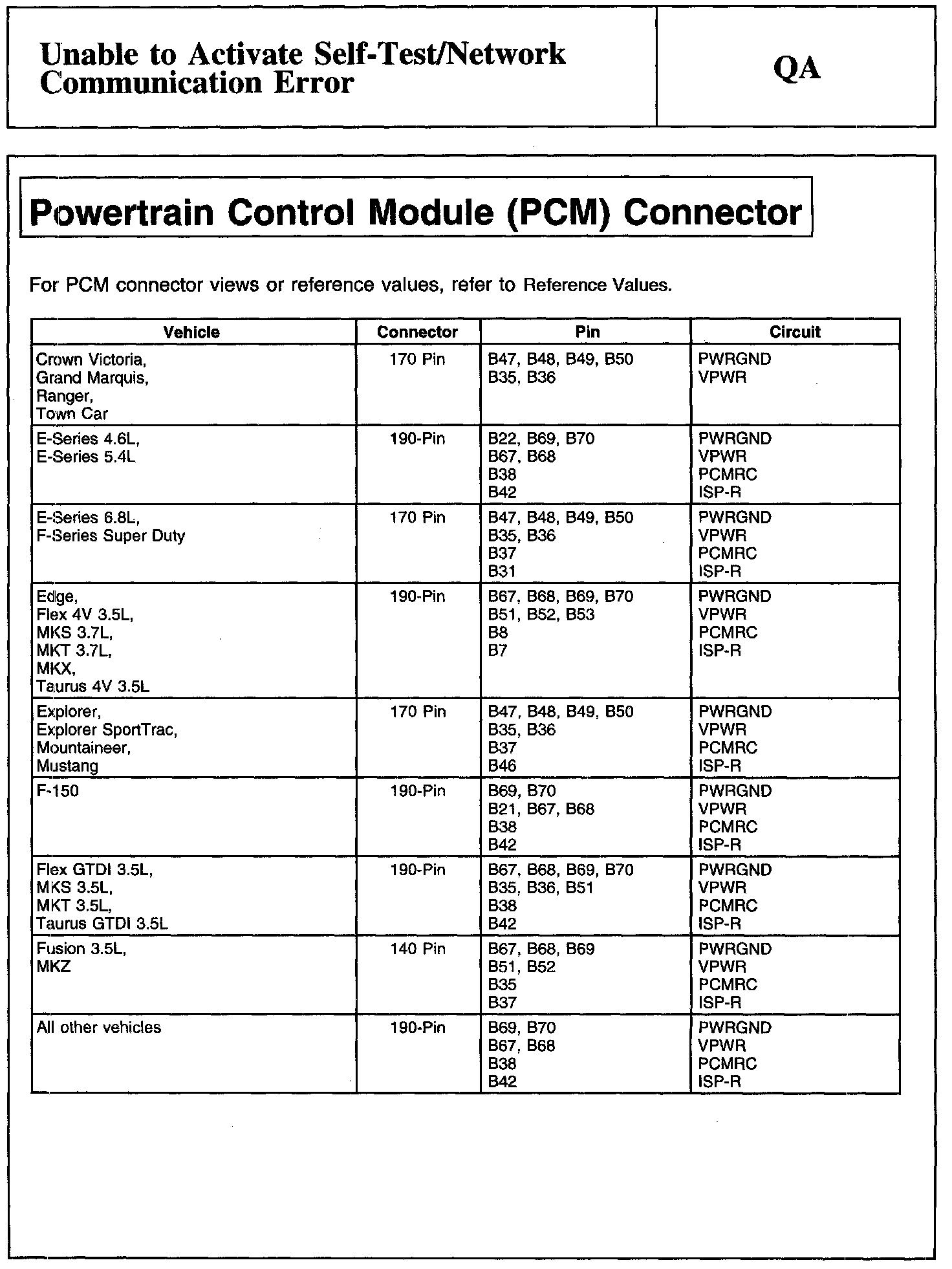

Powertrain Control Module (PCM) Connector:

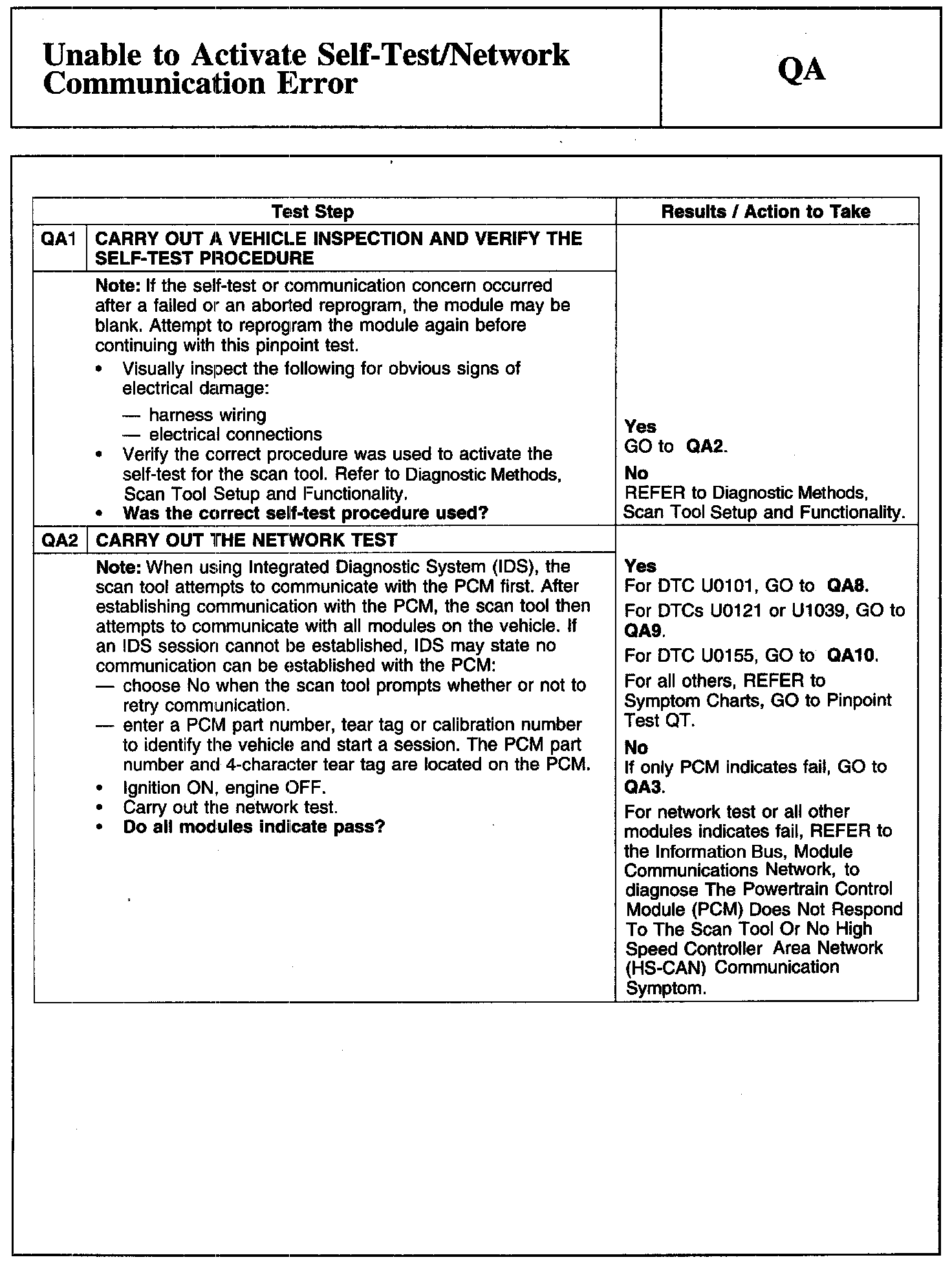

QA1-QA2:

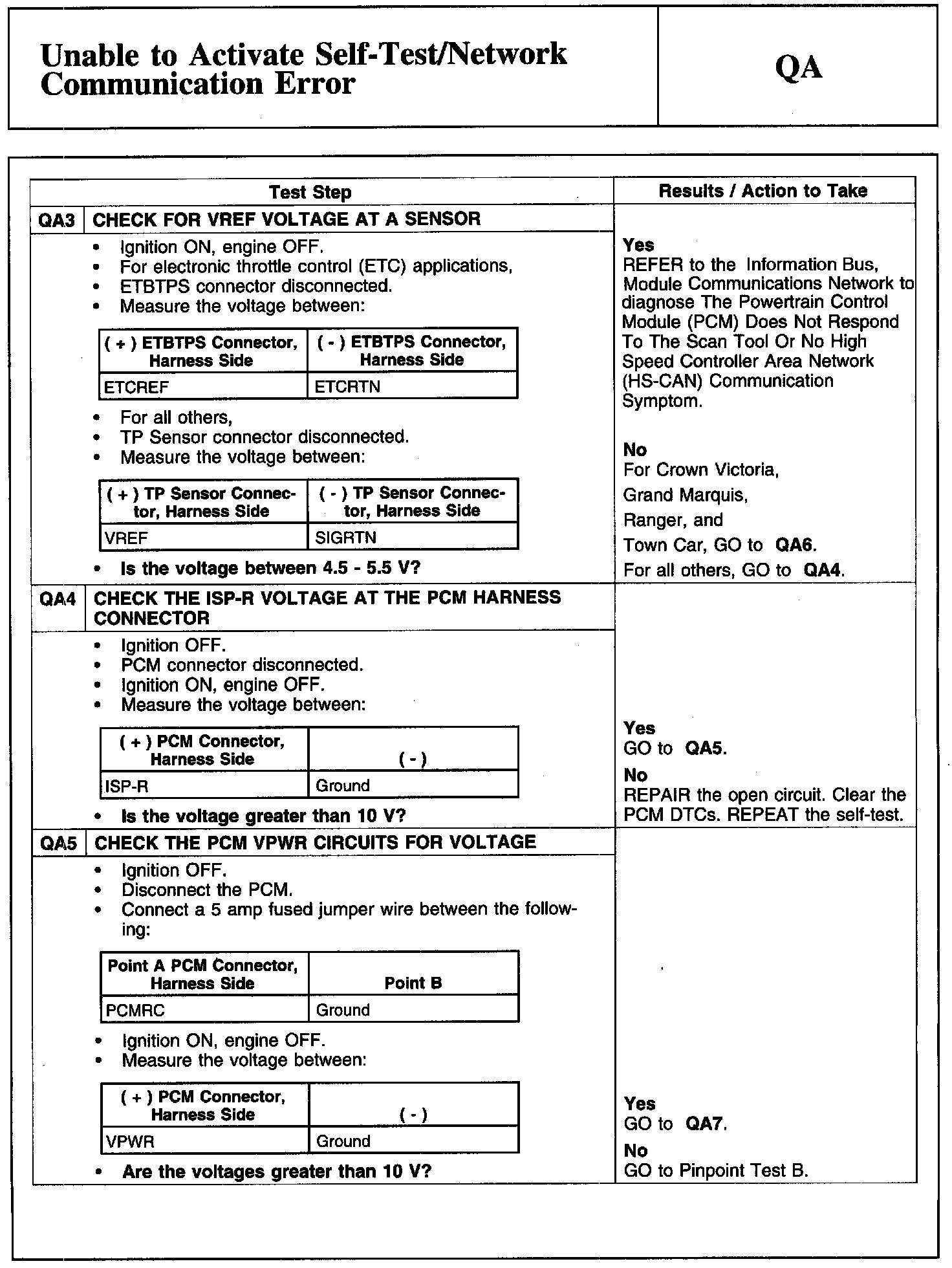

QA3-QA5:

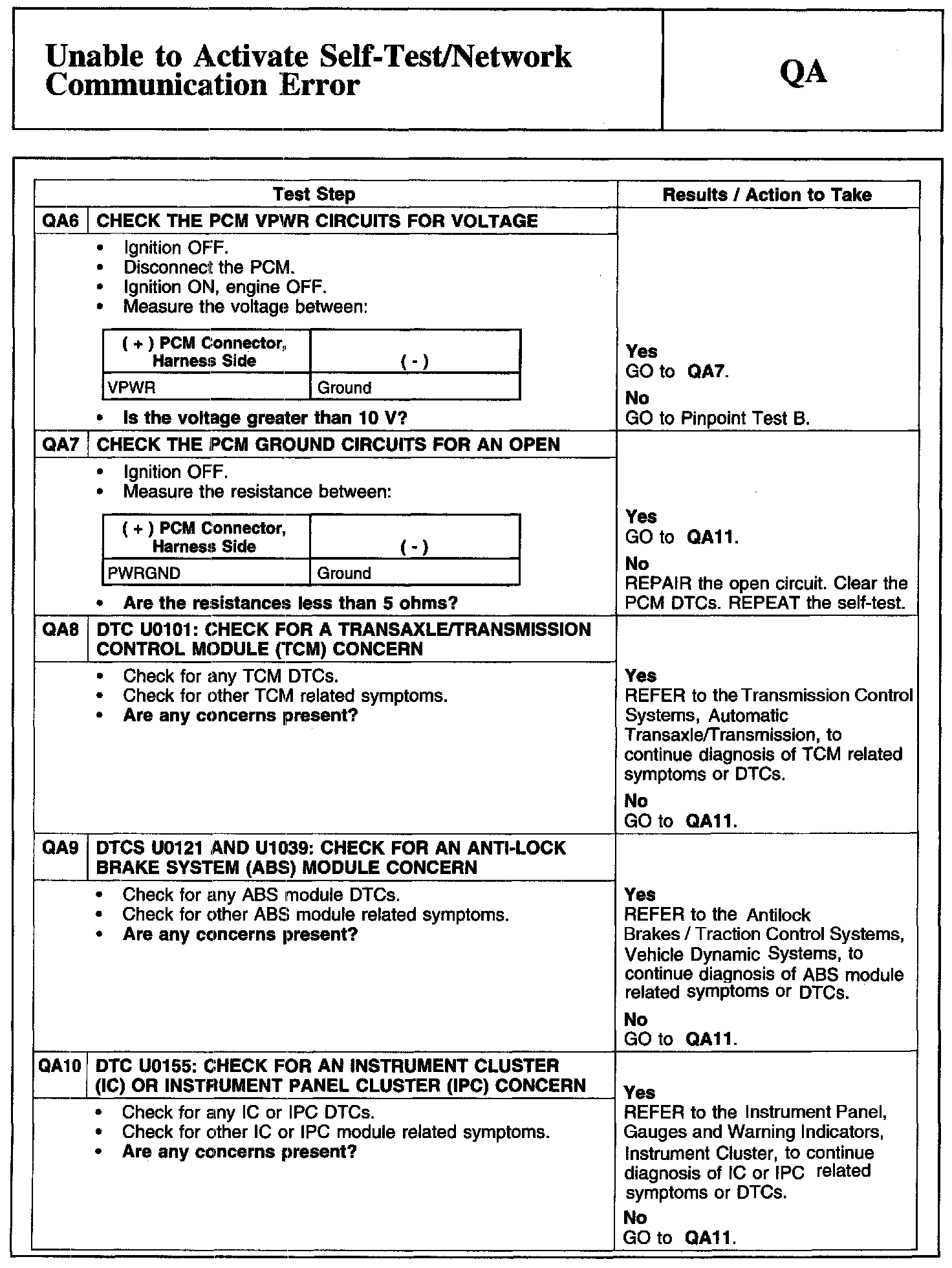

QA6-QA10:

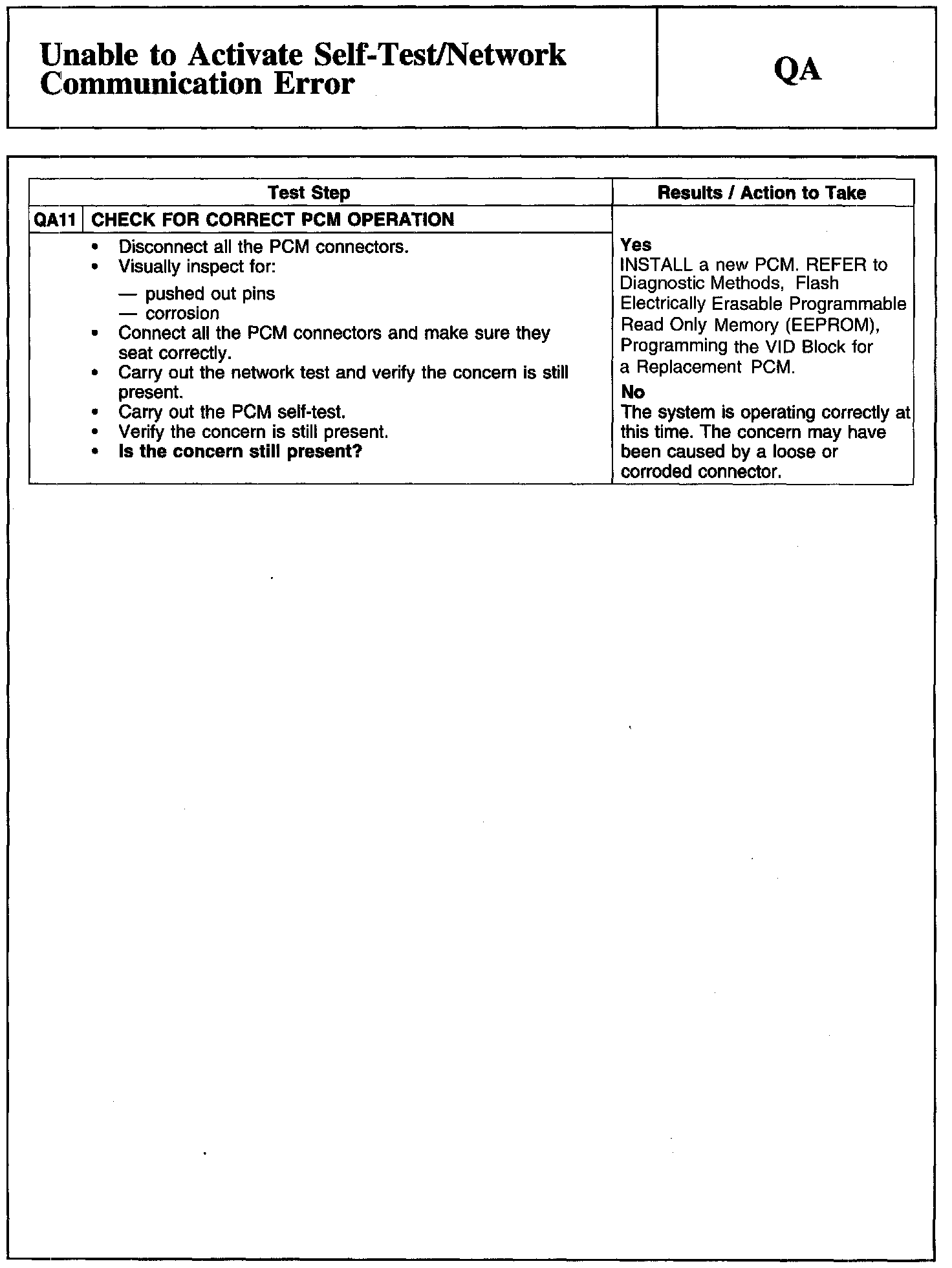

QA11:
