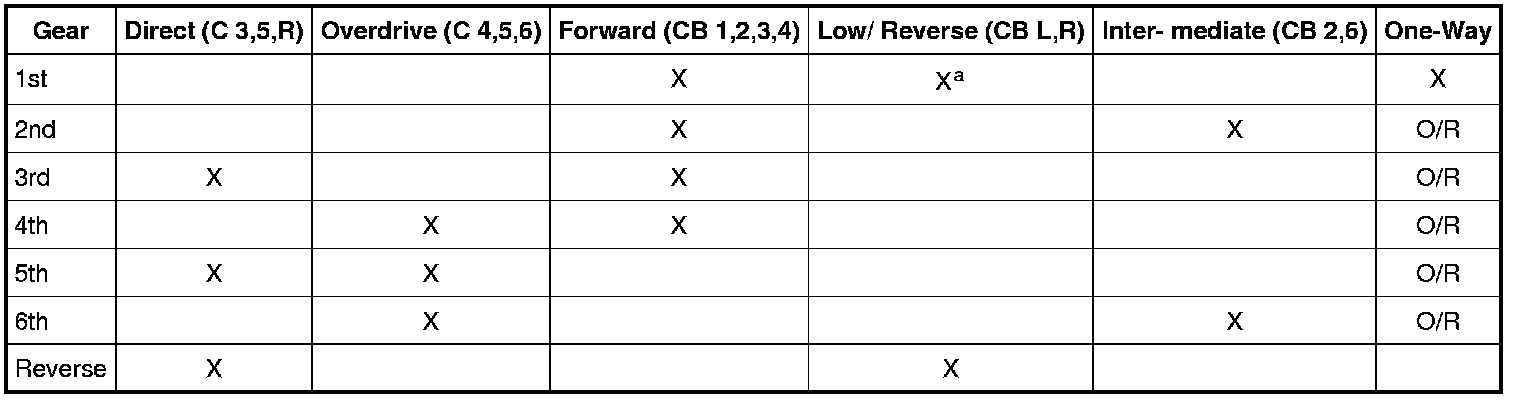

Clutch Application Chart
Clutch Application Chart
a
Turns off above 6 km/h (4 mph).
CB
= Clutch brake
O/R
= Overrunning
