Exploded View Images

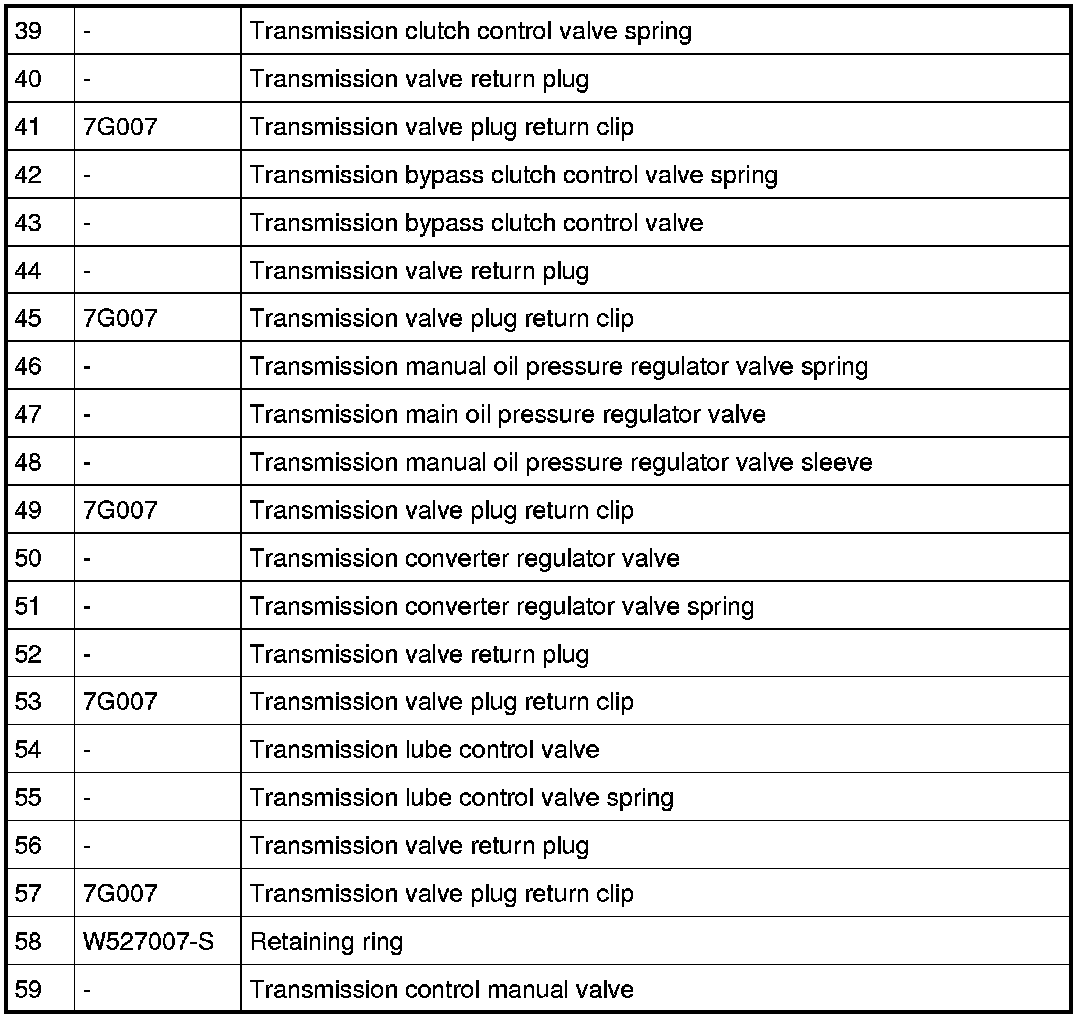

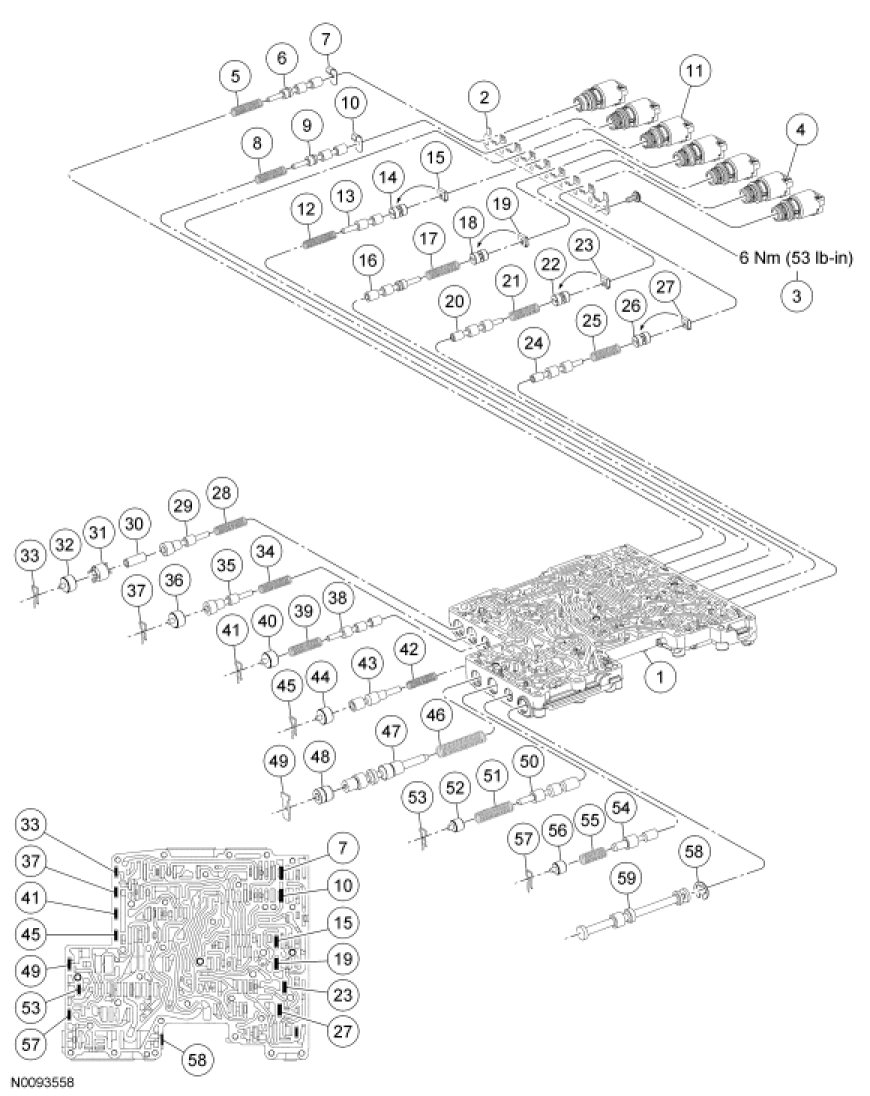

Mechatronic Assembly

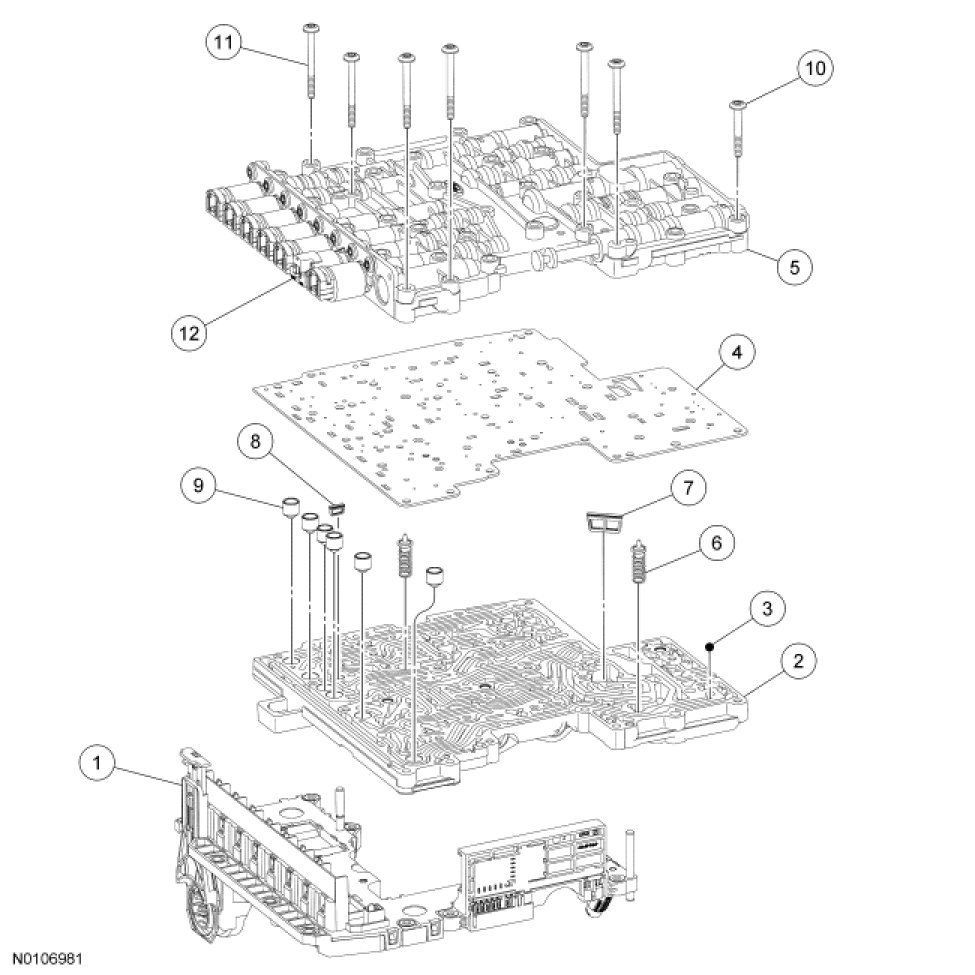

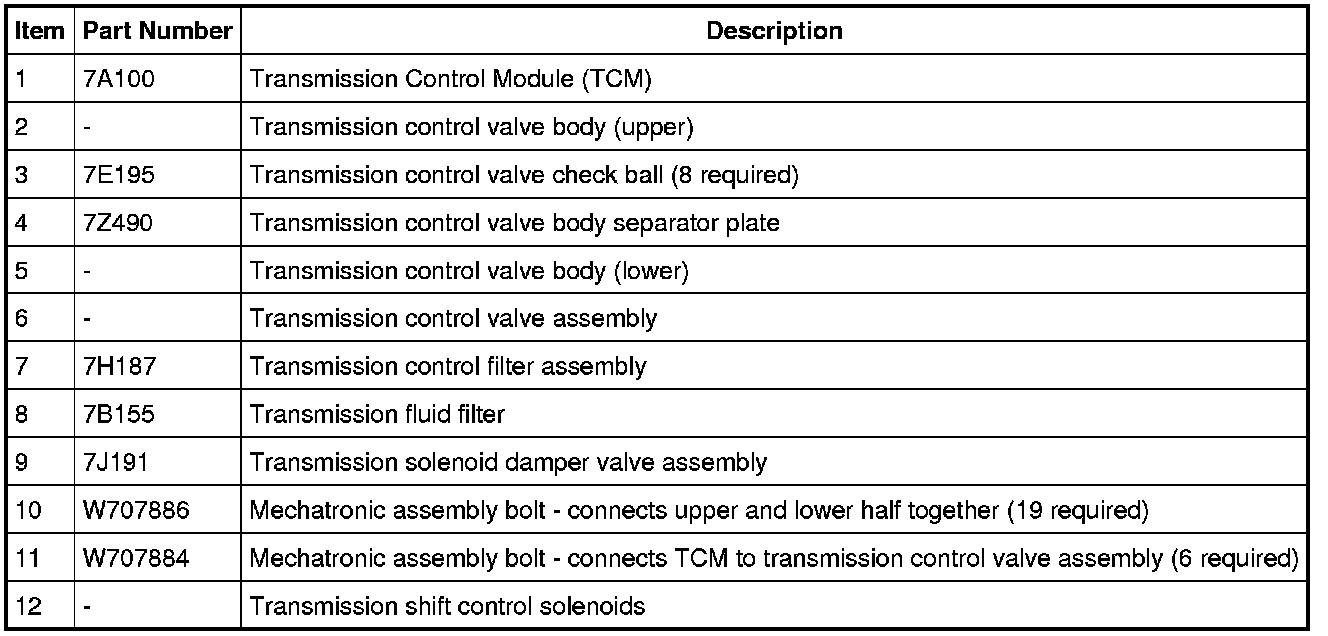

Mechatronic

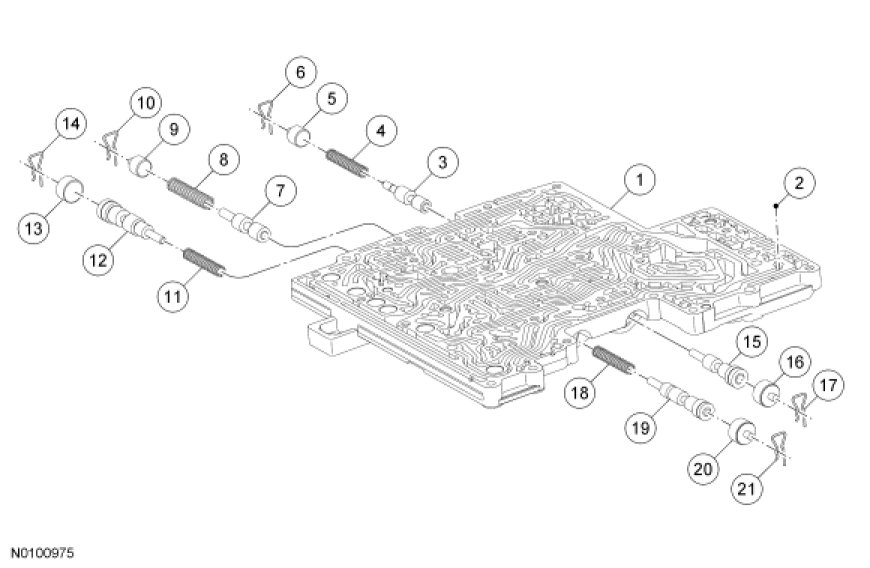

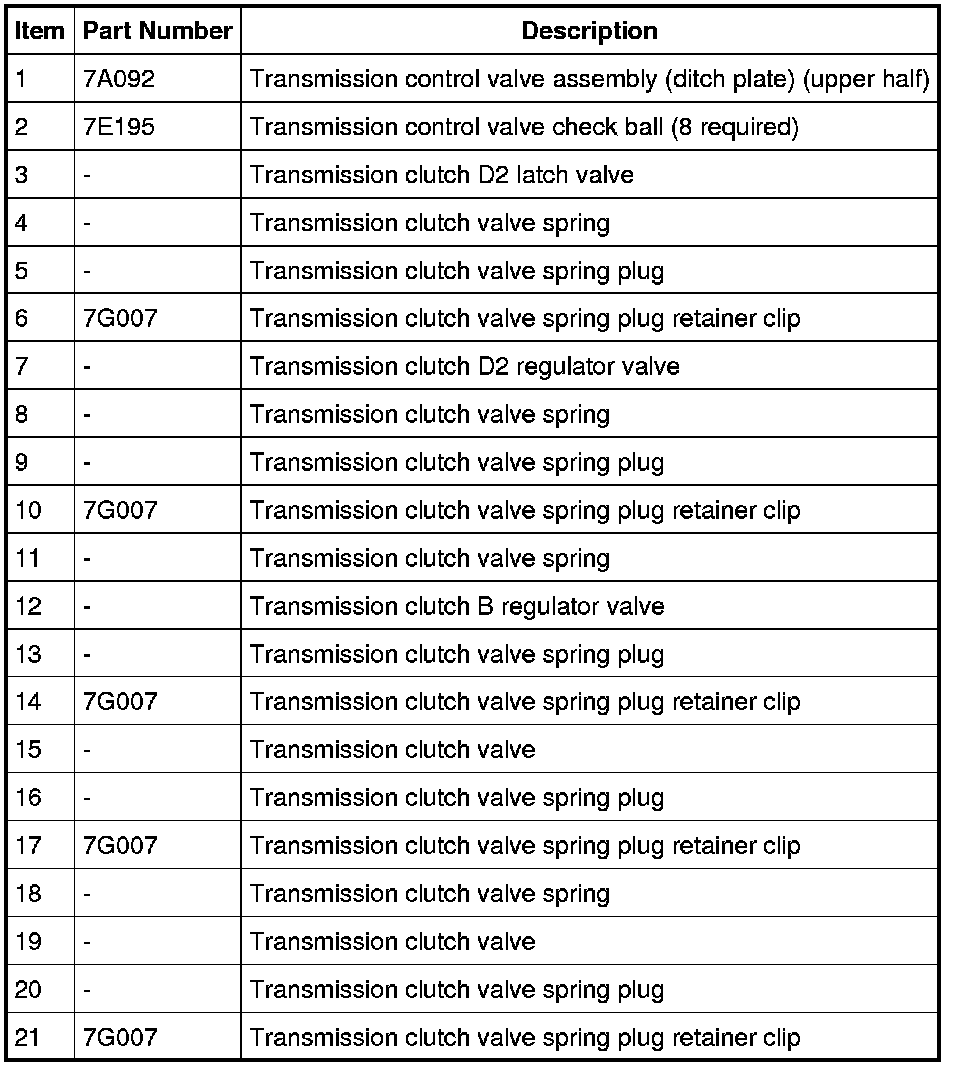

Mechatronic Upper Half

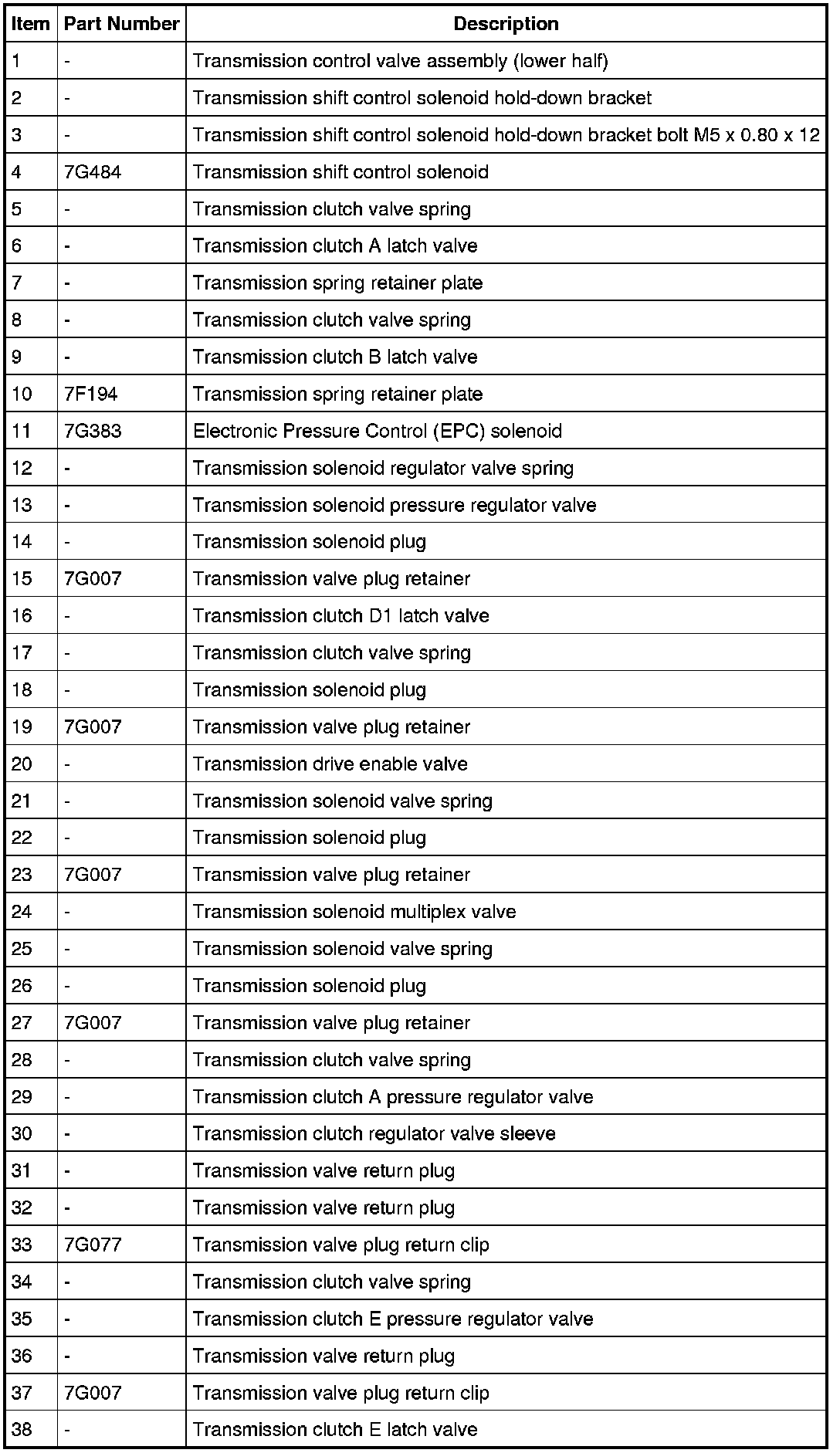

Mechatronic Lower Half

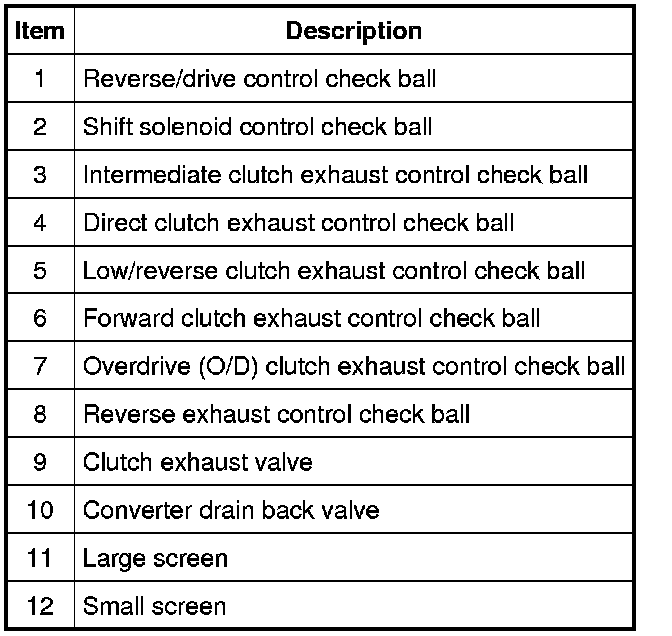

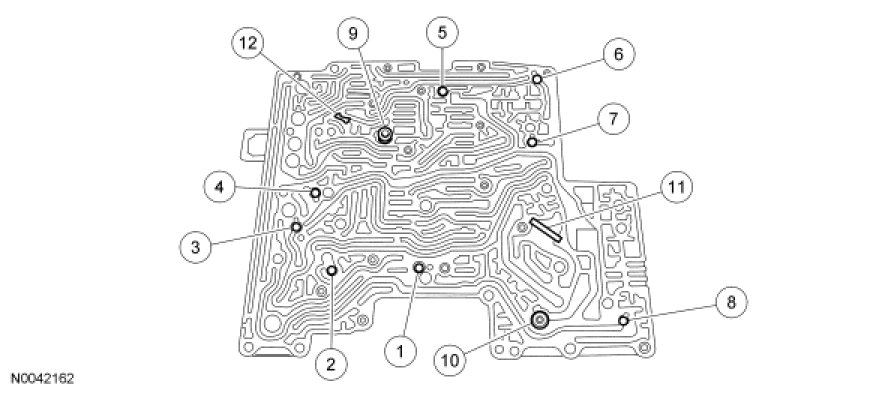

Check Ball Location
