Seat - Exploded View, Second Row




Seat - Exploded View, Second Row

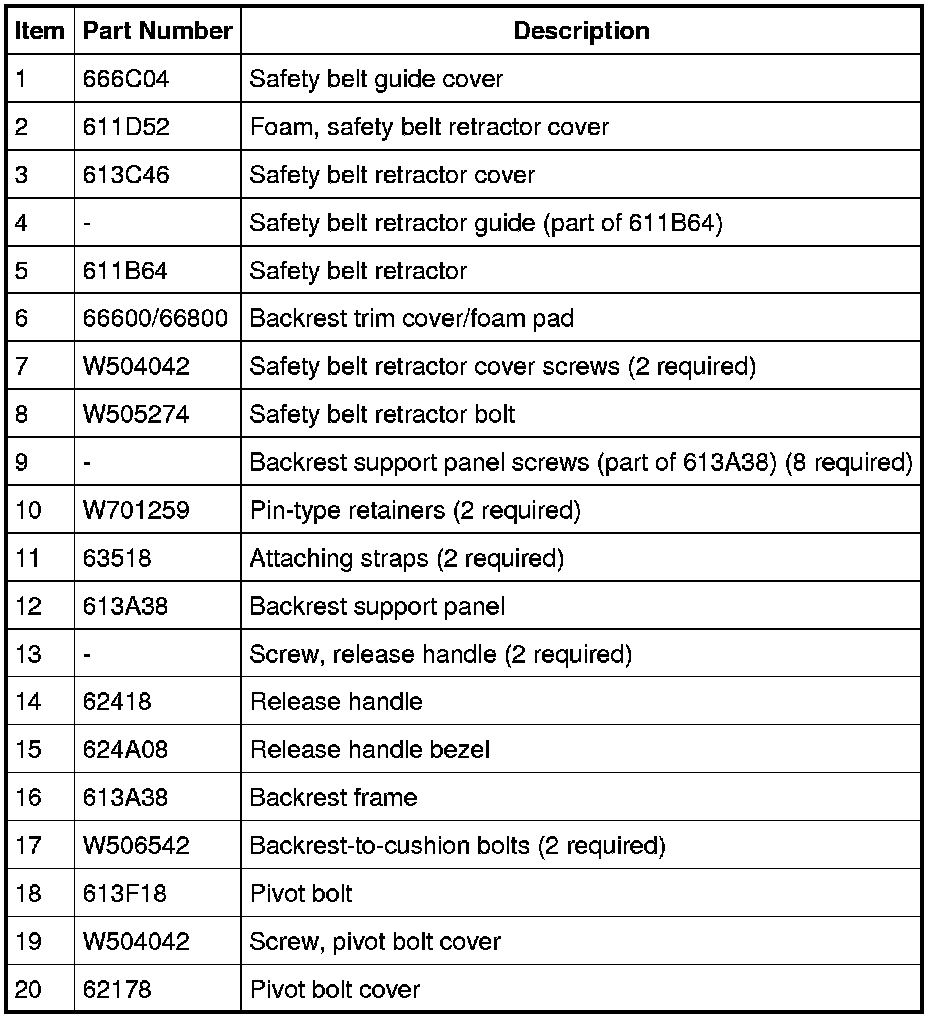

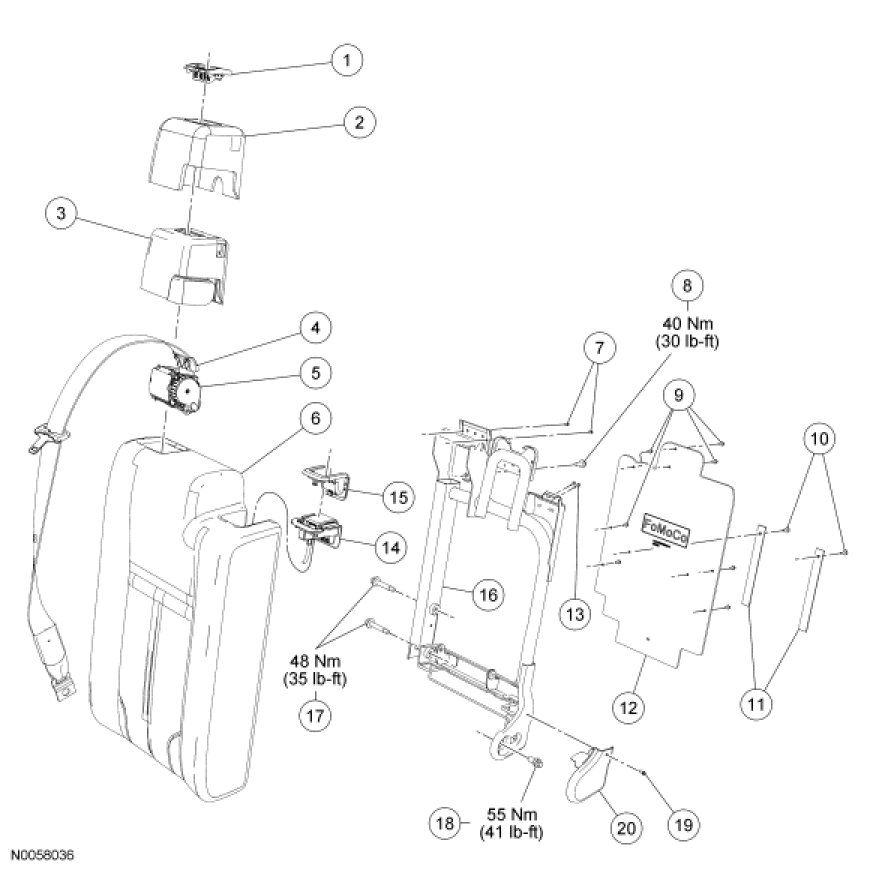

Seat Backrest - 20 Percent

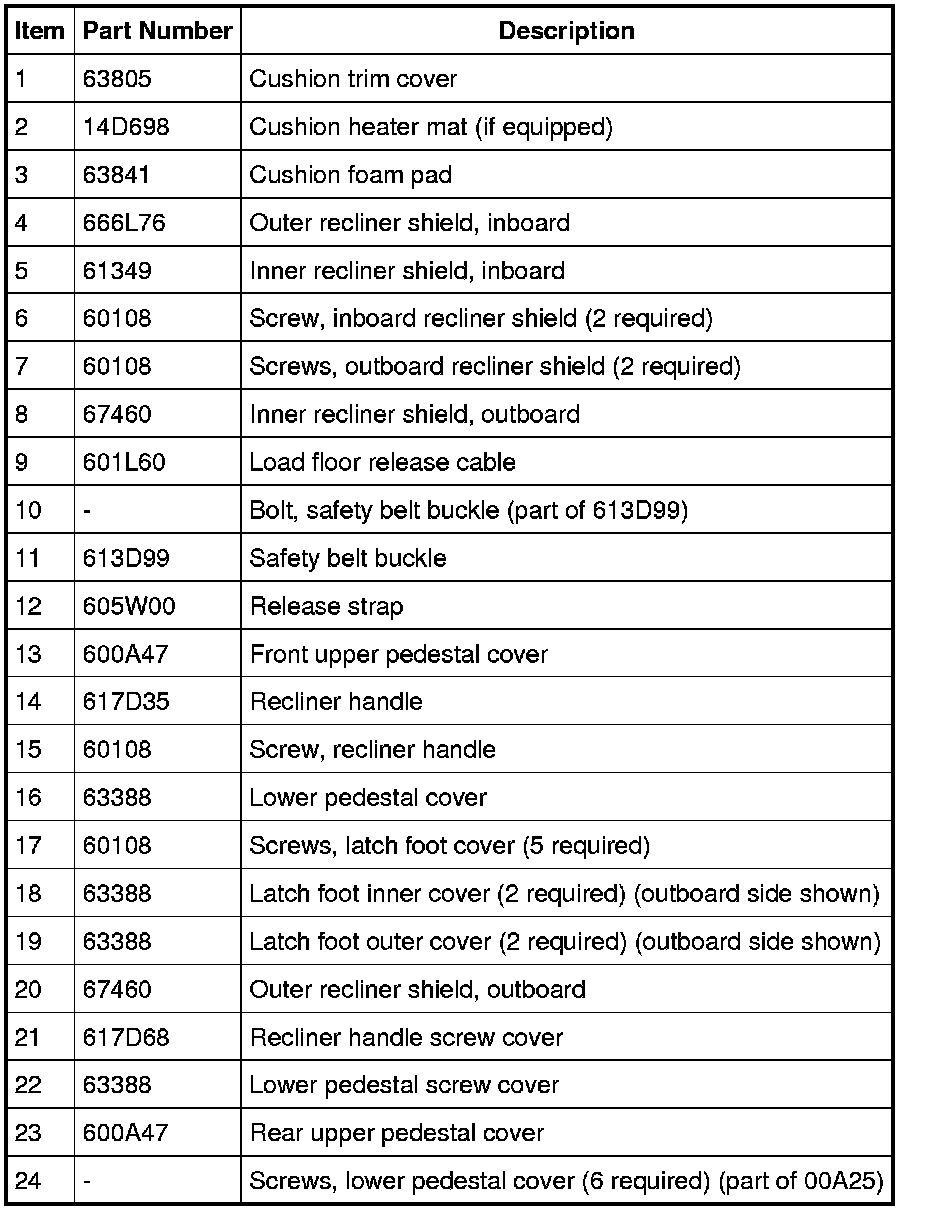

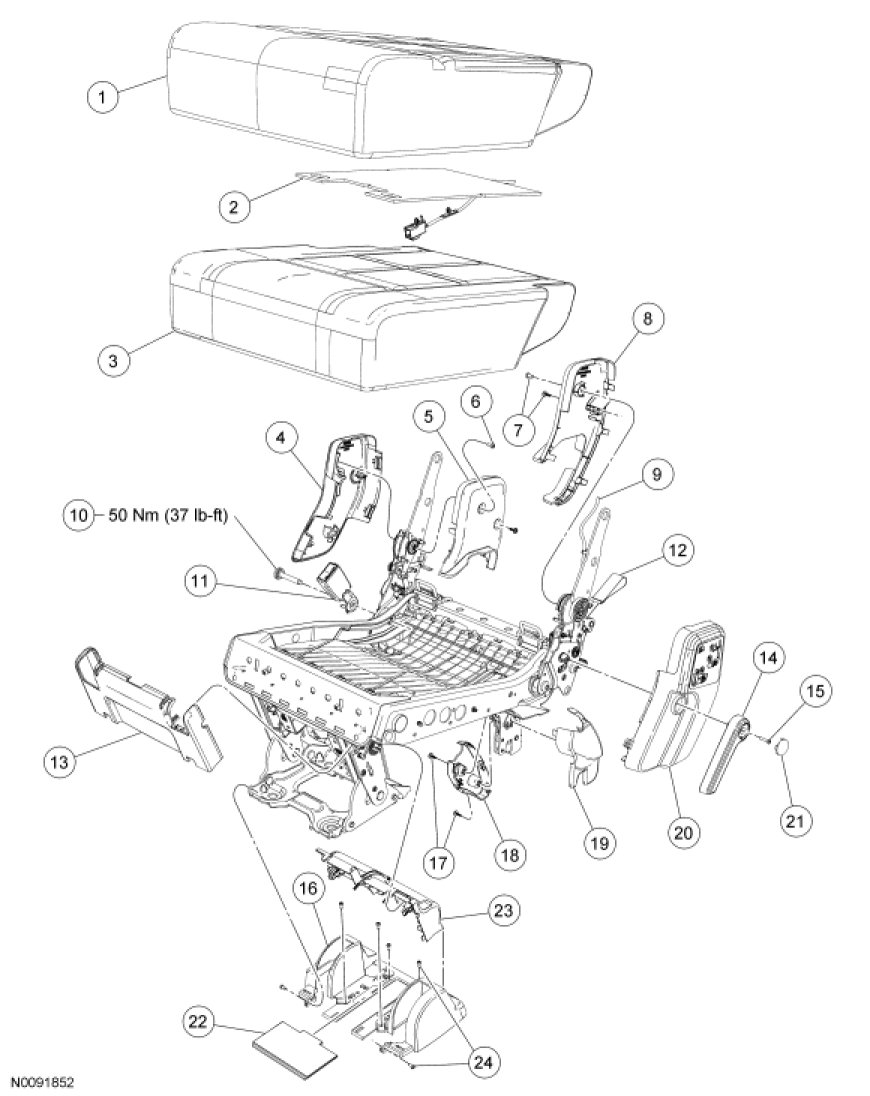

Seat Cushion - 20 Percent

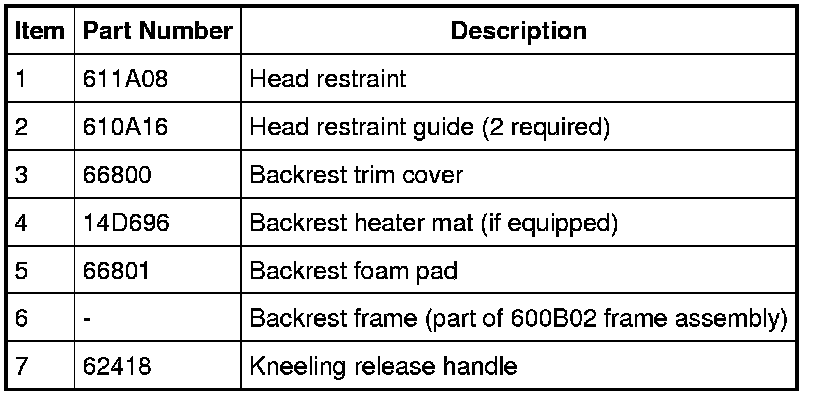

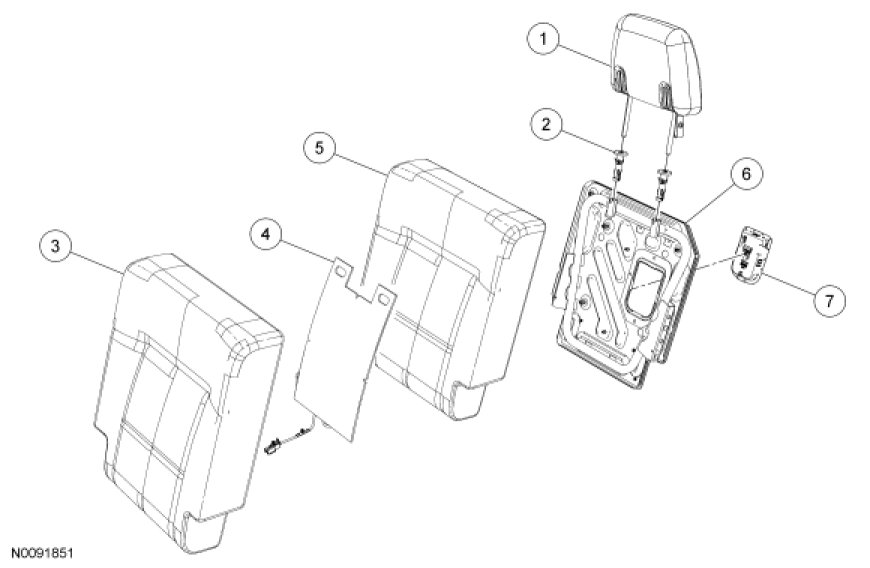

Seat Backrest - 40 Percent

NOTE: LH seat shown, RH similar.

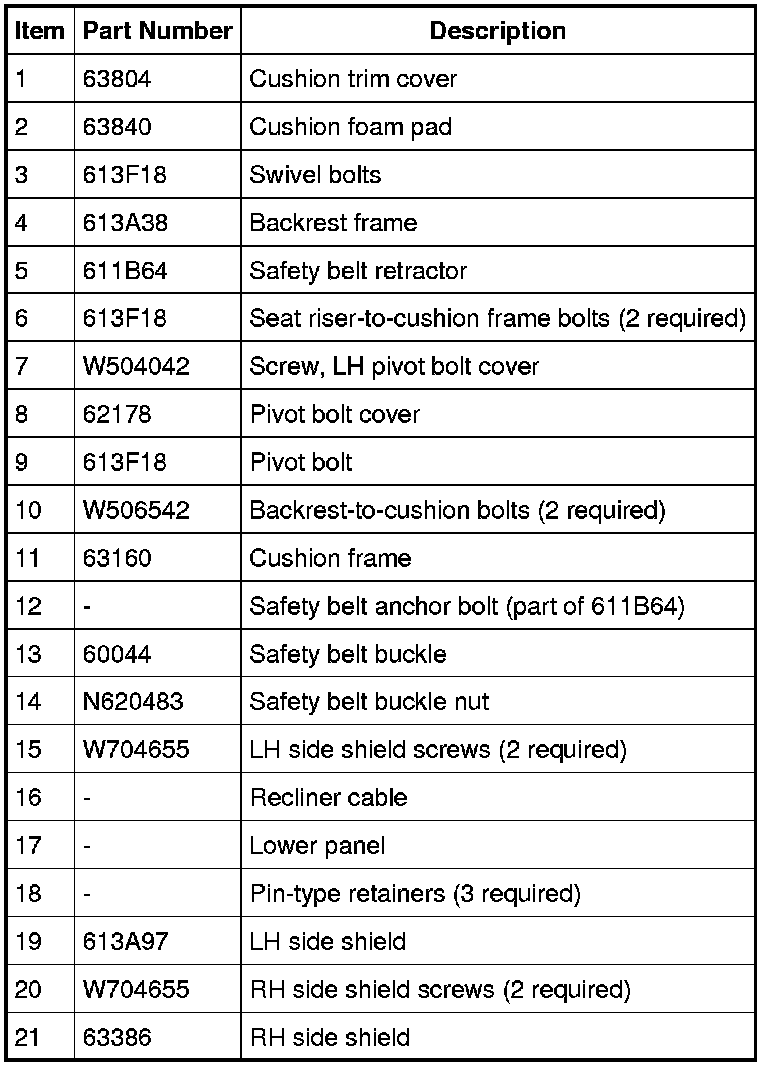

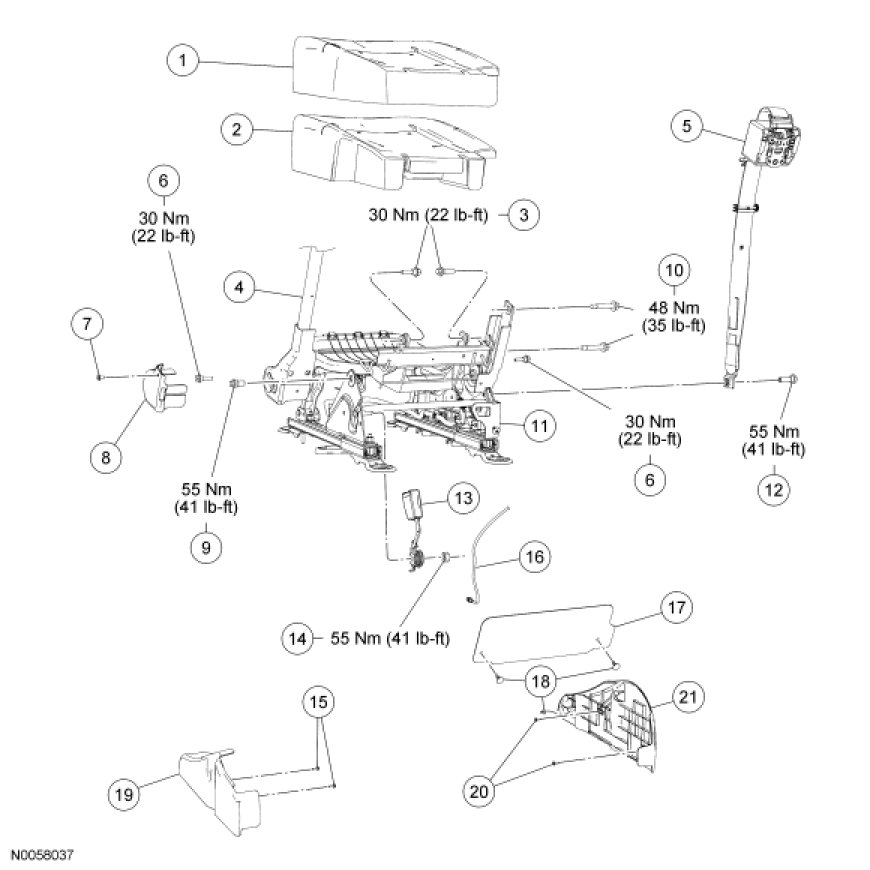

Seat Cushion - 40 Percent Seat

NOTE: LH seat shown, RH seat similar.
