Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

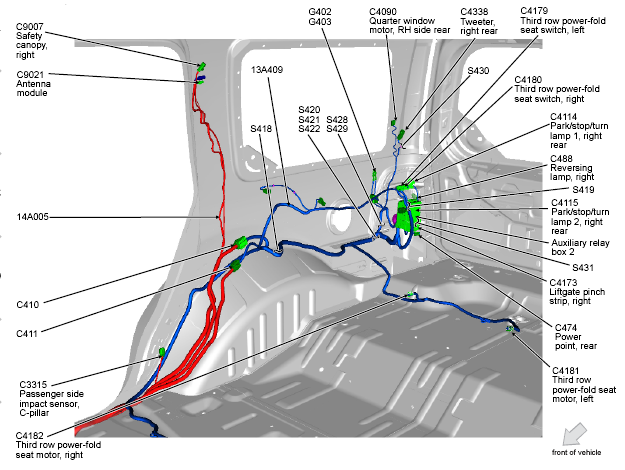

| Auxiliary Relay Box 2 (Expedition) | Right rear corner of vehicle. See Figure. |

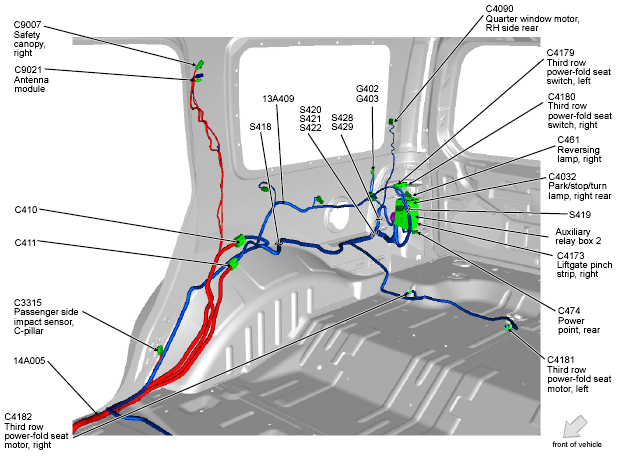

| Auxiliary Relay Box 2 (Expedition-EL & Navigator-L) | Right rear corner of vehicle. See Figure. |

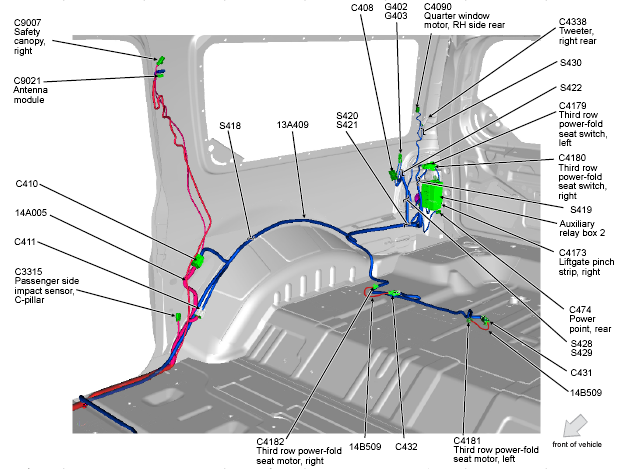

| Auxiliary Relay Box 2 (Navigator) | Right rear corner of vehicle. See Figure. |

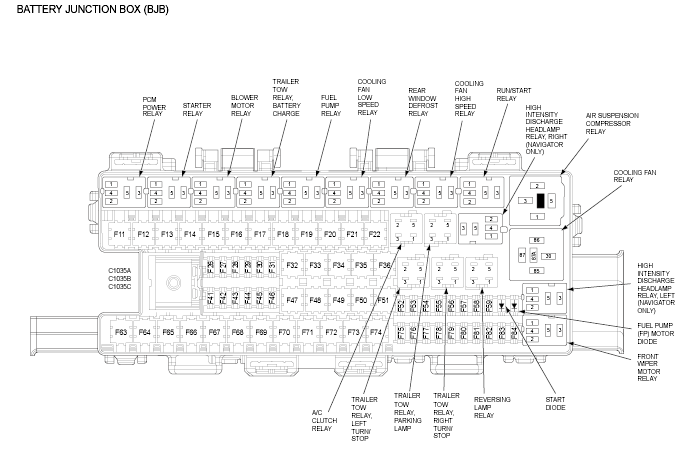

| Battery Junction Box (BJB) (Expedition) | Center front of engine compartment. See Figure. |
| Battery Junction Box (BJB) (Navigator) | Center front of engine compartment. See Figure. |
| Fuel Pump Motor Diode | Battery junction box (BJB). See Figure. |
| Fusible Link D (Expedition) | Right side of engine compartment. See Figure. |
| Fusible Link D (Navigator) | Right side of engine compartment. See Figure. |
| Fusible Links A, B & C (Expedition) | Near battery. See Figure. |
| Fusible Links A, B & C (Navigator) | Near battery. See Figure. |
| Smart Junction Box (SJB) (Expedition) | Behind right kick panel. See Figure. |
| Smart Junction Box (SJB) (Navigator) | Behind right kick panel. See Figure. |
| Start Diode | Battery junction box (BJB). See Figure. |
