Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

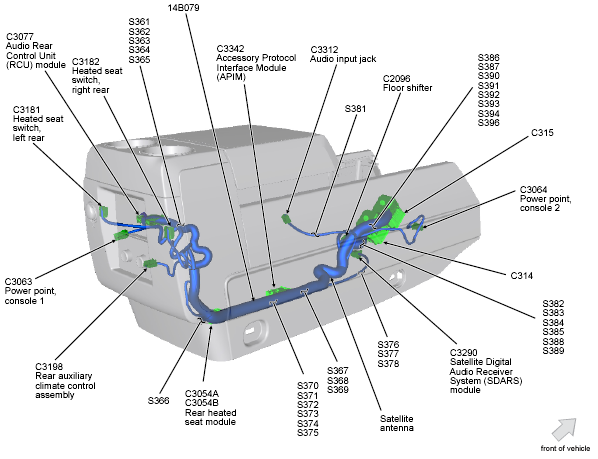

| Accessory Protocol Interface Module (APIM) (Expedition) | Middle of center console. See Figure. |

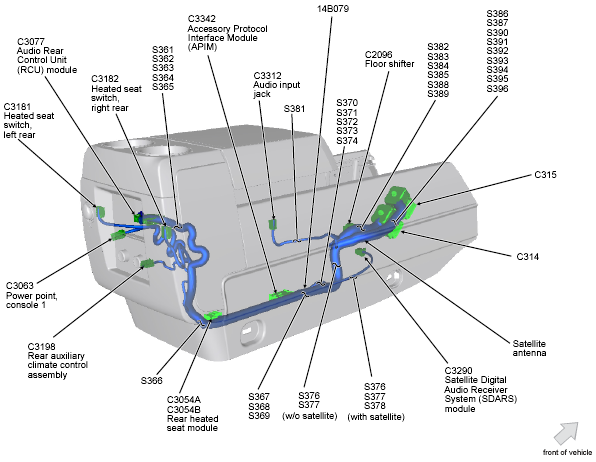

| Accessory Protocol Interface Module (APIM) (Navigator) | Middle of center console. See Figure. |

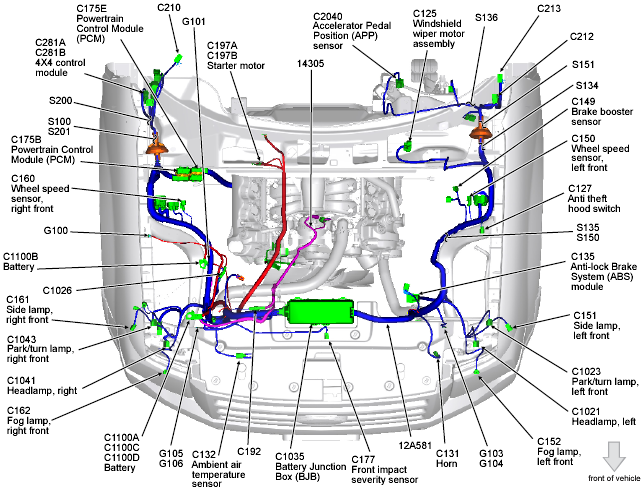

| Anti-Lock Brake System (ABS) Module (Expedition) | Left front of engine compartment. See Figure. |
| Anti-Lock Brake System (ABS) Module (Navigator) | Left side of engine compartment. See Figure. |
| Audio Control Module (ACM) (Expedition) | Front of console. See Figure. |
| Audio Control Module (ACM) (Navigator) | Front of console. See Figure. |
| Audio Digital Signal Processing (DSP) Module (Navigator) | Center of dash, near breakout to C315. See Figure. |
| Audio Rear Control Unit (RCU) Module (Expedition) | In center console. See Figure. |
| Audio Rear Control Unit (RCU) Module (Navigator) | In center module. See Figure. |

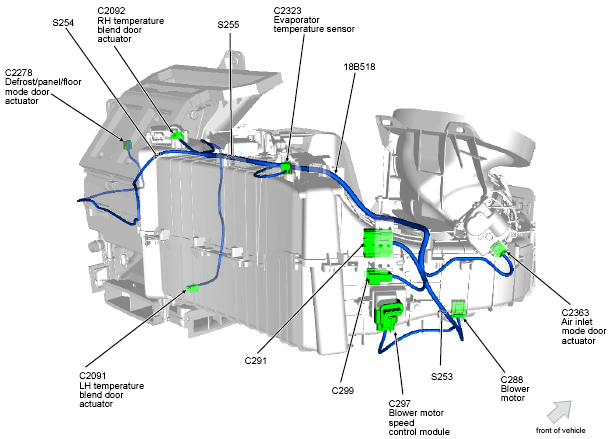

| Blower Motor Speed Control Module (EATC) | Right side of HVAC unit. See Figure. |

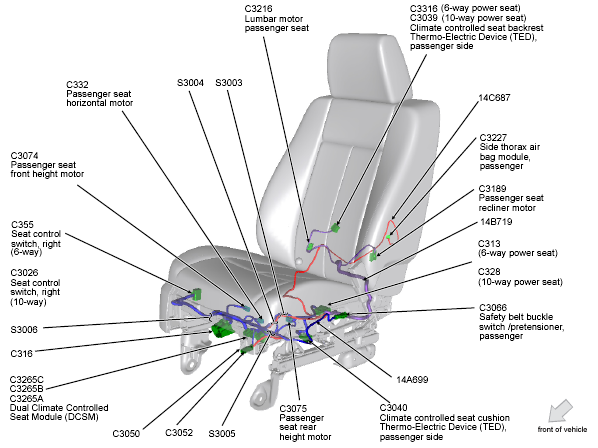

| Climate Controlled Seat Module (Passenger Side) | Under front passenger's seat. See Figure. |

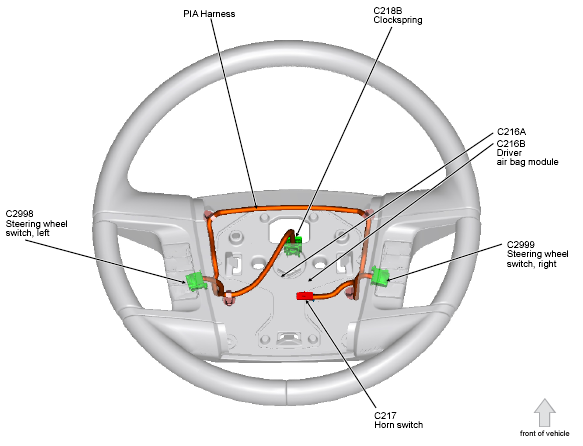

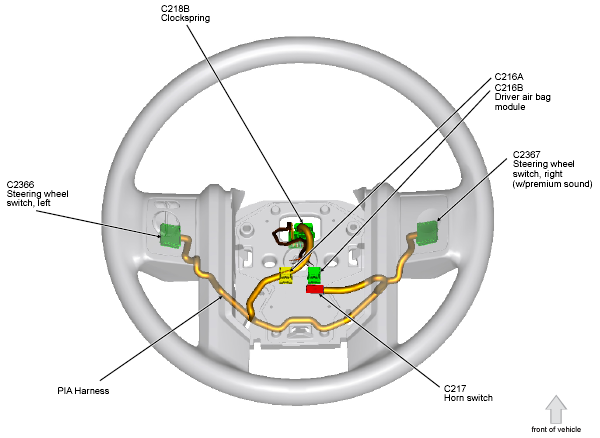

| Driver Air Bag Module (Expedition) | Center of steering wheel. See Figure. |
| Driver Airbag Module (Navigator) | Steering wheel. See Figure. |
| Driver Seat Module | Under driver's seat. See Figure. |

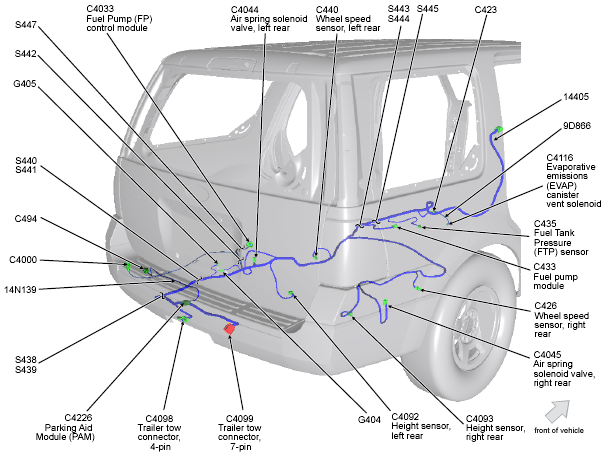

| Fuel Pump Module (Expedition-EL & Navigator-L) | Fuel tank. See Figure. |

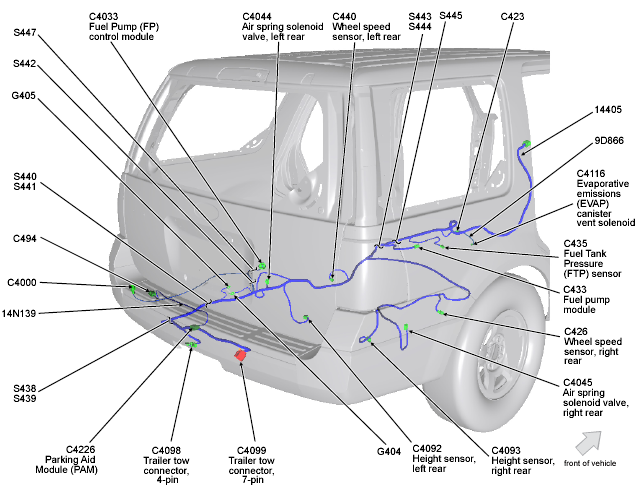

| Fuel Pump Module (Expedition & Navigator) | Fuel tank. See Figure. |

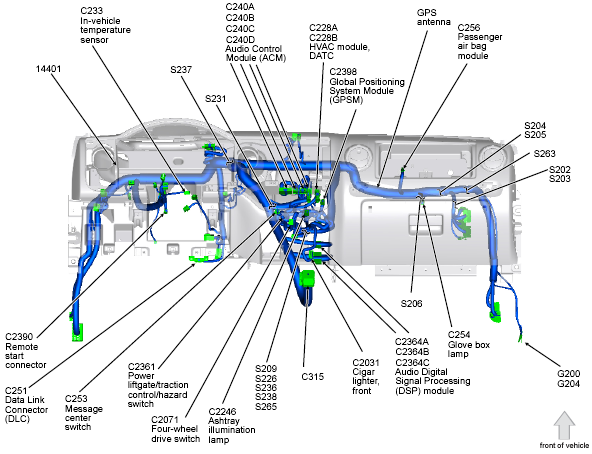

| Global Positioning System Module (GPSM) (Expedition) | Center of dash. See Figure. |

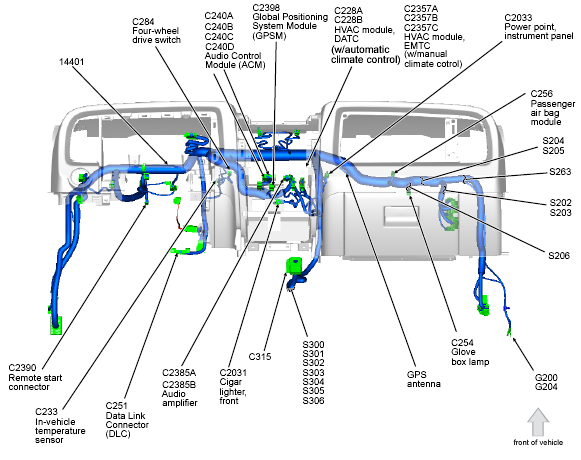

| Global Positioning System Module (GPSM) (Navigator) | Center of dash. See Figure. |
| Heater Blower Control Module | Right side of HVAC unit. See Figure. |
| HVAC (DATC) Module (Navigator) | Center of dash. See Figure. |
| HVAC (DATC) Module (W/ Automatic Climate Control) (Expedition) | Center of dash. See Figure. |
| HVAC (EMTC) Module (W/ Manual Climate Control) (Expedition) | Behind center of dash. See Figure. |

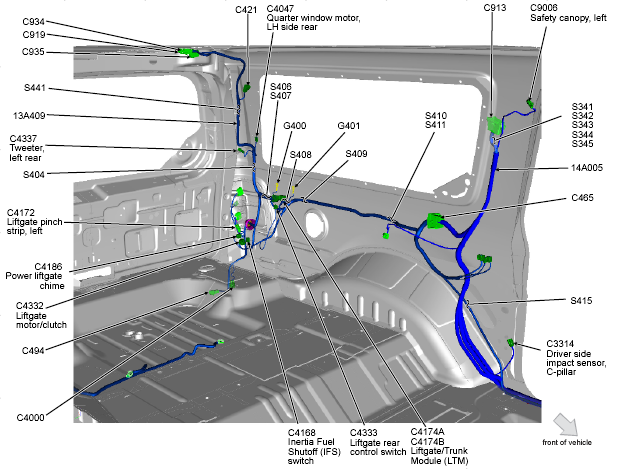

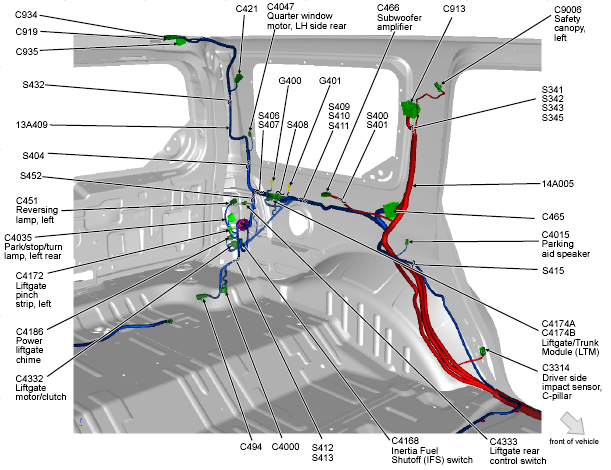

| Liftgate/Trunk Module (LTM) (Expedition) | Left side of cargo area, behind trim. See Figure. |
| Liftgate/Trunk Module (LTM) (Expedition-EL & Navigator-L) | Left side of cargo area, behind trim. See Figure. |

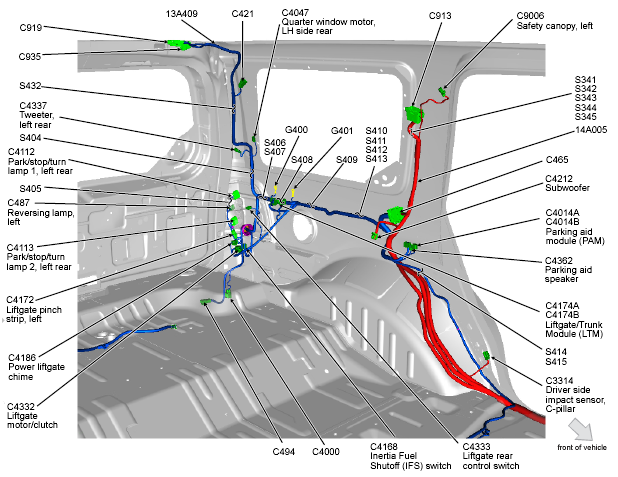

| Liftgate/Trunk Module (LTM) (Navigator) | Left side of cargo area, behind trim. See Figure. |
| Parking Aid Module (PAM) (Expedition-EL & Navigator-L) | Under center rear of vehicle. See Figure. |
| Parking Aid Module (PAM) (Expedition & Navigator) | Under center rear of vehicle. See Figure. |
| Passenger Air Bag Module (Expedition) | Behind right side of dash. See Figure. |
| Passenger Air Bag Module (Navigator) | Behind right side of dash. See Figure. |

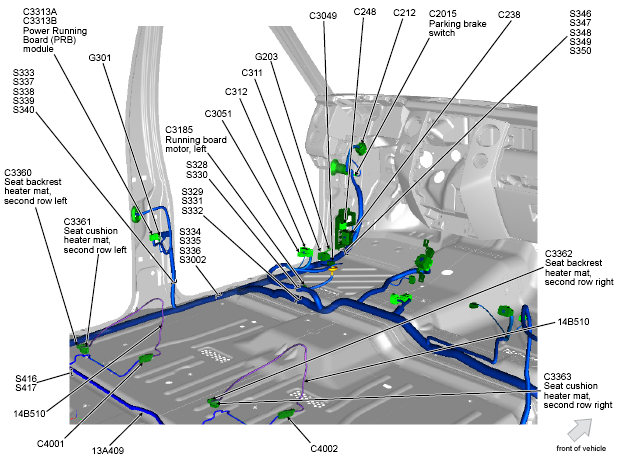

| Power Running Board (PRB) Module (Expedition) | Left "B" pillar. See Figure. |

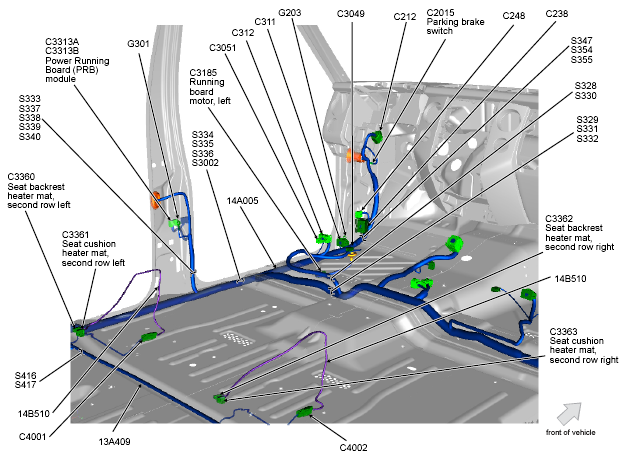

| Power Running Board (PRB) Module (Navigator) | Left "B" pillar. See Figure. |
| Powertrain Control Module (PCM) (Expedition) | Right rear of engine compartment. See Figure. |
| Powertrain Control Module (PCM) (Navigator) | Right rear of engine compartment. See Figure. |
| Rear Heated Seat Module | In center console. See Figure. |
| Rear Heated Seat Module | In center module. See Figure. |

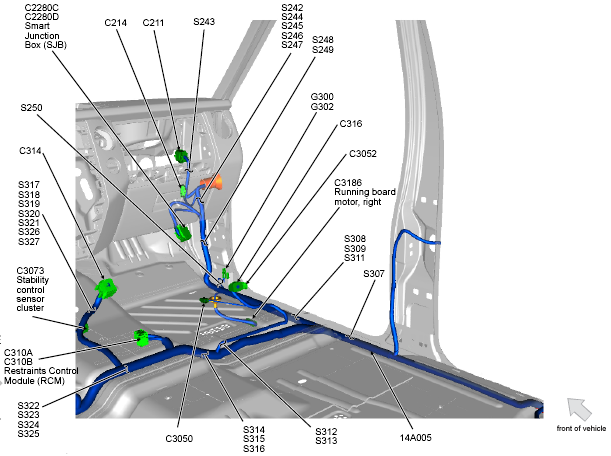

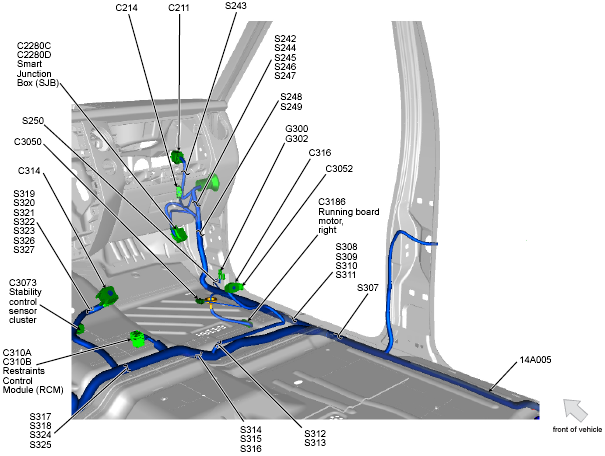

| Restraints Control Module (RCM) (Expedition) | Below center console. See Figure. |
| Restraints Control Module (RCM) (Navigator) | Below center console. See Figure. |

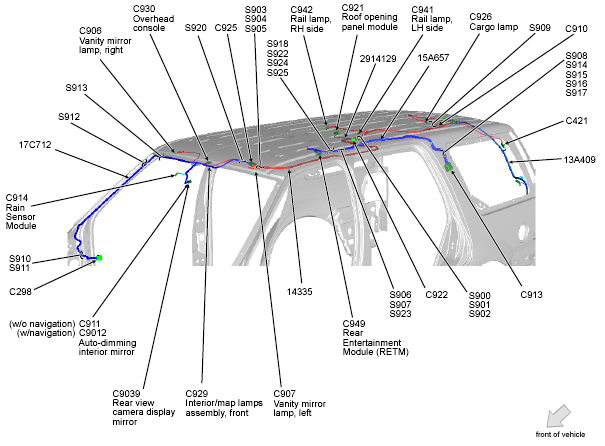

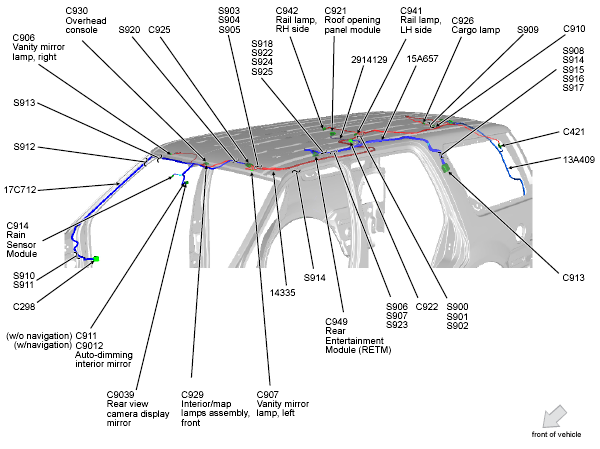

| Roof Opening Panel Module (Expedition) | Roof panel. See Figure. |
| Roof Opening Panel Module (Navigator) | Roof panel. See Figure. |
| Satellite Digital Audio Receiver System (SDARS) Module (Expedition) | Center console. See Figure. |
| Satellite Digital Audio Receiver System (SDARS) Module (Expedition) | Center console. See Figure. |

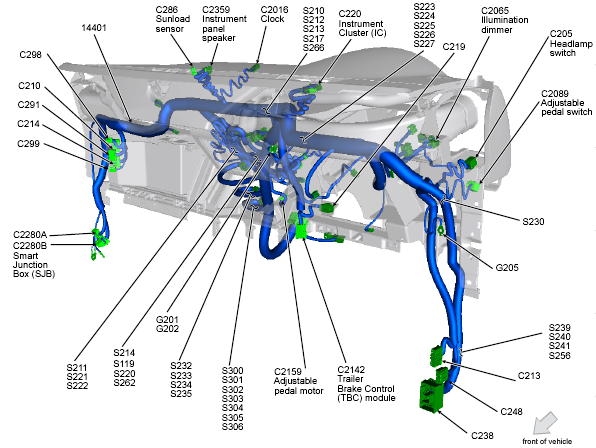

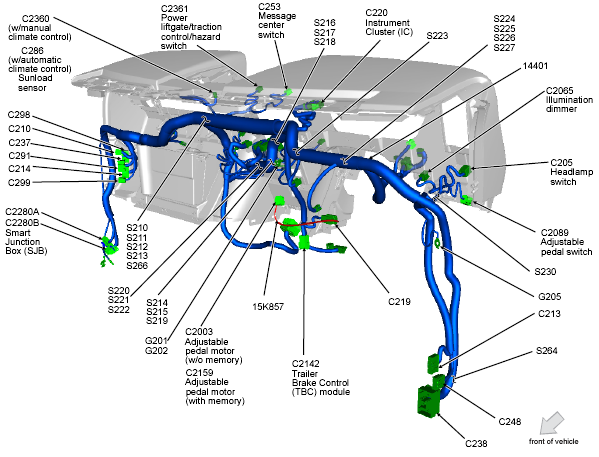

| Trailer Electronic Brake Control Module (Expedition) | Under center of dash. See Figure. |
| Trailer Electronic Brake Control Module (Navigator) | Under left side of dash. See Figure. |

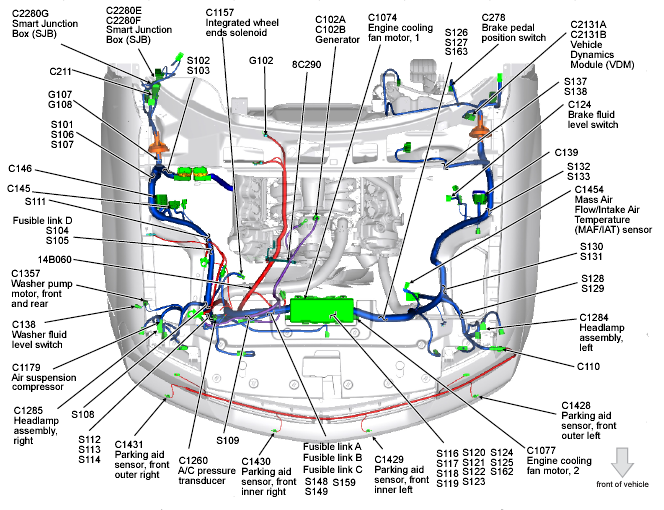

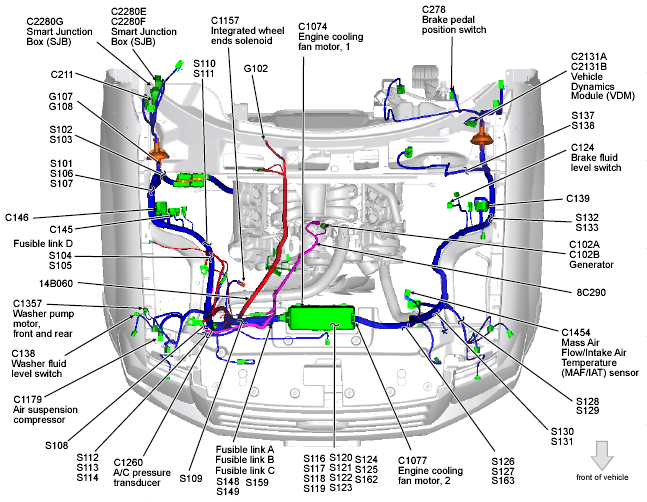

| Vehicle Dynamics Module (VDM) (Expedition) | Left rear of engine compartment. See Figure. |
| Vehicle Dynamics Module (VDM) (Navigator) | Left rear of engine compartment. See Figure. |
| 4X4 Control Module (Expedition) | Right rear of engine compartment. See Figure. |
| 4X4 Control Module (Navigator) | Right rear of engine compartment. See Figure. |
