Steering Column: Notes

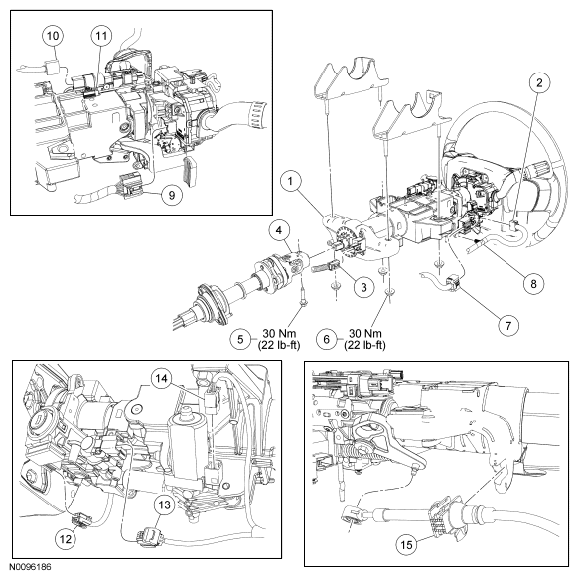

PART NUMBER REFERENCE
| Item | Part Number | Description |
|---|---|---|
| 1 | 3C529 | Steering column |
| 2 | - | Clockspring electrical connector (part of 14401) |
| 3 | - | Steering wheel rotation sensor electrical connector (part of 14489) |
| 4 | 3E751 | Upper steering column shaft |
| 5 | N808684 | Upper steering column shaft-to-steering column bolt |
| 6 | N806423 | Steering column nut (4 required) |
| 7 | - | Ignition switch electrical connector (part of 14401) |
| 8 | - | Wiring harness retainer (part of 14401) |
| 9 | - | Multifunction switch electrical connector (part of 14401) |
| 10 | - | Brake Shift Interlock Actuator (BSIA) electrical connector (part of 14401) (column shift only) |
| 11 | - | Overdrive cancel switch electrical connector (part of 14401) (column shift only) |
| 12 | - | Passive Anti-Theft System (PATS) electrical connector (part of 14401) |
| 13 | - | Key release interlock actuator electrical connector (part of 14401) |
| 14 | - | Power tilt motor electrical connector (part of 14401) (power tilt column only) |
| 15 | 7E395 | Selector lever cable (column shift only) |
