Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Battery Junction Box (BJB)

G00475799

Courtesy of FORD MOTOR CO.

Fig 2: Smart Junction Box (SJB)

G00439998

Courtesy of FORD MOTOR CO.

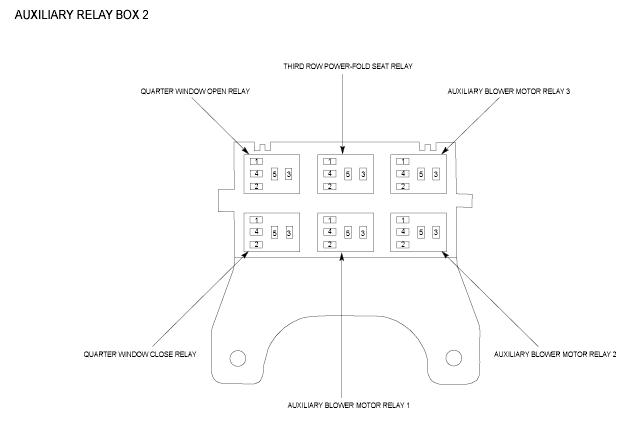

Fig 3: Auxiliary Relay Box 2

G00475798

Courtesy of FORD MOTOR CO.

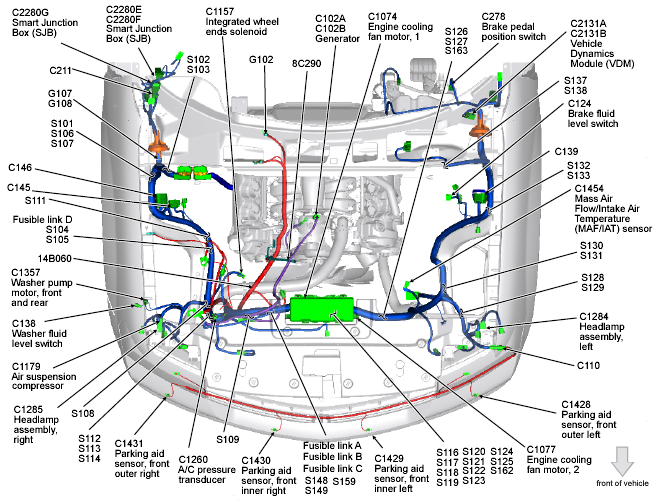

Fig 4: Front Of Engine

G00475804

Courtesy of FORD MOTOR CO.

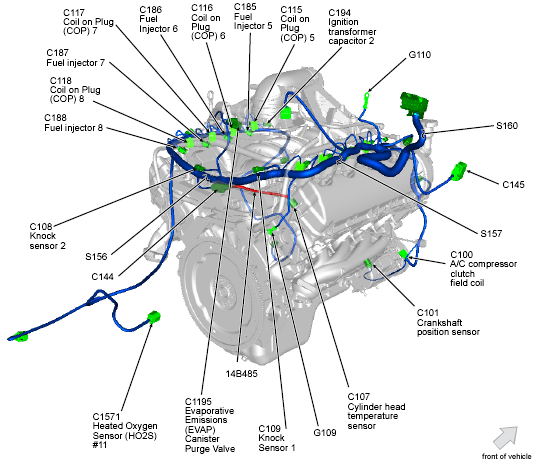

Fig 5: Rear Of Engine

G00475805

Courtesy of FORD MOTOR CO.

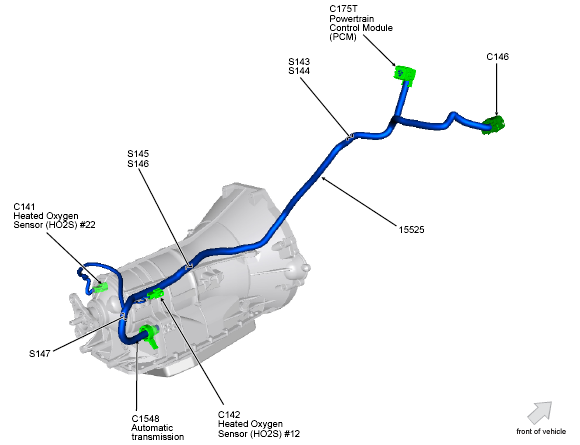

Fig 6: Automatic Transmission (2WD)

G00475806

Courtesy of FORD MOTOR CO.

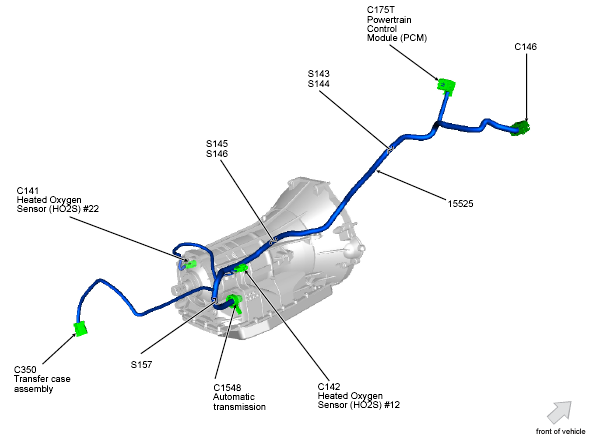

Fig 7: Automatic Transmission (4WD)

G00475807

Courtesy of FORD MOTOR CO.

Fig 8: Rear Of Dash (Expedition)

G00475808

Courtesy of FORD MOTOR CO.

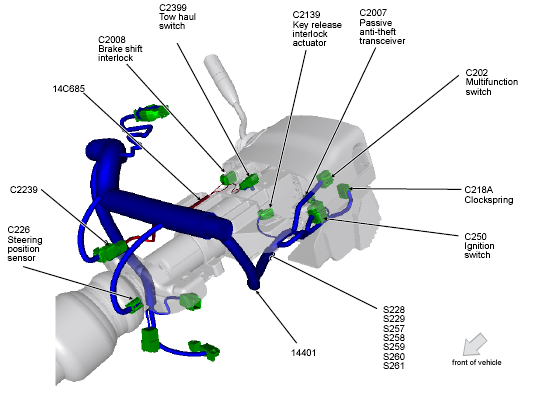

Fig 9: Steering Column (Expedition)

G00475812

Courtesy of FORD MOTOR CO.

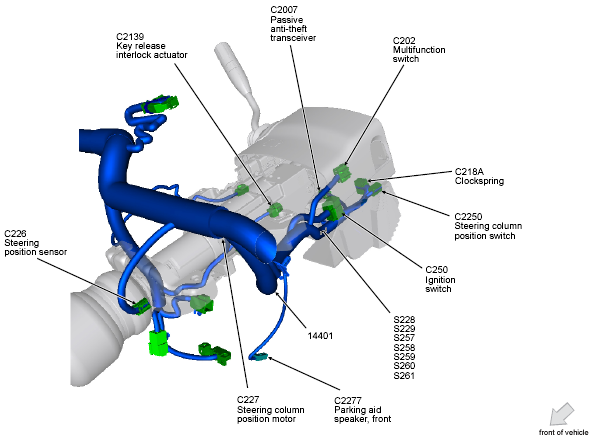

Fig 10: Steering Column (Navigator)

G00475813

Courtesy of FORD MOTOR CO.

Fig 11: Steering Wheel (Expedition)

G00475814

Courtesy of FORD MOTOR CO.

Fig 12: Right Rear Of Vehicle Interior (Expedition)

G00475823

Courtesy of FORD MOTOR CO.

Fig 13: Right Rear Of Vehicle Interior (Navigator)

G00475825

Courtesy of FORD MOTOR CO.

Fig 14: Right Rear Of Vehicle Interior (Expedition-EL & Navigator-L)

G00475827

Courtesy of FORD MOTOR CO.

Fig 15: Rear Of Vehicle (Expedition & Navigator)

G00475829

Courtesy of FORD MOTOR CO.

Fig 16: Rear Of Vehicle (Expedition-EL & Navigator-L)

G00475830

Courtesy of FORD MOTOR CO.

Fig 17: Driver's Seat

G00475831

Courtesy of FORD MOTOR CO.

Fig 18: Front Passenger's Seat

G00475832

Courtesy of FORD MOTOR CO.

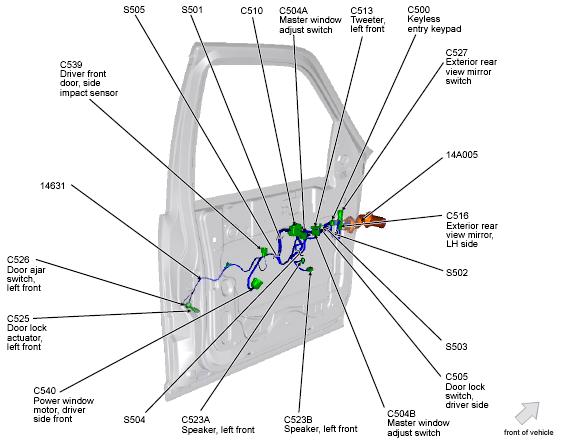

Fig 19: Driver's Door (Expedition)

G00475833

Courtesy of FORD MOTOR CO.

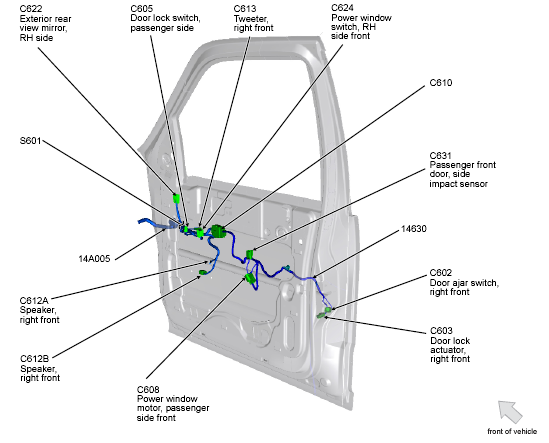

Fig 20: Front Passenger's Door (Expedition)

G00475834

Courtesy of FORD MOTOR CO.

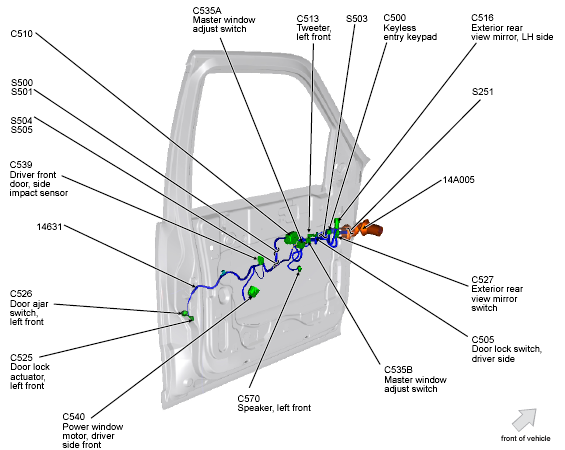

Fig 21: Driver's Door (Navigator)

G00475835

Courtesy of FORD MOTOR CO.

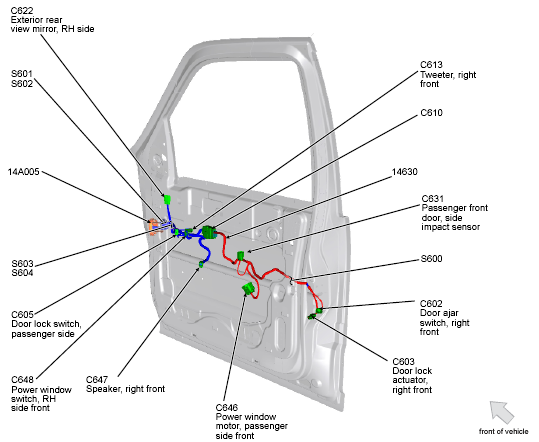

Fig 22: Front Passenger's Door (Navigator)

G00475836

Courtesy of FORD MOTOR CO.

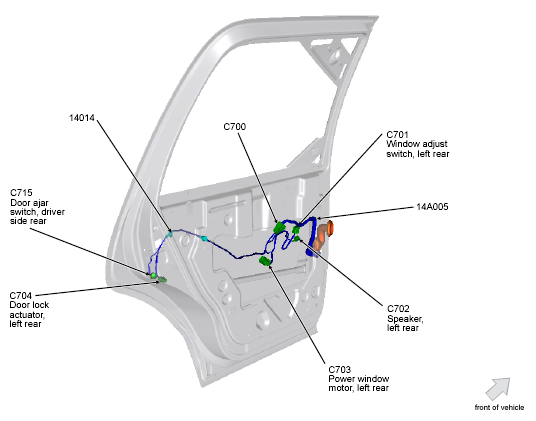

Fig 23: Left Rear Door

G00475837

Courtesy of FORD MOTOR CO.

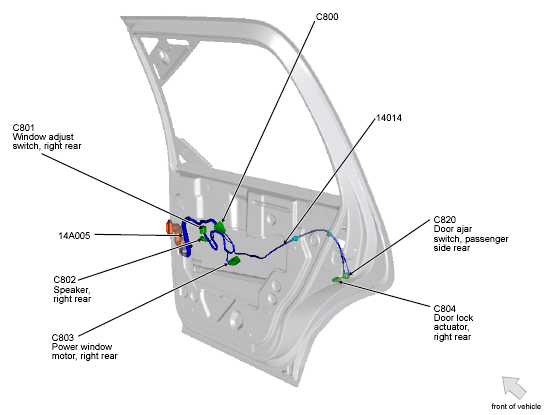

Fig 24: Right Rear Door

G00475838

Courtesy of FORD MOTOR CO.

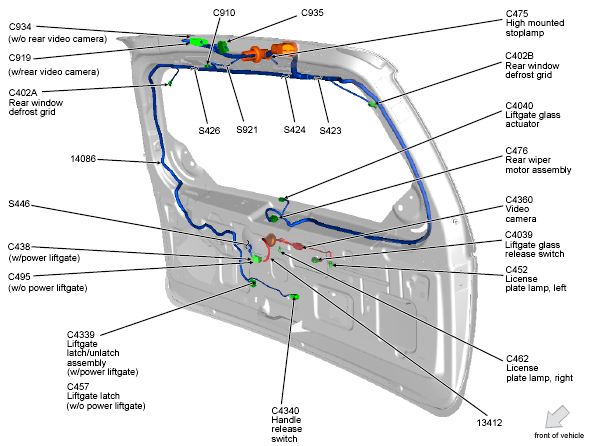

Fig 25: Liftgate (Expedition)

G00475839

Courtesy of FORD MOTOR CO.

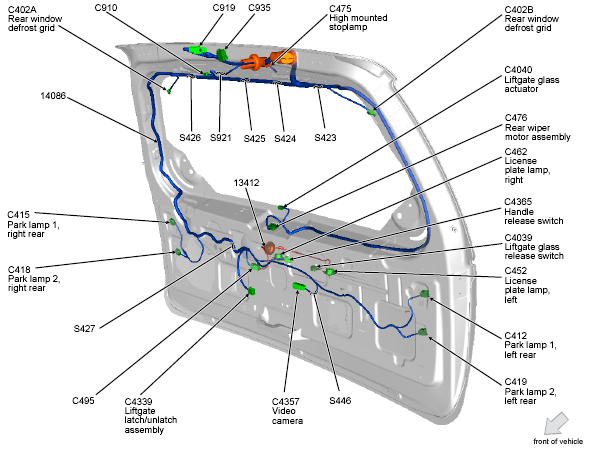

Fig 26: Liftgate (Navigator)

G00475840

Courtesy of FORD MOTOR CO.

Fig 27: Roof (Expedition)

G00475841

Courtesy of FORD MOTOR CO.

Fig 28: Roof (Navigator)

G00475842

Courtesy of FORD MOTOR CO.

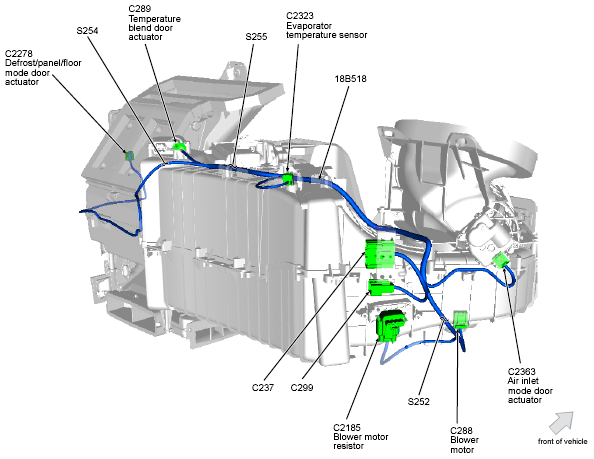

Fig 29: HVAC (Manual A/C)

G00475843

Courtesy of FORD MOTOR CO.

Fig 30: HVAC (EATC)

G00475844

Courtesy of FORD MOTOR CO.

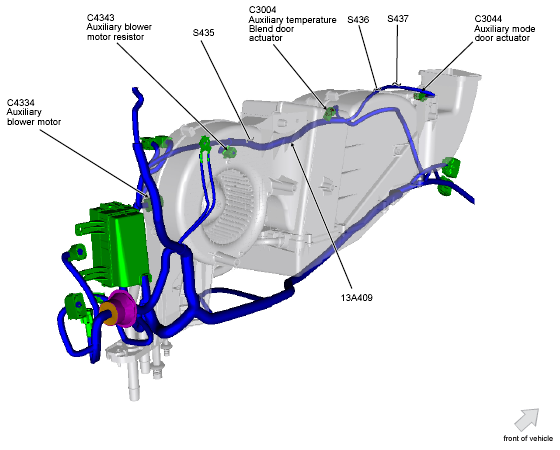

Fig 31: Auxiliary HVAC (Expedition & Navigator)

G00475845

Courtesy of FORD MOTOR CO.

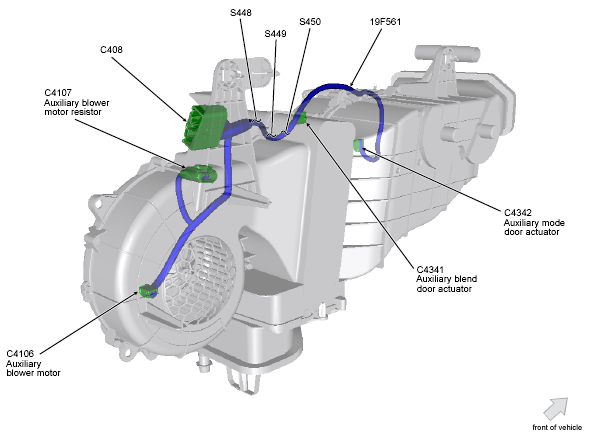

Fig 32: Auxiliary HVAC (Expedition-EL & Navigator-L)

G00475846

Courtesy of FORD MOTOR CO.

Fig 33: Engine Compartment (Expedition)

G00475800

Courtesy of FORD MOTOR CO.

Fig 34: Engine Compartment (Navigator)

G00475802

Courtesy of FORD MOTOR CO.

Fig 35: Engine Compartment (Expedition)

G00475801

Courtesy of FORD MOTOR CO.

Fig 36: Engine Compartment (Navigator)

G00475803

Courtesy of FORD MOTOR CO.

Fig 37: Front Of Dash (Expedition)

G00475809

Courtesy of FORD MOTOR CO.

Fig 38: Rear Of Dash (Navigator)

G00475810

Courtesy of FORD MOTOR CO.

Fig 39: Front Of Dash (Navigator)

G00475811

Courtesy of FORD MOTOR CO.

Fig 40: Steering Wheel (Navigator)

G00475815

Courtesy of FORD MOTOR CO.

Fig 41: Center Console (Expedition)

G00475816

Courtesy of FORD MOTOR CO.

Fig 42: Center Console (Navigator)

G00475817

Courtesy of FORD MOTOR CO.

Fig 43: Left Front Of Vehicle Interior (Expedition)

G00475818

Courtesy of FORD MOTOR CO.

Fig 44: Left Front Of Vehicle Interior (Navigator)

G00475820

Courtesy of FORD MOTOR CO.

Fig 45: Right Front Of Vehicle Interior (Expedition)

G00475819

Courtesy of FORD MOTOR CO.

Fig 46: Right Front Of Vehicle Interior (Navigator)

G00475821

Courtesy of FORD MOTOR CO.

Fig 47: Left Rear Of Vehicle Interior (Expedition)

G00475822

Courtesy of FORD MOTOR CO.

Fig 48: Left Rear Of Vehicle Interior (Navigator)

G00475824

Courtesy of FORD MOTOR CO.

Fig 49: Left Rear Of Vehicle Interior (Expedition-EL & Navigator-L)

G00475826

Courtesy of FORD MOTOR CO.

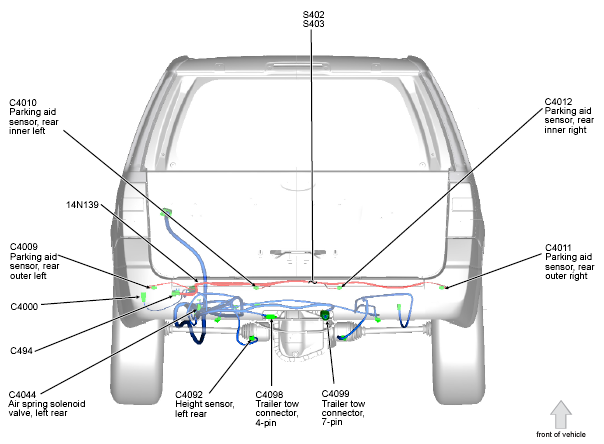

Fig 50: Back-Up Alarm Jumper Harness

G00475828

Courtesy of FORD MOTOR CO.
