6R80
>>
End Play
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

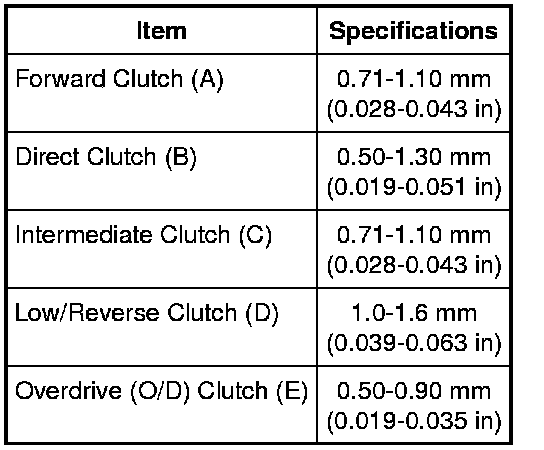

End Play
End Play
NOTE:
All friction and steel plates use a wave design plate.
