Blower Motor: Service and Repair

Blower Motor

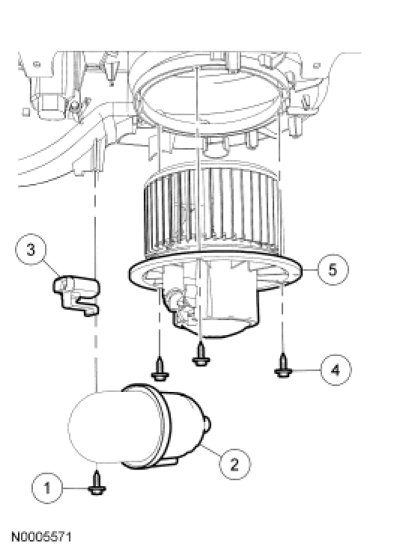

Removal and Installation

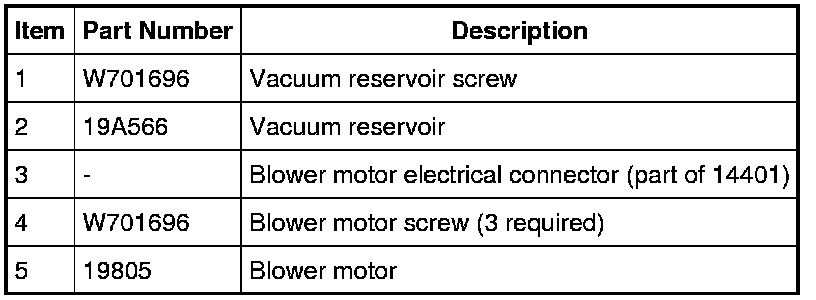

1. Remove the vacuum reservoir screw.

2. Position the vacuum reservoir aside.

3. Disconnect the blower motor electrical connector.

4. Remove the 3 blower motor screws.

5. Remove the blower motor.

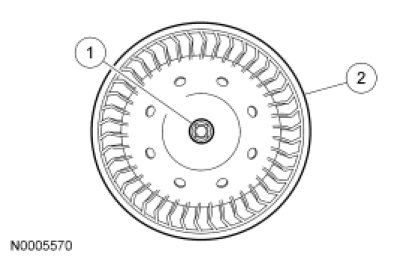

6. Remove the blower motor wheel from the blower motor.

1. Remove the push clip.

2. Remove the blower motor wheel.





7. To install, reverse the removal procedure.
