Global Positioning System Module: Service and Repair

Global Positioning System Module (GPSM)









Removal and Installation

1. Remove the Audio Control Module (ACM). For additional information, refer to Audio Control Module (ACM) Audio Control Module (ACM).

2. Remove the passenger air bag. For additional information, refer to Restraint Systems.

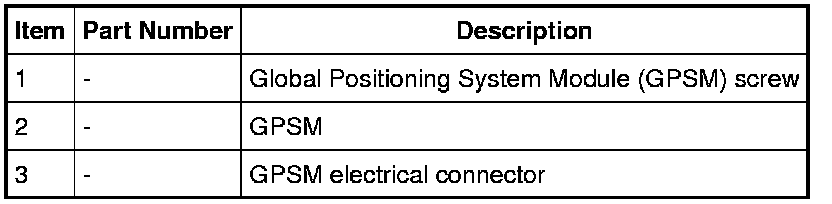

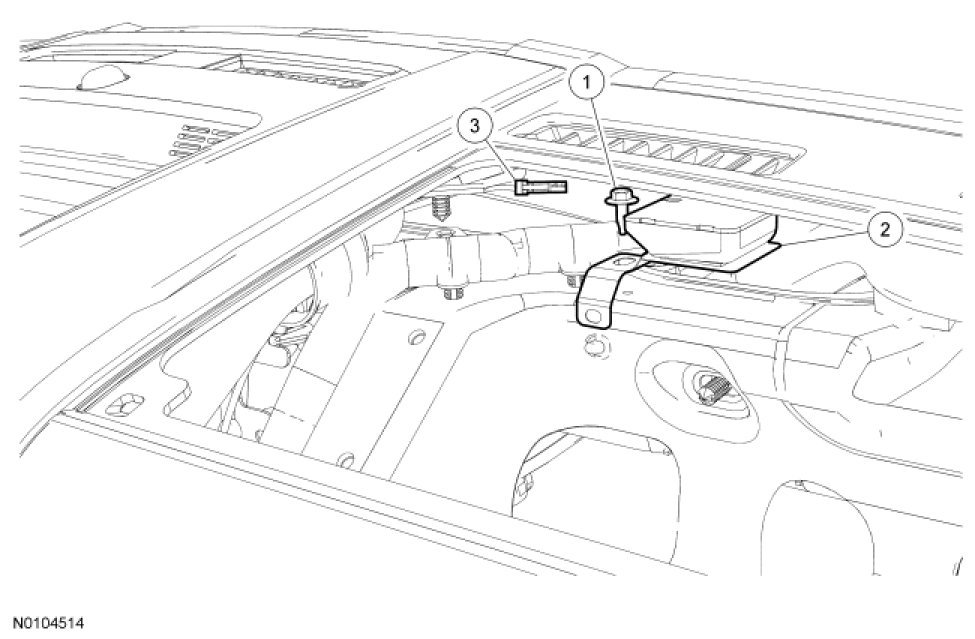

3. Remove the screw and the Global Positioning System Module (GPSM).
- Disconnect the electrical connector.

4. To install, reverse the removal procedure.
