Home
>>
Ford
>>
2010
>>
Explorer AWD V6-4.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Wheel Speed Sensor
>>
Wheel Speed Sensor, Left Front
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

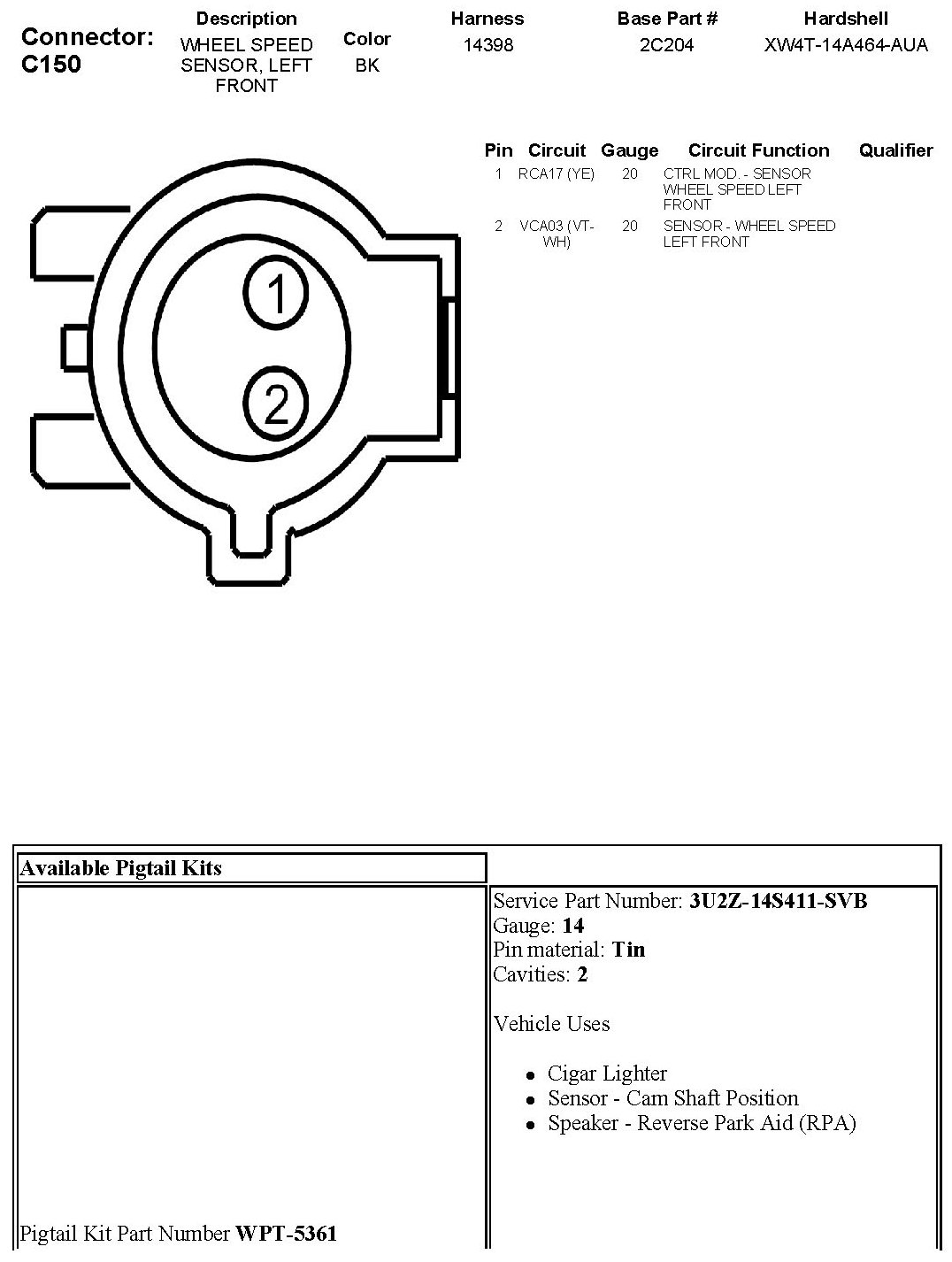

Wheel Speed Sensor, Left Front
