Exterior Moulding / Trim




Exterior Trim - Exploded View

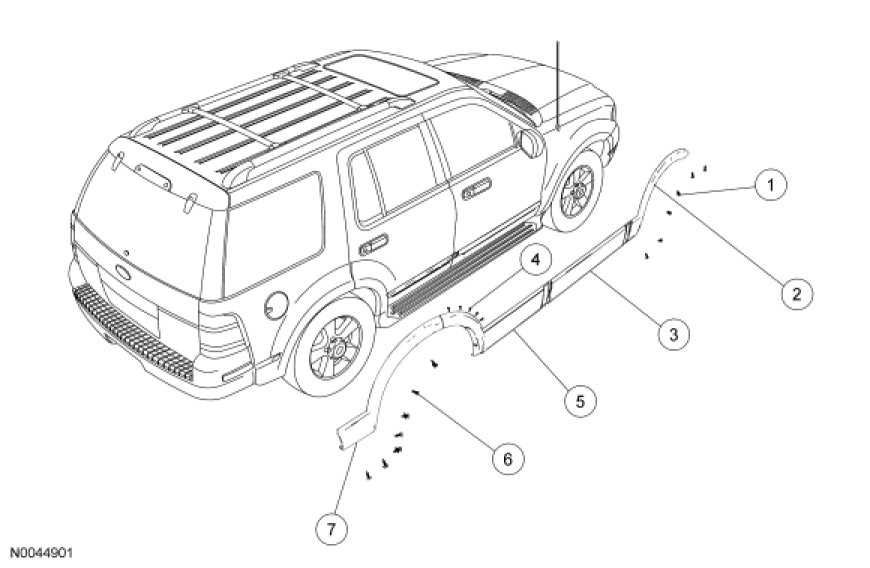

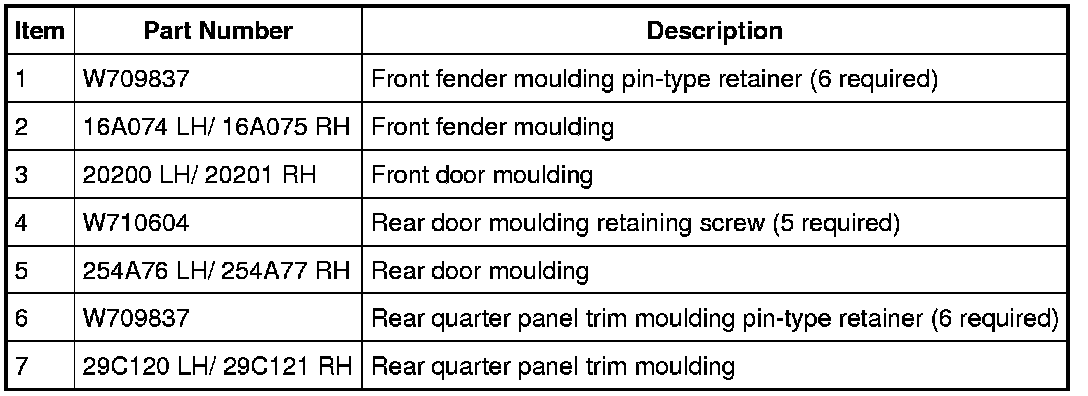

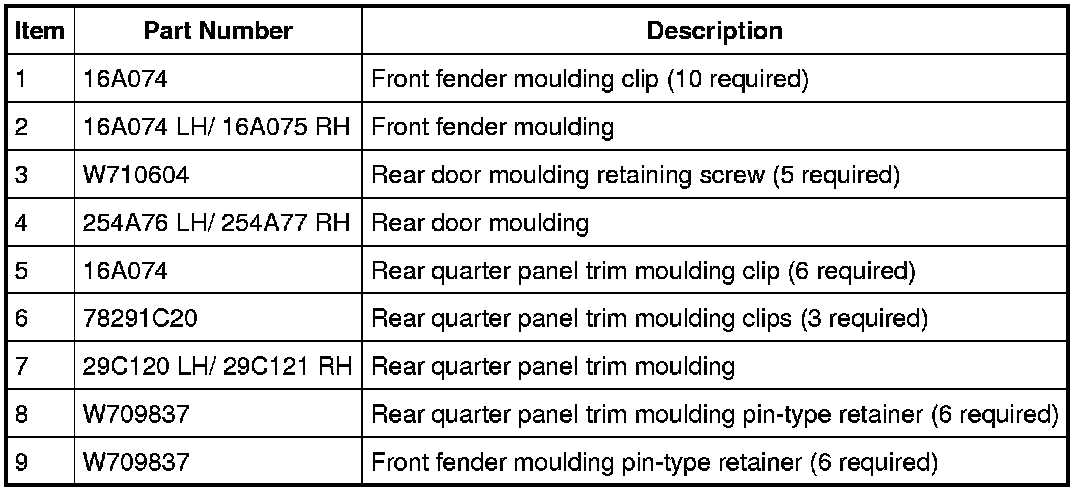

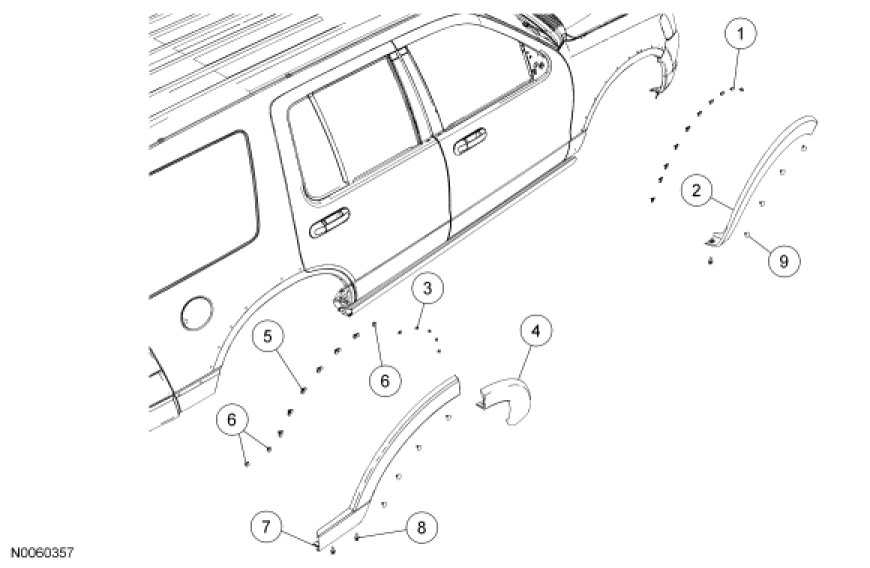

Exterior Moulding - All Explorer and Mountaineer Vehicles









NOTE: Explorer XLT shown.

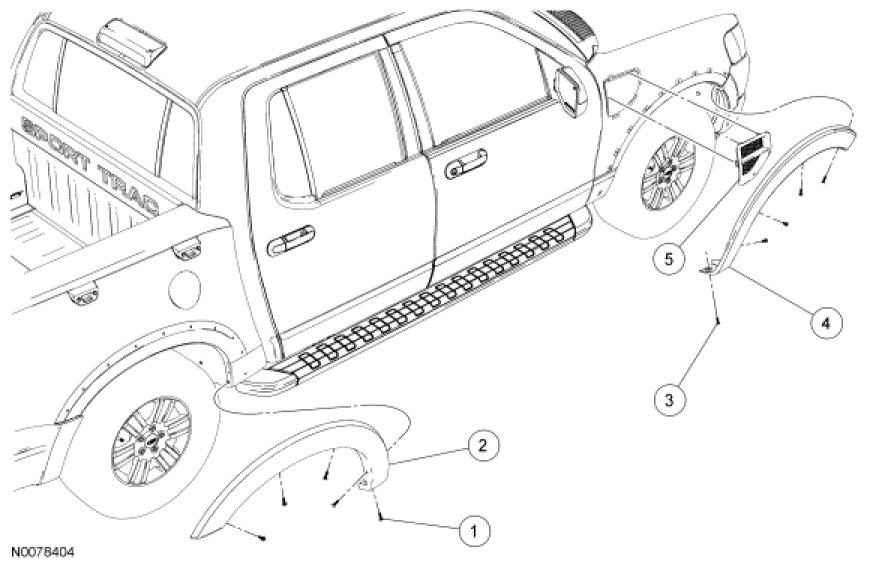

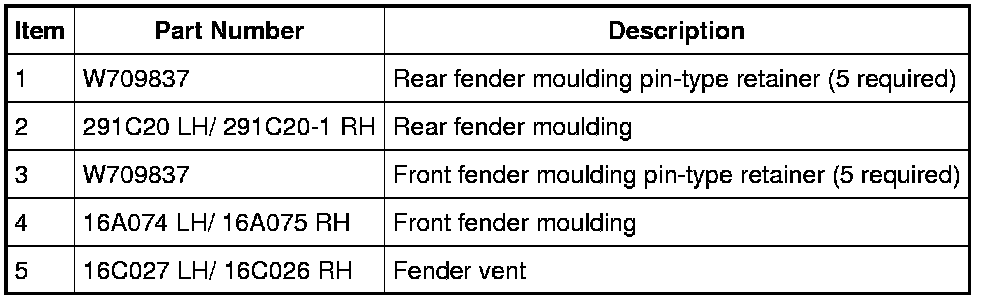

Exterior Moulding - Explorer Sport Trac
