Fuel Tank and Filler Pipe - Exploded View




Fuel Tank and Filler Pipe - Exploded View

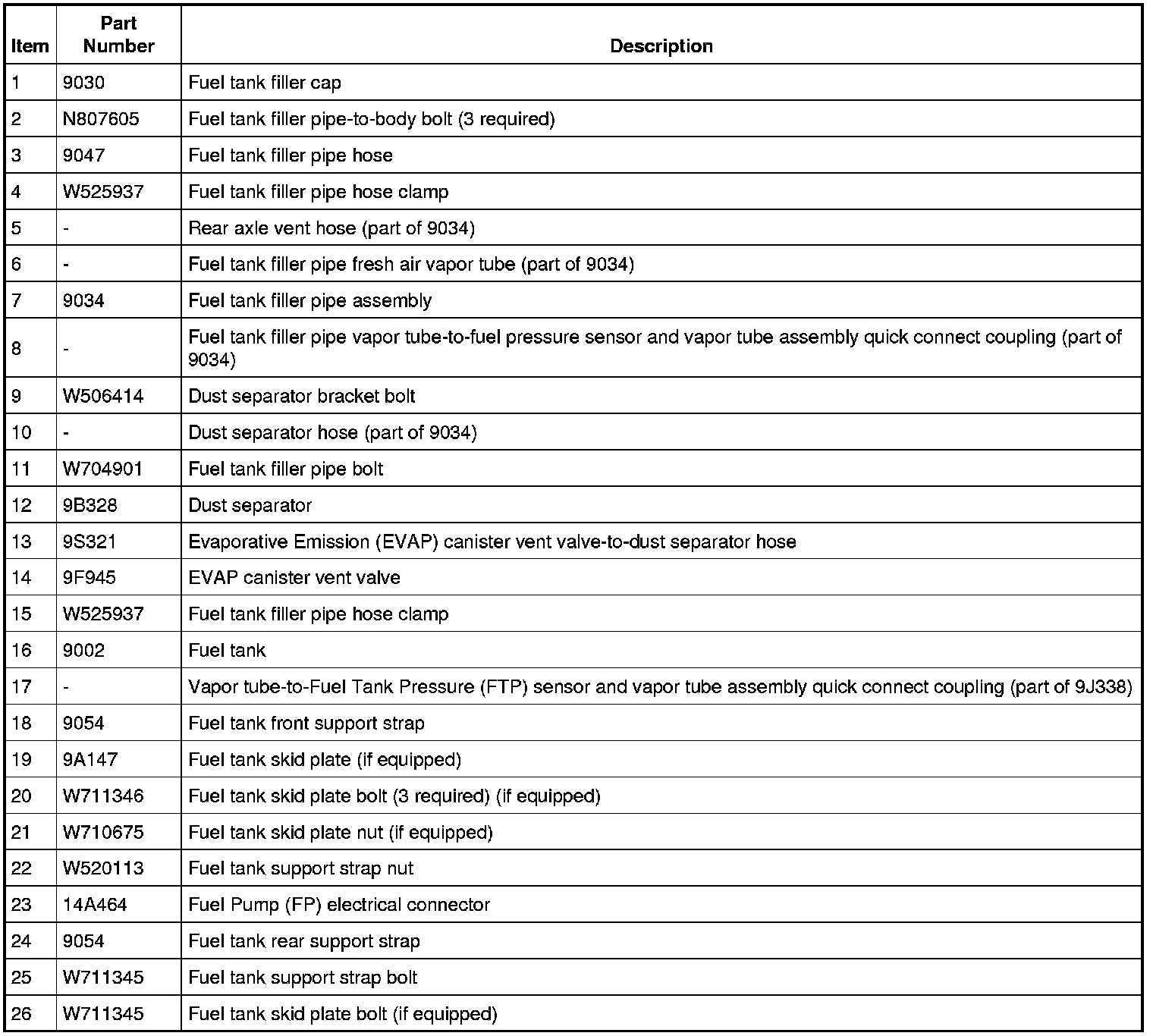

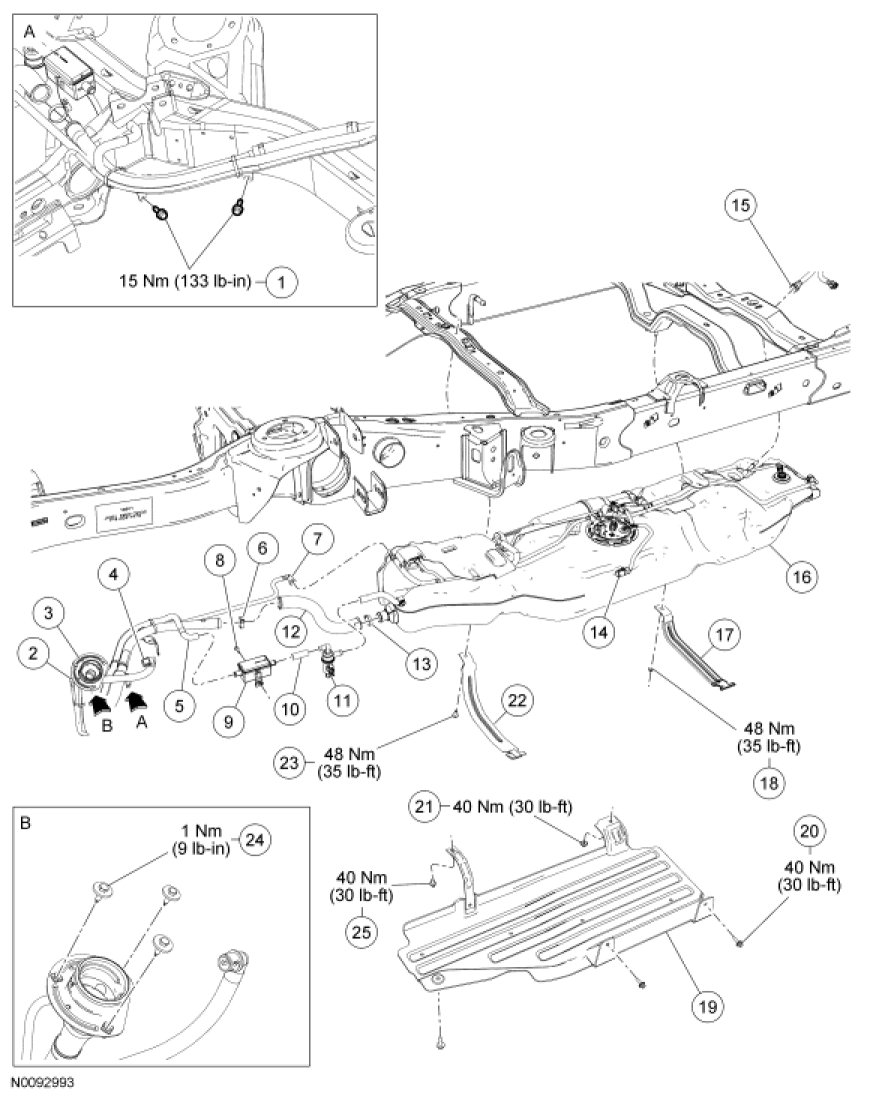

Explorer Sport Trac

NOTE: Vehicle body removed from art for clarity.

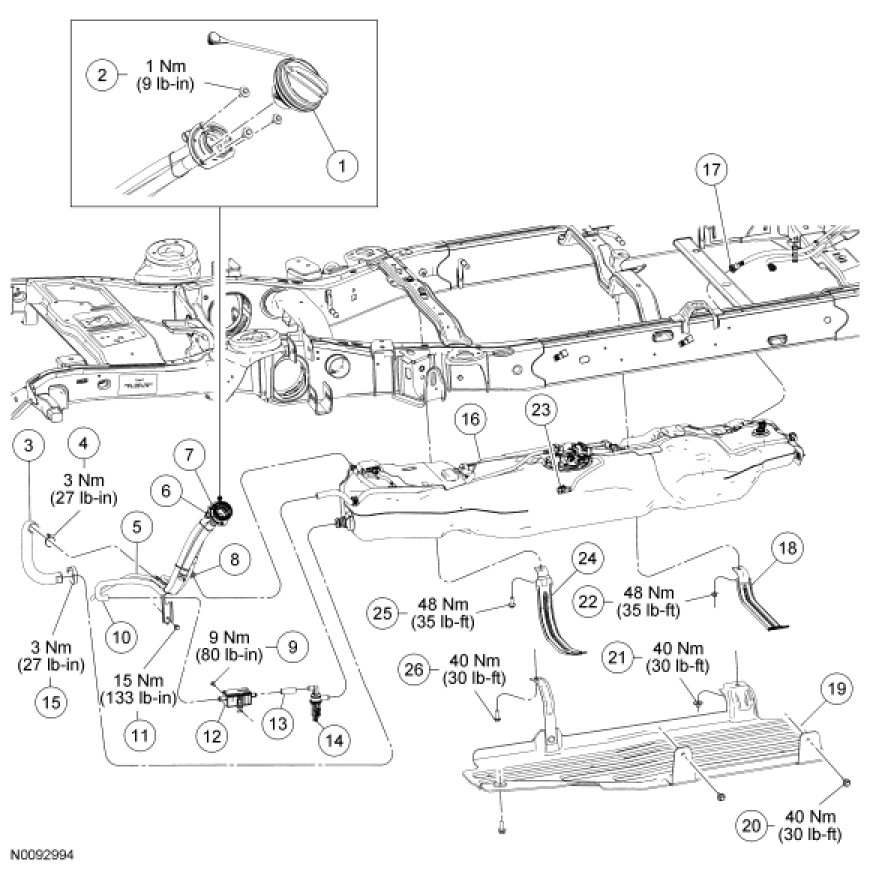

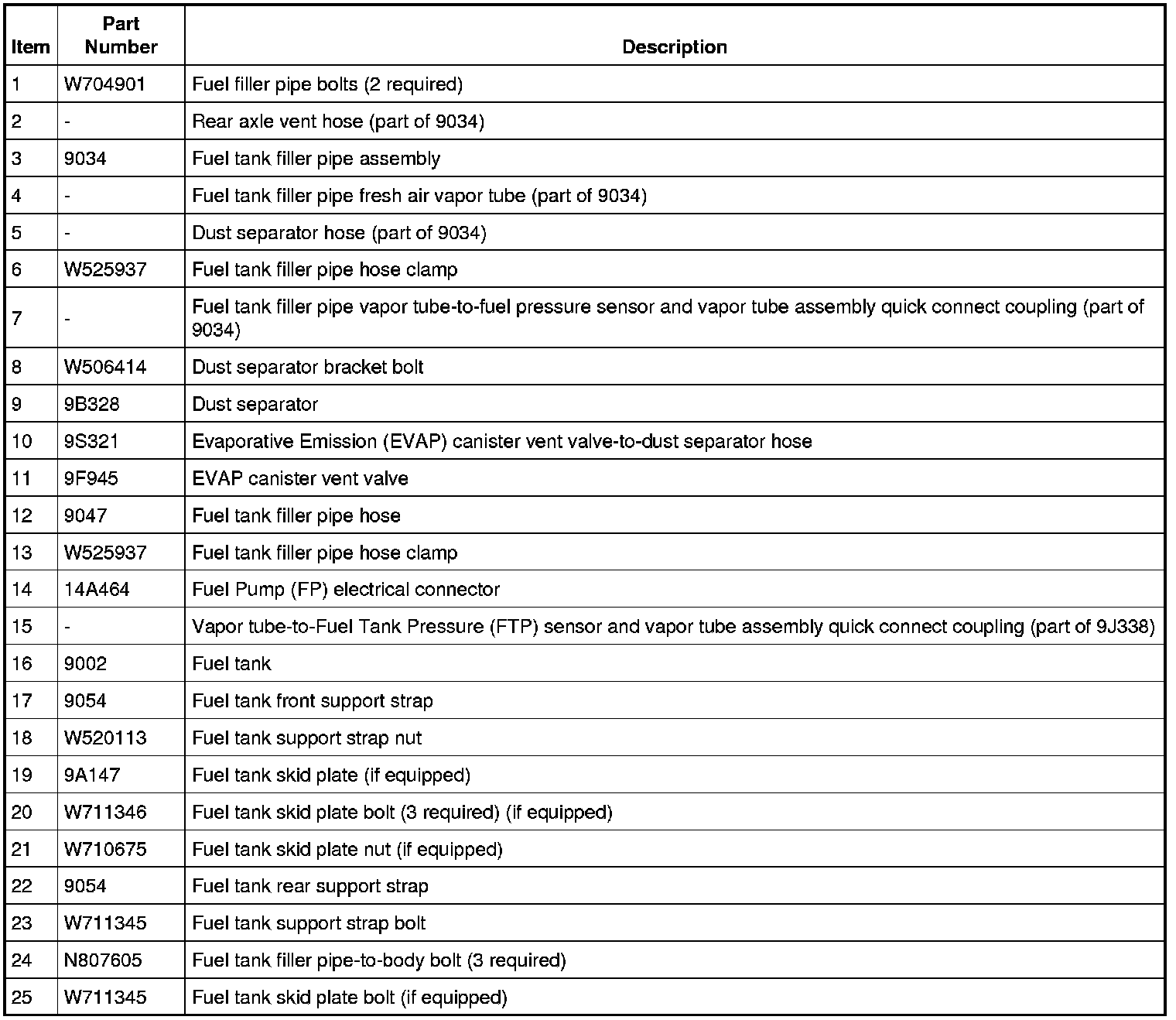

Explorer/Mountaineer

NOTE: Vehicle body removed for clarity.
