Exploded Views




Wiper and Washer System - Exploded View

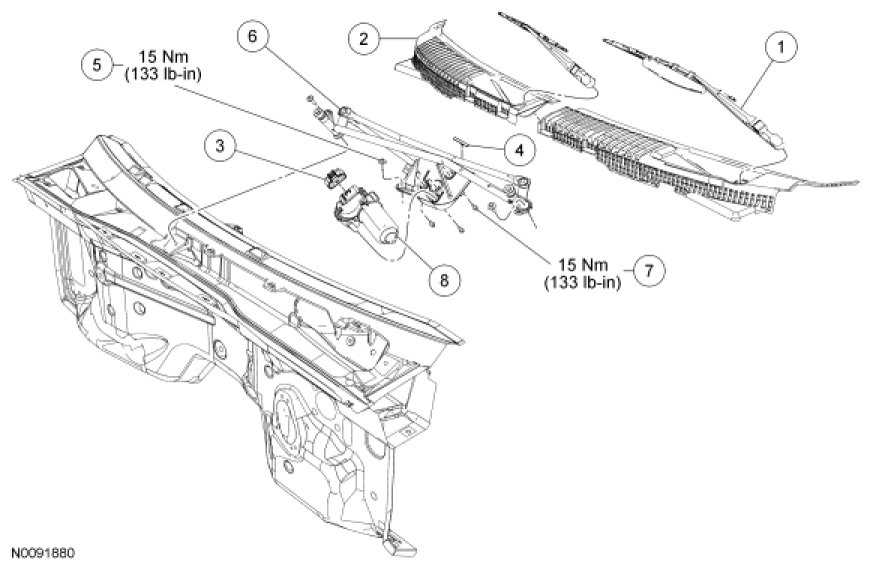

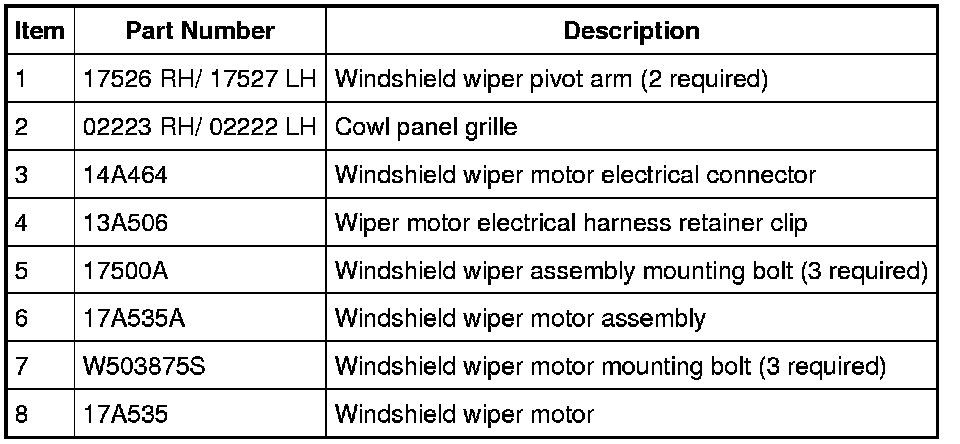

Windshield Wipers

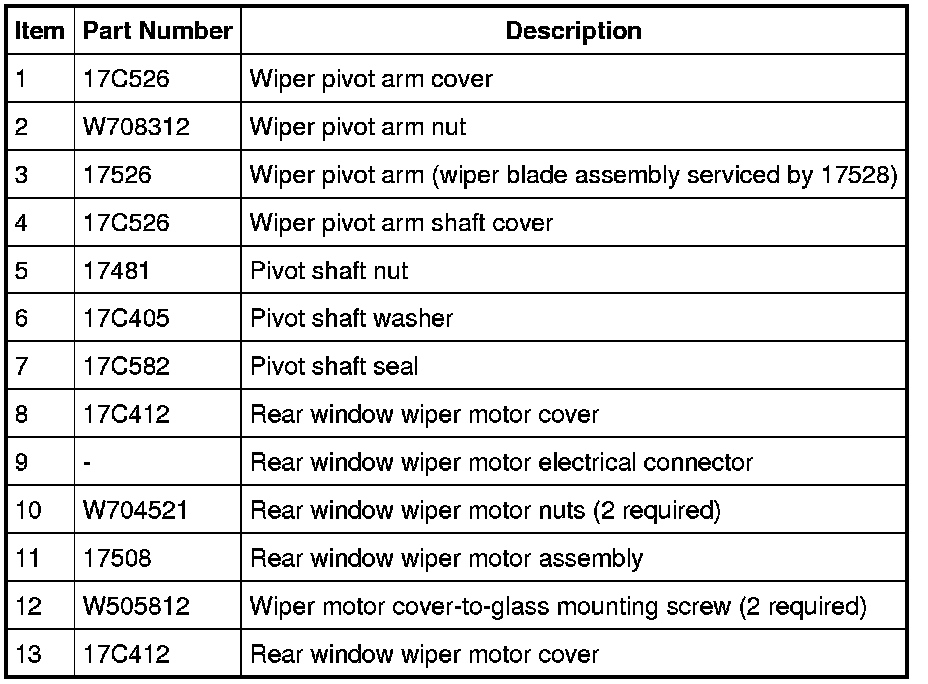

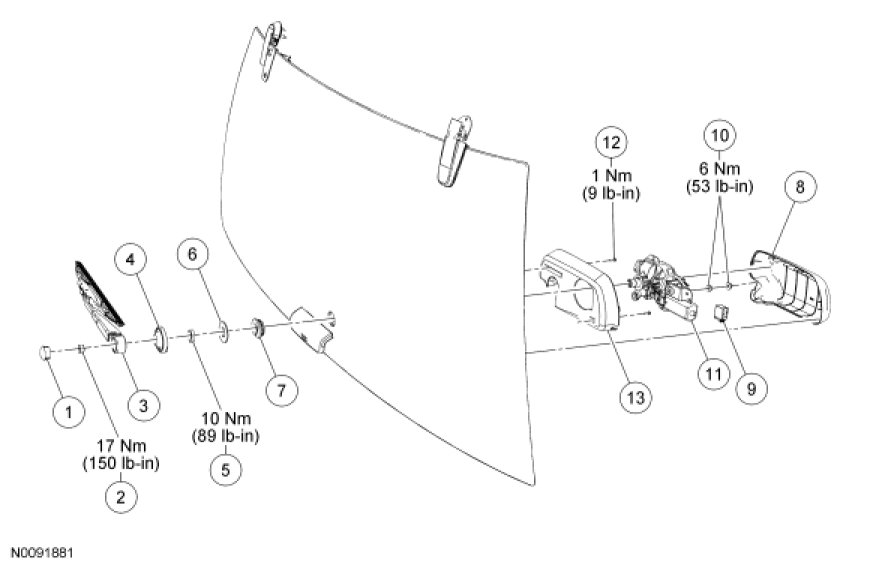

Rear Wiper

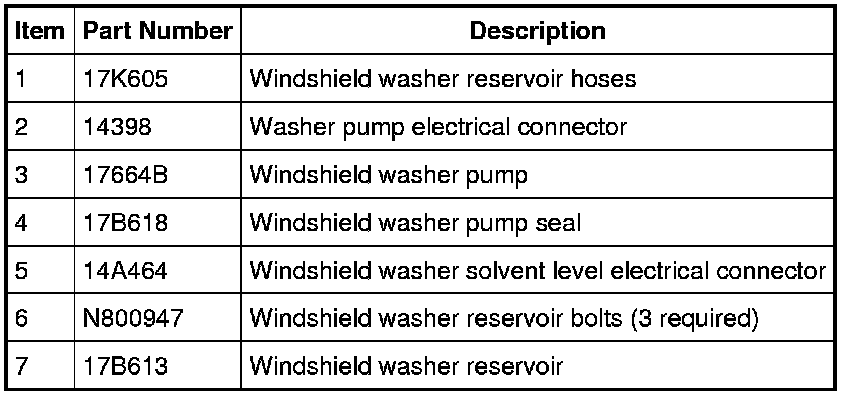

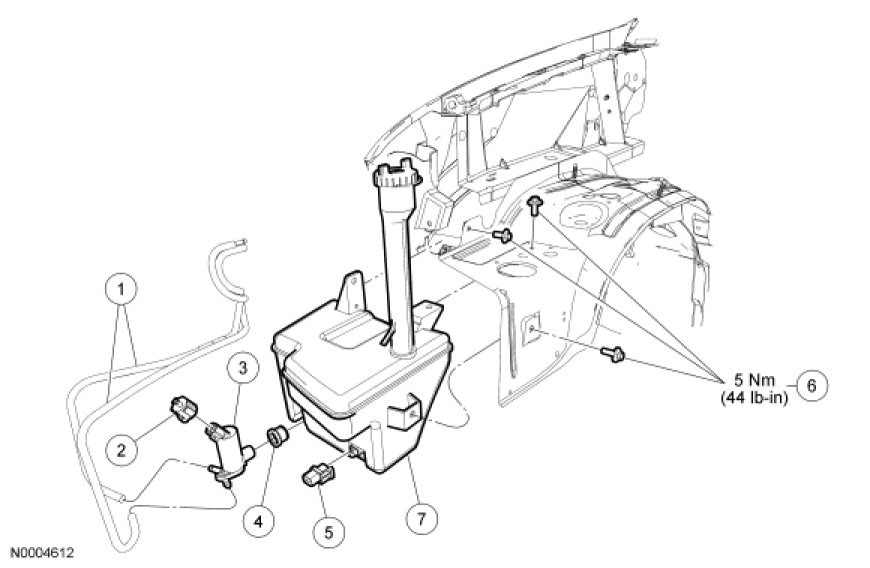

Washer Pump and Reservoir
