Accessory Protocol Interface Module (APIM)

Accessory Protocol Interface Module (APIM)

Floor Console Components









Accessory Protocol Interface Module (APIM)









Removal and Installation

1. NOTE: It is necessary to record the current Accessory Protocol Interface Module (APIM) software and hardware level when a new APIM is being installed to make sure that the new component is the same version as the component being replaced.

Retrieve and record the current APIM software and hardware level. For additional information, refer to Accessory Protocol Interface Module (APIM) Software Level Check Accessory Protocol Interface Module (APIM) Software Level Check.

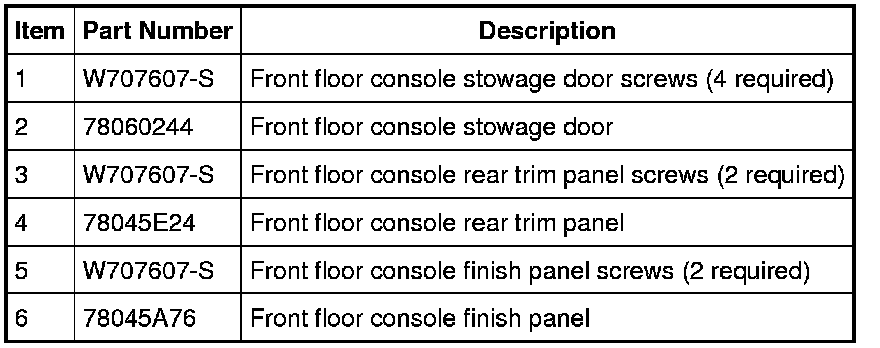

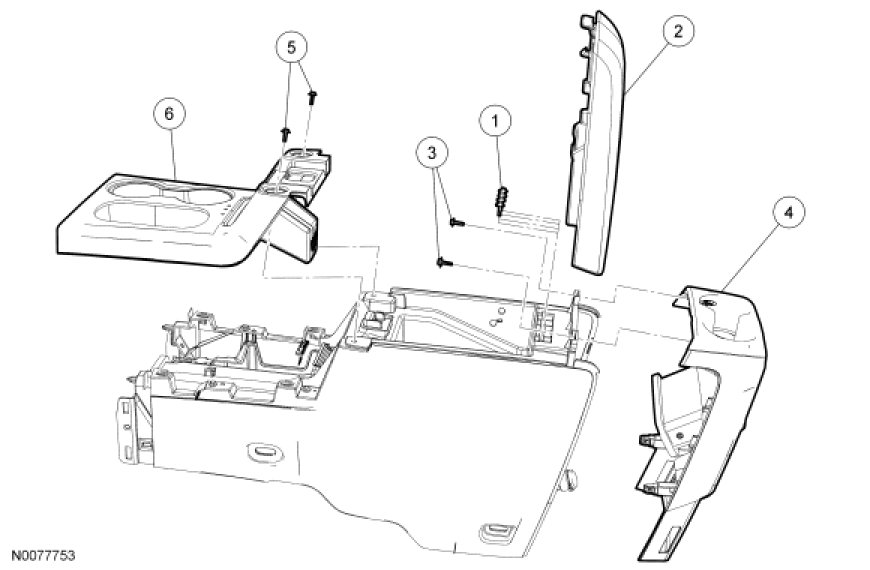

2. Remove the 4 screws and the front floor console stowage door.

3. Remove the 2 screws and the front floor console rear trim panel.
- Pull straight back to disengage the clips.

4. Remove the 2 screws and the front floor console finish panel.
- Pull straight up to disengage the clips.

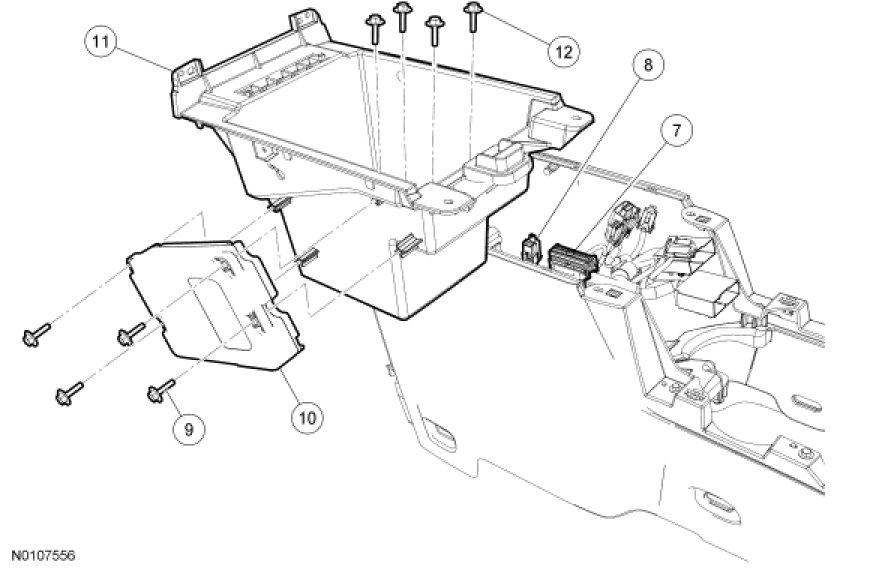

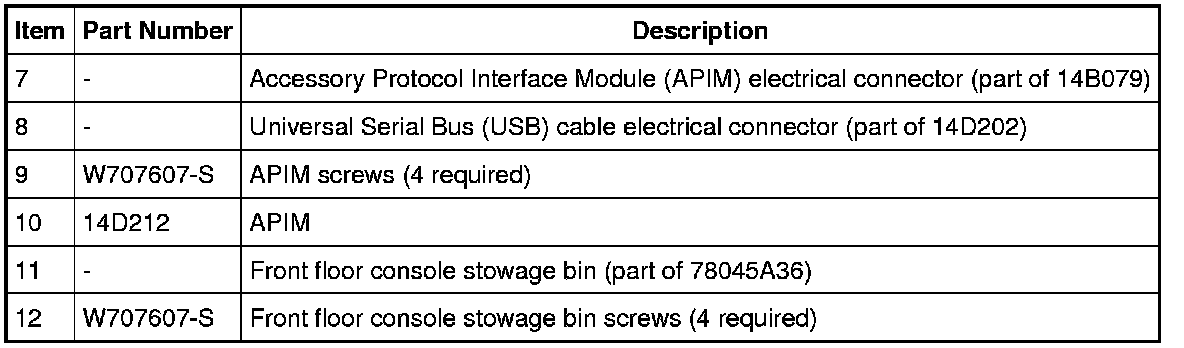

5. Remove the front floor console stowage bin.
- Remove the 4 screws.

- Disconnect the audio input jack electrical connector.

- Disconnect the Universal Serial Bus (USB) port electrical connector.

- Disconnect the APIM electrical connector.

- Disconnect the USB cable electrical connector (at the APIM).

6. Remove the 4 screws and the APIM.

7. To install, reverse the removal procedure.
- If a new APIM is being installed, program the APIM to the correct software level. For additional information, refer to Information Bus.
