Diagnostic Trouble Code Descriptions




Handles, Locks, Latches and Entry Systems

DTC Charts

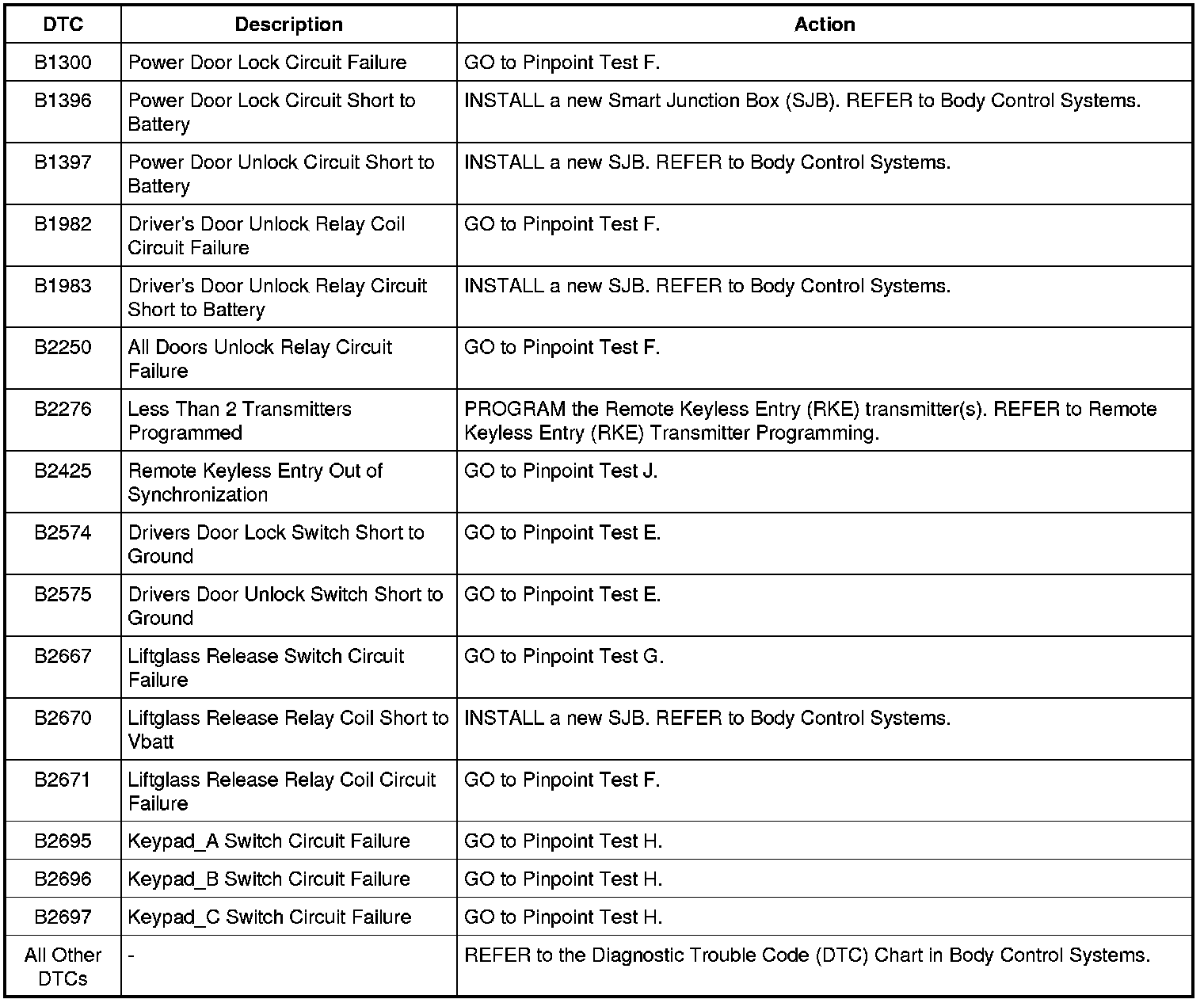

Smart Junction Box (SJB) DTC Chart

NOTE: Do not replace the SJB for DTC B2276 or DTC B2425.
