Mechanical Specifications

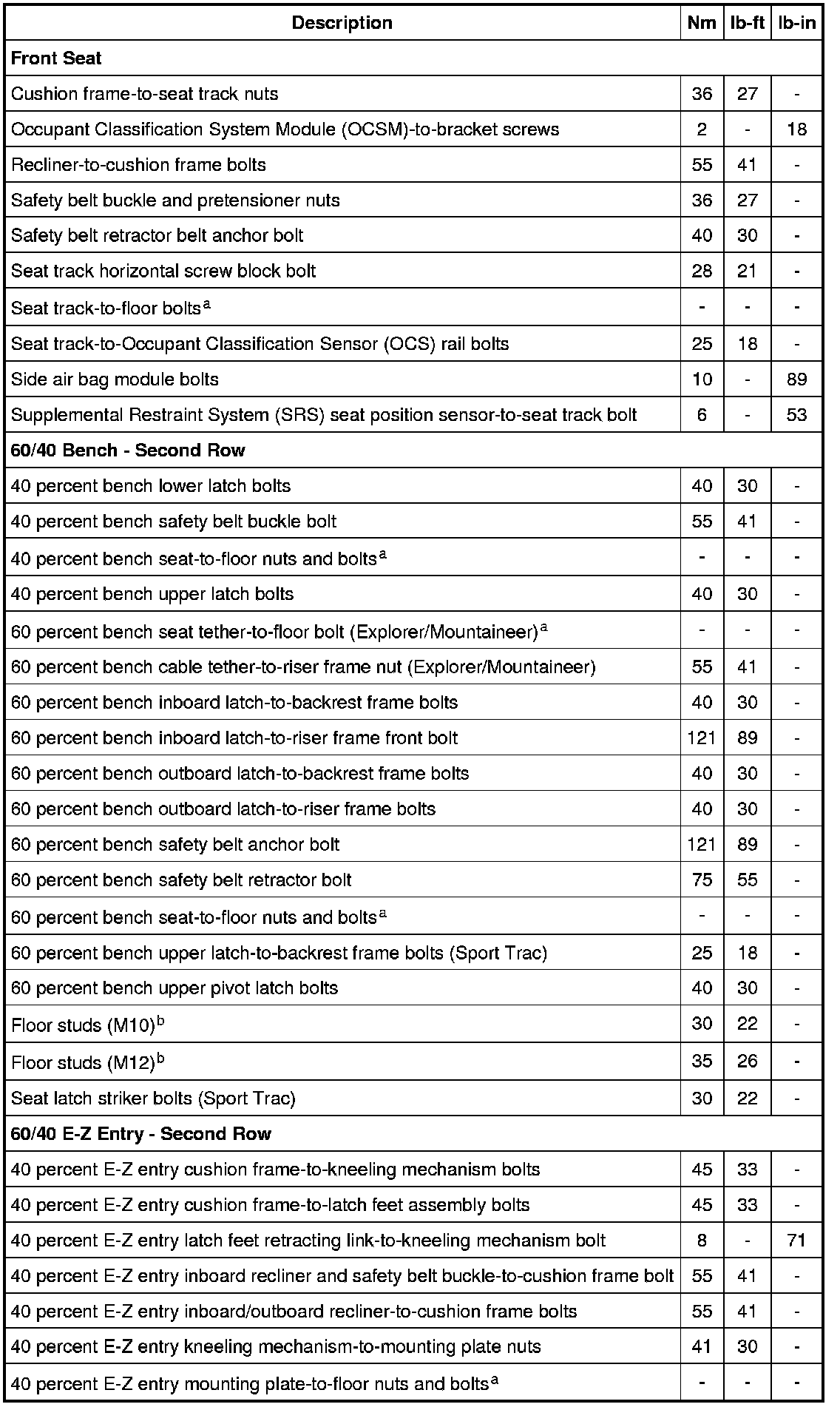

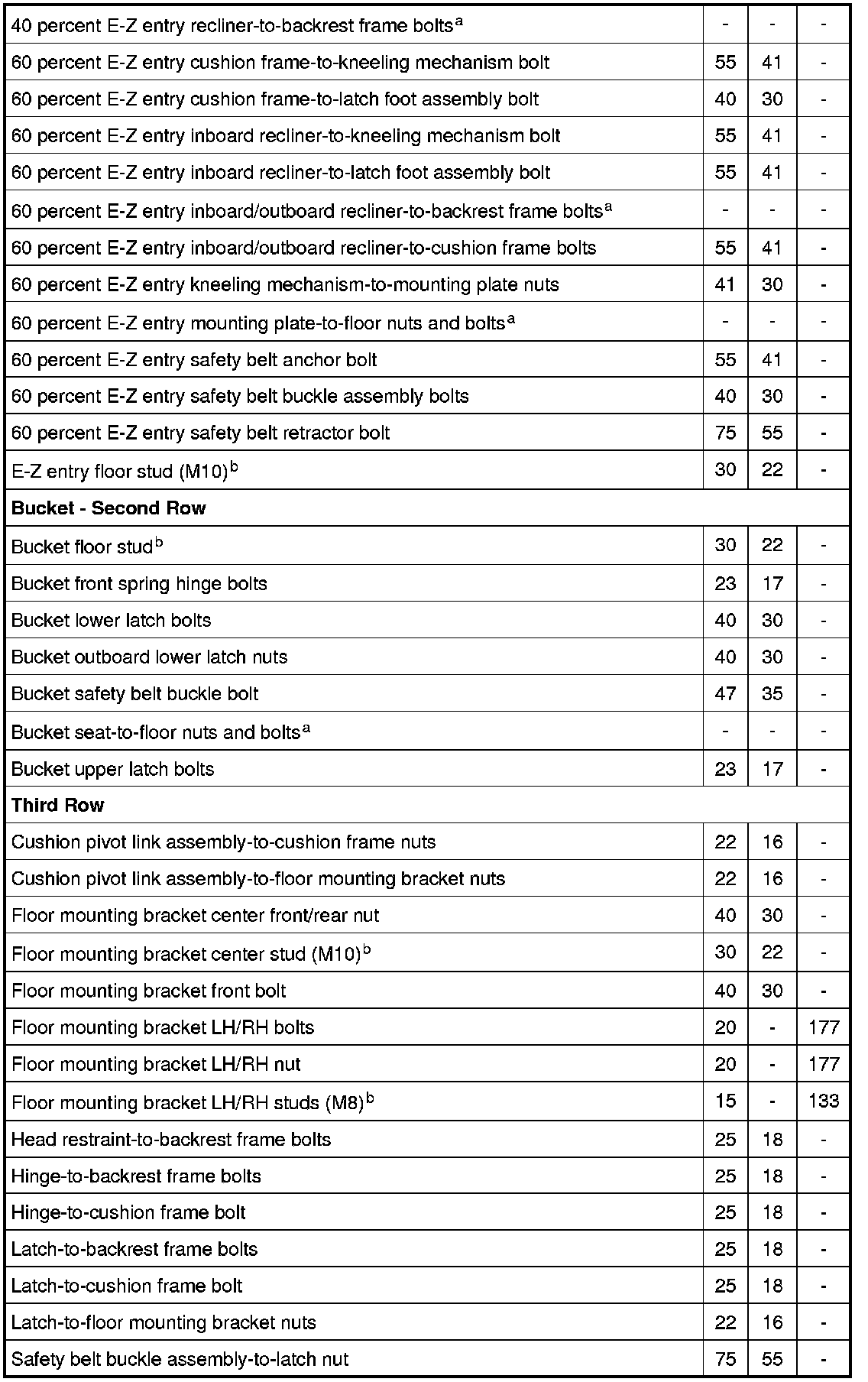

Torque Specifications









a Refer to procedure.

b Apply threadlock before installing.
